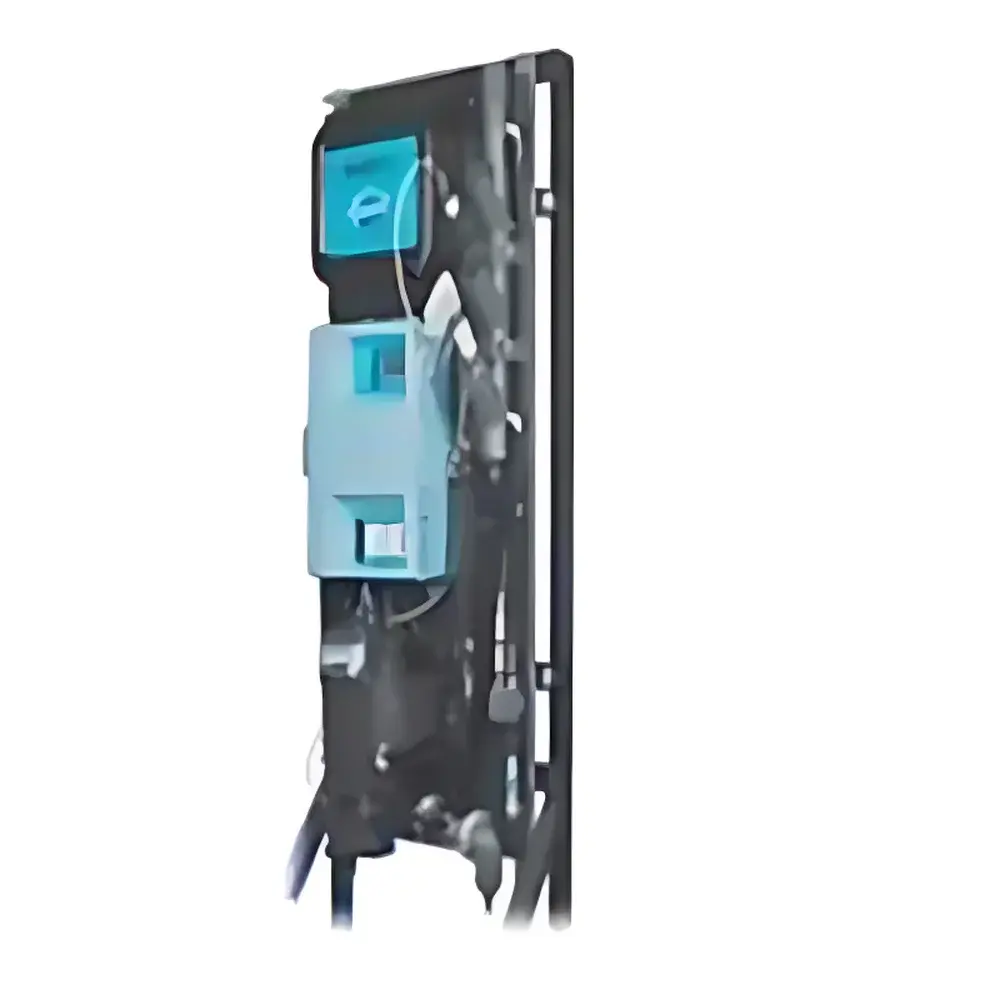

HACH WDMP sc Online Water Quality Monitoring Panel for Distribution Networks

Overview

The HACH WDMP sc Online Water Quality Monitoring Panel is an engineered solution for continuous, multi-parameter surveillance of drinking water distribution systems. Designed to operate unattended in municipal and utility infrastructure environments, it integrates digital sensor technology with the robust sc1000 universal controller platform to deliver real-time, traceable data on critical water quality indicators. Its measurement architecture relies on standardized electrochemical (pH, chlorine), optical (turbidity), conductometric (conductivity), and pressure-compensated thermal sensing principles — all aligned with established regulatory frameworks including EPA Method 180.1 (turbidity), Standard Methods 4500-Cl G (chlorine), and ISO 7888 (conductivity). The system is not a standalone analyzer but a coordinated monitoring node—capable of synchronizing with upstream treatment processes and downstream event-driven instrumentation such as TOC analyzers (e.g., HACH QbD1200), ORP sensors, and programmable auto-samplers. It supports long-term trend analysis, early anomaly detection, and compliance reporting for utilities subject to the U.S. Safe Drinking Water Act (SDWA), EU Drinking Water Directive (2020/2184), and ISO 24510-based asset management protocols.

Key Features

• Digital sensor architecture with RS485 MODBUS communication ensures noise-immune, long-distance (up to 1000 m) data transmission between sensors and the sc1000 controller—eliminating analog signal degradation.
• Modular parameter configuration: standard suite includes pH, conductivity, turbidity, free/total chlorine, pressure, and temperature; expandable via optional sensor inputs for TOC, ORP, and dissolved oxygen.
• Event-triggered monitoring logic enables automated response—e.g., initiating TOC analysis or sample preservation upon chlorine deviation exceeding user-defined thresholds.
• NEMA 4X-rated enclosure option provides protection against dust, corrosion, and water ingress—validated for outdoor deployment in meter pits, valve chambers, and above-ground kiosks.
• Single-point hydraulic interface: one 1/2″ OD or 3/8″ NPT inlet, one 3/4″ NPT or hose outlet, and one 1/4″ NPT connection for sampler integration—minimizing installation complexity and leak points.
• sc1000 controller firmware supports audit-trail logging, password-protected configuration, and time-stamped event records compliant with GLP and 21 CFR Part 11 requirements when paired with HACH DataStream software.

Sample Compatibility & Compliance

The WDMP sc is validated for use with potable water, treated surface water, and groundwater within defined hydraulic and chemical boundaries: sample temperature must remain between 5–40 °C; inlet pressure must be regulated to 20–125 psi (a pressure-reducing assembly, P/N 6846600, is required for sources exceeding 125 psi). All sensors comply with relevant international standards—including ASTM D2777 (precision and bias for turbidity), ISO 5667-3 (sampling preservation), and EN ISO 15839 (performance criteria for online water quality sensors). Calibration intervals follow manufacturer-recommended schedules (e.g., daily chlorine zero/span checks, weekly turbidity verification) and are fully documentable within the sc1000’s internal memory. The system supports both manual and automated calibration routines traceable to NIST-certified reference materials.

Software & Data Management

Data acquisition, visualization, and export are managed through the sc1000’s embedded operating system and HACH’s complementary software ecosystem. The controller stores up to 12 months of high-resolution (1-minute interval) parameter logs locally, with configurable alarm thresholds, hysteresis settings, and relay outputs for SCADA integration. When connected to HACH DataStream™ or enterprise-level platforms like AQUAmonitor, the WDMP sc transmits encrypted, timestamped datasets via MODBUS TCP or cellular telemetry—enabling centralized dashboarding, statistical process control (SPC) charting, and automatic report generation (PDF/CSV). All configuration changes, calibration events, and alarm activations generate immutable audit trails meeting FDA 21 CFR Part 11 electronic record requirements when deployed with appropriate user access controls and digital signature workflows.

Applications

• Real-time monitoring of pressure zones and critical junctions in municipal distribution networks to detect contamination ingress, biofilm sloughing, or disinfectant decay.
• Verification of residual chlorine stability across extended pipe runs—supporting optimization of booster station dosing strategies.
• Turbidity-pH-conductivity correlation analysis for identifying source water shifts (e.g., runoff events, algal blooms) before they impact customer taps.
• Regulatory compliance monitoring for utilities required to report under EPA’s Long-Term 2 Enhanced Surface Water Treatment Rule (LT2ESWTR) or Germany’s Trinkwasserverordnung (TrinkwV).
• Performance validation of inline UV reactors or granular activated carbon (GAC) contactors via synchronized TOC and chlorine tracking.

FAQ

What is the maximum allowable sample pressure without external regulation?
The WDMP sc is rated for continuous operation at 20–125 psi. For pressures exceeding 125 psi, HACH part number 6846600 (pressure regulator kit) must be installed upstream.
Can the system operate without a continuous power supply?
No—the WDMP sc requires uninterrupted 115/230 VAC, 50 Hz input. Battery backup or UPS integration is recommended for mission-critical installations to maintain data continuity during outages.
Is remote firmware update supported?
Yes—via HACH DataStream or direct USB connection to the sc1000 controller, following documented version compatibility matrices and change-control procedures.
How is sensor drift compensated during extended deployments?
The sc1000 supports scheduled automatic verification (e.g., turbidity blank checks) and user-initiated multi-point calibrations using certified standards; drift correction algorithms are applied per parameter per ASTM/ISO validation protocols.
Does the system meet cybersecurity requirements for OT environments?
The WDMP sc operates on isolated MODBUS RS485 networks by default; when connected to IP networks, it supports VLAN segmentation, firewall rule enforcement, and TLS-enabled data transmission when used with HACH’s secure gateway solutions.
