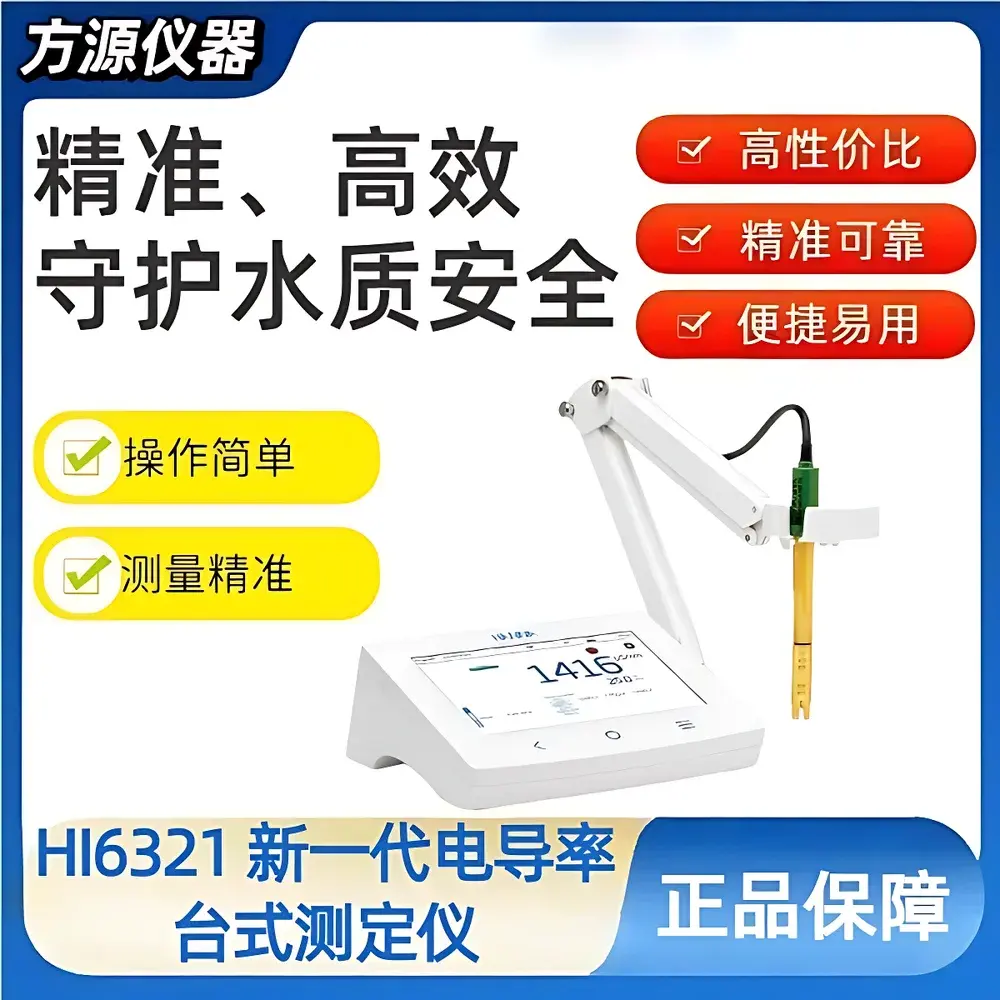

Hanna HI6321 Advanced Benchtop Conductivity Meter

Overview

The Hanna HI6321 Advanced Benchtop Conductivity Meter is a high-precision, multi-parameter electrochemical analyzer engineered for rigorous laboratory and quality control environments. It employs four-electrode conductivity measurement technology—eliminating polarization errors and enabling stable, reproducible readings across ultra-low to high-conductivity matrices. Unlike traditional two-electrode systems, the HI6321’s isolated current source architecture ensures accurate EC measurements even in samples with variable electrode fouling or surface charge effects. The instrument simultaneously computes and displays conductivity (μS/cm, mS/cm), resistivity (Ω·cm to MΩ·cm), total dissolved solids (TDS), practical salinity units (PSU), ppt, and % salinity—all with automatic temperature compensation referenced to 25 °C per ASTM D1125 and ISO 7888. Its integrated Pt1000 temperature sensor delivers ±0.2 °C accuracy over −20.0 to 120.0 °C, supporting both linear and non-linear (NaCl-based) compensation models required for seawater, pharmaceutical buffers, and ultrapure water applications.

Key Features

• Four-electrode conductivity measurement with galvanically isolated current source for enhanced stability in low-conductivity and high-viscosity samples
• Seven programmable EC ranges spanning 0.000 μS/cm to 1000.0 mS/cm, each with optimized resolution (e.g., 0.001 μS/cm at lowest range)
• Full GLP compliance: time-stamped calibration records, electrode offset tracking, calibration verification logs, and user-defined audit trails
• Multi-view display interface—including real-time graphical trend plots (EC vs. time), tabular logging with annotation fields, and dual GLP views (basic and extended)
• Configurable stability criteria (Fast/Medium/Accurate) and auto-hold functionality with user-definable thresholds for pass/fail alarms
• Dual USB-A ports supporting HID keyboards, USB flash drives, and thermal printers; USB-C port for direct PC synchronization and firmware updates
• Network-enabled data export via Ethernet/Wi-Fi: scheduled FTP uploads, email-triggered CSV log delivery, and embedded web server for remote file access

Sample Compatibility & Compliance

The HI6321 accommodates a broad spectrum of aqueous matrices—from deionized water (1.0–99.9 Ω·cm) and pharmaceutical rinse solutions to industrial brines (up to 1000 mS/cm) and seawater (0.00–42.00 PSU). Its HI7631233 four-pole graphite conductivity cell features a rugged epoxy body and integrated temperature sensor, certified for IP67 immersion and compatible with aggressive solvents and high-salinity media. All measurement algorithms adhere to internationally recognized standards: conductivity calculations follow ISO 7888:2019; TDS conversion uses the default 0.65 factor per USP , with user-adjustable coefficients; salinity modes comply with PSS-78 (Practical Salinity Scale) for oceanographic work and ASTM D1125 for industrial water testing. The device supports 21 CFR Part 11–compliant electronic signatures when paired with authorized user accounts and password-protected administrator mode.

Software & Data Management

Data integrity is enforced through non-volatile memory retaining ≥1,000,000 logged points with microsecond-resolution timestamps. Logging modes include manual trigger, fixed-interval (1 s to 500 days), and auto-hold capture synchronized to stability criteria. Each dataset embeds metadata: operator ID, sample ID (with auto-increment), calibration history, electrode serial number, and environmental conditions. Exported .csv files contain column headers compliant with LIMS ingestion protocols (e.g., “Timestamp,EC_μS_cm,Resistivity_MOhm_cm,TDS_ppm,Salinity_PSU,Temperature_C”). The onboard web interface allows secure remote configuration and log retrieval without proprietary software. Firmware updates are validated via SHA-256 checksums, and all configuration changes generate immutable audit entries traceable to user, timestamp, and parameter modified.

Applications

• Pharmaceutical QC: USP water conductivity verification for Purified Water (PW) and Water for Injection (WFI), including resistivity mapping of distribution loops
• Environmental labs: EPA Method 120.1-compliant conductivity and salinity profiling of estuarine and freshwater systems
• Food & beverage: TDS monitoring during syrup dilution, brine concentration control, and dairy effluent characterization
• Power generation: Ultralow-conductivity testing of boiler feedwater per ASTM D4582 and IAPWS guidelines
• Academic research: Multi-parameter kinetic studies of ion exchange resins, membrane fouling, and electrolyte diffusion dynamics

FAQ

Does the HI6321 support calibration verification against NIST-traceable standards?
Yes—the instrument stores full calibration metadata including standard lot numbers, expiration dates, and measured deviation values, enabling traceability to ISO/IEC 17025-accredited reference materials.
Can the HI6321 be integrated into a LIMS environment?
Yes—CSV exports conform to ASTM E1461-22 structured formatting, and optional API integration via HTTP POST enables direct ingestion into validated LIMS platforms.
Is temperature compensation customizable for non-aqueous solvents?
No—the built-in algorithms are optimized for aqueous systems per ISO 7888; non-aqueous applications require external correction factors applied post-measurement.
How is data security maintained during network transmission?
All Wi-Fi/Ethernet communications use TLS 1.2 encryption; FTP transfers support explicit SSL/TLS mode; email exports are sent via authenticated SMTP with STARTTLS.
What is the warranty coverage and service documentation availability?
Hanna Instruments provides a 3-year limited warranty; full service manuals, calibration certificates, and IQ/OQ templates are available through the Hanna Support Portal upon registration.
