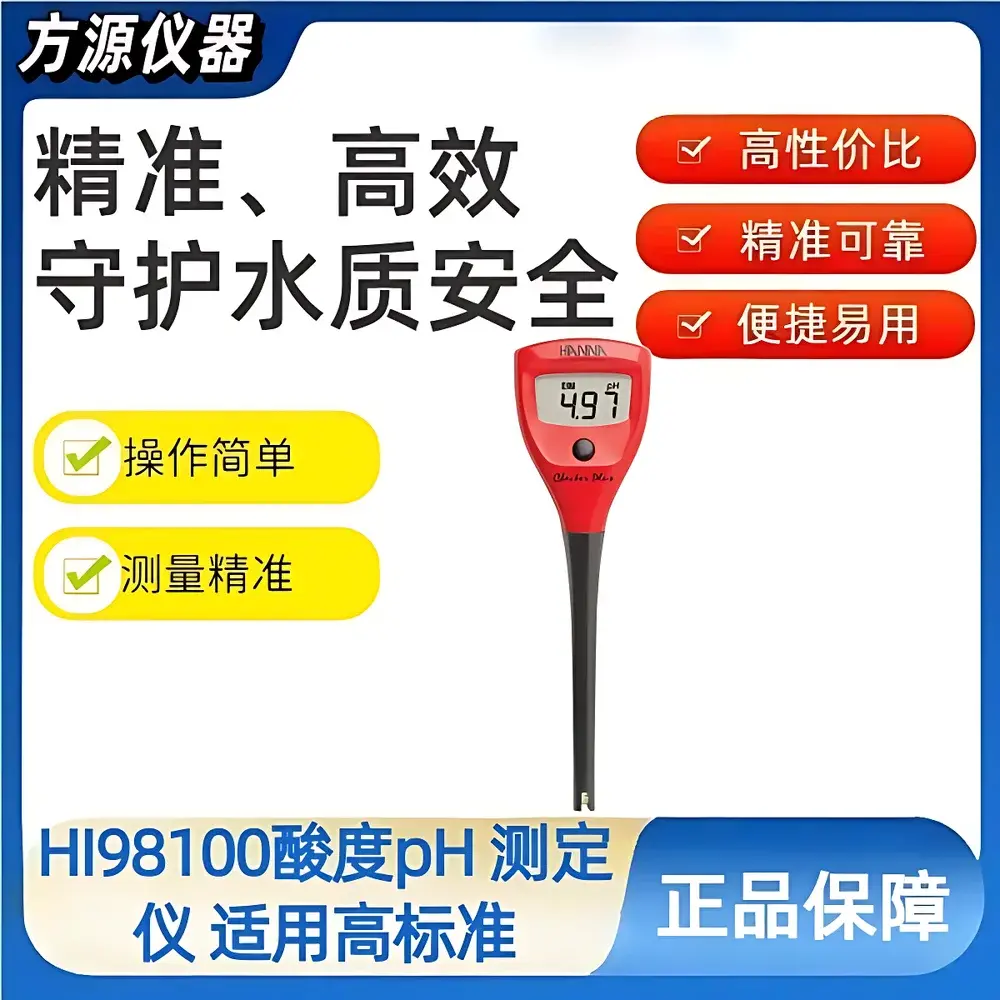

Hanna HI98100 Portable pH Meter for High-Standard Measurements

Overview

The Hanna HI98100 is a compact, single-parameter portable pH meter engineered for reliable field and benchtop measurements where precision, ease of use, and traceable calibration are essential. It operates on the fundamental principle of potentiometric pH measurement—detecting the potential difference between a pH-sensitive glass membrane and a stable reference electrode in aqueous solution, converted into a logarithmic pH value per the Nernst equation. Designed for laboratories, quality control technicians, educators, and field personnel requiring rapid, repeatable results without compromise, the HI98100 delivers calibrated accuracy within ±0.2 pH at 25°C across the full operational range of 0.00–14.00 pH. Its microprocessor-controlled architecture supports automatic endpoint detection via dynamic stability monitoring—displaying a sandglass icon during measurement and removing it only upon signal stabilization—ensuring users record values only when electrochemical equilibrium is achieved. The instrument complies with general laboratory practice requirements for pH instrumentation and is suitable for applications aligned with ISO 5725 (accuracy and precision), ASTM D1293 (pH of water), and USP (pH measurement in pharmaceutical preparations), though it does not incorporate active temperature compensation or regulatory-grade audit trail features.

Key Features

• High-resolution LCD display with intuitive icon-based interface: large digits, real-time stability indicator (sandglass), low-battery warning, and error code feedback (e.g., “Err” for electrode fault detection)
• Automatic electrode diagnostics during calibration: evaluates slope response and offset, alerts user if electrode performance falls outside acceptable thresholds
• Two-point auto-recognition calibration using factory-traceable buffer standards (pH 4.01 and 7.01 at 25°C); optional third-point (pH 10.01) support enhances linearity verification
• Threaded HI1271 composite pH electrode (Ø8 mm × 103 mm): optimized for small-volume samples, narrow-neck containers, and semi-solid matrices; integrated reference junction minimizes clogging risk
• User-configurable auto-power-off: selectable intervals of 8 minutes, 60 minutes, or disabled—balancing battery longevity (up to 1,000 hours typical with CR2032) and operational flexibility
• Robust mechanical design: IP67-rated housing (when sealed), lightweight (44 g), and ergonomic form factor enable one-handed operation in diverse environmental conditions (0–50°C, ≤95% RH)

Sample Compatibility & Compliance

The HI98100 is validated for use with aqueous solutions, buffer standards, and low-viscosity liquid samples commonly encountered in food safety screening, environmental monitoring, educational labs, and basic industrial QC. Its 8-mm-diameter electrode allows insertion into vials, test tubes, and narrow bioreactor ports where conventional electrodes cannot fit. While not certified for GLP/GMP-regulated environments requiring electronic records or 21 CFR Part 11 compliance, the device supports documented manual calibration logs and adheres to foundational metrological principles outlined in ISO/IEC 17025 clause 5.5.2 (equipment verification). All included reagents—HI70004P (pH 4.01) and HI70007P (pH 7.01) single-use sachets—are manufactured under Hanna’s quality system and meet traceability requirements for secondary standardization per ISO 6059. Electrode storage in HI70300 pH electrode storage solution maintains hydration and reference junction integrity between uses.

Software & Data Management

The HI98100 operates as a standalone instrument with no embedded data logging, Bluetooth, or USB connectivity. All measurements are displayed in real time and must be manually recorded. This architecture eliminates firmware complexity, reduces failure points, and ensures long-term reliability in resource-constrained or electromagnetically noisy settings. Calibration history is retained in volatile memory until power loss but is not timestamped or exportable. For regulated workflows requiring audit trails, users are advised to maintain external calibration logs referencing batch numbers of included buffers (e.g., HI70004P Lot #XXXXX) and electrode serial identifiers. Hanna provides printable calibration record templates compatible with ISO/IEC 17025 documentation frameworks.

Applications

• Field testing of drinking water, wastewater effluent, and surface water per EPA Method 150.1 and APHA Standard Methods 4500-H⁺
• Routine QC checks in beverage production (e.g., juice acidity, brewing wort pH)
• Educational demonstrations of acid-base equilibria and calibration protocols
• Soil extract analysis (using HI981030 variant accessories) and agricultural runoff screening
• Quick verification of cleaning-in-place (CIP) rinse water neutrality in food processing lines
• Pre-screening of cosmetic formulations and topical products (in conjunction with HI981037 skin-pH probe variants)

FAQ

What does the “Err” message indicate during calibration?
It signals abnormal electrode response—typically due to contamination, dried electrolyte, or membrane damage. Clean the HI1271 electrode with HI7061L cleaning solution for 15–20 minutes before recalibrating.
Can the HI98100 measure temperature-compensated pH?
No. It lacks an integrated temperature sensor and performs pH readings at ambient temperature without automatic compensation. For temperature-critical applications, use a separate thermometer and apply manual correction per NIST SRM tables.
Is the HI1271 electrode replaceable and serviceable?
Yes. The threaded design allows full replacement of the sensing element; HI1271 is a consumable item with typical service life of 6–12 months depending on usage frequency and sample matrix.
How often should calibration buffers be replaced?
Single-use sachets (HI70004P/HI70007P) must be discarded after opening. Unopened buffers retain certification for 24 months from manufacture date when stored at 15–25°C.
Does the instrument support pH 10.01 calibration?
Yes—though not preloaded as default, the HI98100 recognizes pH 10.01 at 25°C when used during two-point calibration to verify alkaline-range performance.
