Overview

This integrated product portfolio comprises ten rigorously engineered laboratory and field instruments designed for environmental monitoring, materials characterization, process control, and quality assurance across research, industrial, and regulatory settings. Each device adheres to internationally referenced test standards—including ASTM, ISO, GB/T, and IP—and is constructed for operational reliability under controlled and harsh ambient conditions. The suite spans hydrological measurement (HAD12-1A propeller current meter), vacuum integrity verification (HAD-BB spark tester), electrochemical trace analysis (HAD-P121 cyanide analyzer), precision mechanical coating (HAD-300A battery electrode coater), non-destructive thickness evaluation (HAD-T180 ultrasonic gauge), angular metrology (HAD-I420 dual-axis inclinometer), gas hazard detection (HAD-AK2 pump-suction detector), rheological characterization (HAD-266A Engler viscometer), sample preparation (HAD-GT83B centrifugal concentrator), and benthic ecological sampling (HAD40 sampler). All units are CE-marked compliant for export, with documentation traceable to ISO/IEC 17025-aligned calibration practices where applicable.

Key Features

HAD40 Benthic Sampler: Stainless-steel frame with 40 cm × 20 cm rectangular aperture; optimized drag geometry for qualitative macrofauna retrieval in freshwater and marine sediments.

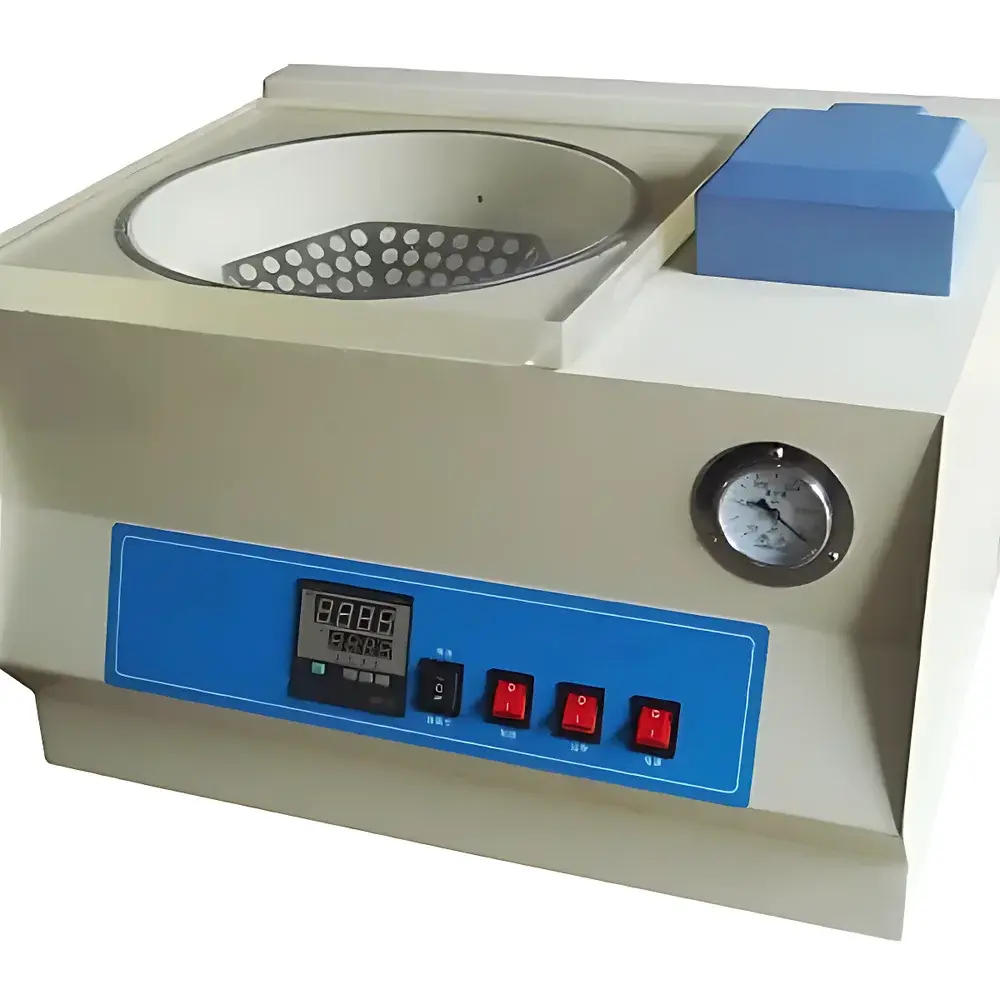

HAD-GT83B Centrifugal Concentrator: Integrated vacuum (≤0.1 Pa), heating (RT–95 °C), and centrifugation (1400 rpm); accommodates 144 × 1.5 mL tubes or dual 96-well microplates; includes LN₂ cold trap compatibility for volatile solvent removal.

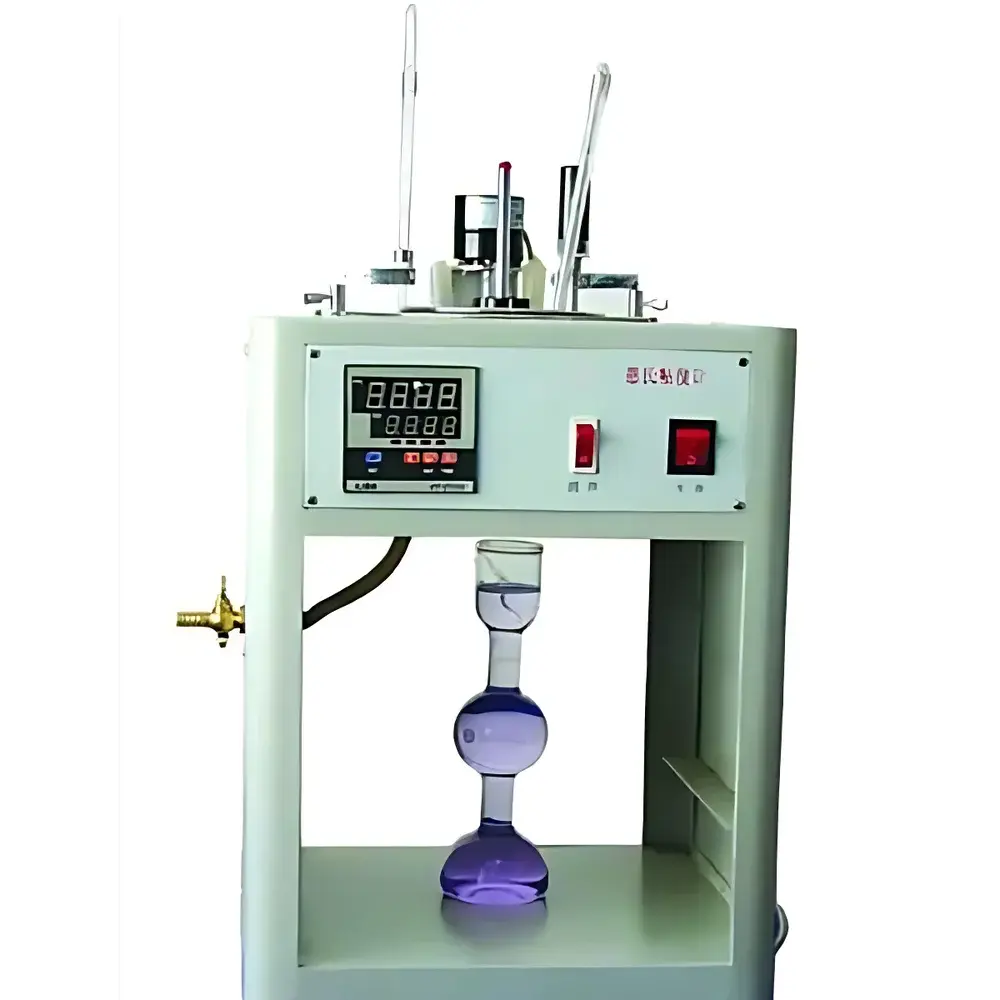

HAD-266A Engler Viscometer: Compliant with GB/T 266, IP 212, and ASTM D1665; thermostatically controlled bath (±0.2 °C) with electric stirring; certified water value 51 s ±1 s at 20 °C.
HAD-P121 Cyanide Analyzer: Photometric method per ISO 6703-2; LOD 0.01 mg/L; dual-range measurement (0.01–0.50 mg/L and 0.01–50 mg/L via dilution); cold LED light source with narrow-band interference optics.

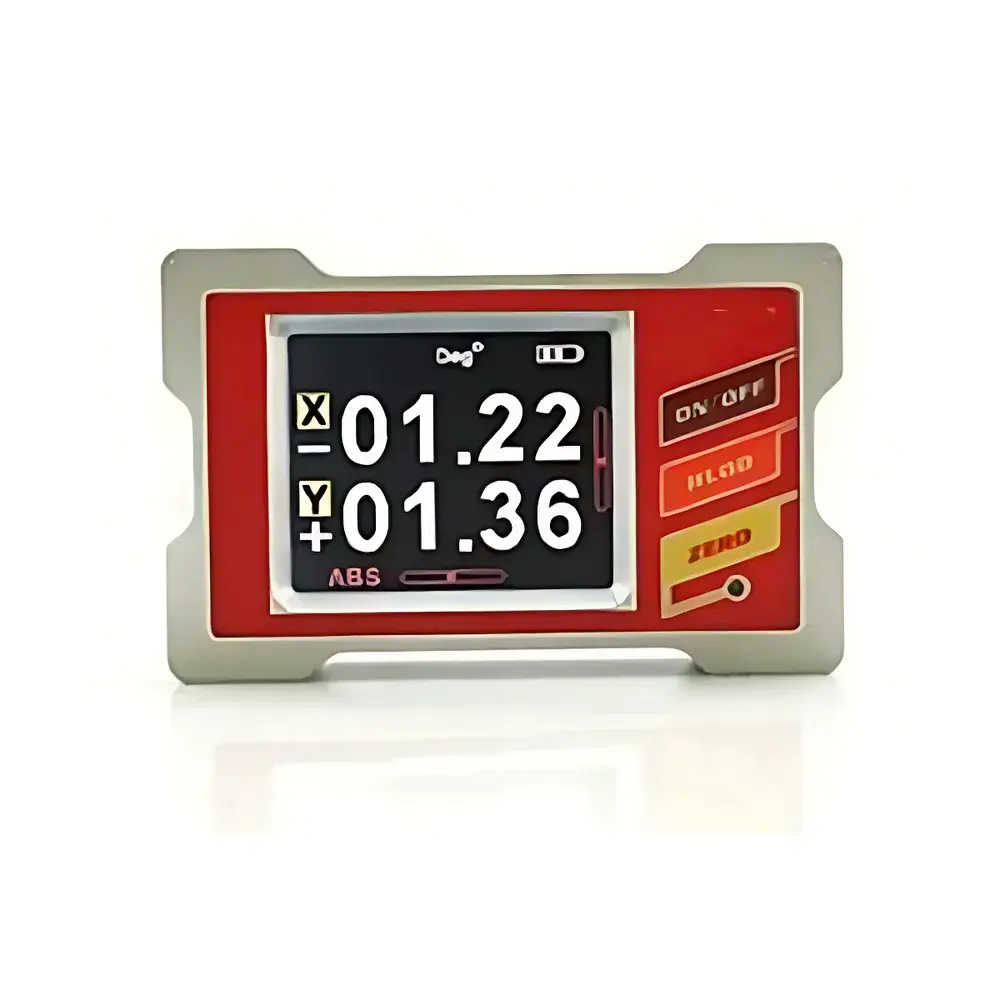

HAD-I420 Dual-Axis Inclinometer: MEMS-based dual-core sensor architecture with real-time cross-axis compensation and temperature drift correction; resolution 0.01°, accuracy <0.05° over ±90° range; IP54-rated enclosure with magnetic mounting interface.

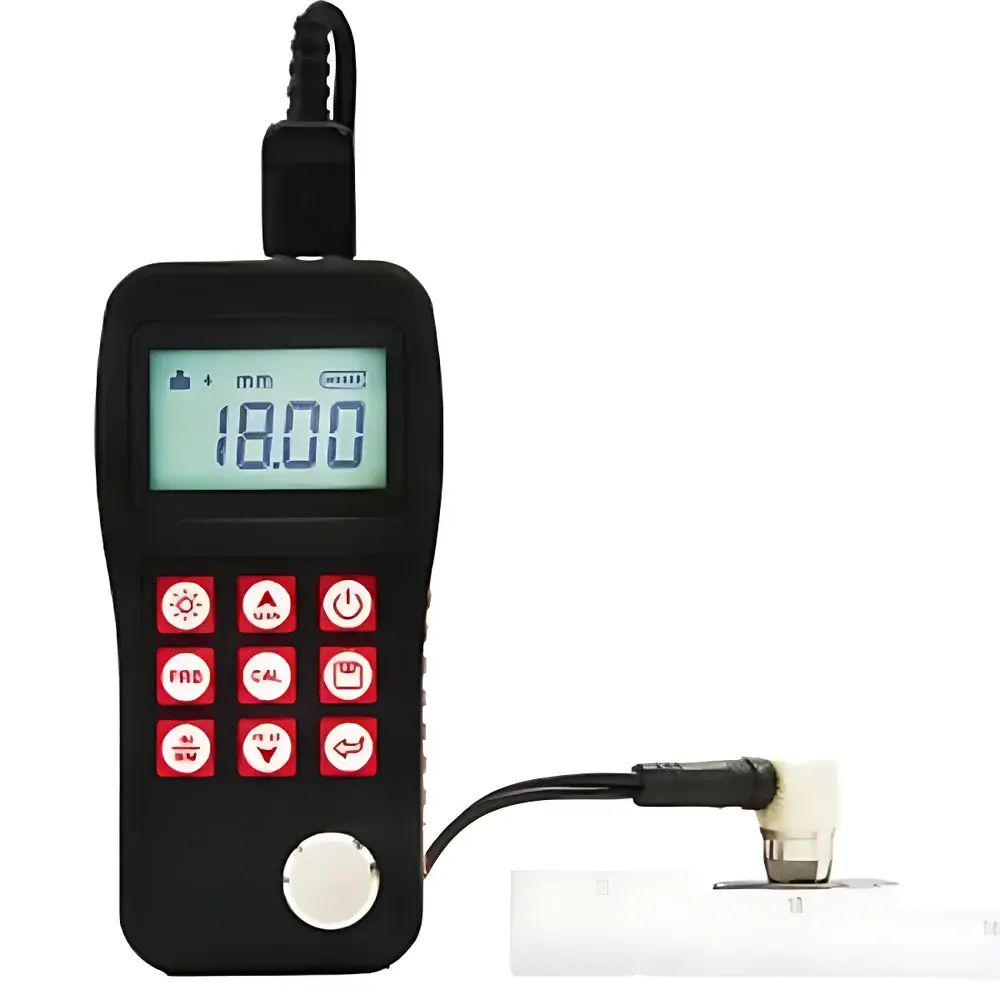

HAD-T180 Ultrasonic Thickness Gauge: Dual-mode operation (Pulse-Echo and Echo-Echo); coating-penetrating capability without surface prep; sound velocity inversion function (1000–9999 m/s); data logging for 2000 measurements with timestamping.
HAD-AK2 Dual-Gas Detector: Simultaneous NH₃ (0–100 ppm) and combustible gas (0–100% LEL) detection; adjustable suction pump (10-level vacuum control); 3000-point internal memory; optional SD card expansion up to 32 GB.
HAD-BB Vacuum Tester: High-frequency spark generator (≥20 mm arc length); operational range 200 Torr to 10⁻³ Torr; intermittent duty cycle with thermal cutoff at 60 °C; conforms to IEC 61000-4-2 ESD immunity requirements.
HAD-300A Electrode Coater: Precision linear motion system (HIWIN ball screws & rails); SUS316L stainless steel doctor blade; vacuum aluminum platen (420 × 300 mm); coating speed 0–100 mm/s with digital feedback; thickness adjustment resolution 0.02 mm.
HAD12-1A Propeller Current Meter: ISO 2548-73 Class C certified; starting velocity ≤0.05 m/s; operational range 0.06–8 m/s; validated for suspended sediment loads up to 20 kg/m³; 20-pulse-per-revolution signal output.

Sample Compatibility & Compliance

All instruments comply with material compatibility and safety frameworks appropriate to their functional domain. The HAD-P121 cyanide analyzer is validated for clear, non-turbid aqueous matrices per US EPA Method 335.4 and ISO 6703-2. The HAD-T180 ultrasonic gauge supports acoustic impedance matching for metals (steel, Al, Cu), polymers, ceramics, and composites—excluding highly attenuative or porous media. The HAD-266A viscometer meets petroleum industry specifications for kinematic viscosity classification of crude oils, distillates, and lubricants. The HAD-AK2 gas detector satisfies EN 50194-1 for portable multi-gas monitors and incorporates intrinsic safety design principles for hazardous area use (ATEX Zone 2 / UL Class I Div 2). Data integrity features—including audit trails, user authentication, and electronic signature support—are implemented in firmware where applicable (e.g., HAD-GT83B, HAD-P121) to align with FDA 21 CFR Part 11 and GLP/GMP documentation requirements.

Software & Data Management

HAD-GT83B supports USB-host connectivity for direct transfer of run logs, including time-stamped temperature, vacuum level, rotational speed, and duration metadata. HAD-T180 includes proprietary PC software (Windows-compatible) enabling statistical analysis, trend charting, and report generation in PDF/CSV formats. HAD-AK2 provides both embedded graphical history review (list and curve modes) and SD-card-based export for third-party analytics platforms. HAD-P121 stores 199 calibrated measurements with full timestamping (Y/M/D/h/m/s), absorbance values, and transmittance data—retained during power loss via EEPROM backup. Firmware updates for all digital instruments are delivered via secure HTTPS download portal with SHA-256 checksum validation. No cloud storage or remote telemetry is implemented; all data remains under end-user control per GDPR and CCPA compliance protocols.

Applications

These instruments serve cross-sectoral applications: Environmental labs employ the HAD40 and HAD12-1A for benthic biodiversity assessment and open-channel flow quantification in watershed studies. Wastewater treatment facilities utilize the HAD-P121 for regulatory cyanide compliance testing (e.g., NPDES permits). Petrochemical QA/QC labs apply the HAD-266A for refinery feedstock grading and lubricant specification verification. Battery R&D centers deploy the HAD-300A for reproducible slurry coating during NMC, LFP, and silicon-anode prototyping. NDT technicians rely on the HAD-T180 for in-service wall-thickness monitoring of API 5L pipelines and ASME Section VIII pressure vessels. Occupational health teams use the HAD-AK2 for confined-space entry pre-screening (NH₃ in refrigeration plants; LEL in fuel storage areas). Metrology departments integrate the HAD-I420 into alignment jigs for CNC machine tool calibration and structural deformation monitoring in civil infrastructure projects.

FAQ

Are calibration certificates provided with shipment?

Yes—each instrument ships with a factory-issued calibration report referencing NIST-traceable standards where technically feasible (e.g., HAD-I420 inclinometer, HAD-T180 thickness gauge). Certificates include uncertainty budgets per ISO/IEC 17025 Annex A.

Is technical support available outside China?

Yes—HengaoDe maintains regional service partners in Germany, USA, and Singapore offering remote diagnostics, firmware updates, and on-site repair coordination under annual maintenance agreements.

Can the HAD-GT83B operate without an external vacuum pump?

No—the unit requires a separately procured oil-free diaphragm vacuum pump (recommended ultimate vacuum ≤10⁻² mbar) to achieve specified concentration efficiency; pump interface is standard DN16 KF.

Does the HAD-P121 require reagent refills for routine operation?

Yes—cyanide reagent kits (containing chloramine-T, pyridine-barbituric acid, and buffer) are consumables with shelf life of 18 months unopened; each kit supports ≥200 tests.

What is the warranty coverage period?

Standard warranty is 18 months from date of shipment, covering parts and labor for defects in materials and workmanship; extended warranties up to 36 months are available upon request.
