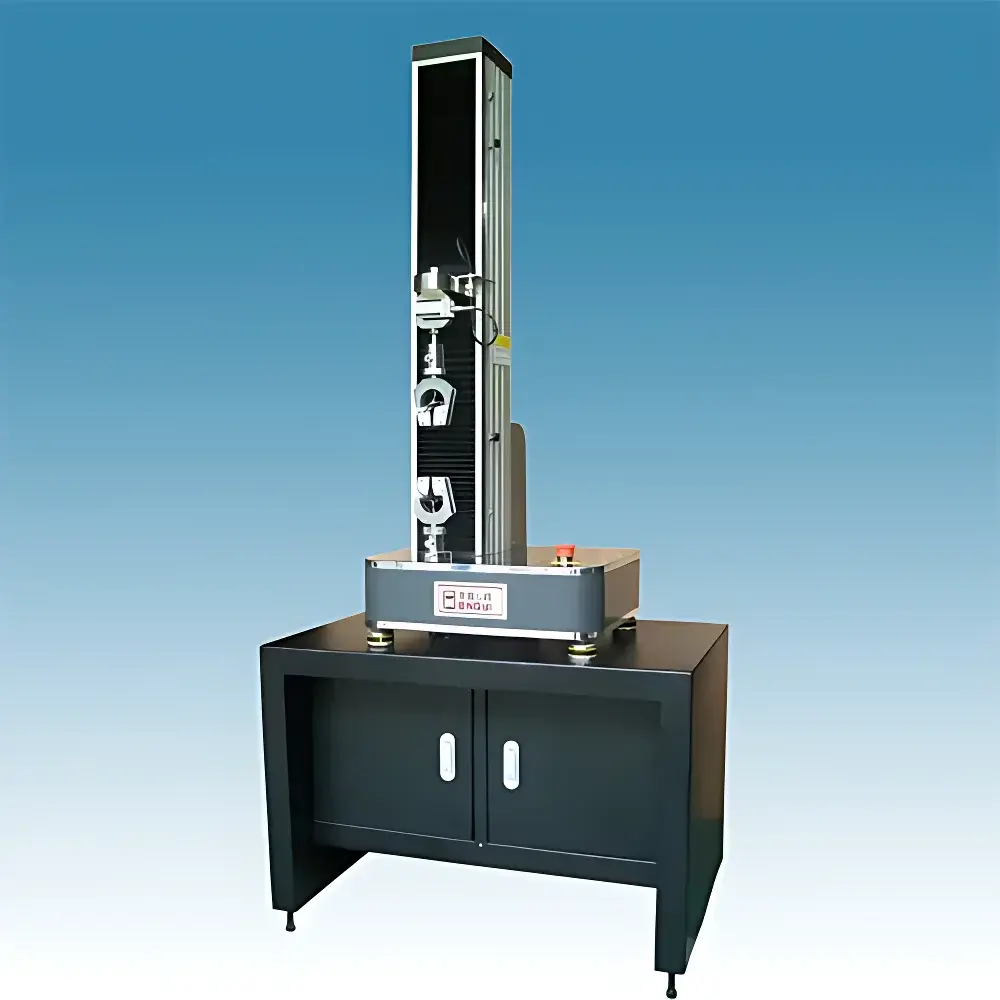

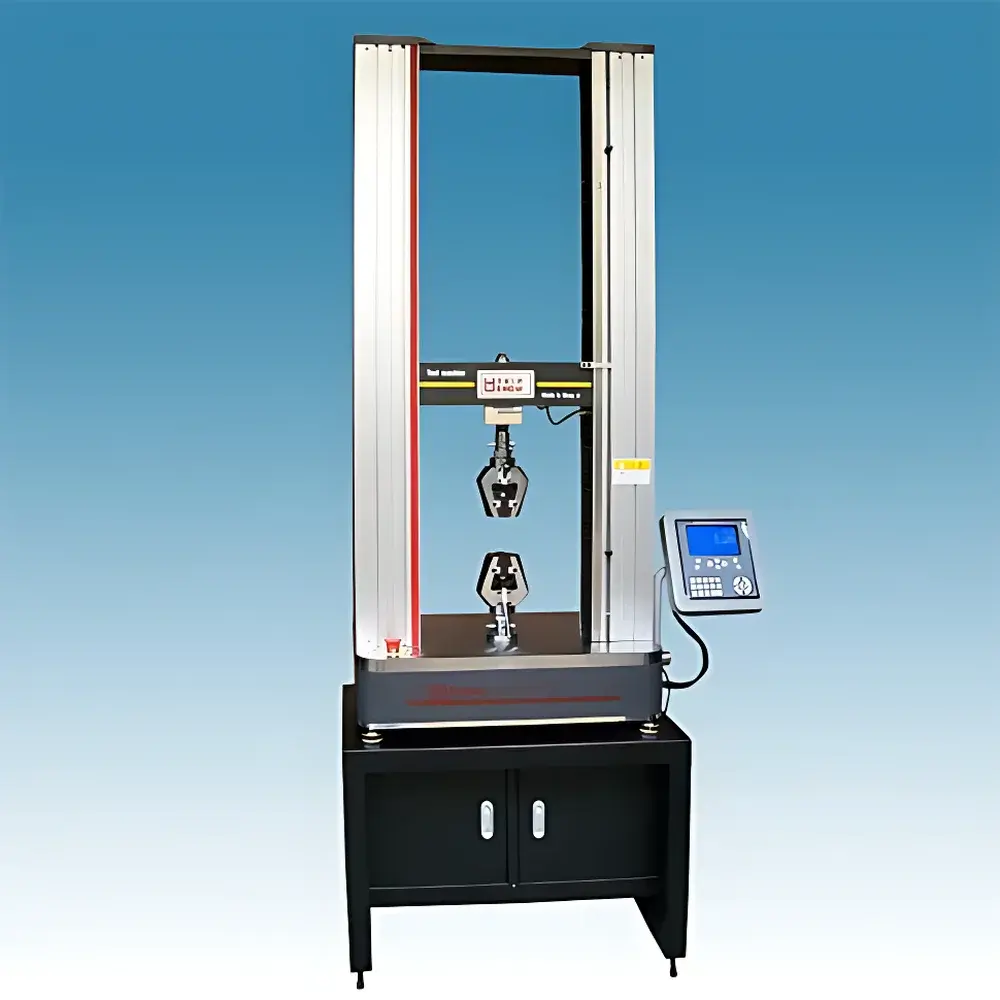

Hengyi HY-0580 Single-Column Universal Testing Machine

Overview

The Hengyi HY-0580 is a single-column electromechanical universal testing machine engineered for precision mechanical property evaluation of low-to-medium force-range materials and components. Designed in accordance with ISO 7500-1 Class 0.5 accuracy requirements, it employs a high-stiffness load frame, brushless servo motor drive, and closed-loop digital control architecture to deliver repeatable force, displacement, and strain measurements across static tensile, compression, bending, shear, peel, and tear test modes. Its modular design supports rapid tooling changes via standardized T-slot crossheads and interchangeable fixtures—enabling seamless transition between ASTM D903 (peel strength), ASTM D1876 (T-peel), ISO 8510-2 (adhesive bond peel), and GB/T 2790 (adhesive peel resistance) protocols. The system operates within a calibrated force range from 1 N to 5000 N, making it suitable for thin films, polymer laminates, medical device packaging, flexible electronics substrates, textile composites, and biomedical adhesives where high-resolution low-load data integrity is critical.

Key Features

• Single-column rigid aluminum alloy frame with integrated linear guide rails and preloaded ball screws for minimal deflection and high axial alignment stability
• Digital servo control system with real-time PID tuning, enabling precise rate control for stress-, strain-, or displacement-controlled loading profiles
• High-resolution force transducer (±0.5% accuracy, 500,000 internal counts) with automatic zero tracking and thermal drift compensation
• Optical encoder-based displacement measurement (±0.5% accuracy) with dual-limit electronic safety stops and programmable soft limits
• Motorized crosshead with dual-speed actuation (fast jog + fine positioning) and automatic return-to-start functionality post-test
• Overload protection at 110% of selected load cell capacity, plus real-time diagnostic monitoring of drive voltage, current, and thermal status
• Modular fixture interface compliant with ISO 26203-2 mounting standards, supporting quick-swap peel jigs, tensile grips, and bend fixtures

Sample Compatibility & Compliance

The HY-0580 accommodates specimens up to 120 mm wide and 800 mm tall, with standard configurations optimized for film strips (e.g., PET/Alu/PVC laminates), adhesive tapes, coated foils, elastomeric seals, and miniature composite coupons. It meets the mechanical verification criteria specified in GB/T 16491–2008 (Chinese national standard for electronic testing machines), ISO 7500-1:2018 (static calibration of force-proving instruments), and ASTM E4 (standard practices for force verification). Software-configurable test sequences support GLP-compliant audit trails, including user login logs, parameter change history, and raw data timestamping—facilitating regulatory readiness for ISO/IEC 17025-accredited labs and FDA-regulated medical packaging validation per 21 CFR Part 11 requirements.

Software & Data Management

The proprietary Hengyi TestMaster v4.2 software provides intuitive test method configuration, real-time curve visualization (force vs. displacement, stress vs. strain), and automated report generation in PDF/Excel formats. Users may define custom test templates aligned with ASTM D638 Type I–V, ISO 527-2, or internal SOPs—including multi-step ramp-hold-relax cycles, cyclic fatigue routines, and peel angle-specific protocols. All raw data are stored in binary .hdt files with embedded metadata (operator ID, calibration certificate ID, environmental conditions), ensuring traceability. Export modules support direct integration with LIMS platforms via CSV or OPC UA interfaces, while encrypted database backups comply with ISO 27001 information security guidelines.

Applications

• Peel strength characterization of pressure-sensitive adhesives (PSA) on release liners and substrate films
• Tensile modulus and elongation-at-break measurement of thermoplastic elastomers (TPE), silicone gels, and hydrogels
• Bond integrity assessment of heat-sealed medical pouches (per ISO 11607-2) and sterile barrier systems
• Mechanical screening of thin-film photovoltaic interconnects and flexible printed circuitry
• Quality control of automotive interior trim laminates, textile reinforcements, and nonwoven composites
• Research-grade deformation analysis of biodegradable polymers (PLA, PHA) under controlled humidity and temperature environments

FAQ

What load cell options are available for the HY-0580?
Standard configurations include interchangeable load cells rated at 1 N, 5 N, 10 N, 20 N, 50 N, 100 N, 200 N, 500 N, 1000 N, 2000 N, 3000 N, and 5000 N—each factory-calibrated and certified to ISO/IEC 17025.
Does the system support ASTM D903 and ISO 8510-2 peel testing?
Yes—the machine includes angular peel fixtures (90° and 180°), adjustable specimen clamping pressure, and software-defined peel speed ramping to meet both standards’ procedural requirements.
Can test data be exported for statistical process control (SPC)?
All test results export to CSV with full metadata; optional SPC add-on module calculates Cp/Cpk, X-bar R charts, and out-of-spec alerts directly within TestMaster.
Is remote diagnostics and firmware update supported?
Via secure HTTPS-enabled web interface, authorized service engineers can perform remote calibration verification, log file retrieval, and over-the-air firmware updates without onsite intervention.
What maintenance intervals are recommended?
Biannual verification of force and displacement accuracy per GB/T 16852.1 is advised; routine lubrication of lead screws and inspection of grip serrations should occur every 200 operational hours.
