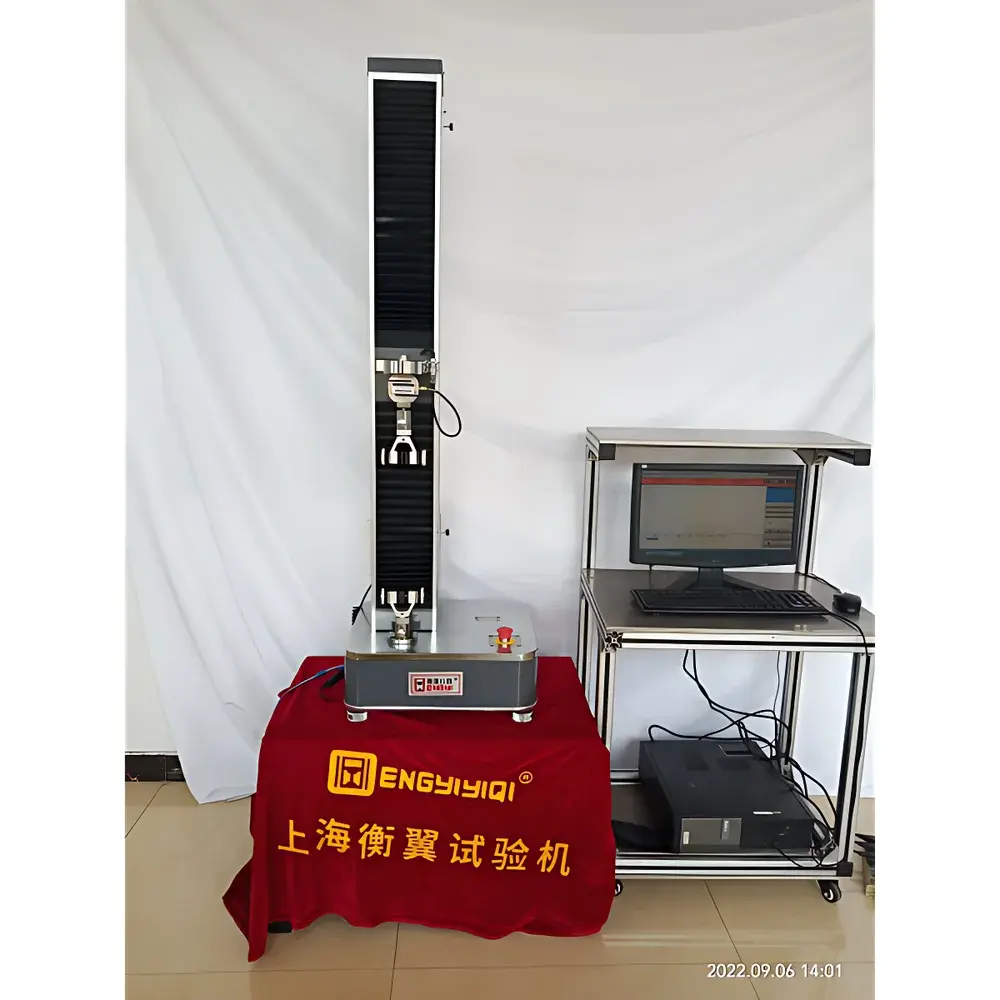

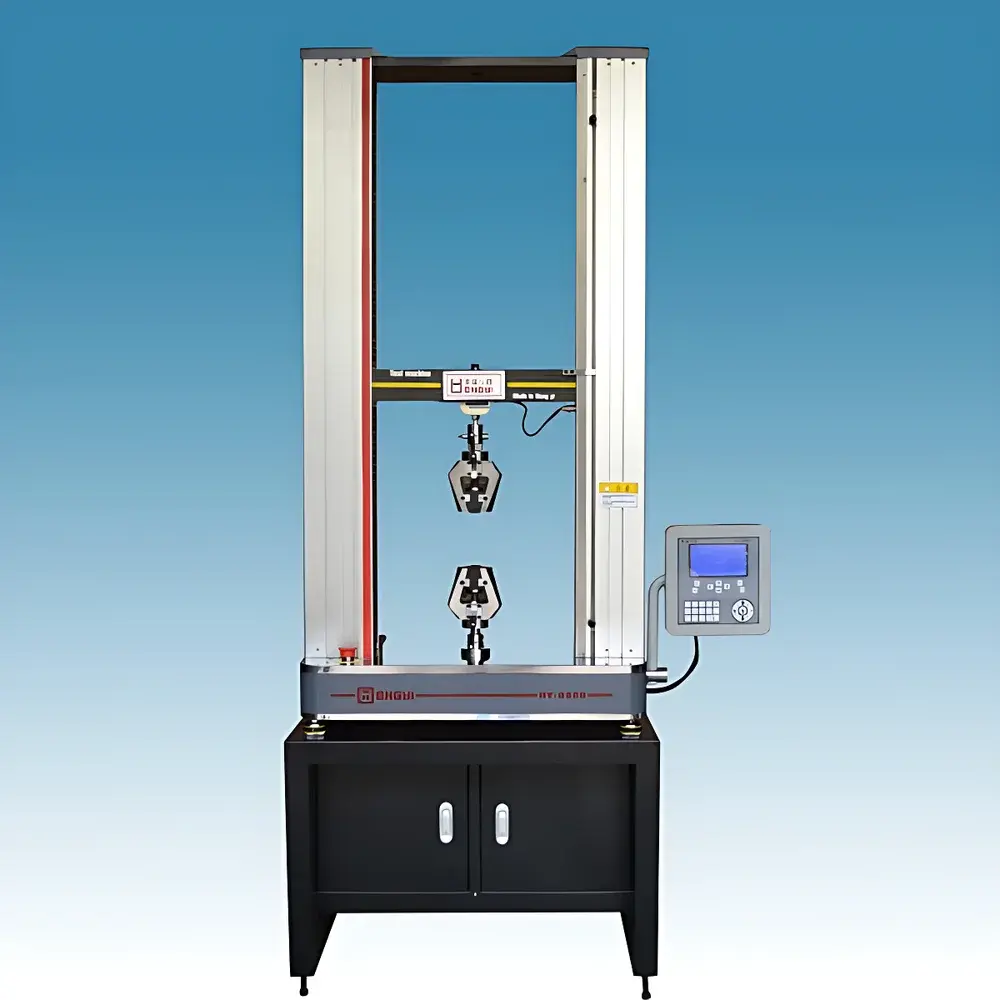

Hengyi HY-0580Q Universal Testing Machine
| Brand | Hengyi |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Regional Category | Domestic (China) |
| Model | HY-0580Q |
| Instrument Type | Electromechanical Universal Testing Machine |
| Load Capacity Range | 5 N – 5000 N |
| Load Accuracy | ±0.5% of full scale |
Overview
The Hengyi HY-0580Q Universal Testing Machine is an electromechanical static testing system engineered for high-precision mechanical characterization of non-metallic and polymeric materials under controlled thermal conditions. Designed to comply with ISO 527, ASTM D638, ASTM D790, ASTM D3410, and GB/T 1040 series standards, it integrates a dual-axis servo-controlled loading frame with optional environmental chamber coupling (–70 °C to +300 °C, sold separately), enabling tensile, compression, flexural, shear, and peel testing across temperature gradients. Its closed-loop control architecture supports real-time force-displacement-strain synchronization at sampling rates up to 1000 Hz, ensuring traceable data acquisition for GLP/GMP-compliant laboratories. The system employs a precision ball-screw drive mechanism, low-inertia load cell mounting, and rigid C-frame construction (285 kg mass) to minimize deflection and maintain metrological stability during dynamic ramp-hold tests.
Key Features
- High-fidelity load measurement: Dual-range or multi-range load cells (5 N, 10 N, 20 N, 50 N, 100 N, 200 N, 500 N, 1000 N, 2000 N, 5000 N — user-selectable) with ±0.5% FS accuracy per ISO 7500-1 Class 0.5 certification.
- Ultra-wide test speed range: 0.001–500 mm/min, adjustable in real time with speed accuracy maintained within ±0.5% of setpoint.
- Full-scale displacement resolution: ±0.5% accuracy over 1200 mm effective travel; equipped with optical encoder-based position feedback and electronic limit protection.
- Strain measurement capability: Compatible with extensometers (e.g., clip-on, video, or non-contact DIC systems) supporting strain resolution down to 0.002% FS/S and accuracy per ISO 9513.
- Advanced control modes: Stress-rate control (0.005–6% FS/S), strain-rate control (0.002–6% FS/S), and closed-loop hold functions (constant load, constant displacement, constant strain).
- Integrated safety architecture: Overload protection (110% FS auto-shutdown), emergency stop circuitry, motor torque monitoring, and self-diagnostic routines for drive, sensor, and power subsystems.
- Modular expansion readiness: Standard RS-232/USB/Ethernet interfaces support third-party environmental chambers, digital image correlation (DIC) systems, and acoustic emission sensors.
Sample Compatibility & Compliance
The HY-0580Q accommodates specimens up to 650 mm wide and 1200 mm tall, making it suitable for standard ASTM/ISO test bars, extruded profiles, woven geotextiles, laminated composites, thermoplastic films, rubber seals, and biomedical polymer tubing. It supports both ambient and conditioned testing environments when interfaced with certified climate chambers (IEC 60068-2 compliant). All hardware and firmware are designed to meet electromagnetic compatibility (EMC) requirements per EN 61326-1 and electrical safety standards per EN 61010-1. Data integrity protocols align with FDA 21 CFR Part 11 expectations for audit trails, electronic signatures, and secure user access levels (admin/operator/viewer).
Software & Data Management
Hengyi’s proprietary TestMaster Pro software (v4.2+) provides ISO/IEC 17025-aligned test method templates, automated report generation (PDF/Excel), and raw-data export in ASCII CSV format. It features real-time curve overlay, multi-channel synchronization (force, displacement, extensometer, temperature input), and statistical post-processing (modulus calculation, yield point detection per ASTM E8/E229, elongation at break, secant modulus). Audit logs record operator ID, timestamp, parameter changes, and calibration events. Optional validation packages include IQ/OQ documentation and GxP-compliant installation qualification kits for regulated industries.
Applications
- Aerospace: Tensile strength and creep resistance evaluation of carbon-fiber-reinforced polymers (CFRPs) at elevated temperatures (e.g., 150 °C per RTCA DO-160 Section 25).
- Automotive: Low-temperature brittleness testing of EPDM gaskets (–40 °C) and high-temperature compression set analysis of silicone hoses (175 °C).
- Electronics: Peel strength quantification of flexible printed circuit board (FPCB) solder mask adhesion under thermal cycling profiles.
- Medical Devices: ISO 10993-12 compliant mechanical validation of biodegradable sutures and hydrogel wound dressings across sterilization-relevant temperature ranges.
- Building Materials: Flexural modulus and fracture toughness assessment of PVC-U window profiles per EN 12608.
FAQ
Does the HY-0580Q meet international calibration and traceability requirements?
Yes — load cells are factory-calibrated against NIST-traceable deadweight standards; certificate of calibration includes uncertainty budgets per ISO/IEC 17025 guidelines.
Can the system be integrated with third-party environmental chambers?
Yes — it features analog voltage (±10 V) and digital TTL I/O ports for synchronized temperature ramping, dwell control, and chamber status feedback.
Is test method scripting supported for automated multi-step protocols?
Yes — TestMaster Pro supports custom sequence programming including conditional branching, looped cycles, and pass/fail logic based on real-time parameter thresholds.
What maintenance intervals are recommended for long-term metrological reliability?
Load cell verification every 12 months; ball screw lubrication every 2000 operational hours; annual verification of encoder linearity and crosshead alignment per manufacturer service manual.
Are software updates and technical support available globally?
Yes — Hengyi provides remote diagnostics, firmware patches, and English-language application engineering support via dedicated regional service centers in North America, Europe, and APAC.
