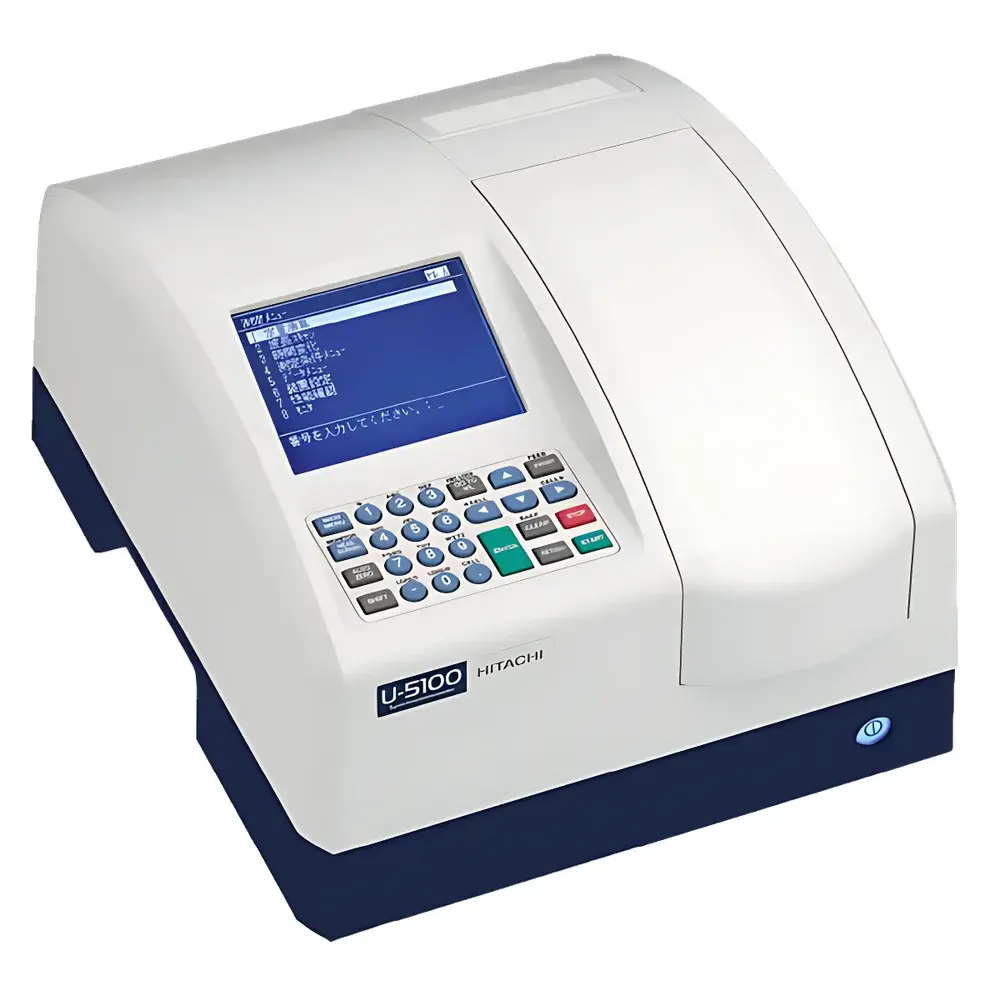

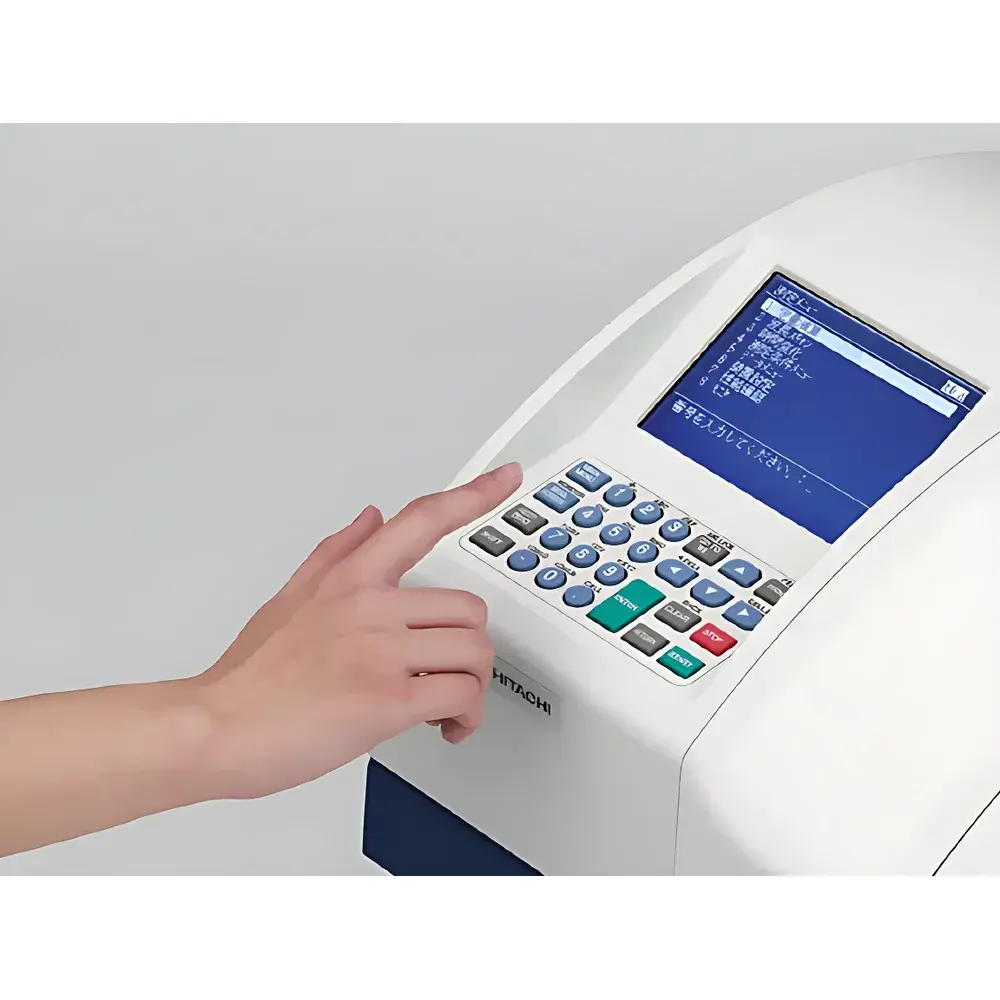

Hitachi U-5100 Ratio-Beam Ultraviolet-Visible Spectrophotometer

Overview

The Hitachi U-5100 Ratio-Beam Ultraviolet-Visible Spectrophotometer is an engineered solution for routine and research-grade absorbance, transmittance, and concentration measurements across the ultraviolet, visible, and near-infrared spectral regions (190–1100 nm). Based on a Seya-Namioka monochromator optical architecture and ratio-beam double-beam design, the instrument continuously corrects for source intensity drift and detector response variation by simultaneously splitting the light path into sample and reference beams—ensuring high photometric stability and measurement reproducibility without mechanical beam switching. Unlike conventional tungsten-halogen/deuterium lamp systems, the U-5100 employs a pulsed xenon lamp as its sole broadband light source. This eliminates lamp alignment complexity, reduces thermal load on optical components, and enables rapid spectral acquisition with minimal warm-up time. The system’s optical path is optimized for low stray light (<0.05% at 220 nm), supporting accurate quantitation of highly absorbing samples and compliance with pharmacopeial requirements such as USP and EP 2.2.25.

Key Features

• Pulsed xenon lamp with >10⁹ shot lifetime—no lamp replacement required during typical laboratory service life
• Energy-efficient operation: 70% lower power consumption versus predecessor models via duty-cycle-controlled lamp pulsing
• High-speed wavelength scanning at up to 12,000 nm/min, enabling full-range UV-Vis spectra acquisition in under 5 seconds

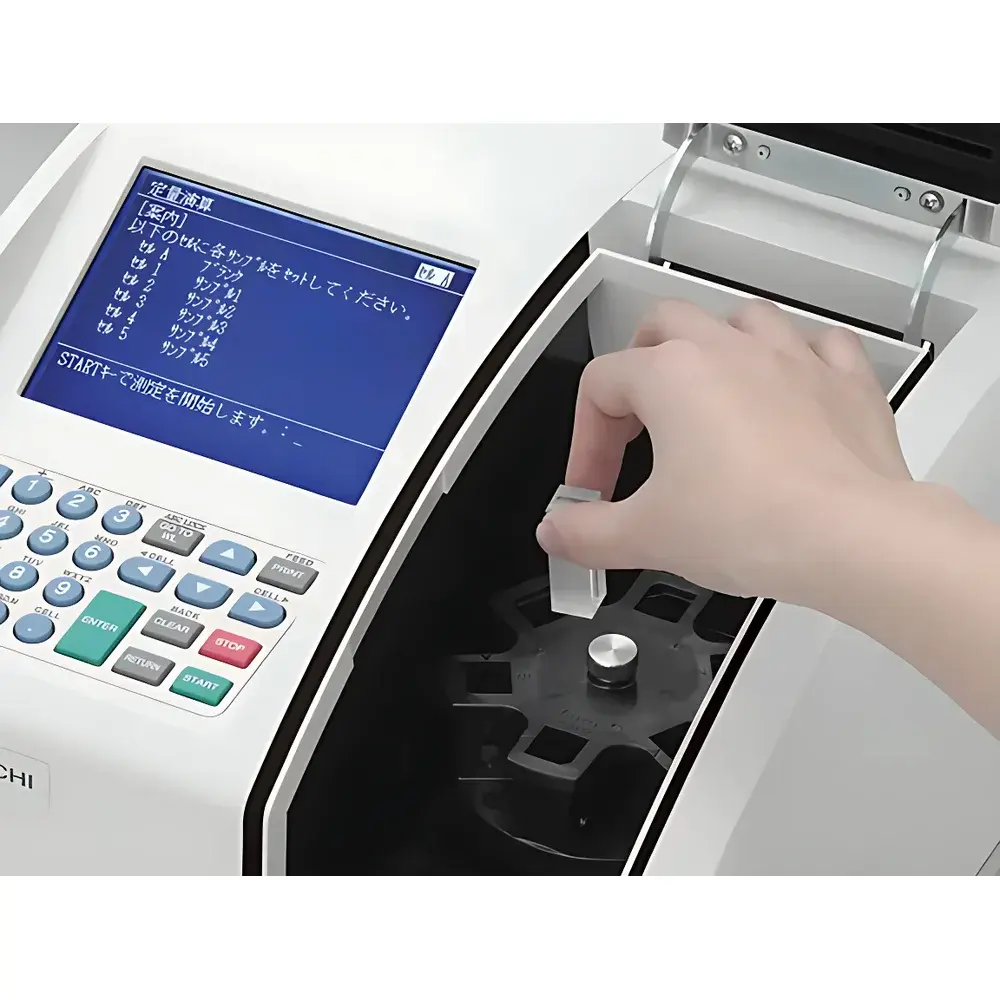

• Integrated automatic 6-cell carousel for sequential measurement of standards and samples—supports kinetic, multi-point calibration, and batch analysis workflows
• Compact footprint (355 × 425 mm) and lightweight chassis (13 kg) facilitate benchtop deployment in space-constrained labs or mobile analytical units
• Robust mechanical design with vibration-damped optical bench and temperature-stabilized monochromator housing to maintain wavelength accuracy (±1 nm) under ambient lab conditions

Sample Compatibility & Compliance

The U-5100 accommodates standard 10 mm square quartz, glass, or plastic cuvettes (including matched pairs for precision work) and supports optional accessories such as microvolume adapters, fiber-optic probes, and temperature-controlled cells. Its ratio-beam architecture ensures reliable performance with turbid, colored, or scattering samples where single-beam instruments may exhibit baseline instability. The system meets key international standards including ISO 9001-aligned manufacturing controls, IEC 61010-1 safety certification, and electromagnetic compatibility per EN 61326-1. While not inherently 21 CFR Part 11 compliant out-of-the-box, audit-trail-capable data acquisition software (e.g., Hitachi LabSolution UV-Vis) can be configured to support GLP/GMP environments when deployed with appropriate IT governance protocols.

Software & Data Management

Controlled via Hitachi’s LabSolution UV-Vis software (Windows-based), the U-5100 supports quantitative analysis (single/multi-wavelength, calibration curve fitting), spectral overlay, derivative spectroscopy, and time-scan kinetics. Raw absorbance and transmittance data are stored in vendor-neutral ASCII or CSV formats; proprietary .uvd files retain full metadata (wavelength calibration history, lamp usage logs, cell position tracking). Software modules enable method validation reporting per ICH Q2(R2) guidelines and export of results compatible with LIMS integration via ODBC or direct file transfer. All measurement sessions include timestamped operator ID fields, electronic signature prompts, and configurable data retention policies—facilitating traceability in regulated QC laboratories.

Applications

The U-5100 serves diverse applications across pharmaceutical quality control (assay, dissolution testing, excipient identification), environmental monitoring (nitrate, phosphate, COD analysis), food & beverage QA (colorimetric assays, antioxidant capacity), academic teaching labs (Beer-Lambert law verification, enzyme kinetics), and materials science (nanoparticle extinction profiling, thin-film transmission). Its fast scanning speed and stable baseline make it suitable for real-time monitoring of reaction progress, while the 5 nm spectral bandwidth provides sufficient resolution for most routine molecular absorption bands without compromising signal-to-noise ratio.

FAQ

Does the U-5100 require lamp alignment or warm-up time before use?
No—its pulsed xenon lamp operates without warm-up delay and requires no periodic alignment due to fixed-source geometry.
Can the instrument measure samples in microvolume mode?
Not natively; however, third-party microvolume adapters compatible with 10 mm pathlength cuvette holders can be integrated with mechanical recalibration.
Is the 6-cell carousel programmable for custom sequence order?
Yes—LabSolution UV-Vis allows user-defined cell selection order, skip logic, and repeat measurement triggers per position.
What is the maximum scan speed for a 200–800 nm range?
At 12,000 nm/min, a full 600 nm sweep completes in approximately 3 seconds with default data interval settings.
How is wavelength accuracy verified and maintained?
Factory calibration uses NIST-traceable holmium oxide and didymium filters; users may perform periodic verification using supplied reference standards per ASTM E275 and ISO 6223.
