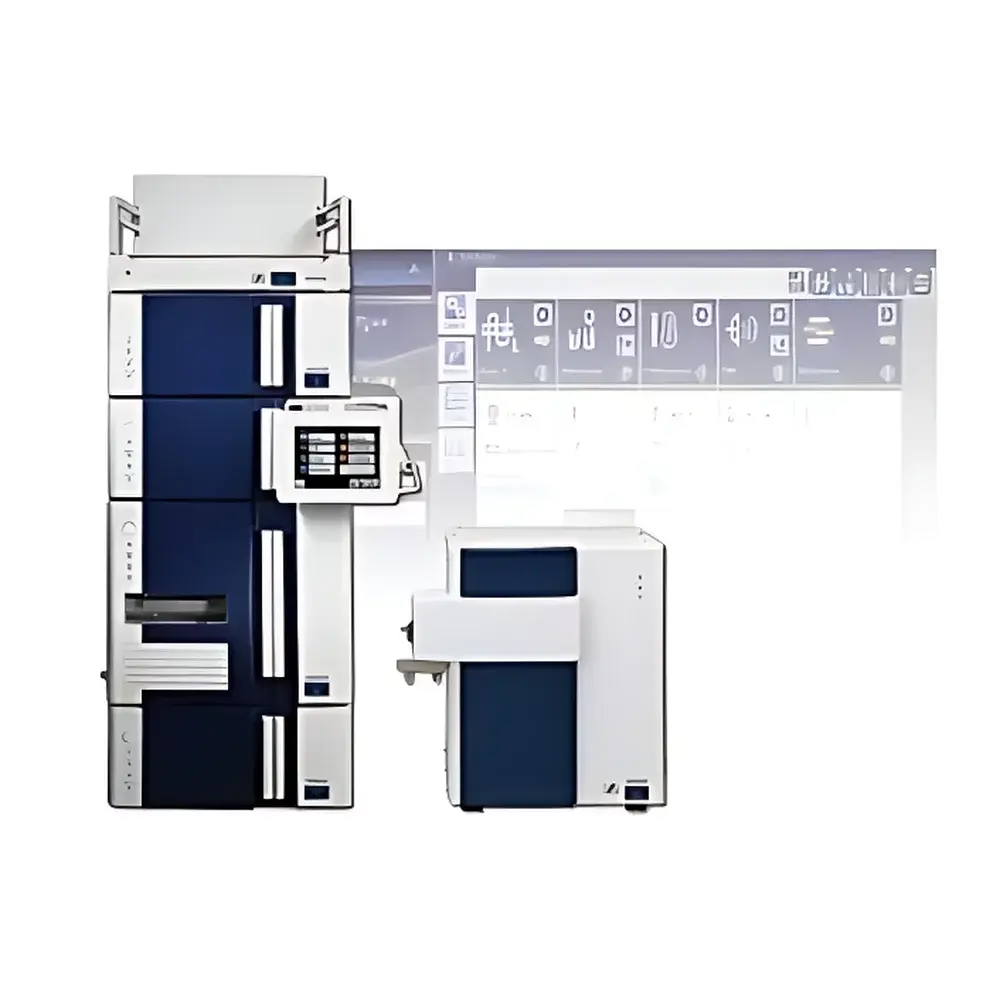

Hitachi ChromAssist Data Station Chromatography Data System

Overview

The Hitachi ChromAssist Data Station is a dedicated chromatography data system (CDS) engineered for seamless integration with Hitachi’s high-performance liquid chromatography (HPLC) platforms—including the Chromaster®, ChromasterUltraRs®, LaChromElite®, and LaChromUltra® series. Unlike generic data acquisition software, ChromAssist is purpose-built to manage the full analytical workflow: instrument control, method development, sequence execution, real-time monitoring, system suitability testing (SST), maintenance logging, and regulatory-compliant reporting. It operates on a client-server architecture optimized for stability in 24/7 laboratory environments and supports both local and networked deployment. The system implements deterministic timing for data sampling and event triggering—critical for retention time reproducibility and peak integrity in regulated pharmaceutical and quality control applications.

Key Features

• Intuitive Icon-Based GUI: All instrument parameters, status indicators, and method settings are represented via standardized icons and contextual tooltips—eliminating syntax-based command entry and reducing operator training time.
• Integrated Workflow Wizards: Context-aware, step-by-step guidance covers instrument startup, method validation, routine analysis, preventive maintenance, and troubleshooting—each linked directly to embedded documentation, video tutorials, and interactive checklists.
• Automated System Suitability Testing (SST): Preconfigured templates support JP, USP, and EP pharmacopoeial SST criteria—including theoretical plate count (N), resolution (Rs), tailing factor (T), and %RSD of retention time and peak area. Pass/fail thresholds are user-definable; results are auto-validated and logged with timestamped audit trails.
• Consumables Lifecycle Management: Tracks usage metrics per module—including pump seal cycles, column oven operating hours, detector lamp age, and autosampler injection count—generating proactive replacement alerts aligned with manufacturer-recommended service intervals.
• Fault Diagnosis Assistant: A curated knowledge base maps observed anomalies (e.g., baseline drift, pressure spikes, peak broadening) to root causes, corrective actions, and relevant maintenance videos—enabling rapid first-line resolution without external support escalation.

Sample Compatibility & Compliance

ChromAssist natively supports all Hitachi HPLC modules across legacy and current-generation systems—including L-2100/L-2130 pumps, L-2200/L-2200U autosamplers, L-2300/L-2350 column ovens, L-2400/L-2420 UV-VIS detectors, L-2455/L-2455U DADs, L-2480/L-2485/L-2485U fluorescence detectors, L-2490 RI detectors, and AID interfaces. It does not support cross-series module mixing (e.g., L-2130 pump with LaChromUltra autosampler) due to firmware and communication protocol incompatibilities. The software complies with ALCOA+ data integrity principles and supports 21 CFR Part 11–compliant electronic signatures, role-based access control, and immutable audit trails for all critical operations—including method modification, result reprocessing, and report generation.

Software & Data Management

Data files are stored in vendor-proprietary binary format with embedded metadata (instrument configuration, calibration history, environmental logs). Raw chromatograms and processed results can be exported to CSV, PDF, or XML for LIMS integration or external statistical analysis. Offline report generation is fully supported: users may compile historical SST summaries, maintenance logs, or compliance dashboards without active instrument connection. Audit trail records include operator ID, timestamp, action type (e.g., “SST executed”, “method edited”), and pre-/post-change values—retained for ≥36 months per GLP/GMP archival requirements.

Applications

ChromAssist is deployed in pharmaceutical QC laboratories for release testing of APIs and finished dosage forms, in contract research organizations (CROs) supporting method transfer and validation studies, and in academic core facilities requiring robust, multi-user HPLC data management. Its pharmacopoeia-aligned SST engine ensures consistent interpretation of USP , EP 2.2.46, and JP 6.03 criteria—making it suitable for submissions to PMDA, FDA, EMA, and Health Canada. The system also supports stability-indicating method monitoring, forced degradation study tracking, and column performance trending over hundreds of injections.

FAQ

Which Hitachi HPLC models are officially supported?
ChromAssist supports Chromaster, ChromasterUltraRs, LaChromElite, and LaChromUltra series instruments. Module-level compatibility is strictly defined in the official Hitachi Hardware Compatibility Matrix—cross-series mixing is prohibited.
Does ChromAssist meet 21 CFR Part 11 requirements?
Yes—when deployed with validated configurations (including Windows OS patch level, domain authentication, and encrypted database storage), ChromAssist provides electronic signature enforcement, audit trail review capability, and operation-level permissions consistent with Part 11 Annex A expectations.
Can SST reports be customized for internal SOPs?
Users may define custom acceptance criteria, add company-specific metadata fields, and modify report templates—though pharmacopoeial test logic (e.g., N calculation per USP) remains fixed per regulatory alignment.
Is offline data reprocessing supported?
Yes—raw data files retain full processing capability independent of instrument connection. Baseline correction, peak integration, and calibration curve recalculation may be performed at any time using identical algorithms as during acquisition.
How is software version control managed?
Each ChromAssist installation includes an embedded version manifest and automatic update notification. Patch releases undergo IQ/OQ documentation per ISO/IEC 17025 and are distributed only through Hitachi-certified channels.
