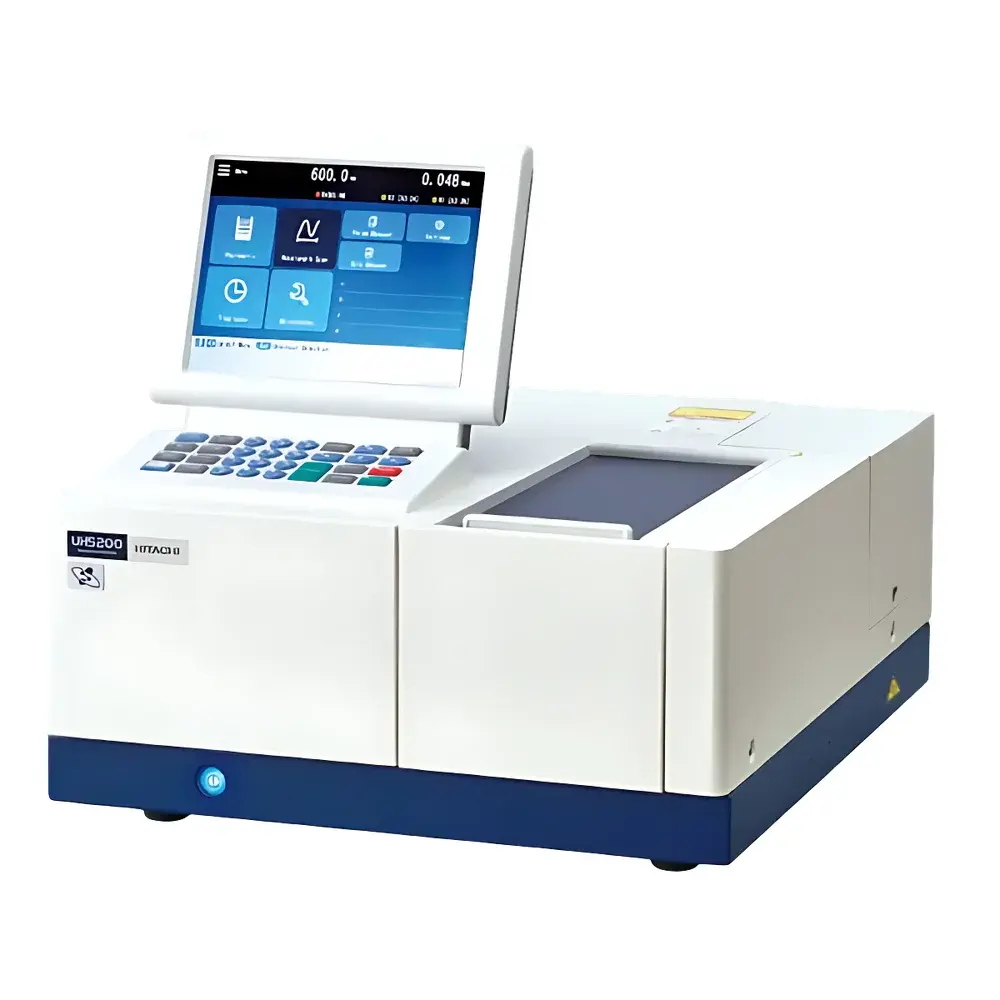

Hitachi UH5200 Dual-Beam Ultraviolet-Visible Spectrophotometer

Overview

The Hitachi UH5200 Dual-Beam Ultraviolet-Visible Spectrophotometer is an engineered optical instrument designed for high-stability, high-reproducibility quantitative and qualitative analysis across the UV–Vis spectral region (190–1100 nm). It operates on the fundamental principle of dual-beam absorption spectroscopy: incident light from a deuterium/tungsten-halogen source is split by a semi-reflective mirror into sample and reference beams; simultaneous detection enables real-time compensation for source intensity drift, lamp aging, and environmental fluctuations. This architecture ensures superior baseline stability and measurement repeatability—critical for regulatory-compliant routine QC, method validation, and long-duration kinetic studies. The optical path integrates a Seya-Namioka monochromator equipped with a proprietary holographically ruled diffraction grating fabricated in-house using Hitachi’s precision grating ruling engine—delivering high luminous flux, minimal stray light (<0.0003% at 220 nm), and diffraction-limited imaging performance without astigmatism or coma.

Key Features

• Dual-beam optical design with real-time energy compensation for enhanced photometric stability over extended measurement periods
• Photodiode array (PDA) detector enabling full-spectrum acquisition in under 1 second, eliminating mechanical wavelength scanning delays
• Seya-Namioka monochromator with custom-manufactured, high-efficiency holographic grating optimized for UV throughput and visible-linearity
• Wavelength accuracy of ±0.3 nm and repeatability of ±0.1 nm—validated per ISO 9001-certified calibration protocols
• Integrated 7-inch high-resolution color LCD touchscreen with tactile keypad for standalone operation; supports USB-host interface for external peripherals (keyboard, card reader, USB storage)
• Compatible with legacy U-2900/U-2910 sample compartments—enabling seamless hardware migration and accessory reuse

Sample Compatibility & Compliance

The UH5200 accommodates standard 10-mm rectangular cuvettes (glass, quartz, or plastic), microvolume cells (down to 50 µL), and optional accessories including temperature-controlled holders (−10 to 110 °C), automated eight-cell changers, and integrating spheres for diffuse reflectance measurements. All optical components comply with JIS Z 8103:2014 (spectrophotometer performance testing) and meet essential requirements of IEC 61010-1 for laboratory electrical safety. When operated with UV Solutions Plus software under validated configurations, the system supports audit trails, electronic signatures, and data integrity controls aligned with FDA 21 CFR Part 11 and EU Annex 11 expectations for regulated environments.

Software & Data Management

UV Solutions Plus—the dedicated PC-based control and analysis software—introduces a modular, workflow-driven interface that replaces legacy UV Solutions. Key enhancements include: (i) tabular data view with customizable column sorting and export to CSV/Excel; (ii) report templates supporting user-defined fields (e.g., analyst ID, SOP number, instrument serial), automatic metadata embedding, and PDF/XPS generation; (iii) built-in instrument performance verification routines—including photometric linearity check (NIST-traceable neutral density filters), wavelength accuracy validation, and stray light assessment. Raw spectral data are stored in vendor-neutral .spc format; all processing steps—including baseline correction, derivative calculation, multi-component quantitation, and kinetic curve fitting—are fully traceable and reproducible.

Applications

The UH5200 serves as a primary analytical platform in pharmaceutical QC labs (USP , , ), environmental water testing (EPA Method 4500-NO₂⁻, APHA Standard Methods), food and beverage quality assurance (AOAC 973.42, ISO 14501), and academic research in photochemistry, enzymology, and nanomaterial characterization. Its rapid full-spectrum acquisition supports time-resolved studies of reaction kinetics (e.g., enzyme-catalyzed hydrolysis, ligand-binding equilibria), while the high photometric precision (±0.002 A at 1.0 A) ensures reliable detection of low-concentration analytes in complex matrices. The system is routinely deployed for dissolution testing, purity profiling of active pharmaceutical ingredients (APIs), and verification of filter transmission characteristics in cleanroom monitoring.

FAQ

Does the UH5200 support GLP/GMP-compliant data handling?
Yes—when configured with UV Solutions Plus in validated mode, it provides electronic signatures, immutable audit trails, role-based access control, and full compliance with 21 CFR Part 11 and EU GMP Annex 11.
Can I use my existing U-2900 accessories with the UH5200?
Yes—the UH5200 maintains mechanical and electrical compatibility with all U-2900/U-2910 sample compartments, cell changers, and temperature units.
Is the PDA detector cooled to reduce dark current noise?
No—the photodiode array operates at ambient temperature; however, its low-noise amplifier design and synchronous detection algorithm ensure a signal-to-noise ratio >3000:1 (at 500 nm, 1.0 A, 1 s integration).
What calibration standards are recommended for routine verification?
NIST-traceable holmium oxide (Ho₂O₃) and didymium filters for wavelength accuracy; potassium dichromate solution (0.04 g/L in 0.005 M H₂SO₄) for photometric linearity and absorbance accuracy.
Is remote monitoring or network integration possible?
The instrument supports TCP/IP communication via Ethernet; UV Solutions Plus includes OPC UA-compatible drivers for integration into LIMS and MES platforms.
