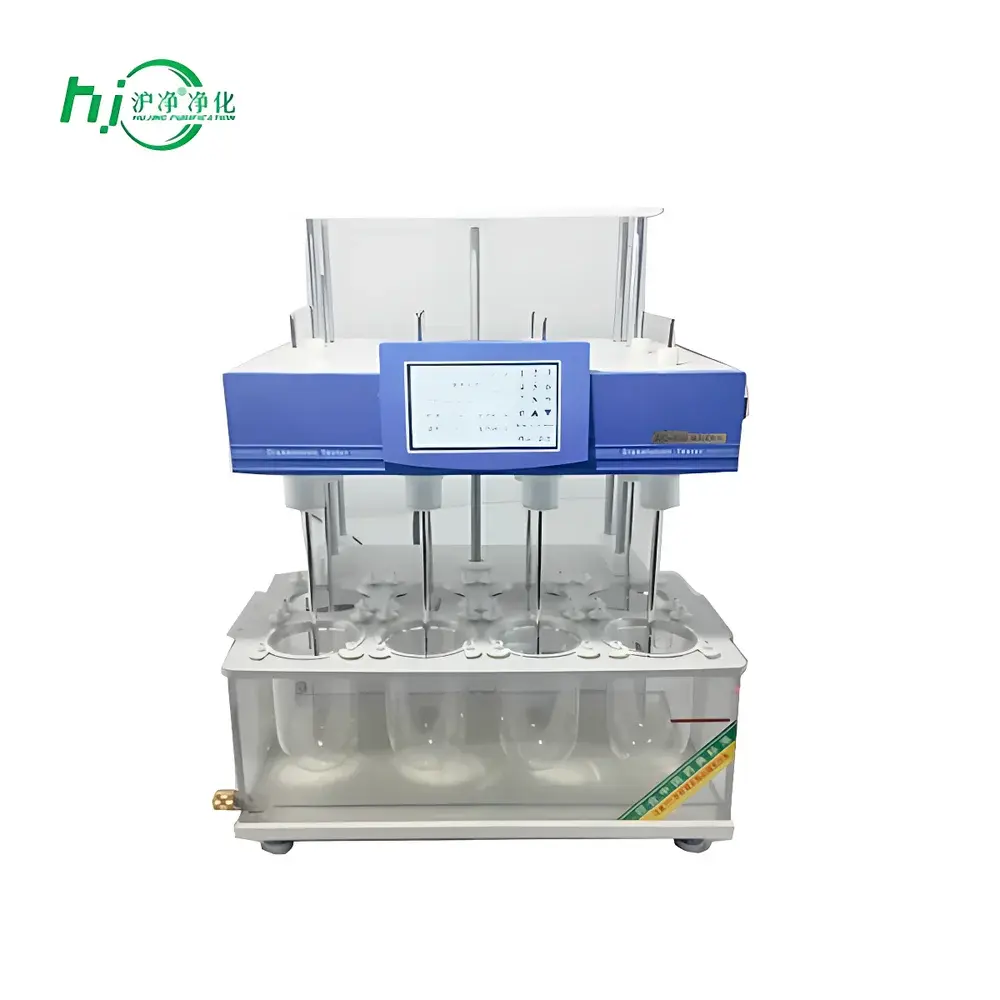

HJ RC-6D/8D/806 Series Automated Pharmaceutical Dissolution Tester

Overview

The HJ RC-6D/8D/806 Series Automated Pharmaceutical Dissolution Tester is a fully integrated, GMP-aligned benchtop instrument engineered for precise, reproducible, and regulatory-compliant dissolution testing in pharmaceutical R&D, QC laboratories, and contract manufacturing organizations (CMOs). It operates on the principle of paddle (USP Apparatus 2) and basket (USP Apparatus 1) methods—measuring the rate and extent of drug substance release from solid oral dosage forms (e.g., tablets, capsules) into a standardized dissolution medium under controlled hydrodynamic, thermal, and temporal conditions. All models comply with compendial requirements defined in United States Pharmacopeia (USP) , European Pharmacopoeia (Ph. Eur.) 2.9.3, and Chinese Pharmacopoeia (ChP) 2020 Edition Section 0931. The system employs Couette-type fluid dynamics within cylindrical vessels, where rotational motion of paddles or baskets generates laminar flow profiles validated per USP mechanical calibration protocols.

Key Features

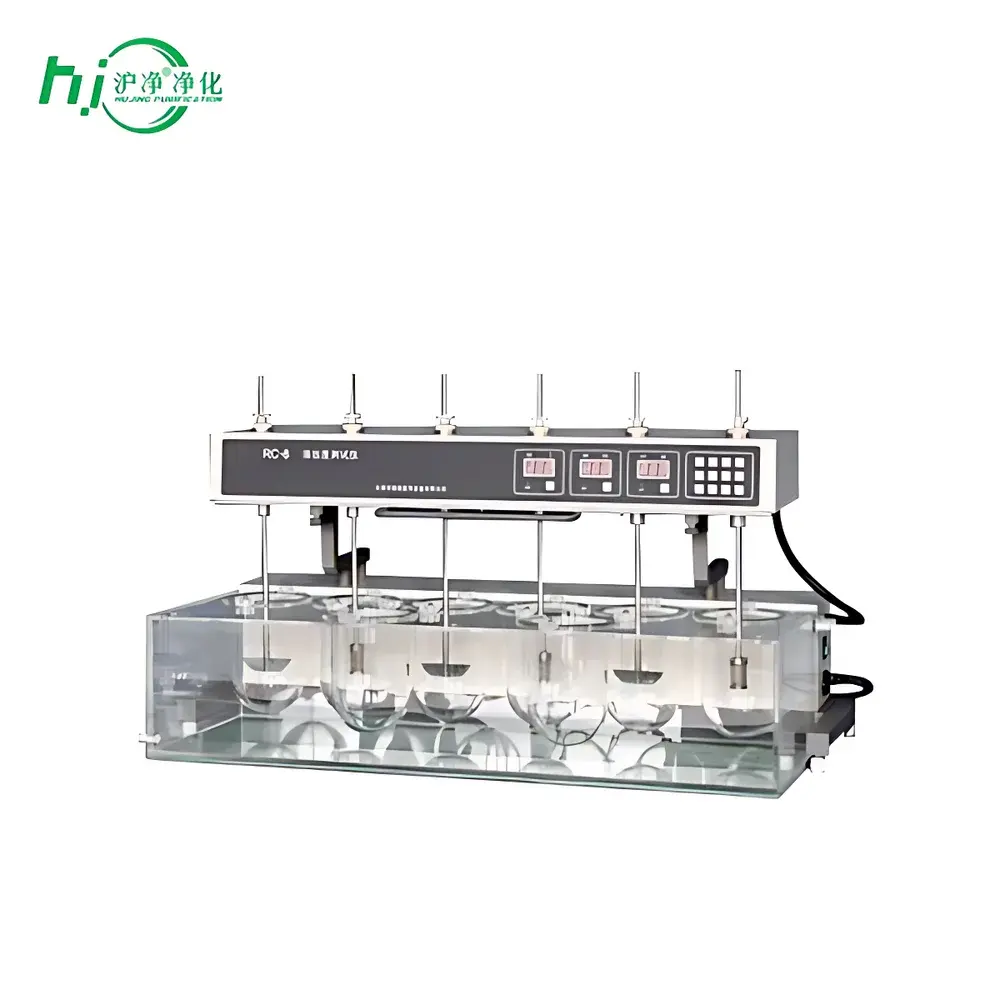

• Modular platform architecture supporting three configurations: RC-6D (6-vessel linear array), RC-8D (8-vessel dual-row: 6 rear + 2 front), and RC-806 (8-vessel dual-row with full 8-paddle/basket actuation)
• Motorized head assembly with precision linear bearings ensures repeatable vertical positioning (±0.1 mm repeatability) and eliminates manual alignment errors
• High-grade SUS316L stainless-steel components—including paddles, baskets, shafts, and vessel caps—meet USP Class VI biocompatibility and corrosion resistance standards
• Integrated magnetic-drive recirculating water bath with distributed heating elements and software-compensated PT100 sensors achieves ±0.3 °C uniformity across all vessels (ASTM D8141-21 verified)
• Programmable multi-stage operation: up to 10 independent test protocols stored onboard; each supports up to 12 timed sampling points with automated acoustic alerts and sequence progression
• Real-time dual-display interface shows setpoints vs. live values for temperature, rotation speed, and elapsed time—enabling immediate deviation detection
• Embedded self-diagnostic firmware continuously monitors motor load, thermal drift, positional feedback, and sensor integrity; triggers visual/audible alarms upon threshold breach
• Automatic preheat scheduling and timed shutdown functions support unattended overnight operation—validated for continuous duty cycles exceeding 48 hours (RC-806)

Sample Compatibility & Compliance

The RC series accommodates standard USP-compliant 1000 mL cylindrical dissolution vessels (glass or quartz), compatible with immediate-release, extended-release, and modified-release formulations. Vessel sealing caps minimize evaporation losses (<0.5 mL/h per vessel at 37 °C), critical for maintaining sink condition integrity over prolonged assays. All mechanical tolerances—including paddle wobble (≤±0.5 mm), basket runout (≤±1 mm), and shaft-cup coaxiality (≤2 mm)—are traceable to NIST-calibrated fixtures and documented per ICH Q5C and FDA Guidance for Industry: Dissolution Testing of Immediate-Release Solid Oral Dosage Forms. The RC-806’s SD-card-based data logging meets 21 CFR Part 11 requirements for electronic records, including user authentication, immutable timestamps, and audit trail generation for every parameter change or event trigger.

Software & Data Management

No external PC dependency is required for routine operation; however, the RC-806 integrates a removable industrial-grade SD card (formatted FAT32, ≥4 GB) that logs timestamped metadata for every test cycle—including speed ramps, temperature deviations, sampling events, and error codes. Exported CSV files are compatible with LIMS integration and statistical process control (SPC) platforms such as JMP or Minitab. Firmware supports role-based user access (Administrator, Technician, Viewer) with password protection and session timeout. All stored protocols retain version history, enabling retrospective comparison of method evolution during analytical transfer or regulatory submissions.

Applications

• Comparative dissolution profiling for generic product development (BCS-based waivers, IVIVC modeling)
• Stability-indicating method validation per ICH Q2(R2), including robustness assessment of agitation rate and medium pH
• Batch release testing of commercial tablets/capsules against approved specifications
• Investigational studies on formulation variables: binder type, granulation method, coating thickness, and excipient interactions
• Supporting ANDA filings through consistent execution of USP-referenced dissolution protocols with full traceability
• Physical-mechanical qualification per USP and PQ protocol execution for lab equipment commissioning

FAQ

Does the RC-806 support automated sampling integration?
Yes—the RC-806 provides TTL-level digital I/O ports and RS-232 communication for synchronization with third-party autosamplers (e.g., Gilson FC204, Agilent 7693), enabling closed-loop sample collection at user-defined intervals.
Is mechanical calibration service available internationally?
HJ Purification offers certified on-site physical-mechanical qualification (PMQ) services compliant with USP and ASTM D8141-21, including concentricity verification, vibration analysis, and temperature mapping—available via authorized regional partners.
Can historical test data be exported without proprietary software?
All datasets are saved in plain-text CSV format on the SD card; no vendor-specific viewer or license is required for import into Excel, Python pandas, or laboratory information management systems (LIMS).
What regulatory documentation is supplied with shipment?
Each unit ships with Factory Acceptance Test (FAT) report, Certificate of Conformance (CoC), USP mechanical calibration certificate, and IQ/OQ protocol templates aligned with GAMP 5 guidelines.
How is temperature uniformity validated across all vessels?
Built-in integrated temperature sensors in each vessel jacket—combined with real-time PID feedback and dynamic power modulation—maintain spatial uniformity within ±0.3 °C (per ASTM D8141-21 Annex A2 thermal mapping procedure).
