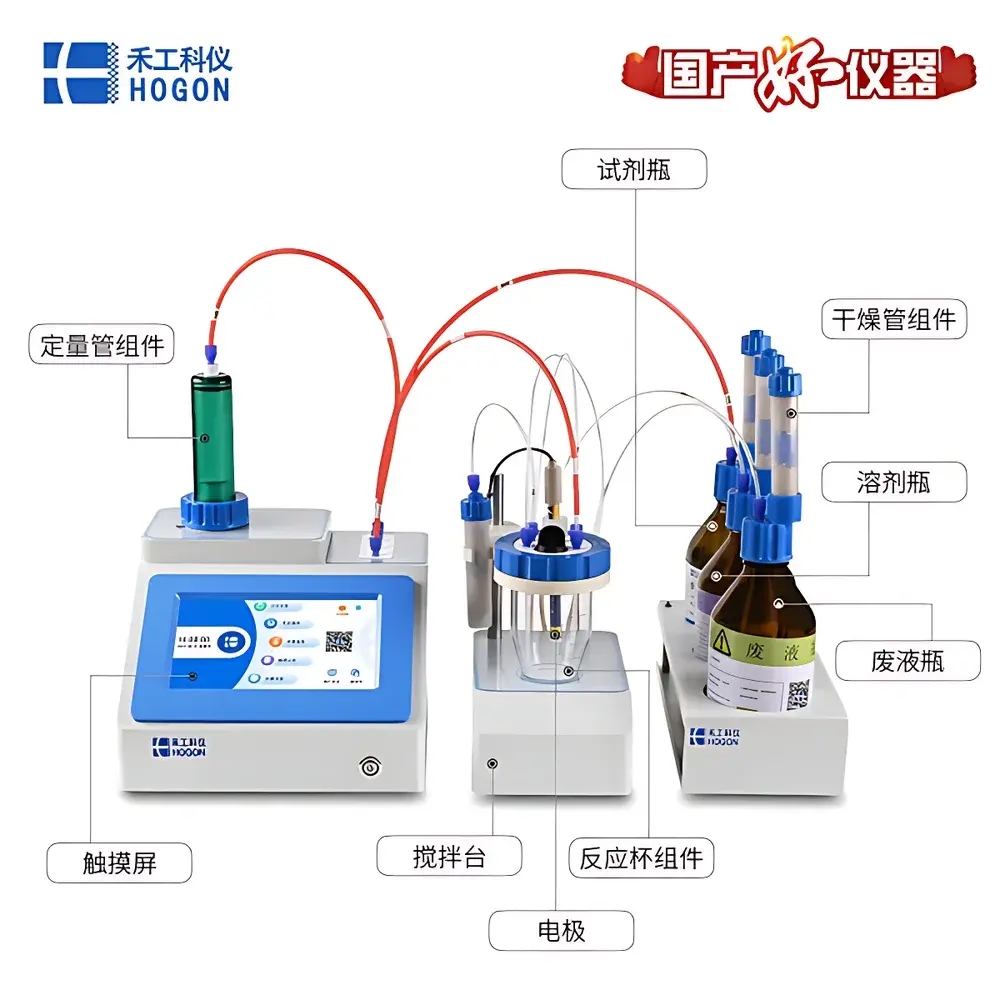

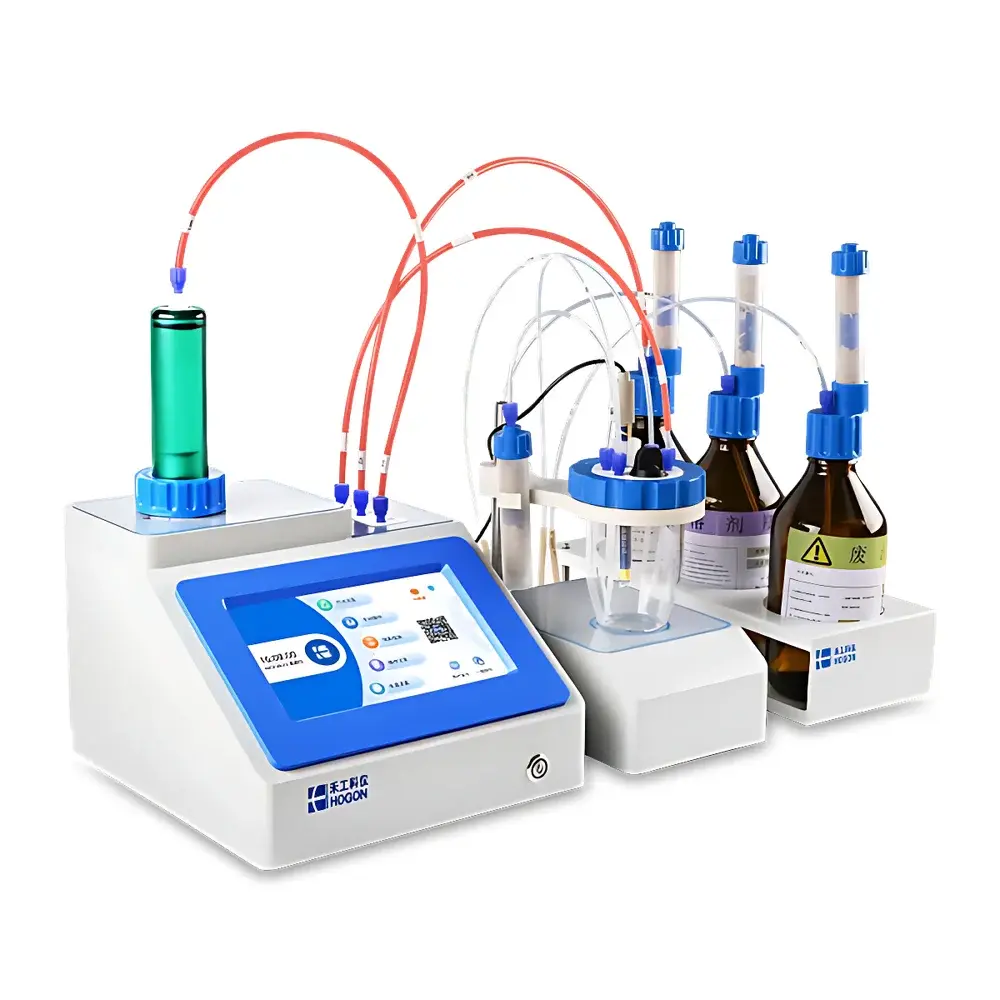

HOGON AKF-V6 Starch-Specific Volumetric Karl Fischer Moisture Titrator
| Brand | HOGON |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Instrument Type | Volumetric Karl Fischer Titrator (Starch-Optimized Configuration) |
| Moisture Range | 10 ppm – 100% H₂O (0.001% – 100% w/w) |
| Resolution | 0.1 ppm |
| Precision | RSD ≤ 0.3% (at 1500 µL reagent consumption) |
| Minimum Dispensing Volume | 0.5 µL (20 mL burette) |
| Burette Delivery Accuracy | ±0.5 µL (20 mL burette) |
| Titration Mode | Fully Automated Volumetric Titration |
Overview
The HOGON AKF-V6 Starch-Specific Volumetric Karl Fischer Moisture Titrator is an engineered solution for high-reliability water content determination in challenging, starch-rich, and biopolymer-based matrices commonly encountered in pharmaceutical, biotechnology, and excipient manufacturing environments. It operates on the classical volumetric Karl Fischer (KF) titration principle—where iodine, generated stoichiometrically via reaction with sulfur dioxide and a base in methanol or alternative anhydrous solvent systems, quantitatively oxidizes water. The endpoint is detected potentiometrically using dual-platinum electrodes, with advanced adaptive algorithm-based endpoint recognition that minimizes over-titration and accommodates slow-reacting or matrix-interfering samples such as native starches, pregelatinized starches, hydroxypropyl starch, and starch–polymer composites.
Key Features

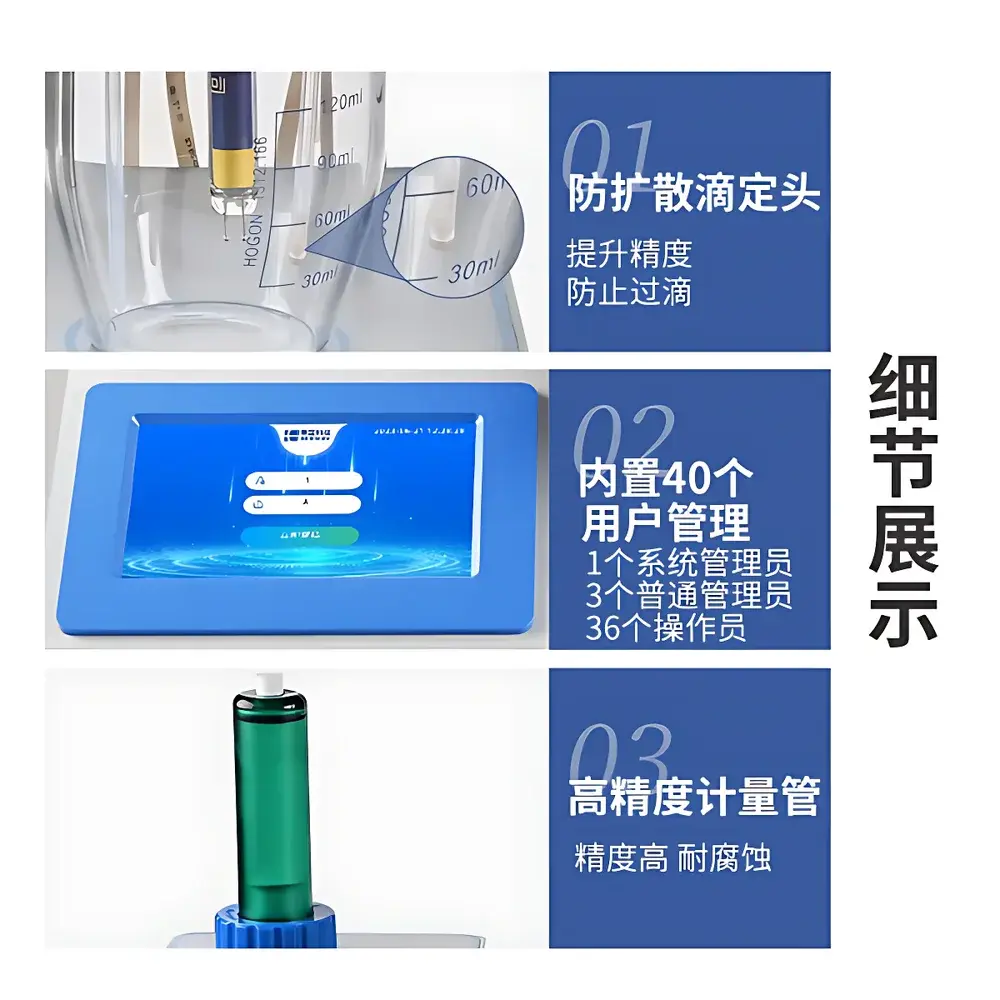

- 7-inch full-color capacitive touchscreen with intuitive bilingual (English/Chinese) UI; real-time display of titration curve, current drift, electrode potential, reagent consumption, and calculated moisture %
- Hermetically sealed titration cell assembly constructed from chemically resistant PTFE, borosilicate glass, and stainless-steel components—designed to prevent ambient moisture ingress and reagent degradation during extended analysis sequences
- HOGON proprietary high-precision burette drive system with gravimetric calibration traceability; delivers 0.5 µL minimum dispensing volume and maintains ±0.5 µL delivery accuracy across the full 20 mL burette range
- Fully automated fluid handling: auto-sampling (via optional syringe pump or solid sample adapter), reagent aspiration, cell rinsing, waste evacuation, electrode cleaning, and quantitative dosing—all programmable and repeatable
- Multi-mode endpoint detection: fixed potential, dynamic drift compensation, and slope-based termination—configurable per method to optimize for low-water-content solids (e.g., dried starch powders) or high-viscosity suspensions (e.g., starch gels)
- Integrated method library with pre-validated protocols for USP <921>, EP 2.5.12, and ASTM E203-compliant starch moisture analysis—including solvent selection guidance (e.g., chloroform/methanol mixtures for amylose-rich samples)
Sample Compatibility & Compliance
The AKF-V6 starch-specific configuration is validated for direct analysis of raw and modified starches (corn, potato, tapioca, rice), excipients (lactose monohydrate, microcrystalline cellulose, povidone K30), solid dosage forms (hard/soft gelatin capsules, tablets, granules), lyophilized biologics (albumin, IgG formulations), and solvent systems (acetonitrile, chloroform, glacial acetic acid). Its closed-system architecture and integrated desiccant-dried gas purge ensure compliance with GLP and GMP requirements for moisture testing in regulated environments. The instrument supports 21 CFR Part 11-compliant audit trails—including user login logs, method version history, raw electrode signal archives, and electronic signatures—when deployed with HOGON’s optional LIMS-integrated software package.
Software & Data Management
- Onboard data storage retains ≥1000 complete test records with timestamp, operator ID, method name, sample ID, raw titration curve, and statistical summary (mean, SD, RSD)
- Export formats include CSV, PDF, and XML for integration into enterprise quality management systems (QMS) or ELN platforms
- Three-tier user permission structure: Administrator (full system configuration), Supervisor (method editing & report approval), and Operator (routine analysis only)
- Automated calibration verification logs: daily reagent titer checks, electrode impedance monitoring, and environmental humidity tracking linked to each measurement record
Applications
The AKF-V6 is routinely deployed for QC release testing of starch-based excipients per Ph. Eur. 2.5.12 and JP 2.07; stability-indicating moisture profiling of freeze-dried protein formulations; residual solvent quantification in spray-dried amorphous solid dispersions; and batch-to-batch consistency assessment of modified starch carriers used in controlled-release oral dosage forms. Its robustness extends to non-traditional applications including moisture mapping of surgical sponges, hydration state evaluation of collagen–starch hybrid wound dressings, and water activity correlation studies in starch–plasticizer systems (e.g., glycerol-plasticized thermoplastic starch).
FAQ
Does the AKF-V6 support coulometric KF titration?
No—it is a dedicated volumetric KF titrator. Coulometric functionality requires separate hardware architecture and is not implemented in this model.
Can it analyze insoluble starch samples without pretreatment?
Yes, when paired with the optional heated headspace sampler (HOGON HS-200) and optimized solvent blend (e.g., pyridine-free chloroform/methanol), it achieves quantitative recovery from native granular starch without grinding or acid hydrolysis.
Is method validation documentation available for pharmaceutical use?
Yes—HOGON provides IQ/OQ/PQ protocol templates, system suitability test procedures aligned with USP <921> Stage 3, and blank correction workflows for low-moisture starch matrices.
What maintenance intervals are recommended for routine operation?
Daily: electrode cleaning and solvent replacement; quarterly: burette piston seal inspection and drift calibration; annually: full system performance verification with certified water standards (e.g., 1.00 ± 0.02 mg H₂O/mL standard).
