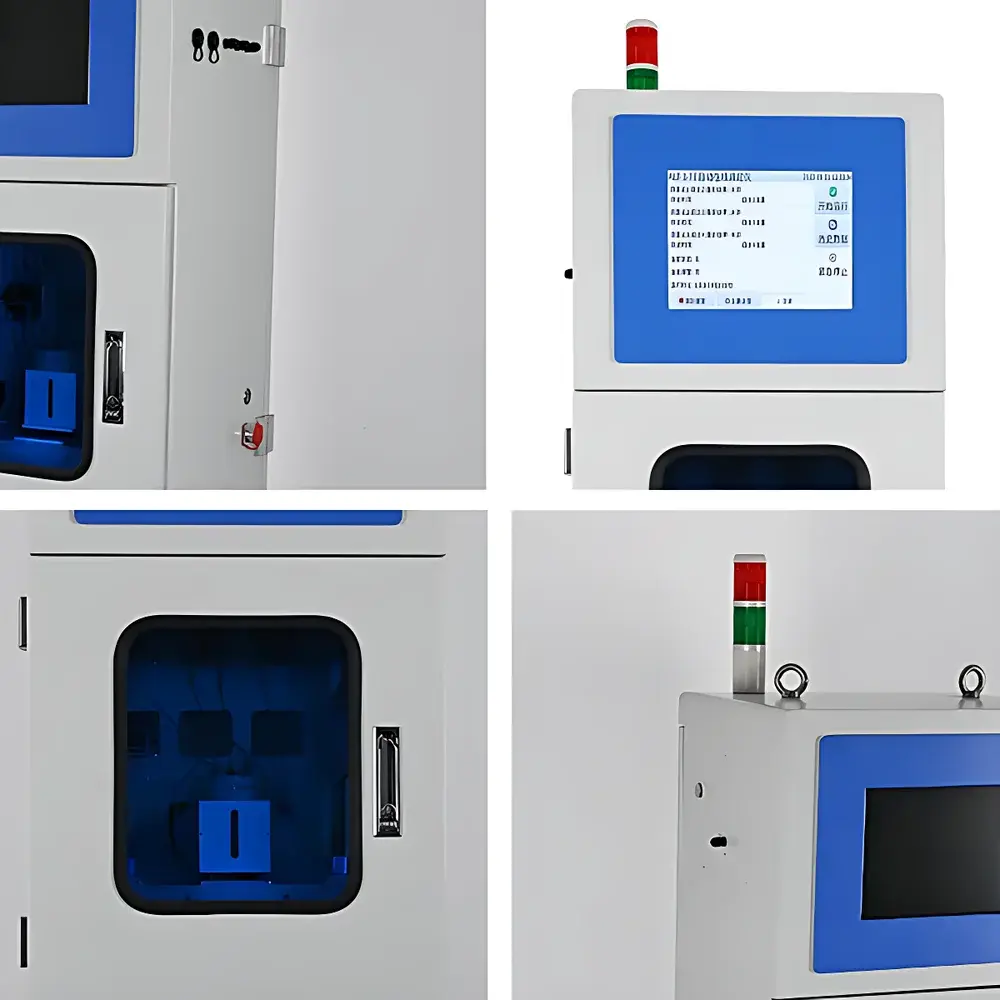

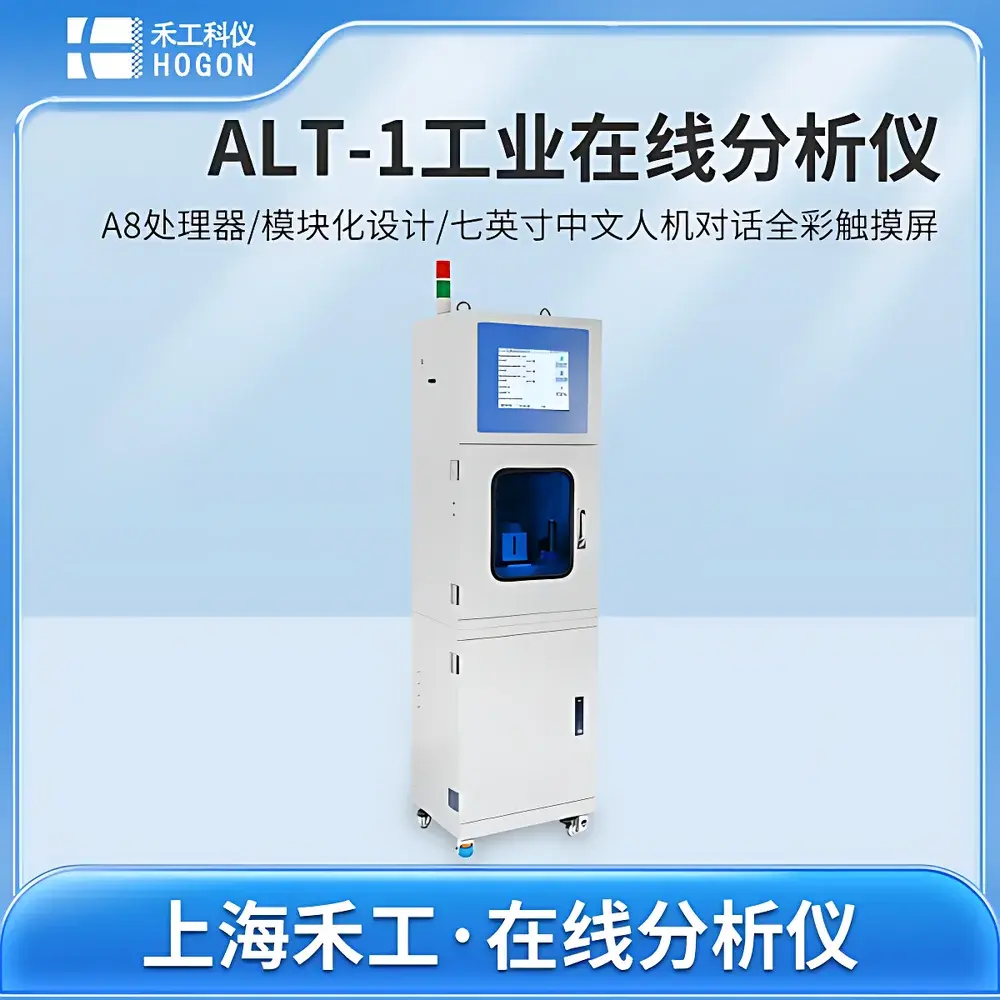

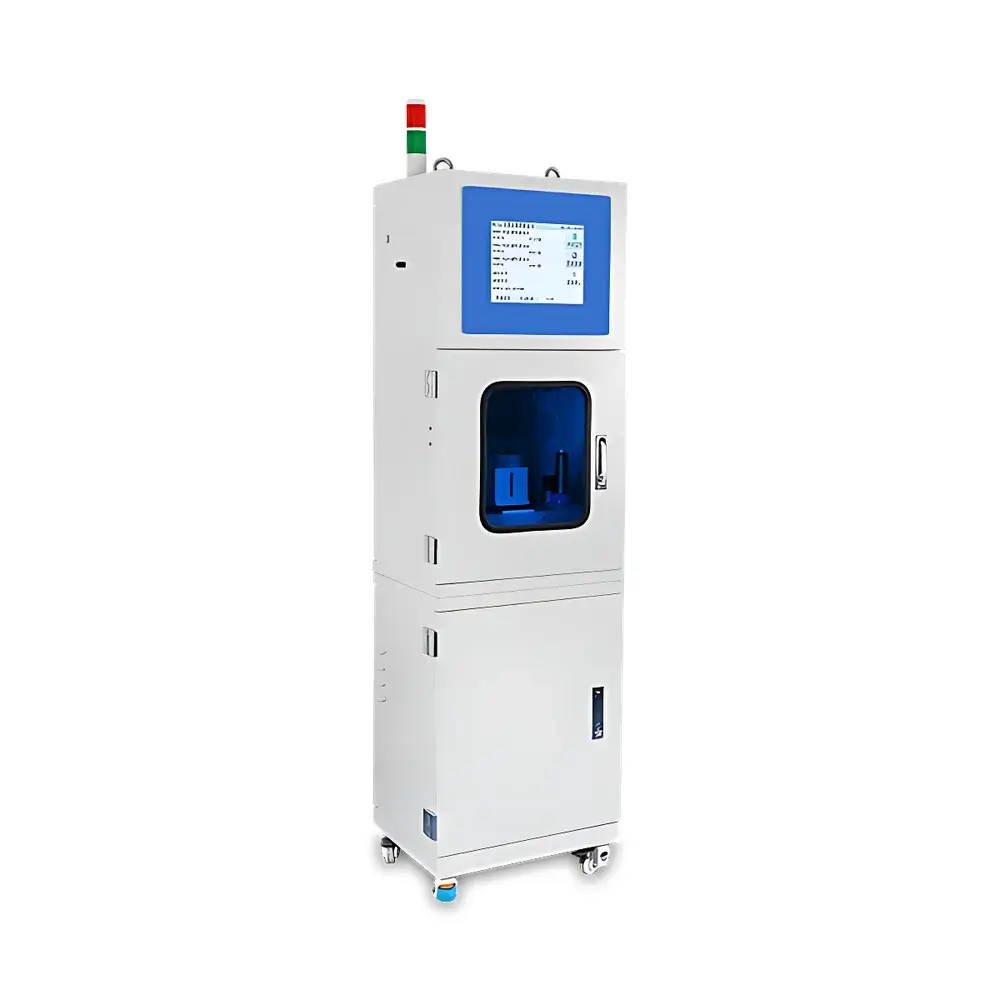

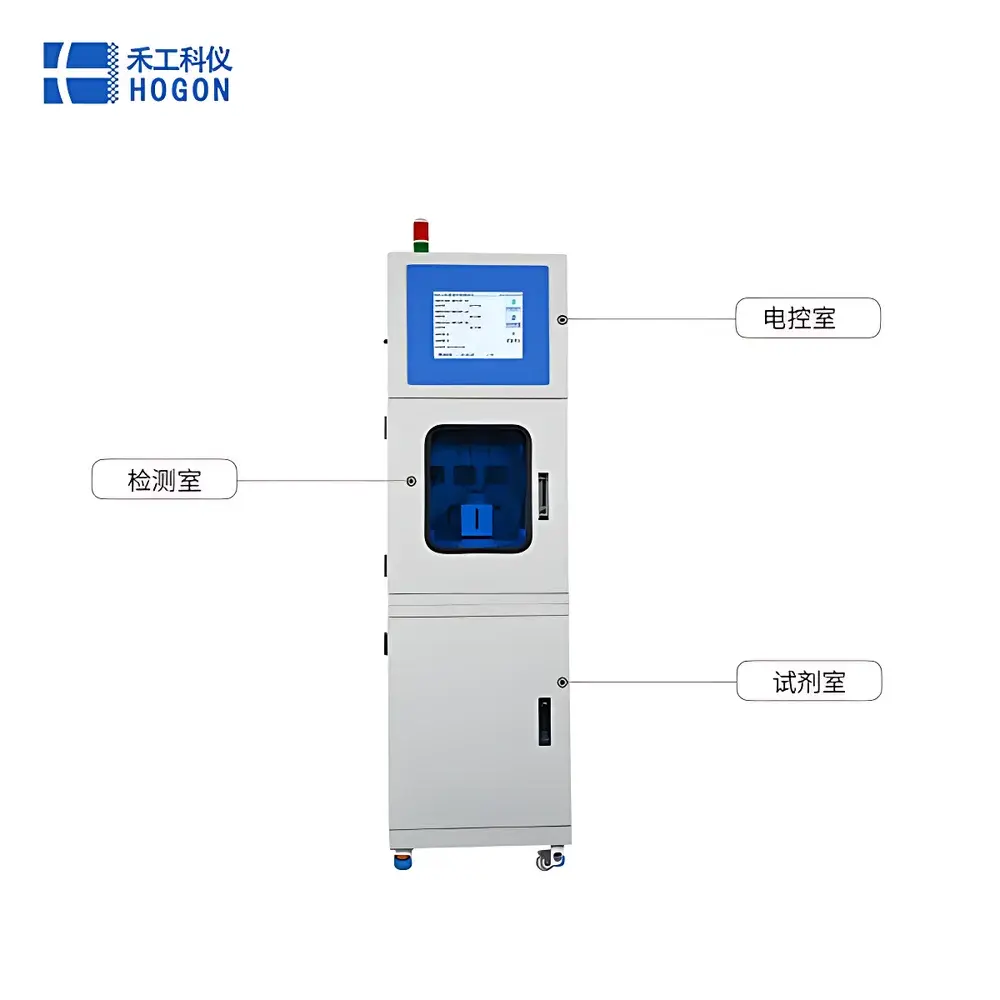

HOGON ALT-1 Online Zirconium, pH, and Free Fluoride Analyzer for Conversion Coating Baths

Overview

The HOGON ALT-1 Online Zirconium, pH, and Free Fluoride Analyzer is an integrated industrial process analytical instrument engineered for continuous, unattended monitoring of critical chemical parameters in zirconium-based conversion coating (‘telanization’) baths used in metal surface pretreatment. It operates on a hybrid analytical architecture combining potentiometric titration, high-stability glass electrode pH measurement, and ion-selective electrode (ISE) detection—principles aligned with ASTM D1129 (standard terminology for pH), ISO 7870-2 (control charts for analytical performance), and USP <791> (pH measurement). The system performs sequential, automated analysis of three interdependent parameters—zirconium concentration (as Zr⁴⁺), bath pH, and free fluoride ion activity—each directly governing film nucleation kinetics, crosslink density, and long-term bath stability. Unlike single-parameter online sensors, the ALT-1 delivers traceable, laboratory-grade quantification by executing standardized wet-chemistry protocols—including EDTA complexometric titration for Zr⁴⁺ and TISAB-buffered ISE measurement for F⁻—within a sealed, temperature-compensated fluidic module. This ensures metrological continuity between offline QC lab results and real-time process control decisions.

Key Features

• Triple-parameter autonomous analysis: Simultaneous determination of zirconium concentration (mg/L), pH (0–20 range), and free fluoride ion concentration (mg/L or ppm), all performed within a single instrument cycle.
• Automated micro-titration module: Equipped with a 20 mL precision burette delivering ±1 µL volumetric accuracy per dispense, compliant with ISO 8655-3 for piston burettes; supports endpoint detection via potentiometric slope analysis.
• Temperature-compensated pH measurement: Uses a double-junction, refillable pH electrode with built-in Pt100 RTD for automatic temperature correction per NIST SRM 186a traceability guidelines.
• Fluoride-specific ISE system: Employs a lanthanum fluoride crystal membrane electrode with integrated reference junction and TISAB (Total Ionic Strength Adjustment Buffer) dosing to eliminate interference from Al³⁺, Fe³⁺, and OH⁻ ions common in conversion baths.
• Ruggedized process interface: IP55/IP65-rated enclosure (upgradeable to IP66/IP67) with corrosion-resistant 316 stainless steel wetted parts and PTFE/PFA fluidic pathways rated for prolonged exposure to acidic fluorozirconate solutions (pH 3.0–5.5).
• Modular reagent management: Onboard reagent reservoirs (EDTA titrant, HCl conditioning solution, TISAB buffer) with level sensing and low-reagent alarms; designed for ≥7-day unattended operation under typical line duty cycles.

Sample Compatibility & Compliance

The ALT-1 is validated for direct sampling from circulating conversion coating tanks operating at temperatures up to 45 °C and suspended solids content ≤50 mg/L. Sample introduction uses a pneumatically actuated diaphragm pump with pulse-dampening and particulate filtration (5 µm inline filter). All analytical methods conform to recognized standard practices: zirconium quantification follows a modified ASTM D1091 (titrimetric determination of metals in electroplating baths); pH measurement adheres to ISO 10523 and GLP-compliant calibration traceability (two-point NIST-traceable buffers); free fluoride analysis aligns with EPA Method 300.0 and ISO 10304-1 for ion chromatography–validated ISE correlation. Data integrity meets FDA 21 CFR Part 11 requirements through audit-trail-enabled software, electronic signatures, and immutable raw data logging—including timestamped electrode mV readings, titration curves, and calibration history.

Software & Data Management

The embedded HOGON Process Analytics Suite (v4.2+) provides a web-accessible HMI with role-based user permissions (Operator, Technician, Administrator). All measurements are timestamped, stored locally (16 GB industrial-grade SD card) and synchronized via Modbus TCP to DCS/SCADA systems. Raw sensor outputs (mV, pH, Abs), calculated concentrations, titration derivatives, and diagnostic flags (e.g., electrode drift >2 mV/h, buffer depletion, air bubble detection) are logged at configurable intervals (1–60 min). Trend visualization includes dual-Y axis plots comparing Zr⁴⁺ vs. pH over time, with configurable alarm thresholds (high/low, rate-of-change). Historical datasets export in CSV or ASTM E1955-compliant XML format for LIMS integration. Remote firmware updates and method parameter adjustments are supported via secure HTTPS with TLS 1.2 encryption.

Applications

The ALT-1 is deployed in OEM and Tier-1 automotive component manufacturing lines where zinc- or aluminum-based substrates undergo telanization prior to cathodic electrophoretic deposition (e-coat). It maintains optimal bath chemistry across variable production loads—preventing under-filming (Zr⁴⁺ < 80 mg/L), hydrolytic instability (pH > 5.2), or pitting corrosion (free F⁻ > 120 mg/L). Additional use cases include coil coating pretreatment lines, aerospace aluminum etch-and-rinse validation, and R&D labs developing next-generation non-chromate conversion coatings. Its ability to correlate Zr:F stoichiometry in real time enables closed-loop dosing control of zirconium nitrate and ammonium bifluoride feedstocks, reducing chemical consumption by up to 18% versus fixed-dose strategies (per internal 12-month plant trial data).

FAQ

What sample volume is required per analysis cycle?
Each full triple-parameter cycle consumes 10 mL of bath sample for zirconium titration and fluoride ISE measurement, plus a separate 5 mL aliquot for pH verification.
Can the ALT-1 integrate with existing PLC-based dosing systems?
Yes—via native Modbus TCP or RS-485 RTU protocols; analog 4–20 mA outputs are assignable to any measured parameter or derived control signal (e.g., “Zr deficit correction demand”).
How often does the system require calibration or maintenance?
pH electrode calibration is recommended daily using two NIST-traceable buffers; ISE calibration every 8 hours during continuous operation; titrant standardization weekly or after reagent replacement.
Is remote diagnostics supported?
Yes—the unit includes embedded VNC server access (with TLS-secured tunneling) for HOGON technical support to monitor real-time sensor health, fluidic pressure traces, and error logs without onsite intervention.
Does the analyzer comply with SIL2 functional safety requirements?
While not certified SIL2, the ALT-1 implements hardware fault tolerance (dual independent power supplies, watchdog timers, redundant valve actuation feedback) and supports fail-safe output configuration per IEC 61511 Annex D for safety-related shutdown interlocks.
