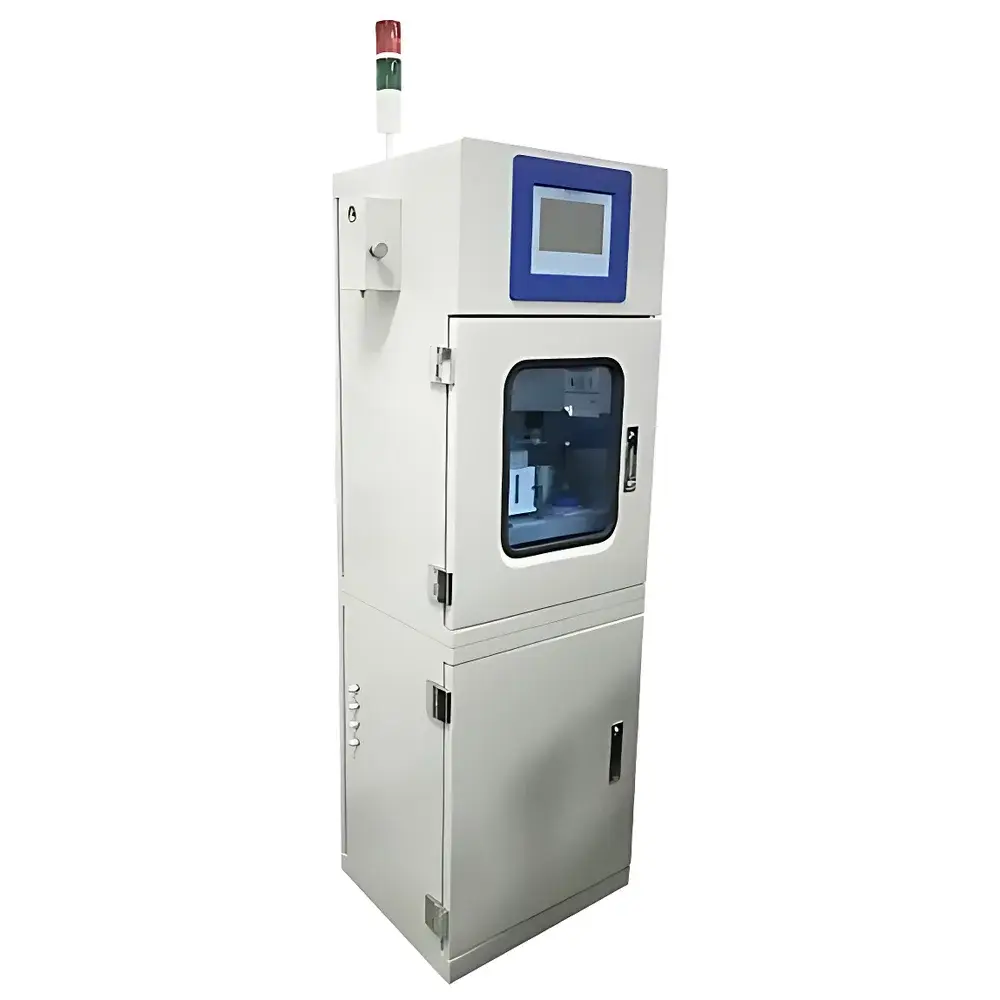

HOGON ALT-PCB Online Copper Ion Analyzer for PCB Production Lines
| Brand | HOGON |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Regional Classification | Domestic (China) |
| Model | ALT-PCB Online Copper Ion Analyzer |
| Pricing | Available Upon Request |
Overview
The HOGON ALT-PCB Online Copper Ion Analyzer is an industrial-grade, fully automated titration-based process analyzer engineered for continuous, unattended monitoring of Cu²⁺ concentration in electroplating and etching baths on printed circuit board (PCB) production lines. It operates on potentiometric and photometric endpoint detection principles—leveraging high-precision electrode potential shifts and real-time colorimetric signal acquisition to determine titration endpoints with high reproducibility. Unlike manual wet-chemistry methods or single-parameter ion-selective electrodes, this system integrates multi-mode titration capability (including complexometric, redox, pH, precipitation, and non-aqueous titrations) within a unified platform, enabling accurate quantification of free and total copper ions under varying bath chemistries (e.g., acidic sulfate, alkaline cyanide, or EDTA-complexed systems). Designed for 24/7 operation in harsh factory environments, it eliminates operator dependency while maintaining analytical traceability aligned with ISO/IEC 17025–informed quality practices.
Key Features
- Embedded ARM-based A8 processor with deterministic real-time control architecture for synchronized sample handling, titrant delivery, and endpoint recognition
- Modular hardware design supporting field-reconfigurable analysis workflows—drop-in replacement of titration modules without system recalibration
- 7-inch full-color capacitive touchscreen interface with intuitive Chinese/English bilingual HMI; supports recipe-driven method execution and audit-log browsing
- Dual high-accuracy burettes (±0.1% volumetric accuracy per ISO 385) with ceramic piston drives and integrated back-pressure compensation
- Electromagnetic valve manifold with 1 million cycle durability rating
- Long-life peristaltic solvent pumps (rated for >5,000 hours continuous operation) and corrosion-resistant fluid path materials (PTFE, PEEK, borosilicate glass)
- High-resolution RGB color sensor array (16-bit dynamic range) coupled with white LED illumination for robust photometric endpoint detection across turbid or colored matrices
- Multi-electrode compatibility: includes dual-platinum redox electrode, combination pH electrode, and optional ion-selective electrodes for cross-validation
Sample Compatibility & Compliance
The ALT-PCB analyzer accepts undiluted samples from standard PCB process tanks (etchant, plating, stripping, and micro-etch solutions) with temperature stability up to 45 °C and suspended solids content ≤50 mg/L. It complies with CE electromagnetic compatibility (EMC) Directive 2014/30/EU and RoHS 2011/65/EU. While not certified as a medical device or pharmaceutical-grade instrument, its data integrity framework supports GLP/GMP-aligned operations: all analytical events—including sample ID, timestamp, reagent lot numbers, calibration history, and raw sensor traces—are immutably logged with digital signatures. Optional integration with FDA 21 CFR Part 11–compliant LIMS platforms enables electronic record retention and user-access governance.
Software & Data Management
The embedded titration control software (v3.2+) provides method editor functionality for custom titration sequences—including conditional logic branching (e.g., “if pH < 2.5, activate acid titration module”), dynamic dilution factor assignment, and adaptive endpoint algorithms. All results—including Cu²⁺ concentration (mg/L or g/L), titrant consumption volume, and endpoint deviation metrics—are exported via TCP/IP, RS-232, or MODBUS RTU/ASCII protocols to SCADA, MES, or cloud-hosted databases. Built-in data buffering ensures zero-loss transmission during network interruptions. Audit trails meet ISO 9001:2015 clause 8.5.2 requirements for documented evidence of process monitoring.
Applications
- Real-time control of copper sulfate plating bath composition in HDI and flex-rigid PCB manufacturing
- Automated replenishment dosing in ammoniacal etchants to maintain stoichiometric Cu:NH₃ ratios
- Monitoring copper accumulation in alkaline stripping solutions to trigger regeneration cycles
- Quality assurance testing of incoming copper anolyte solutions prior to tank filling
- Supporting DOE (Design of Experiments) studies for bath life extension and waste minimization initiatives
- Cross-industry deployment in metal finishing, semiconductor wafer cleaning, and wastewater pretreatment where Cu²⁺ speciation impacts passivation or coagulation efficiency
FAQ
What titration methods does the ALT-PCB support for copper quantification?
It primarily uses EDTA complexometric titration with potentiometric endpoint detection using a dual-platinum redox electrode. Photometric mode with Cu-specific chromogenic reagents (e.g., neocuproine) is available as an optional configuration.
Can the system interface with existing PLC-based dosing controllers?
Yes—via MODBUS TCP or ASCII serial protocol, it outputs analog-equivalent signals (4–20 mA simulated or discrete relay commands) compatible with Allen-Bradley, Siemens S7, and Mitsubishi Q-series PLCs.
Is remote firmware update supported?
Firmware updates are performed via secure HTTPS upload through the web-based maintenance portal; no physical access required beyond initial network provisioning.
What maintenance intervals are recommended for routine operation?
Daily: visual inspection of fluid paths and electrode cleanliness. Quarterly: burette calibration verification and pump tubing replacement. Annually: full system performance validation against NIST-traceable Cu standards.
Does the analyzer require external cooling or compressed air?
No—it operates passively cooled within ambient temperatures of 10–40 °C and requires only standard 230 VAC / 50 Hz power; no pneumatic utilities are needed.
