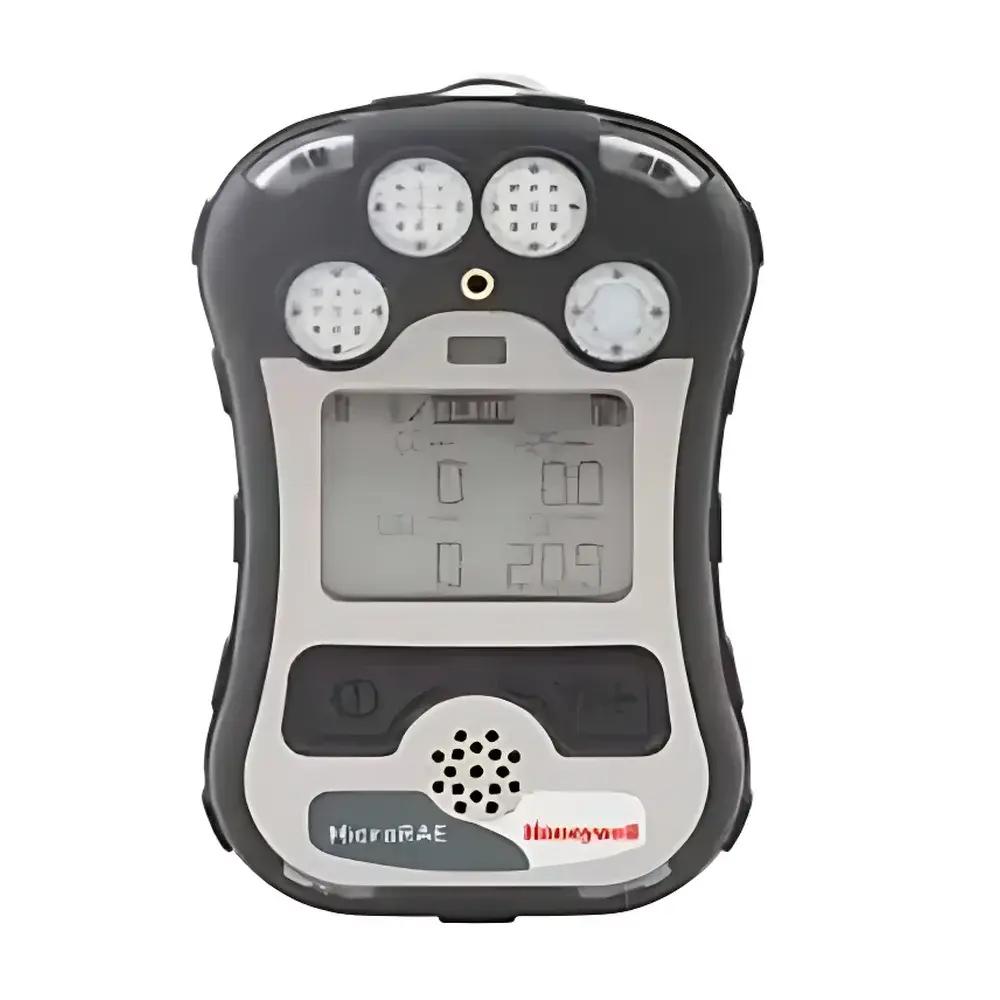

Honeywell MicroRAE Wireless 4-Gas Monitor
| Brand | Honeywell |
|---|---|
| Origin | USA |
| Model | MicroRAE |
| Instrument Type | Portable |
| Detectable Gases | O₂, LEL (Combustible Gas), CO, H₂S |
| Response Time | 15 s |
| Measurement Accuracy | ±1 ppm (for CO and H₂S in low-range mode) |
| Measurement Ranges | 0–30.0% VOL (O₂), 0–100% LEL (Combustibles), 0–1,000 ppm (CO), 0–100 ppm (H₂S) |
| IP Rating | IP67 |
| Operating Temperature | −40 °C to +70 °C (2 hr at extremes), −20 °C to +60 °C (continuous) |
| Battery Life | 15 h (non-wireless), 11 h (wireless active) |
| Wireless Protocols | Proprietary RAE Mesh, Bluetooth Low Energy (BLE), optional integrated GPS |
| Certifications | IECEx Ex ia d II C T4 Gb, China Ex d ia II C T4 Gb, CMC, CCCF |
| Calibration | Dual-point (manual or AutoRAE 2 automated) |
| Data Logging | Continuous, configurable interval (1–3600 s), 6-month storage (1-min intervals across all 4 sensors) |
Overview
The Honeywell MicroRAE Wireless 4-Gas Monitor is an intrinsically safe, portable multi-gas detection instrument engineered for real-time, continuous monitoring of oxygen (O₂), combustible gas (LEL), carbon monoxide (CO), and hydrogen sulfide (H₂S) in hazardous and confined-space environments. Built upon Honeywell’s proven RAE Systems platform, the MicroRAE employs electrochemical sensors for CO and H₂S, a catalytic bead (pellistor) sensor for LEL, and a galvanic cell sensor for O₂—each selected for stability, selectivity, and resistance to poisoning under industrial conditions. Its core architecture supports both local hazard assessment and networked safety management via bidirectional wireless telemetry, enabling integration into centralized safety operations centers. The device operates within Class I, Division 1 / Zone 1 hazardous locations and complies with international intrinsic safety standards including IEC 60079-0, -11, and -15, making it suitable for deployment across upstream oil & gas, wastewater treatment, chemical manufacturing, and municipal infrastructure applications where personnel exposure risk must be quantified, logged, and audited per OSHA 1910.146, NIOSH RELs, and ACGIH TLVs.
Key Features
- Intrinsically safe design certified to IECEx Ex ia d II C T4 Gb and China Ex d ia II C T4 Gb for use in explosive atmospheres
- Ergonomic, lightweight housing (206 g with battery and clip) with IP67-rated enclosure for dust-tight and immersion-resistant operation
- Tri-color LED status indicator (green/amber/red) and 100 dB audible alarm (at 30 cm) with variable-frequency tones, haptic vibration, and flashing red LED for multi-modal alerting
- Dual-mode wireless capability: proprietary RAE Mesh network (up to 200 m line-of-sight range) and Bluetooth Low Energy (up to 5 m) for mobile configuration and data upload
- Optional integrated GPS module for geotagged event logging and lone-worker location tracking
- Fall detection algorithm with pre-alarm warning and automatic transmission of fall events via wireless network
- “Glimpse Mode” enables immediate visual verification of instrument status—including gas readings, alarm history, and battery level—without full power-on
- Anti-poisoning catalytic LEL sensor with selectable dual-layer filter options to extend service life in silicon- or lead-contaminated environments
- AutoRAE 2-compatible calibration and bump test functionality supporting traceable, documented QA/QC procedures compliant with ISO/IEC 17025 and FDA 21 CFR Part 11 audit requirements
Sample Compatibility & Compliance
The MicroRAE is validated for ambient air sampling in industrial hygiene and process safety contexts. It meets performance criteria defined in ASTM D5402 (standard practice for calibrating direct-reading portable gas monitors) and aligns with EN 50104 (electrochemical CO sensors) and EN 50105 (catalytic LEL sensors). Sensor cross-sensitivity profiles are characterized per manufacturer specifications and documented in the device’s Type Examination Certificate. All firmware and calibration records support GLP/GMP-aligned electronic audit trails when used with Honeywell ConneXt Plus or Safety Communicator platforms. The unit carries CMC (China Metrology Certification) and CCCF (China Certification Center for Fire Products) approvals, ensuring regulatory acceptance in domestic Chinese industrial safety programs. No sample conditioning or external dilution is required; measurements reflect true atmospheric concentration under standard temperature and pressure (STP) conditions unless compensated via optional environmental sensors.
Software & Data Management
Data integrity and traceability are ensured through embedded non-volatile memory supporting six months of continuous four-channel logging at user-defined intervals (1–3600 seconds). Logged parameters include instantaneous gas concentrations, TWA/STEL values, peak exposures, battery voltage, sensor diagnostics, GPS coordinates (if enabled), and alarm timestamps. Data export occurs via USB-connected travel charger or over-the-air via RAE Mesh gateway to ConneXt Pro cloud infrastructure. Firmware updates, sensor configuration, and alarm threshold adjustments are performed remotely using Honeywell’s ConneXt Suite—software validated for compliance with FDA 21 CFR Part 11 (electronic signatures, audit trail, role-based access control). Raw CSV exports include cryptographic hash signatures for forensic data validation during incident investigations or regulatory audits.
Applications
- Confined space entry monitoring per OSHA 1910.146 and ANSI Z117.1
- Lone-worker protection in remote or unstaffed facilities (e.g., pump stations, tank farms, pipeline right-of-ways)
- Pre-startup safety checks in petrochemical plants and refineries
- Emergency response team deployment in hazmat incidents
- Continuous exposure assessment for occupational health surveillance programs
- Municipal utility maintenance (sewer systems, water treatment basins, lift stations)
- Industrial hygiene surveys supporting ISO 45001-certified safety management systems
FAQ
What wireless protocols does the MicroRAE support?
The MicroRAE natively supports Honeywell’s proprietary RAE Mesh radio protocol and Bluetooth Low Energy (BLE). Optional modules enable integration with LonWorks or third-party SCADA systems via Modbus RTU over RS-485.
Can the MicroRAE be calibrated without connecting to a PC?
Yes—manual zero and span calibration can be performed using certified gas cylinders and onboard keypad navigation. For automated, traceable calibration, the AutoRAE 2 docking station is recommended.
Is GPS positioning available on all units?
GPS is an optional hardware module; units shipped without it lack geolocation capability, though time-stamped event logs remain fully functional.
How is sensor poisoning mitigated in high-risk environments?
The LEL sensor includes replaceable dual-stage filters targeting silicones, chlorinated hydrocarbons, and sulfur compounds. Electrochemical CO and H₂S sensors feature extended-life electrolyte formulations and passive diffusion barriers.
Does the MicroRAE meet FDA or pharmaceutical industry requirements?
While not designed specifically for cleanroom or cGMP manufacturing environments, its audit-trail-capable firmware, electronic calibration logs, and 21 CFR Part 11–compliant software interface make it suitable for facility-wide EHS monitoring in pharma-adjacent settings such as utilities, warehouses, and maintenance corridors.
