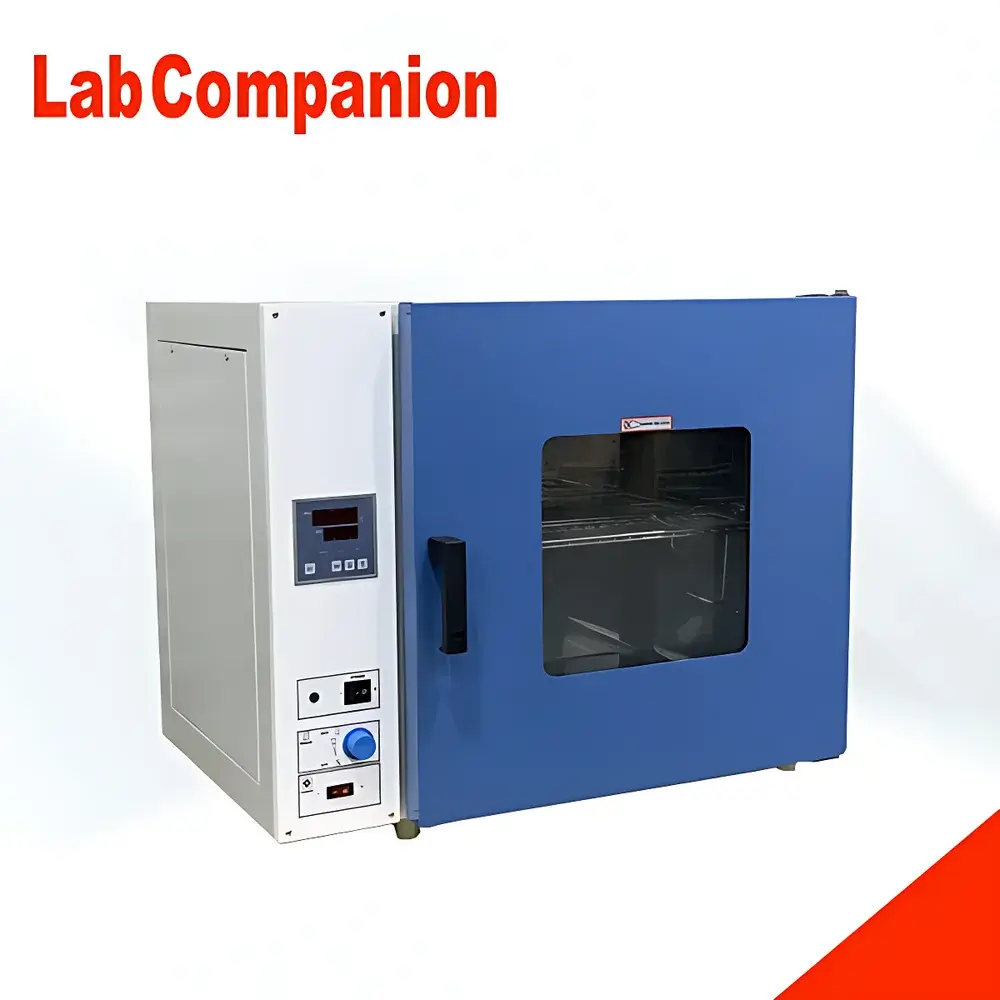

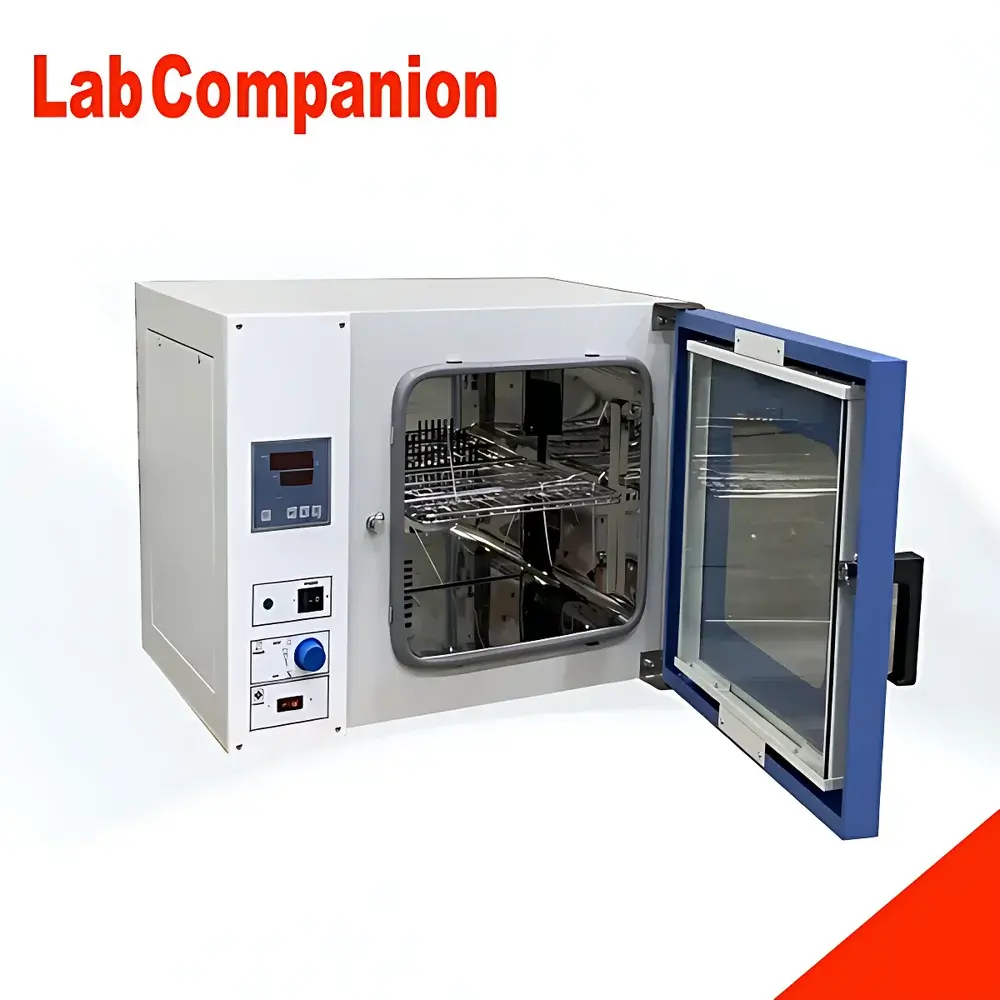

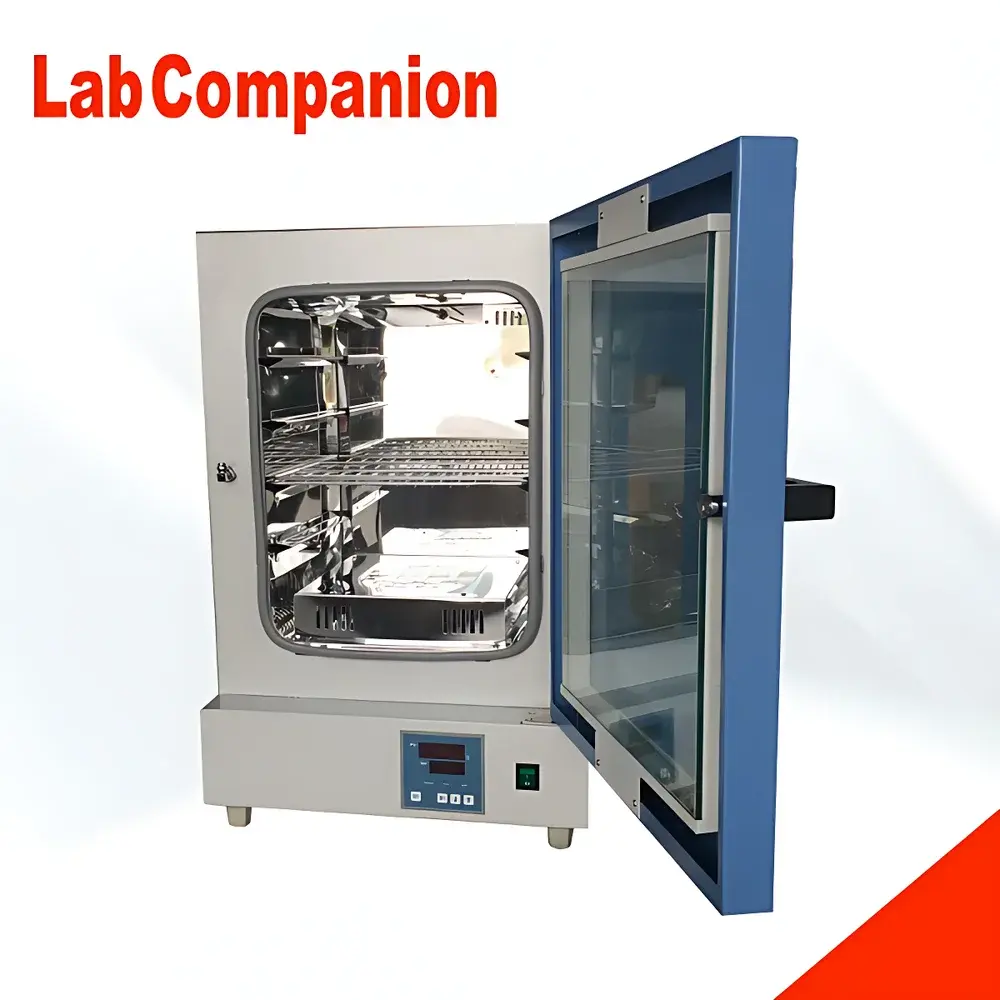

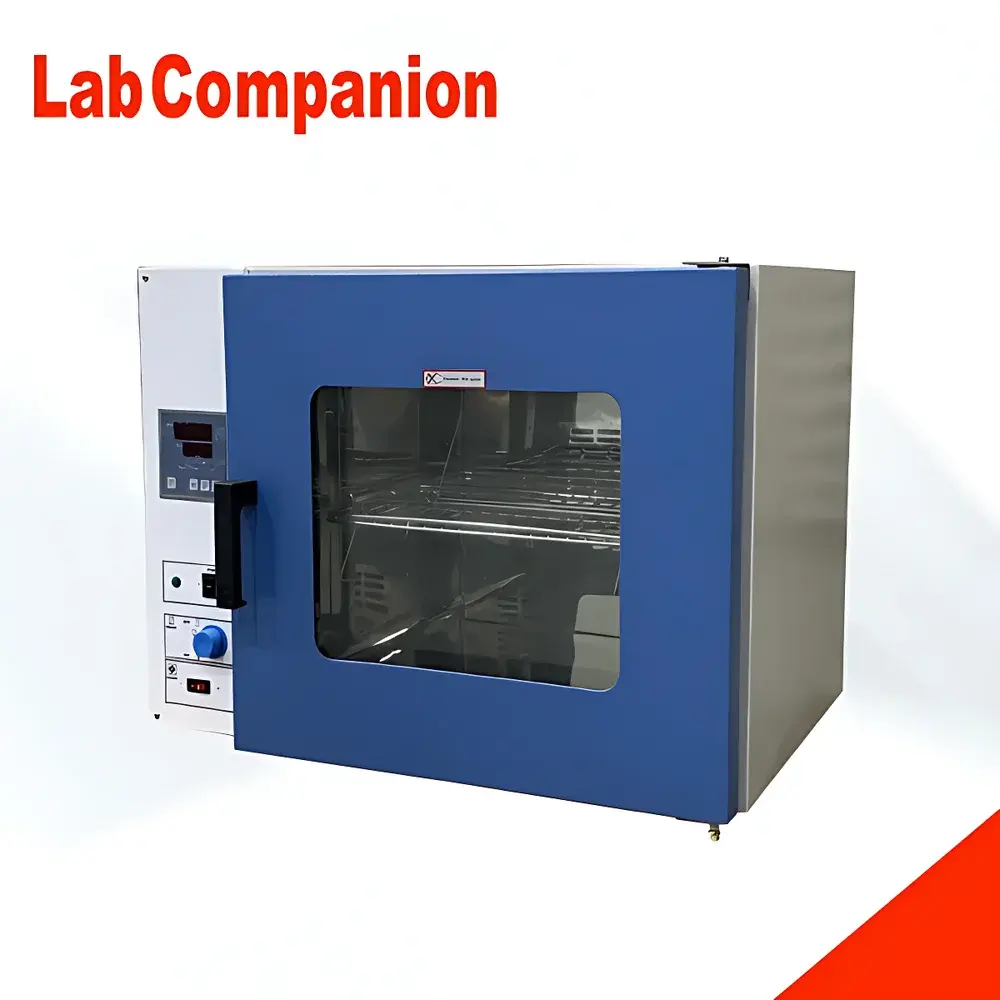

Hongzhan DGF Series Forced-Convection Electric Hot Air Drying Oven

Overview

The Hongzhan DGF Series Forced-Convection Electric Hot Air Drying Oven is a precision-engineered laboratory and industrial thermal processing system designed for controlled drying, baking, sterilization, curing, and aging applications. Operating on the principle of forced-air convection—where a centrifugal blower circulates heated air uniformly across the chamber—the DGF oven ensures rapid thermal response and high spatial temperature consistency. Its architecture meets the functional requirements of quality-critical environments including semiconductor manufacturing, LED/LCD component conditioning, passive electronic component (capacitor, resistor, quartz crystal) burn-in, pharmaceutical stability testing, and academic materials research. The oven is not rated for flammable, explosive, or volatile organic solvent exposure; it is strictly intended for non-hazardous solid or low-moisture samples under ambient atmospheric pressure.

Key Features

• Microprocessor-based PID temperature controller with auto-tuning capability, enabling stable setpoint maintenance across variable load conditions and ambient fluctuations.
• Industrial-grade PT100 platinum resistance thermometer (Class B, IEC 60751) for accurate, linear temperature sensing and real-time feedback control.
• Double-wall construction: inner chamber fabricated from SUS304 stainless steel (BN models) or high-quality cold-rolled steel with high-temp silver paint (N models); outer shell finished with anti-rust treatment and electrostatic powder coating.
• High-efficiency thermal insulation using ultra-fine glass wool or mineral rock wool (≥80 mm thickness), minimizing heat loss and improving energy efficiency.
• Robust forced-air circulation system with adjustable airflow direction and multi-point air inlet/outlet design to reduce thermal stratification and enhance uniformity (±2.5% across working volume).
• Dual safety architecture: primary PID-controlled heating circuit plus independent mechanical over-temperature cut-off switch (typically set 10–15°C above maximum operating limit).
• Ergonomic design including four swivel casters with brakes, two adjustable stainless-steel shelves, and an environmentally compliant silicone rubber door gasket ensuring tight sealing and long service life.

Sample Compatibility & Compliance

The DGF oven accommodates non-volatile, non-corrosive, and non-explosive solid specimens—including printed circuit boards, ceramic substrates, polymer films, metal alloys, pharmaceutical excipients, and food-grade powders. It complies with JB/T 5520–1991, the People’s Republic of China’s national standard specifying performance criteria for electric drying ovens, including temperature accuracy, uniformity, recovery time, and insulation resistance. While not certified to ISO/IEC 17025 or ASTM E145 (Standard Specification for Gravity Convection and Forced-Ventilation Ovens), its thermal stability and repeatability support GLP-aligned workflows when operated within validated parameters. Users performing regulated tasks (e.g., moisture content analysis per USP , residual solvent testing, or accelerated aging per IEC 60068-2-2) are advised to perform in-house qualification (IQ/OQ/PQ) and maintain calibration records traceable to NIM (National Institute of Metrology, China) standards.

Software & Data Management

The base configuration features a standalone microcontroller interface with LED digital display showing both setpoint and real-time chamber temperature. Optional upgrades include RS232 or RS485 serial communication ports for integration into centralized lab management systems (LIMS), programmable temperature ramp-soak profiles, external data logging via analog voltage output (0–5 V or 4–20 mA), and optional chart recorders. All firmware supports audit-trail-capable event logging (e.g., door open/close, over-temperature alarms, timer expiration), satisfying basic FDA 21 CFR Part 11 readiness when paired with appropriate access controls and electronic signature protocols. No cloud connectivity or proprietary software suite is included; data export is limited to ASCII text or CSV via terminal emulation.

Applications

• Electronics manufacturing: PCB pre-baking, conformal coating curing, capacitor/resistor aging, LED phosphor sintering.
• Materials science: moisture removal from ceramics and composites, thermal annealing of thin films, binder burnout in powder metallurgy.
• Pharmaceutical R&D: excipient drying, stability study storage (at elevated temperatures), glass vial depyrogenation validation support.
• Academic laboratories: sample preparation for SEM/TEM, gravimetric moisture analysis (ASTM D2231), catalyst activation.
• Food and agriculture testing: moisture content determination (AOAC 950.46), herb drying, seed viability assessment.

FAQ

What is the maximum safe operating temperature for standard DGF models?

Standard DGF-300x series units are rated for continuous operation up to 300°C; DGF-450x variants support up to 450°C, subject to chamber lining material (SUS304 recommended above 350°C).

Does the oven support ramp-and-soak thermal profiling?

Not in base configuration. Programmable controllers with multi-segment profiles are available as factory-installed options.

Is the internal volume usable space or gross chamber volume?

All listed internal volumes (e.g., 225 L, 400 L) reflect net usable working volume—measured between shelf rails and excluding heater housing and fan ducts.

Can this oven be used for sterilization of medical devices?

No. It lacks HEPA filtration, vacuum capability, and validation documentation required for sterile processing per ISO 17665 or EN 285. It may support dry-heat depyrogenation of glassware only under user-validated conditions.

What calibration documentation is provided?

A factory calibration certificate (traceable to NIM) is included, covering PT100 sensor verification at three points (100°C, 200°C, 300°C) under no-load conditions. Full IQ/OQ documentation must be generated by the end user.
