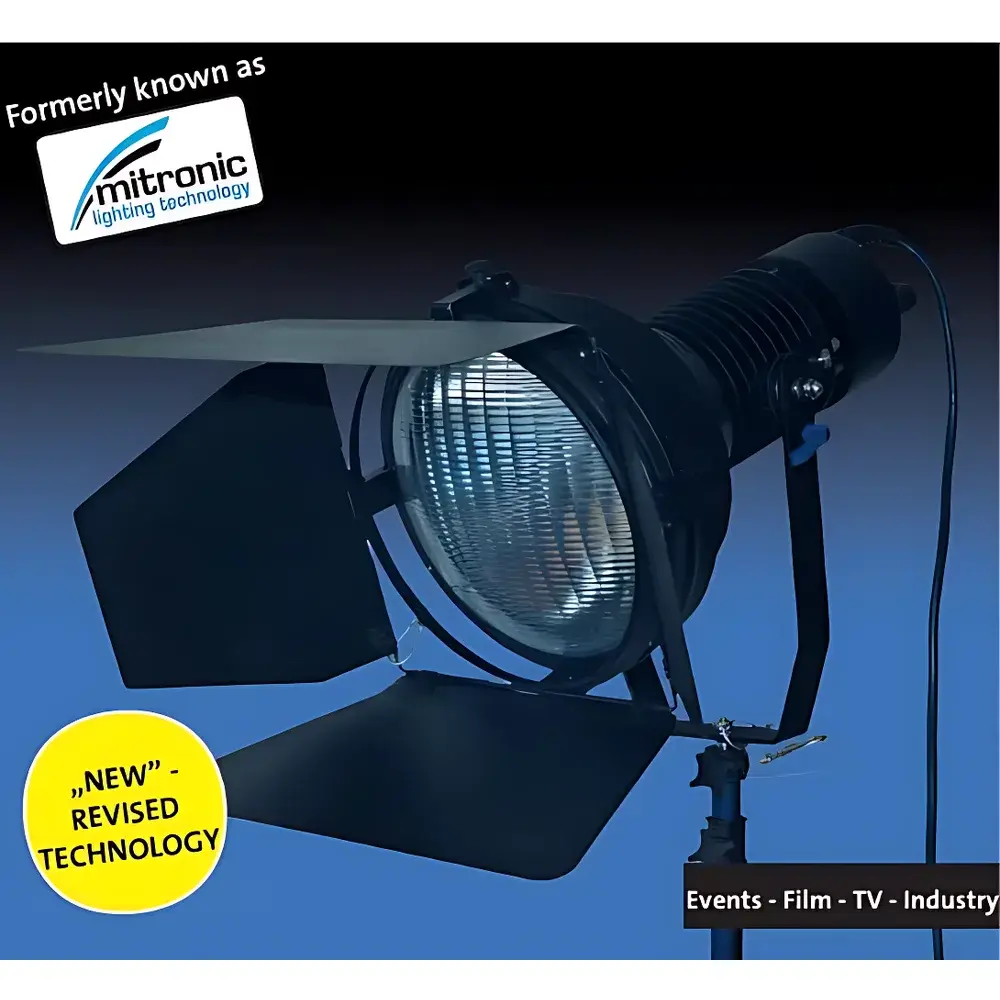

Hönle Superspot 1.200 W Special High-Intensity Cold Light Illumination System
| Brand | Hönle |
|---|---|
| Origin | Germany |
| Model | Superspot 1.200 W Special |
| Light Source Type | Short-Arc Xenon Lamp with Mechanical Shutter |
| Rated Power | 1200 W |
| Cooling Requirement | Forced-air or water-cooled (configurable) |
| Shutter Activation Time | < 5 ms |
| Spectral Range | 250–2500 nm (UV-VIS-NIR) |
| Beam Diameter (at 1 m) | Ø120 mm ±5% |
| Luminous Flux | ~45,000 lm |
| Color Temperature | 6000 K ±300 K |
| Compliance | CE, RoHS, IEC 61000-6-3/6-4, EN 61326-1 |
Overview
The Hönle Superspot 1.200 W Special is a purpose-engineered high-intensity cold light illumination system designed specifically for dynamic optical diagnostics in automotive safety component validation—particularly airbag deployment testing under controlled thermal and environmental conditions. Unlike conventional incandescent or halogen sources, this system employs a stabilized short-arc xenon lamp operating at 1200 W nominal power, delivering broadband spectral output (250–2500 nm) with exceptional temporal stability and spatial uniformity. Its defining engineering feature is the integration of a high-speed mechanical shutter (< 5 ms actuation), enabling precise, non-intrusive illumination only during image capture—thereby eliminating radiant heating of test specimens. This is critical in climatic chamber environments where temperature-sensitive airbag modules must be evaluated across -40 °C to +85 °C without thermal perturbation. The system’s optical architecture includes a precision ellipsoidal reflector and aspheric condenser lens assembly, ensuring collimated, low-divergence output with minimal chromatic aberration.
Key Features
- 1200 W stabilized xenon short-arc lamp with integrated forced-air or optional water-based cooling for continuous duty cycle operation
- Sub-5-millisecond electromagnetic shutter synchronized via TTL or Ethernet/IP trigger interface for precise exposure control
- Broadband UV-VIS-NIR spectral output (250–2500 nm) compatible with high-speed CMOS and sCMOS cameras used in ballistic imaging
- Modular mounting interface (ISO 30 or M60 thread) for rigid integration into environmental test chambers, drop towers, and multi-axis test rigs
- Front-panel HMI with real-time lamp voltage/current monitoring, shutter status, and thermal sensor feedback (ambient + lamp housing)
- EMC-compliant design meeting IEC 61000-6-3 (emissions) and IEC 61000-6-4 (immunity), certified per EN 61326-1 for industrial measurement equipment
Sample Compatibility & Compliance
The Superspot 1.200 W Special is validated for use with standard automotive airbag inflator assemblies, fabric venting panels, and pyrotechnic initiators under ISO 17361:2019 (Occupant restraint systems — Test methods for airbag systems) and SAE J1739 (Potential Failure Mode and Effects Analysis). Its cold-light operation ensures no measurable radiative heating (>0.1 °C surface temperature rise over 100 ms exposure on black-anodized aluminum substrates), preserving thermal boundary conditions required by FMVSS 208 and ECE R94 test protocols. All electrical interfaces comply with SELV (Safety Extra-Low Voltage) requirements per IEC 61000-6-2, and firmware supports audit-trail logging for GLP/GMP-aligned validation workflows.
Software & Data Management
The system supports deterministic synchronization via IEEE 1588 Precision Time Protocol (PTP) when integrated into distributed test networks. Optional Hönle ControlSuite software provides remote configuration of shutter timing profiles (single-shot, burst, or gated modes), lamp warm-up ramping, and real-time telemetry export in CSV or HDF5 format. All operational parameters—including lamp ignition count, cumulative arc-on time, and thermal derating events—are stored with ISO 8601 timestamps and support traceability under FDA 21 CFR Part 11 when deployed with electronic signature-enabled user authentication.
Applications
- High-speed imaging of airbag inflation dynamics (0–100 ms range) in thermal soak chambers per ISO 12100 and ISO 13849
- Optical calibration reference source for photogrammetric strain analysis of airbag fabric deformation
- UV-curing pre-test illumination for adhesive-bonded module assemblies prior to deployment
- Multi-spectral illumination source for NIR-based gas species detection (e.g., CO, N₂O) during pyrotechnic combustion analysis
- Backlighting for shadowgraphy and Schlieren imaging of shockwave propagation from inflator vents
FAQ
Is the Superspot 1.200 W Special compatible with third-party high-speed camera triggers?
Yes—it accepts TTL-level rising-edge triggers (5 V, 10 ns jitter) and offers Ethernet/IP and RS-422 digital I/O options for synchronization with Phantom v2512, IDT Y4, or Vision Research SA-Z systems.
Can the lamp output be dimmed or intensity-modulated?
No—intensity control is achieved exclusively via shutter duty cycle; lamp current is held constant for spectral and color temperature stability.
What maintenance intervals are recommended for the xenon lamp and shutter mechanism?
Lamp replacement is advised after 500 hours of arc-on time; shutter actuation life exceeds 1 × 10⁶ cycles with biannual lubrication using Fuchs Renolit GP 2.
Does the system include radiometric calibration documentation?
Each unit ships with NIST-traceable spectral irradiance calibration certificate (250–2500 nm, ±2.5% uncertainty at 1 m distance).
How is thermal management handled in confined environmental chamber installations?
The standard forced-air cooling system exhausts heat externally via flexible ducting (Ø120 mm); water-cooling retrofit kits (G 1/2″ BSP inlet/outlet) are available for zero-heat-leak integration.
