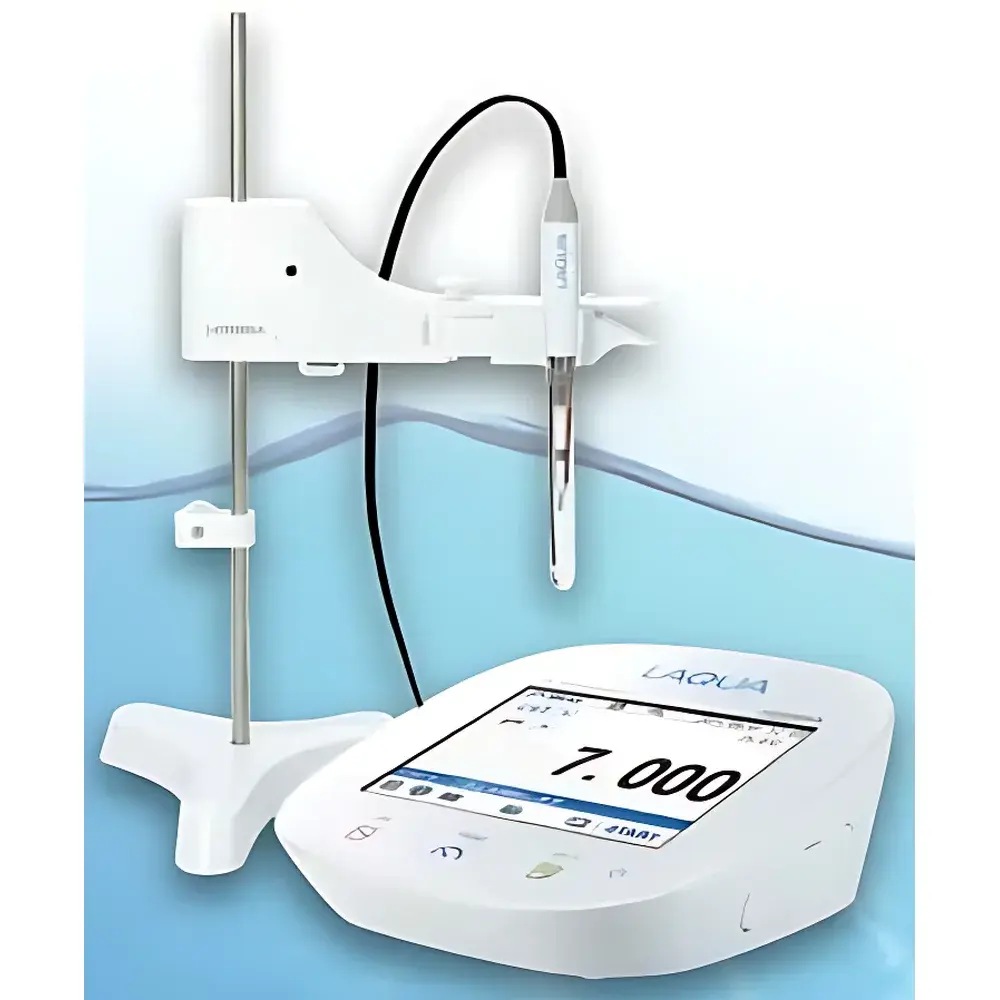

HORIBA F-70 Series Multi-Parameter Laboratory Water Quality Analyzer

Overview

The HORIBA F-70 Series is a high-precision, multi-parameter laboratory water quality analyzer engineered for rigorous compliance-driven environments—including pharmaceutical QC labs, environmental testing facilities, and academic research centers. Built upon electrochemical measurement principles, the system integrates glass electrode-based potentiometric pH sensing, ion-selective electrode (ISE) detection, and dual-electrode AC conductivity measurement—enabling trace-level quantification of critical water quality parameters in accordance with international pharmacopoeial and industrial standards. Each model (F-71, F-72, F-73, F-74, and F-74BW) is configured for specific analytical workflows: from basic pH/ORP verification (F-71) to full-spectrum regulatory-compliant water analysis (F-74/F-74BW), including automated validation against USP , EP 2.2.38, JP, and CP monographs for purified and water-for-injection (WFI) testing. The instrument’s modular architecture supports interchangeable sensor channels and firmware-upgradable functionality—ensuring long-term adaptability to evolving regulatory expectations.

Key Features

• Capacitive touchscreen interface (F-74BW) with intuitive navigation, real-time status feedback, and contextual troubleshooting guidance for calibration, measurement, and maintenance routines.
• Smart diagnostic engine that validates electrode health, detects signal drift, and prompts corrective actions—reducing operator dependency and minimizing measurement downtime.
• Dual-channel capability across most models: simultaneous monitoring of pH/ORP/ION on Channel 1 and conductivity/resistivity/salinity/TDS on Channel 2—optimized for parallel parameter verification in pharmacopoeial water testing protocols.
• GLP/GMP-compliant data management: timestamped measurements with user ID tagging, automatic calibration logs, and configurable audit trails meeting FDA 21 CFR Part 11 requirements when paired with validated software and secure network infrastructure.
• Pharmaceutical-grade validation support: built-in cycle-check modes aligned with JIS Z 8401, USP , and EP 2.2.38; includes preconfigured calculation algorithms for salinity (PPT/%), resistivity (Ω·m), and TDS (mg/L) derived from conductivity readings using standardized temperature compensation (25 °C).
• Robust physical design: lightweight chassis (<700 g), low power consumption (≤9.8 VA), and chemically resistant housing compatible with cleanroom and ISO Class 5–8 environments.

Sample Compatibility & Compliance

The F-70 Series is validated for aqueous matrices ranging from ultrapure water (resistivity up to 18.2 MΩ·cm) to high-conductivity industrial effluents (up to 199.9 S/m). Its sensor suite accommodates standard DIN/ISO-compliant glass pH electrodes, refillable reference junctions, and platinized conductivity cells with selectable cell constants (0.01, 0.1, 1.0 cm⁻¹). All models comply with JIS K 0101 (water analysis methods), JIS Z 8401 (accuracy of chemical analysis), and pharmacopoeial water specifications—including USP conductivity limits, EP 2.2.38 resistivity thresholds, and JP/CP purity criteria. Instrument qualification documentation (IQ/OQ/PQ templates) and traceable calibration certificates are available upon request to support laboratory accreditation under ISO/IEC 17025.

Software & Data Management

Data acquisition and reporting are supported via native USB communication (USB-B port) compatible with Windows-based PCs. Models F-72, F-73, F-74, and DS-72 include USB mass storage mode for direct export of CSV-formatted datasets—including raw sensor outputs, calibration history, temperature-compensated values, and operator annotations. Internal memory retains up to 2,000 measurement records with embedded metadata (date/time, channel ID, electrode serial number, calibration status). Exported files are structured for seamless import into LIMS platforms or statistical process control (SPC) tools. Firmware updates preserve configuration integrity and extend compliance coverage—e.g., recent releases added enhanced EP 2.2.38 alarm logic and expanded USP stage-specific pass/fail evaluation.

Applications

• Pharmaceutical water system monitoring: continuous verification of Purified Water (PW) and Water for Injection (WFI) per USP/EP/JP/CP requirements during production, storage, and distribution.
• Environmental compliance testing: field-deployable lab verification of surface water, groundwater, and wastewater effluents against EPA Method 120.1 (pH), ASTM D1125 (conductivity), and ISO 7888 (electrical conductivity).
• Academic and method development labs: platform for validating new ISE configurations, optimizing temperature compensation algorithms, or benchmarking sensor stability under accelerated aging conditions.
• Industrial process control: real-time tracking of rinse bath conductivity in semiconductor manufacturing, boiler feedwater resistivity in power generation, or cleaning solution pH in biotech CIP systems.

FAQ

Does the F-70 Series support automatic temperature compensation (ATC) for all measured parameters?
Yes—each channel applies NIST-traceable, polynomial-based temperature compensation in real time using integrated Pt1000 or thermistor probes. Conductivity, resistivity, salinity, and TDS calculations default to 25 °C reference unless otherwise specified.
Can the instrument perform simultaneous dual-channel measurements without manual switching?
Yes—F-72 through F-74BW models continuously acquire and display data from both channels at user-defined intervals (1–60 s), with independent calibration and unit selection per channel.
Is the F-74BW’s capacitive touchscreen compatible with gloved operation in cleanrooms?
Yes—the screen responds reliably to standard nitrile and latex gloves and features adjustable touch sensitivity and haptic feedback settings optimized for ISO Class 5–7 environments.
How does the system ensure data integrity for GLP/GMP audits?
All models log calibration events, measurement sequences, and user actions with immutable timestamps and operator IDs. When connected to validated software, full electronic records—including digital signatures and change history—meet 21 CFR Part 11 Subpart B requirements.
Are calibration standards and certified reference materials included with purchase?
No—calibration buffers (pH 4.01, 7.00, 10.01), conductivity standards (e.g., KCl 0.01 mol/L), and ISE standards must be procured separately per ISO 6497 and CLSI EP25-A guidelines to maintain traceability.
