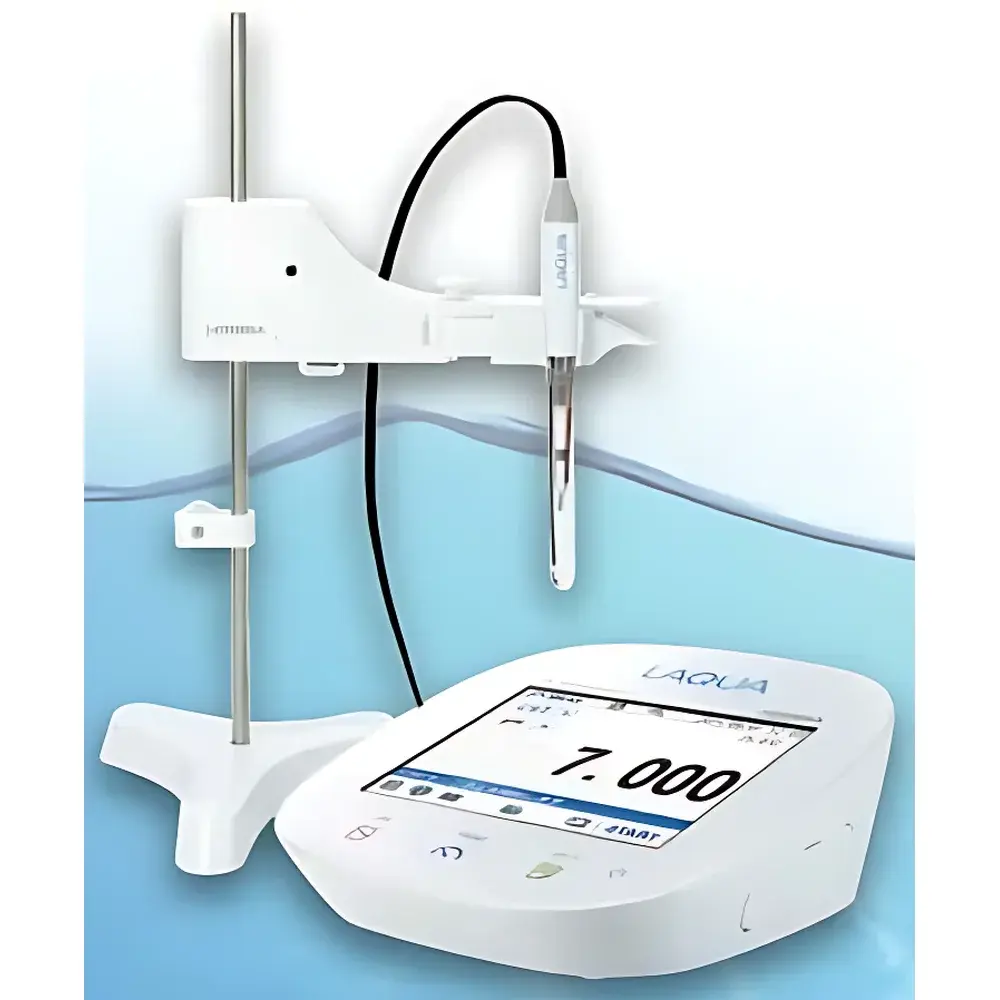

HORIBA F-70 Series Multi-Parameter Laboratory Water Quality Analyzer

Overview

The HORIBA F-70 Series is a high-precision, multi-parameter laboratory water quality analyzer engineered for rigorous regulatory compliance and operational reproducibility in pharmaceutical, biotechnology, environmental, and academic laboratories. Designed around electrochemical measurement principles—pH and ORP via glass and redox electrodes, ion concentration via selective membrane electrodes, and conductivity via dual-electrode AC excitation—the F-70 platform delivers traceable, stable, and thermally compensated measurements across seven core parameters: pH (0.000–14.000), ORP (±1999.9 mV), temperature (−30.0 to +130.0 °C), specific ion activity (0.00 µg/L to 999 g/L), conductivity (0.000 mS/m to 199.9 S/m, selectable cell constants), resistivity (0.000 Ω·m to 1.999 MΩ·m), salinity (0.00–80.00 ppt), and TDS (0.01 mg/L to 1000 g/L). Its architecture adheres to fundamental metrological requirements defined in ISO/IEC 17025 and supports calibration traceability to NIST-traceable reference standards. The system operates under strict environmental control protocols, with automatic temperature compensation (ATC) applied to all electrochemical and conductometric readings using integrated Pt1000 or NTC sensors.

Key Features

• Modular channel configuration: F-71 (single-channel pH/ORP), F-72 (dual-channel pH/ORP/ion), F-73 (dual-channel pH/ORP/conductivity), F-74 (triple-channel pH/ORP/ion/conductivity), and F-74BW (wide-format capacitive touchscreen with full GUI navigation)
• Intelligent on-screen guidance: Real-time troubleshooting prompts, step-by-step calibration wizards, and self-diagnostic routines for electrode health, cable integrity, and sensor drift detection
• Regulatory-ready operation: Built-in compliance modes for USP Purified Water & Water for Injection, EP 2.2.38, JP XVII, and CP 2020—automatically applying required temperature corrections, conductivity limits, and acceptance criteria
• GLP/GMP data integrity: Audit-trail-enabled data logging (2000 entries), time-stamped measurements with operator ID tagging, and password-protected configuration access
• Robust electrode interface: Standard BNC and DIN connectors compatible with HORIBA’s full range of glass, combination, ion-selective, and conductivity cells—including autoclavable and low-maintenance designs
• Flexible connectivity: USB 2.0 host port for direct PC communication and firmware updates; USB device mode for external storage (F-72/F-73/F-74/DS-72); optional RS-232 or Ethernet expansion modules available

Sample Compatibility & Compliance

The F-70 Series is validated for aqueous matrices including purified water, WFI, saline solutions, buffer standards, wastewater effluents, and process streams within pH 0–14 and conductivity ranges from ultrapure (≥18.2 MΩ·cm) to seawater-level (≈5 S/m). All models comply with JIS Z 8802 for pH meters, ISO 7888 for conductivity, and ASTM D1125 for TDS estimation. For pharmaceutical applications, the F-74 and F-74BW implement automated pass/fail evaluation against USP Stage 1–3 conductivity limits and temperature-dependent thresholds, generating compliant reports exportable as CSV or PDF. Device firmware and calibration records meet FDA 21 CFR Part 11 requirements when paired with HORIBA’s certified LabSolutions QA software, enabling electronic signatures and secure user role management.

Software & Data Management

Data acquisition and reporting are managed through HORIBA’s LabSolutions QA Suite (Windows-based), which provides full traceability, customizable report templates, statistical process control (SPC) charts, and batch-level summary dashboards. Raw measurement files include metadata such as sensor serial numbers, calibration dates, ambient temperature/humidity, and operator credentials. Internal memory stores up to 2000 timestamped records with millisecond resolution; exported datasets retain ISO 8601-formatted timestamps and SI-unit annotations. All models support USB mass storage mode for direct file transfer without proprietary drivers. Firmware updates are delivered via signed .bin packages verified by SHA-256 checksums to ensure integrity and version control.

Applications

• Pharmaceutical QC labs: Routine verification of Purified Water and Water for Injection per USP/EP/JP monographs
• Bioprocess monitoring: In-line and off-line verification of buffer pH, conductivity, and ion concentration during media preparation and purification
• Environmental testing: Field-deployable lab validation of surface water, groundwater, and wastewater per EPA Method 120.1 and ISO 5667-3
• Academic research: Teaching and method development in analytical chemistry, environmental science, and materials characterization
• Calibration laboratories: Reference standard verification and inter-laboratory comparison studies under ISO/IEC 17025 accreditation

FAQ

Does the F-70 Series support automatic temperature compensation for all measured parameters?

Yes—ATC is applied in real time to pH, ORP, conductivity, resistivity, salinity, and TDS calculations using either built-in or external Pt1000 sensors.
Can the instrument store calibration history and generate compliance reports?

Yes—each calibration event is logged with date/time, standard values used, slope/mV offset, and electrode status; reports conform to USP and EP 2.2.38 formatting requirements.
Is the F-74BW touchscreen compatible with gloved operation in cleanroom environments?

Yes—the capacitive display responds reliably to standard nitrile and latex gloves and features an IP54-rated front panel for dust and splash resistance.
What electrode certifications are supported for GMP use?

HORIBA supplies ISO 17025-accredited calibration certificates for all standard pH, ORP, and conductivity electrodes, with optional NIST-traceable documentation upon request.
How does the system handle electrode drift detection during extended measurements?

The F-70 continuously monitors electrode impedance, asymmetry potential, and response time; deviations beyond configurable thresholds trigger visual alerts and optional auto-recalibration prompts.
