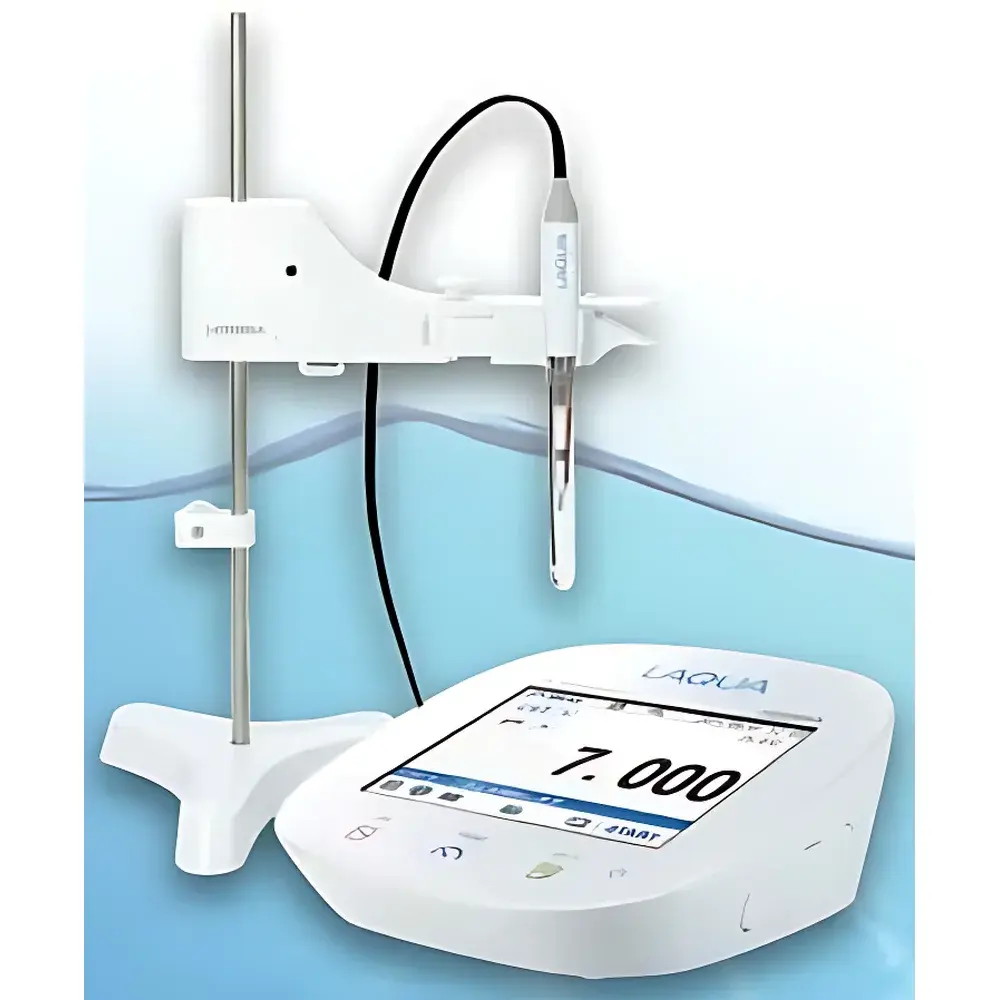

HORIBA F-73 Benchtop Multi-Parameter Water Quality Analyzer with pH, ORP & Ion Measurement

Overview

The HORIBA F-73 is a high-precision benchtop multi-parameter water quality analyzer engineered for rigorous laboratory and regulated industrial environments. Designed around electrochemical measurement principles—including potentiometric glass electrode detection for pH and ORP, ion-selective electrode (ISE) methodology for quantitative ion analysis, and temperature-compensated thermistor-based thermal sensing—the F-73 delivers traceable, reproducible results aligned with international pharmacopeial and industrial standards. Its dual-channel architecture enables simultaneous acquisition of pH/ORP and ion concentration or temperature, eliminating sequential measurement delays and reducing operator-induced variability. The instrument features a capacitive touchscreen interface with intuitive navigation logic, supporting real-time parameter visualization, contextual diagnostics, and embedded procedural guidance—critical for maintaining measurement integrity in GLP, GMP, and ISO/IEC 17025-compliant workflows.

Key Features

• Capacitive touch screen with full-screen operational guidance, fault diagnosis prompts, and maintenance status monitoring—designed for tactile precision and reduced user error.
• Dual independent measurement channels: Channel 1 supports pH, ORP, and ion concentration; Channel 2 supports temperature with automatic compensation for all electrochemical readings.
• Comprehensive calibration management system with guided 1–3 point pH calibration using NIST-traceable buffers (pH 4.01, 7.00, 9.21), plus slope/mV offset validation and electrode diagnostics.
• Regulatory-ready functionality including built-in compliance checklists for JIS Z 8802, USP , European Pharmacopoeia 2.2.3, and Japanese Pharmacopoeia XVI, with automated pass/fail assessment of calibration and measurement criteria.
• Robust data governance: 2000-measurement internal memory with timestamp, electrode ID, calibration history, and environmental metadata; export via USB to CSV or proprietary .hda format.
• Multi-language firmware (English, Japanese, Korean, Chinese) and configurable display units ensure seamless deployment across multinational R&D, QC, and contract testing laboratories.
• Modular electrode compatibility: Supports standard BNC and mini-DIN connectors for HORIBA’s range of refillable glass pH electrodes, combination pH/ORP sensors, and solid-state or liquid-membrane ISEs.

Sample Compatibility & Compliance

The F-73 is validated for aqueous matrices across environmental monitoring, pharmaceutical water systems (PW, WFI, Purified Water), beverage QC, electroplating baths, and academic research. Its pH and ORP modules meet the performance criteria defined in ASTM D1293 (Standard Test Method for pH of Water), ISO 10523 (Water Quality — Determination of pH), and USP . Ion measurement adheres to ISO 17025 requirements for method validation when paired with certified reference materials and documented electrode conditioning protocols. All stored data include mandatory GLP/GMP metadata fields: operator ID, sample ID, date/time stamp, electrode serial number, calibration verification status, and ambient temperature—enabling full auditability under FDA 21 CFR Part 11 (when used with validated software and access controls). The unit operates within Class II electrical safety standards (IEC 61010-1) and carries CE marking for EMC and low-voltage directive compliance.

Software & Data Management

Data capture and reporting are managed through HORIBA’s proprietary LabStation™ PC software (compatible with Windows 10/11), which provides secure bidirectional communication via USB. The software enables batch calibration report generation, trend analysis over time, statistical process control (SPC) charting, and PDF export compliant with internal SOPs. Audit trails record every user action—including parameter modification, calibration initiation, data deletion, and firmware updates—with immutable timestamps and user authentication logs. For integration into LIMS or ELN platforms, the F-73 supports ASCII-based serial output mode and can be configured for fixed-field or delimiter-separated data streaming. USB mass storage mode allows direct transfer of .csv files without proprietary drivers, facilitating third-party analytics in Python, MATLAB, or JMP.

Applications

• Pharmaceutical water system qualification: Continuous monitoring of PW conductivity and pH per USP and EU Annex 1 requirements.
• Environmental compliance testing: Field-deployable lab verification of surface water pH, nitrate, fluoride, and ammonium concentrations using ISEs.
• Electrochemical process control: Real-time ORP tracking in chlorine disinfection, cyanide destruction, and redox-mediated synthesis reactions.
• Academic electrochemistry labs: Teaching instrument for Nernst equation validation, buffer capacity studies, and ion activity coefficient determination.
• Food & beverage QC: Titratable acidity estimation via pH titration curves and salt content quantification via chloride ISE.
• Calibration laboratory services: Reference-grade verification of portable meters and sensor arrays using traceable standards and documented uncertainty budgets.

FAQ

Does the F-73 support automatic temperature compensation (ATC) for all measured parameters?

Yes. The integrated Pt1000 thermistor provides continuous temperature feedback, enabling real-time ATC for pH, ORP, and ion concentration calculations per the Nernst equation. User-selectable compensation modes include linear, non-linear (for high-precision applications), and manual override.
Can the F-73 be used with non-HORIBA electrodes?

It accepts any standard BNC or mini-DIN pH/ORP/ISE electrode meeting IEC 60746-1 specifications. However, optimal performance and full diagnostic functionality (e.g., electrode impedance monitoring) require HORIBA’s certified sensors.
Is firmware upgrade capability available?

Yes. Firmware updates are delivered via HORIBA’s secure customer portal and installed using USB drive or LabStation™ software. Each release includes version-controlled changelogs, regulatory impact assessments, and backward-compatible data migration paths.
How is data integrity ensured during power interruption?

The F-73 employs non-volatile flash memory with write-cycle protection. Measurements in progress are buffered in RAM and committed only upon successful acquisition confirmation—preventing partial or corrupted entries.
What documentation is provided for IQ/OQ validation?

HORIBA supplies a comprehensive Validation Support Package including URS template, FAT/SAT protocols, traceable calibration certificates, and test scripts aligned with ASTM E2500 and ISPE GAMP5 guidelines.
