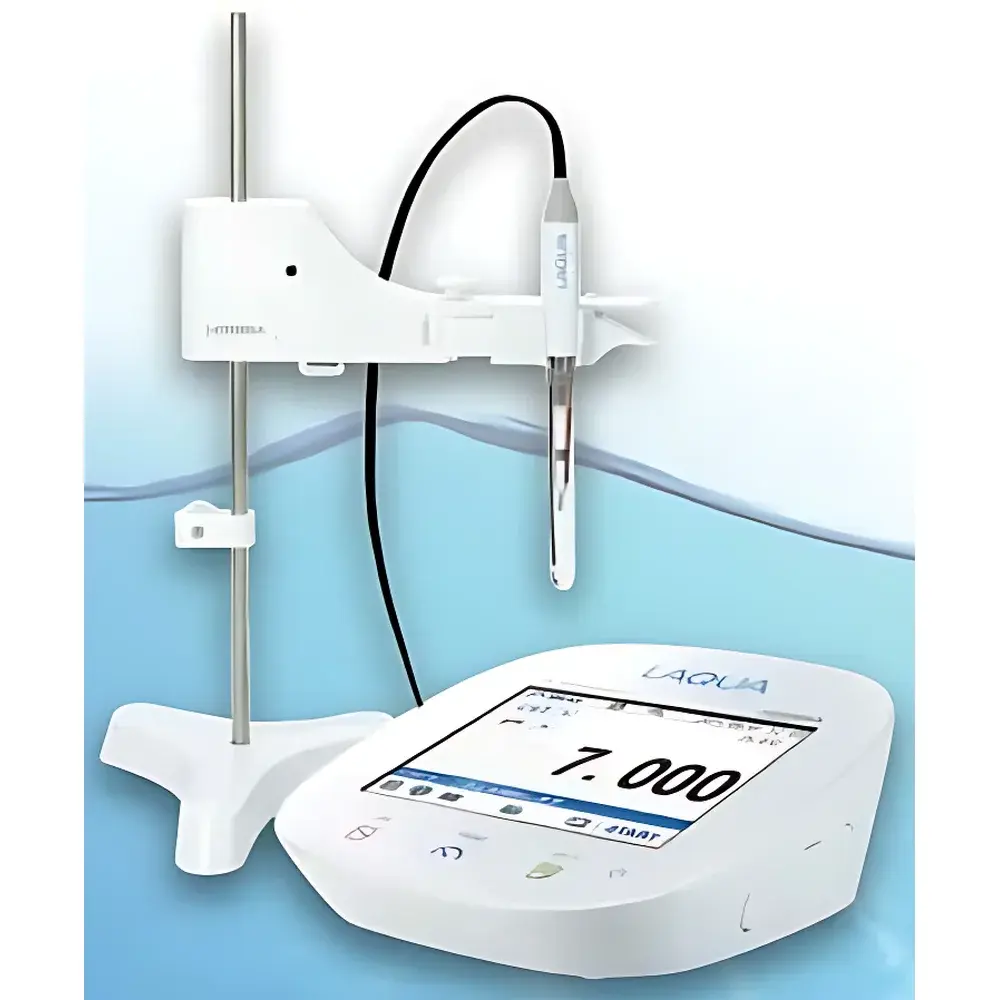

HORIBA F-73 Desktop Dual-Channel Water Quality Analyzer

Overview

The HORIBA F-73 Desktop Dual-Channel Water Quality Analyzer is a precision laboratory instrument engineered for high-accuracy, multi-parameter analysis of aqueous samples in regulated and research environments. Utilizing potentiometric measurement principles—glass electrode-based pH detection, redox-sensitive platinum or Ag/AgCl reference electrodes for ORP, and ion-selective electrodes (ISEs) for quantitative ion concentration analysis—the F-73 delivers traceable, reproducible results across diverse water matrices. Its dual-channel architecture enables simultaneous monitoring and comparison of two independent parameter sets (e.g., pH + ORP on Channel 1, and ISE-measured fluoride + temperature on Channel 2), supporting method validation, cross-calibration studies, and parallel sample screening. Designed for compliance-critical workflows, the analyzer integrates hardware-level traceability, audit-ready data logging, and built-in verification routines aligned with pharmacopeial standards including USP , EP 2.2.38, JP XVIII, and CP 2020.

Key Features

• Dual-channel independent measurement capability with real-time side-by-side display of pH/ORP/ion concentration and temperature on a 7-inch capacitive touchscreen interface
• High-resolution potentiometric detection: pH resolution down to 0.001 pH with repeatability of ±0.001 pH ±1 digit; ORP resolution of 0.1 mV and repeatability of ±0.1 mV ±1 digit
• Ion concentration quantification across six orders of magnitude (0.00 µg/L to 999 g/L), with automatic unit conversion (mol/L, ppm, mg/L, %) and 3-digit significant figure resolution
• Integrated temperature compensation using Pt1000 sensor (range: –30.0 to 130.0 °C, resolution: 0.1 °C, repeatability: ±0.1 °C ±1 digit)
• On-screen guided calibration and diagnostic navigation compliant with JIS Z 8401 and ISO/IEC 17025 documentation requirements
• GLP/GMP-ready functionality: user-accessible audit trail, electronic signature support (via optional software), timestamped metadata, and password-protected configuration locks
• USB 2.0 interface supporting both PC connectivity (HORIBA LabStudio software) and direct data export to FAT32-formatted USB drives without external software

Sample Compatibility & Compliance

The F-73 is validated for use with purified water, pharmaceutical process water, environmental surface water, wastewater effluents, and industrial cooling fluids. Its electrode input architecture accommodates standard BNC and mini-DIN connectors, enabling compatibility with HORIBA’s full suite of certified pH, ORP, and ISE probes—including low-drift glass electrodes, double-junction reference systems, and solid-state ion sensors. All measurements adhere to internationally recognized metrological frameworks: pH and ORP performance meets ASTM D1293 and ISO 10523 specifications; ion concentration accuracy follows ISO 10304-1 for ion chromatography correlation; temperature control satisfies ISO/IEC 17025 clause 5.4.6. The system supports full 21 CFR Part 11 readiness when paired with HORIBA’s validated LabStudio Suite, providing electronic record integrity, role-based access control, and immutable audit logs required for FDA-regulated laboratories.

Software & Data Management

Data acquisition, visualization, and reporting are managed via HORIBA LabStudio—a Windows-based application supporting automated report generation in PDF and CSV formats with embedded calibration certificates and uncertainty statements. The F-73 stores up to 2000 measurement records locally, each containing parameter values, electrode IDs, calibration history, ambient temperature/humidity (if external sensors connected), operator ID, and time/date stamps. All stored entries are digitally signed and cryptographically hashed to prevent tampering. USB mass storage mode allows drag-and-drop transfer of .csv files directly to network drives or LIMS systems. Optional firmware upgrades maintain alignment with evolving pharmacopeial revisions (e.g., USP 2025 update cycle) and add new ion calibration templates for emerging contaminants such as nitrate, ammonium, and perchlorate.

Applications

• Pharmaceutical water system qualification (PW, WFI, SW) per USP and EU GMP Annex 1
• Environmental monitoring of freshwater ecosystems, groundwater, and municipal drinking water sources
• Electroplating bath control and semiconductor ultrapure water (UPW) monitoring
• Academic and industrial research requiring simultaneous multi-ion profiling (e.g., Ca²⁺/Mg²⁺ ratio in hard water studies)
• Method development and validation for EPA Methods 9040C (pH), 9030B (ORP), and 9056A (ion selective electrodes)
• Quality control in food & beverage production, particularly for acidulant titration endpoints and brine stability assessment

FAQ

Does the F-73 support automatic temperature compensation (ATC) during ion concentration measurements?
Yes—ATC is applied in real time using the integrated Pt1000 sensor, with configurable compensation algorithms (linear, Nernstian, or custom polynomial) selectable per ion channel.
Can the F-73 be used for Good Manufacturing Practice (GMP) environments?
Yes—when operated with LabStudio software and configured with user roles, electronic signatures, and audit-trail logging, it fulfills core GMP data integrity requirements per Annex 11 and ALCOA+ principles.
What electrode types are compatible with the F-73’s dual-channel inputs?
All standard BNC-connected pH, ORP, and ISE electrodes are supported, including HORIBA’s LAQUA twin-sensor probes, combination electrodes with integrated temperature, and third-party sensors meeting IEC 60746-1 electrical specifications.
Is calibration verification traceable to national standards?
Calibration checks utilize NIST-traceable buffer solutions (e.g., NIST SRM 186, 188, 191a); certificate-of-analysis data can be imported into LabStudio to auto-populate calibration records with uncertainty budgets.
How does the F-73 handle electrode diagnostics and maintenance alerts?
The onboard diagnostics engine continuously monitors electrode slope, asymmetry potential, and response time, triggering contextual guidance (e.g., “Clean junction” or “Replace reference electrolyte”) directly on the touchscreen interface.
