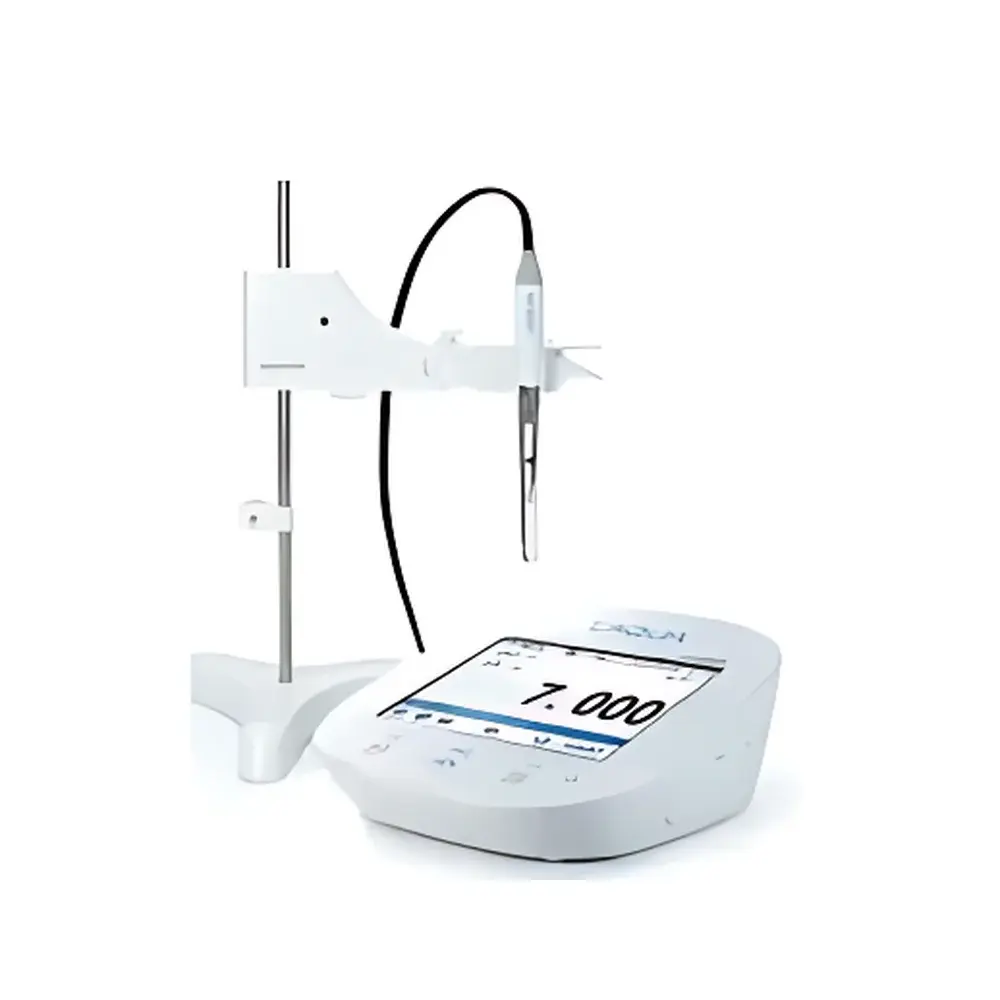

HORIBA F-74 Dual-Channel Benchtop Multi-Parameter Water Quality Analyzer

Overview

The HORIBA F-74 is a dual-channel, benchtop multi-parameter water quality analyzer engineered for high-precision laboratory applications in pharmaceutical, environmental, and industrial R&D settings. It employs validated electrochemical measurement principles—including glass electrode potentiometry for pH, redox electrode detection for ORP, ion-selective electrode (ISE) methodology for monovalent/multivalent ion quantification, and AC two-electrode conductometry for conductivity—ensuring traceable, reproducible results aligned with international pharmacopeial standards. Unlike single-function meters, the F-74 simultaneously acquires and displays two independent parameter sets (e.g., Channel 1: pH/ORP/ION; Channel 2: Conductivity/Resistivity/Salinity/TDS), enabling cross-parameter correlation without manual reconfiguration. Its measurement architecture supports rigorous metrological traceability, with built-in diagnostics and calibration verification protocols compliant with GLP and GMP documentation requirements.

Key Features

• Dual-channel independent measurement capability: Simultaneous real-time acquisition of pH/ORP/ion concentration on Channel 1 and conductivity/resistivity/salinity/TDS on Channel 2.
• Capacitive touchscreen interface (7-inch, high-resolution): Intuitive navigation with context-sensitive guidance for calibration, maintenance, and fault diagnosis.
• Pharmaceutical-grade compliance support: Preconfigured workflows for USP purified water testing, EP 2.2.38 conductivity specifications, JP XVII water quality validation, and ChP general chapter 0681.
• Electrode health monitoring: Real-time impedance assessment and diagnostic prompts for glass electrode asymmetry potential, reference junction status, and ISE membrane integrity.
• Automated calibration validation: On-screen pass/fail evaluation against user-defined acceptance criteria per parameter, with timestamped audit logs.
• Modular electrode compatibility: Supports HORIBA’s standardized BNC and DIN connectors for pH, ORP, ISE, and conductivity cells—including temperature-compensated 2-cell and 4-cell conductivity probes.
• Robust data governance: Internal memory stores up to 2000 measurement records with full metadata (date/time, operator ID, electrode serial number, calibration history, ambient temperature).

Sample Compatibility & Compliance

The F-74 is validated for aqueous samples across diverse matrices: purified water (PW), water for injection (WFI), clean-in-place (CIP) rinse solutions, environmental surface waters, and process effluents. Its conductivity module accommodates three cell constants (0.01, 0.1, and 1.0 cm⁻¹), enabling accurate measurement from ultrapure water (≥18.2 MΩ·cm resistivity) to brine solutions (up to 199.9 S/m). All parameter algorithms adhere to ISO 7888 (conductivity), ISO 10523 (pH), and ASTM D1125 (TDS estimation). The instrument meets IEC 61010-1 safety requirements and carries CE marking for EMC and low-voltage directives. For regulated environments, it supports 21 CFR Part 11-compliant electronic signatures when paired with HORIBA’s optional LabSolutions software and networked printers.

Software & Data Management

Data export is enabled via USB 2.0 interface (USB-A host port for flash drives; USB-B device port for PC connection). Raw datasets include parameter values, measurement uncertainty estimates, electrode status flags, and calibration coefficients—all in CSV format with UTF-8 encoding. Optional HORIBA LabSolutions PC software provides advanced functions: automated report generation (PDF/Excel), trend analysis with statistical process control (SPC) charts, multi-instrument fleet management, and secure audit trail review with role-based access control. All data entries are time-stamped with NTP-synchronized clocks, and system logs record every configuration change, calibration event, and user login—fully compliant with GLP audit requirements.

Applications

• Pharmaceutical water system qualification: Routine monitoring of PW/WFI conductivity per USP Stage 1–3 testing and temperature-compensated resistivity verification.
• Environmental compliance labs: Simultaneous pH, ORP, and nitrate/ammonium ion profiling in wastewater influent/effluent streams.
• Academic research: Kinetic studies requiring synchronized pH drift and ionic strength tracking during reaction monitoring.
• Food & beverage QC: Salt content (salinity/TDS) validation in brine solutions alongside acidity (pH) and redox stability (ORP) assessment.
• Electroplating bath control: Real-time monitoring of metal ion concentration (via ISE), bath conductivity, and acid concentration (pH) to maintain process consistency.

FAQ

Does the F-74 support automatic temperature compensation for all parameters?

Yes—each channel applies NIST-traceable temperature compensation using integrated Pt1000 or thermistor probes. Conductivity measurements use linear or nonlinear (ISO 7888) compensation models selectable per cell constant.
Can the instrument perform simultaneous dual-parameter calibration?

No—calibration is performed per channel and per parameter type. However, the system allows sequential calibration of pH and ORP on Channel 1, followed by conductivity and salinity on Channel 2, with all calibration data stored and retrievable.
Is the F-74 compliant with FDA 21 CFR Part 11 for electronic records?

The standalone instrument does not provide full Part 11 functionality; however, when integrated with HORIBA LabSolutions software (v3.2+), it supports electronic signatures, audit trails, and role-based security controls required for regulated submissions.
What electrode types are certified for use with the F-74?

HORIBA-certified electrodes include the 9615S-10D pH electrode (double-junction, refillable), 9678S-10D ORP electrode, 9625S-10D fluoride ISE, and 3581-10D conductivity cell (K=0.1 cm⁻¹). Third-party electrodes may be used if they meet DIN/BS/BNC electrical interface standards.
How is measurement uncertainty calculated and reported?

Uncertainty is derived from combined standard uncertainties per ISO/IEC Guide 98-3:2008—including repeatability, calibration certificate uncertainty, temperature probe error, and electrode drift—displayed as ±X% FS or ±Y units in the measurement summary screen and exported data files.
