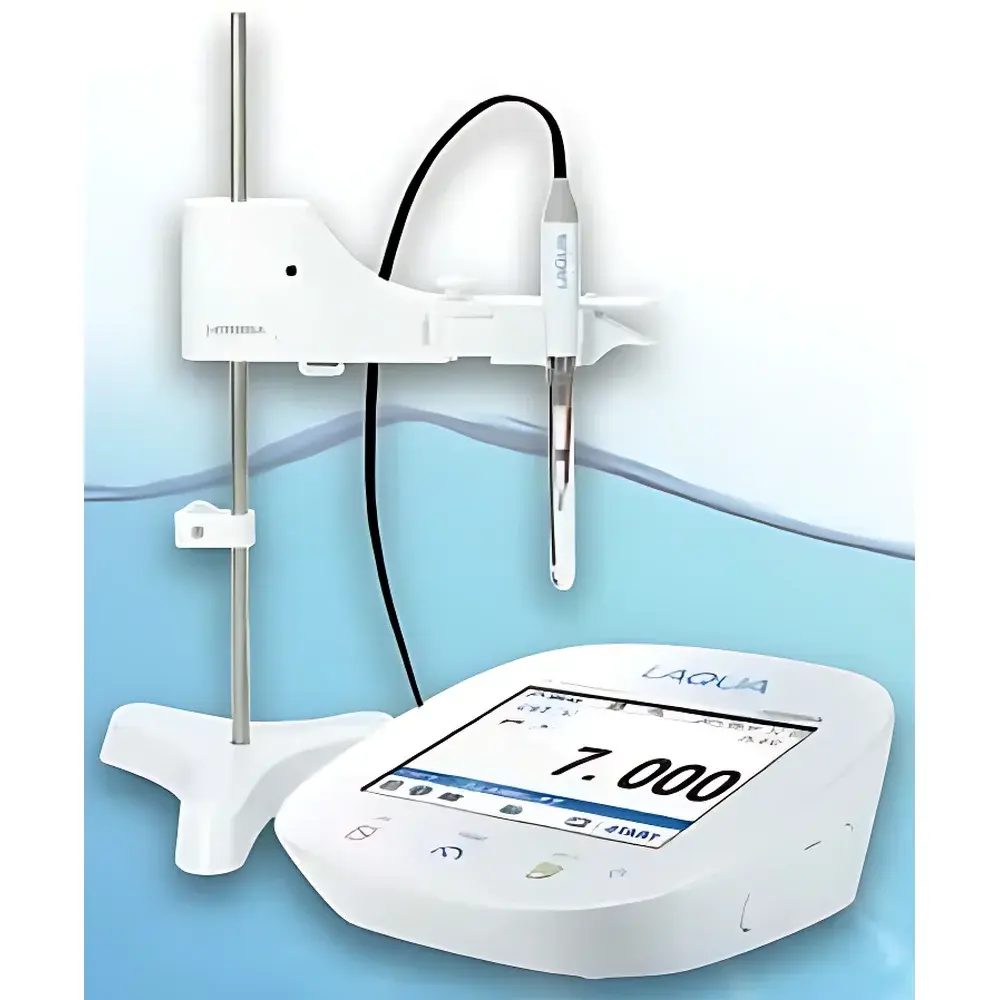

HORIBA F-74BW Benchtop Multi-Parameter Water Quality Analyzer

Overview

The HORIBA F-74BW is a high-precision benchtop multi-parameter water quality analyzer engineered for regulated laboratory environments requiring simultaneous, traceable, and compliant measurements of critical aqueous parameters. Built upon HORIBA’s legacy in electrochemical sensor design and metrological rigor, the F-74BW employs fundamental potentiometric and conductimetric principles to deliver reference-grade data for quality control, method validation, and regulatory submissions. Its dual-channel architecture enables concurrent measurement and real-time comparison of two independent parameter sets—such as pH/ORP/ionic concentration on Channel 1 and conductivity/resistivity/salinity/TDS on Channel 2—eliminating sequential instrument switching and reducing inter-measurement variability. The system utilizes NIST-traceable glass pH electrodes, solid-state or liquid-junction ion-selective electrodes (ISE), and precision AC-driven two-electrode conductivity cells with selectable cell constants (k = 0.01, 0.1, or 1.0 cm⁻¹), ensuring accurate characterization across ultrapure water, process streams, and saline matrices. Designed for ISO/IEC 17025-accredited labs and pharmaceutical QC suites, the F-74BW meets the instrumental performance criteria outlined in USP for purified and water-for-injection (WFI) testing, as well as EP 2.2.38 and JP XVI monographs.

Key Features

• Dual-channel independent measurement capability with synchronized timestamping and parameter pairing logic
• Capacitive touchscreen interface with intuitive navigation, full-screen diagnostics, and context-sensitive troubleshooting guides
• Comprehensive electrode health monitoring: automatic impedance check, slope verification, and offset validation per ISE/pH calibration cycle
• Regulatory-ready operation: built-in compliance checks for JIS Z 8401, USP , EP 2.2.38, and JP XVI water specifications
• GLP/GMP-supporting functionality including user access levels, audit trail logging (via optional PC software), and electronic signature readiness
• Modular electrode compatibility: supports HORIBA’s standardized BNC and DIN connectors for pH, ORP, ISE, and conductivity probes
• Auto-ranging conductivity measurement with three selectable cell constants (0.01, 0.1, 1.0 cm⁻¹) and temperature compensation (linear, non-linear, or user-defined)
• Onboard calculation of derived parameters—including resistivity (Ω·m), salinity (ppt), and TDS (mg/L)—using configurable conversion factors per application standard

Sample Compatibility & Compliance

The F-74BW is validated for use with aqueous samples ranging from ultrapure water (resistivity up to 18.2 MΩ·cm) to brines (conductivity up to 199.9 S/m). Its pH measurement range spans 0.000–14.000 with ±0.005 pH repeatability, while ORP resolution reaches 0.1 mV over ±1999.9 mV. Ion concentration quantification covers 0.00 µg/L to 999 g/L (mol/L basis) with ±0.5% FS accuracy, supporting monovalent and multivalent species via calibrated ISEs. Conductivity measurements adhere to ASTM D1125 and ISO 7888 protocols, with automatic cell constant recognition and KCl-based calibration verification. All measurement modes support documented calibration procedures aligned with FDA 21 CFR Part 11 requirements when used with HORIBA’s optional LabSolutions QA software, enabling full traceability of calibration events, operator identity, and environmental conditions.

Software & Data Management

Data acquisition and reporting are supported through USB 2.0 connectivity to Windows-based PCs running HORIBA’s LabSolutions QA suite—a validated application designed for regulated laboratories. The software provides secure user authentication, electronic batch records, automated report generation (PDF/CSV), and full audit trail capture including parameter changes, calibration logs, and measurement deletions. Raw data files include embedded metadata: date/time stamp, operator ID, electrode serial numbers, ambient temperature, and calibration history. The F-74BW stores up to 999 measurement entries locally with time/date stamp, parameter values, units, and electrode status flags. Exported datasets retain full traceability for inclusion in regulatory submissions under ICH M4 or FDA eCTD frameworks. Firmware updates are delivered via signed USB media to maintain integrity and version control.

Applications

• Pharmaceutical water systems: Routine monitoring of Purified Water (PW) and Water for Injection (WFI) per USP and EU GMP Annex 1
• Environmental testing labs: Analysis of surface water, groundwater, and wastewater effluents per EPA Method 120.1 (pH), 120.2 (conductivity), and 120.3 (TDS)
• Academic and research laboratories: Teaching electrochemistry fundamentals and validating sensor response in controlled aqueous media
• Biotechnology manufacturing: In-process control of buffer preparation, dialysis solutions, and cell culture media
• Food & beverage QC: Verification of rinse water quality, ingredient solubility profiles, and brine formulation consistency
• Calibration facility support: Reference instrument for verifying portable meters and field sensors against primary standards

FAQ

Does the F-74BW meet FDA 21 CFR Part 11 requirements for electronic records and signatures?

Yes—when paired with HORIBA LabSolutions QA software and configured with role-based user accounts, digital certificates, and audit trail activation, the system satisfies Part 11 criteria for authenticity, confidentiality, and integrity.
Can the instrument automatically detect and apply the correct cell constant during conductivity measurement?

Yes—the F-74BW recognizes HORIBA’s smart conductivity cells via embedded EEPROM and auto-configures k-factor, temperature coefficient, and calibration history.
Is temperature compensation applied during ion concentration measurements?

Yes—temperature-dependent Nernstian slope correction is applied in real time using the integrated Pt1000 sensor, ensuring accurate activity-to-concentration conversion per IUPAC guidelines.
What types of electrodes are compatible with the F-74BW for pH and ORP measurements?

Standard BNC-connectable glass pH electrodes and combination pH/ORP electrodes with double-junction reference systems are supported; HORIBA recommends models with low-drift glass membranes and Ag/AgCl reference elements.
How does the instrument handle calibration verification between scheduled calibrations?

The “Check Navigation” function performs rapid electrode diagnostics—including asymmetry potential, slope deviation, and junction potential stability—providing pass/fail feedback aligned with JIS Z 8401 acceptance criteria.
