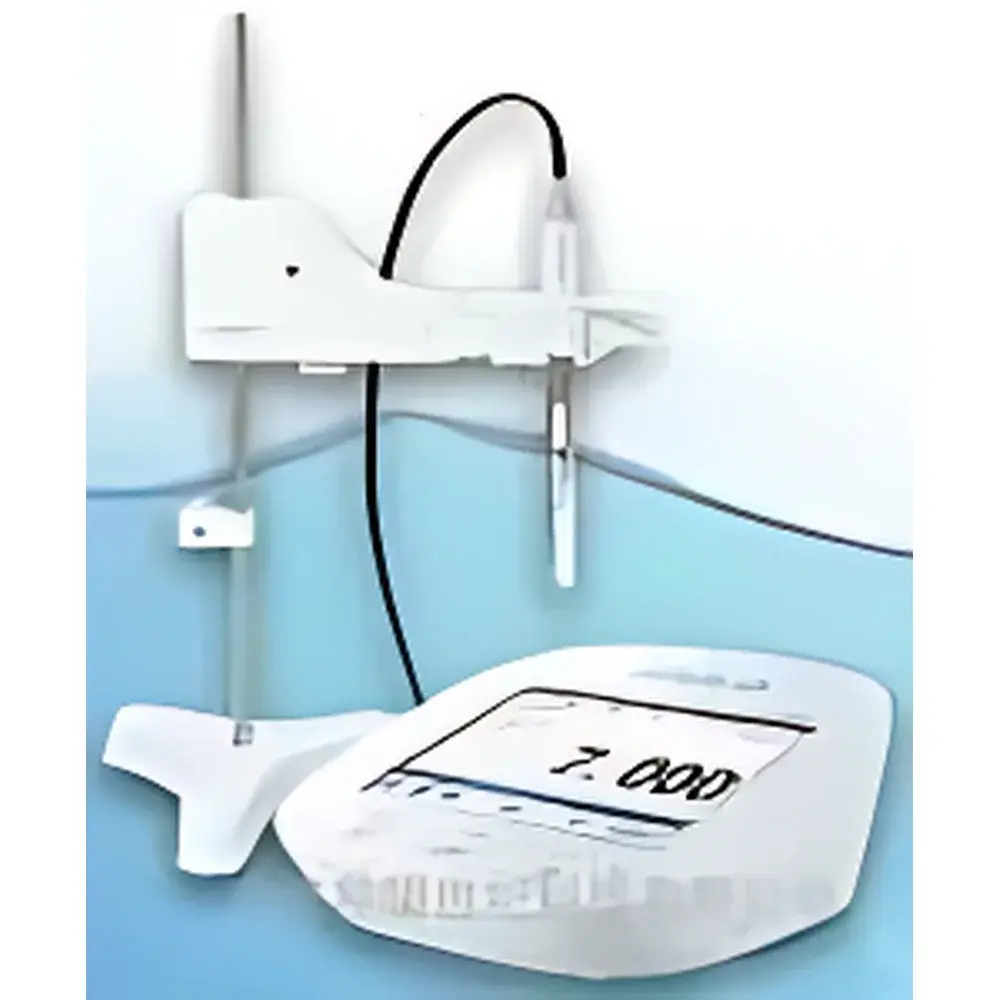

HORIBA DS-71 Benchtop Conductivity Meter

Overview

The HORIBA DS-71 Benchtop Conductivity Meter is a high-precision, single-channel electrochemical analyzer engineered for rigorous laboratory applications requiring trace-level accuracy in aqueous solution characterization. Designed and manufactured in Japan, the DS-71 implements a dual-electrode AC excitation measurement principle—eliminating polarization effects and enabling stable, reproducible readings across wide dynamic ranges. It simultaneously calculates and displays conductivity, resistivity, salinity (in ppt), total dissolved solids (TDS), and temperature—each derived from calibrated electrode response and standardized conversion algorithms aligned with international pharmacopeial methods. The instrument is optimized for compliance-critical environments including pharmaceutical water systems (Purified Water, Water for Injection), environmental monitoring labs, and quality control laboratories operating under GLP or GMP frameworks. Its compact benchtop form factor (500 g), low power consumption (~0.7 VA), and universal AC input (100–240 V, 50/60 Hz) ensure operational flexibility without compromising metrological integrity.

Key Features

• Capacitive touch-screen interface with intuitive navigation—enables real-time access to calibration logs, system diagnostics, and measurement history without external software.
• Integrated check-and-troubleshoot guidance: On-screen prompts assist users in validating electrode performance, identifying drift sources, and resolving common measurement anomalies per JIS Z 8401 and USP verification protocols.
• Multi-standard compliance engine: Preconfigured modes support USP , EP 2.2.38, JP XVIII, and ChP General Chapter 0407—automatically applying temperature compensation (linear or non-linear), cell constant correction, and purity-specific TDS conversion factors.
• Removable glass-body conductivity cell: Facilitates rapid cleaning, storage, and replacement—minimizing cross-contamination and ensuring long-term electrode stability.
• GLP/GMP-ready data handling: Timestamped measurements (999-point internal memory), automatic calibration record retention, and USB connectivity for secure export to LIMS or electronic lab notebooks.
• Temperature-compensated measurement architecture: Built-in Pt1000 sensor (0.0–100.0 °C range, ±0.1 °C accuracy) enables automatic linear or natural logarithmic compensation per user-defined reference temperature (e.g., 20 °C or 25 °C).

Sample Compatibility & Compliance

The DS-71 is validated for use with deionized water, purified water, WFI, seawater, brines, process streams, and wastewater effluents. Its dual-electrode AC design ensures minimal interference from redox-active species, suspended solids, or low-ionic-strength matrices. All measurement algorithms adhere to ISO 7888:2019 (water quality — determination of electrical conductivity) and ASTM D1125-22 (standard test methods for electrical conductivity and resistivity of water). For pharmaceutical applications, the device supports audit-ready documentation required under FDA 21 CFR Part 11 when paired with compliant data management software. Calibration verification routines meet JIS K 0101-1:2020 criteria for routine instrument qualification.

Software & Data Management

Data acquisition and reporting are fully traceable: each stored measurement includes date/time stamp, operator ID (user-definable), electrode serial number, calibration status, and environmental conditions. Internal memory retains up to 999 entries with auto-overwrite protection. USB 2.0 interface supports direct connection to Windows-based PCs for CSV export or integration with HORIBA’s optional LabManager Suite—enabling automated report generation, statistical process control (SPC) charting, and electronic signature workflows compliant with 21 CFR Part 11 Annex 11 requirements. Firmware updates are delivered via USB drive with cryptographic signature validation.

Applications

• Pharmaceutical water system validation and routine monitoring per USP , EP 2.2.38, and JP XVIII specifications.
• Environmental water quality assessment in accordance with ISO 7888 and EPA Method 120.1.
• Electroplating bath concentration control and rinse water purity verification.
• Boiler feedwater and condensate conductivity surveillance in power generation facilities.
• Academic and industrial research involving electrolyte characterization, membrane performance testing, and desalination process optimization.
• Calibration laboratory reference standard verification using NIST-traceable KCl solutions.

FAQ

Does the DS-71 support automatic temperature compensation (ATC)?

Yes—integrated Pt1000 sensor enables real-time ATC with selectable compensation curves (linear, NaCl, or custom polynomial) per application requirements.
Can the DS-71 be used for USP Purified Water testing?

Yes—the instrument includes preloaded USP mode with automatic pass/fail evaluation against conductivity limits at specified temperatures and associated alert thresholds.
What electrode configurations are compatible with the DS-71?

It accepts HORIBA’s standard K=0.1 cm⁻¹, K=1.0 cm⁻¹, and K=10 cm⁻¹ dual-electrode cells; all feature quick-release connectors and integrated temperature sensors.
Is GLP-compliant data export possible?

Yes—USB export generates timestamped, operator-annotated CSV files with full metadata; optional LabManager Suite adds electronic signatures, audit trails, and report templates aligned with ISO/IEC 17025.
How often does the DS-71 require calibration verification?

Per USP , daily system suitability testing is recommended; full calibration with certified standards (e.g., 84 µS/cm, 1413 µS/cm, 12.88 mS/cm KCl) should occur before first use, after electrode replacement, or when measurement drift exceeds ±0.5% F.S.
