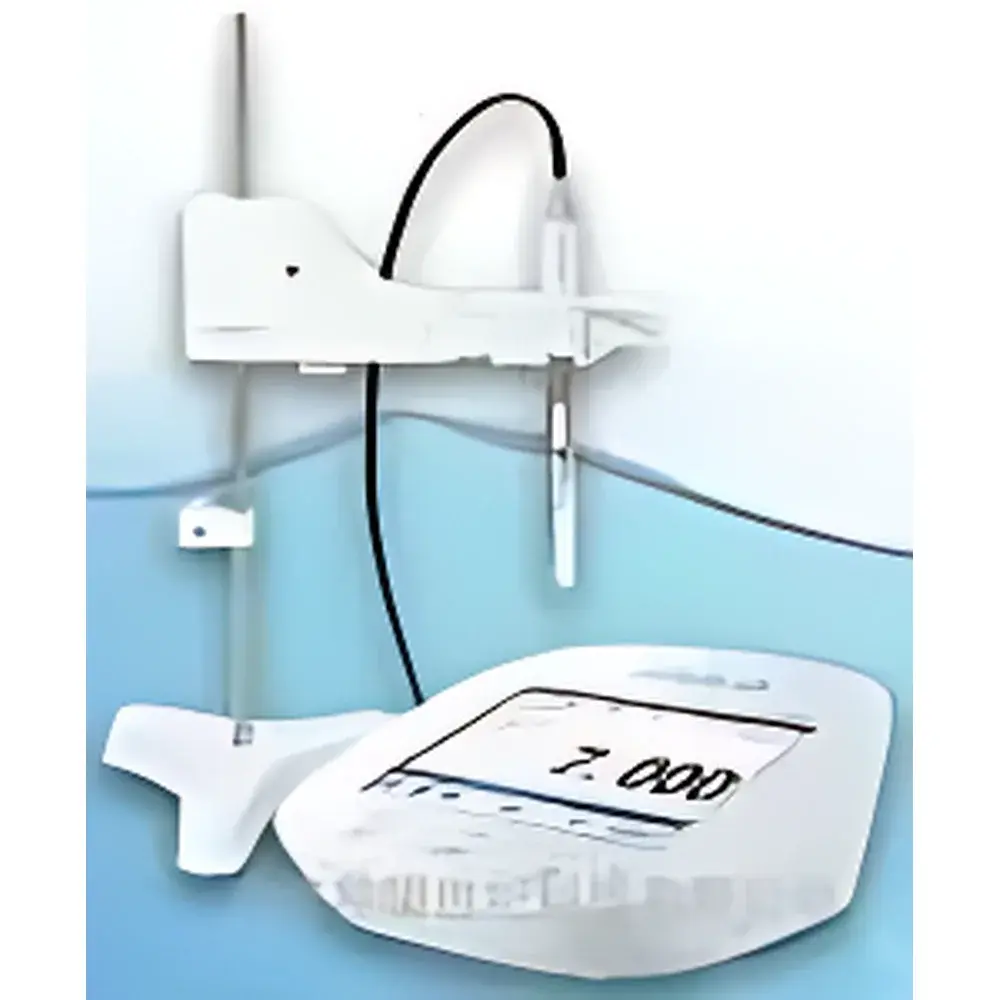

HORIBA DS-72 Benchtop Multiparameter Conductivity Analyzer

Overview

The HORIBA DS-72 is a high-precision benchtop multiparameter analyzer engineered for rigorous laboratory and regulated industrial applications requiring traceable, reproducible measurement of conductivity, resistivity, salinity, total dissolved solids (TDS), and temperature. It employs a dual-electrode AC excitation method—compliant with ISO 7888 and ASTM D1125—to eliminate polarization effects and ensure stable readings across wide dynamic ranges. Unlike single-frequency or DC-based systems, the DS-72 applies optimized sinusoidal excitation frequencies per cell constant (10, 100, and 1000 m⁻¹), enabling accurate quantification from ultrapure water (≤0.055 µS/cm) to concentrated brines (up to 1.999 S/m). Its measurement architecture is fully traceable to NIST-certified standards and designed to meet the stringent requirements of pharmaceutical water qualification per USP , EP 2.2.38, JP XVIII, and ChP General Chapter 0681. The instrument operates as a standalone platform or integrates into quality control workflows where audit-ready documentation and regulatory alignment are mandatory.

Key Features

• Capacitive touchscreen interface (7-inch, full-HD resolution) with intuitive navigation, real-time status feedback, and context-sensitive troubleshooting guides
• Automated electrode diagnostics and calibration validation per JIS Z 8401 and ISO/IEC 17025–aligned protocols
• Three selectable cell constants (10, 100, 1000 m⁻¹) with auto-ranging and manual override for optimal sensitivity in diverse sample matrices
• GLP/GMP-compliant data management: timestamped records with operator ID, electrode serial number, calibration history, and environmental metadata
• Onboard periodic verification mode supporting JIS K 0101, USP Stage 1–3 testing, and pharmacopoeial conductivity acceptance criteria
• Modular hardware design with quick-release glass-body conductivity cells—compatible with standard DIN 19263 and ASTM D5391 fittings
• USB Host port for direct connection to USB flash drives (FAT32 formatted) and USB Device port for PC synchronization via HORIBA’s certified software suite

Sample Compatibility & Compliance

The DS-72 is validated for aqueous samples across pharmaceutical, environmental, power generation, and semiconductor industries. It supports direct measurement of purified water (PW), water for injection (WFI), clean steam condensate, cooling tower fluids, and process rinse solutions. Its temperature compensation algorithm implements linear and non-linear (NaCl-based) models per IEC 60746-3, ensuring accuracy over 0.0–100.0 °C (extendable to −30.0–130.0 °C with optional Pt1000 probe). All measurement modes comply with FDA 21 CFR Part 11 requirements when used with HORIBA’s validated software configuration, including electronic signatures, audit trails, and immutable record archiving. The system satisfies ISO/IEC 17025 clause 7.7 (uncertainty estimation), EN 27874 (conductivity sensor performance), and EU GMP Annex 15 for analytical instrument qualification.

Software & Data Management

Data acquisition and reporting are managed through HORIBA’s PC-based Analytical Studio software—qualified for IQ/OQ/PQ under GAMP 5. The software enables automated report generation in PDF/A-1b format, customizable templates aligned with USP tables, and batch-level summary statistics (mean, SD, RSD, trend charts). Raw measurement files (.csv and .hda binary formats) retain full metadata—including raw ADC counts, applied frequency, cell constant, temperature coefficient, and user-defined sample IDs. USB mass storage mode allows drag-and-drop export without proprietary drivers. Audit trail functionality logs all user actions (e.g., calibration edits, range changes, data deletions) with timestamps, IP addresses (when networked), and role-based access control. Exported datasets include digital signatures compliant with eIDAS and FDA Part 11 Annex A requirements.

Applications

• Pharmaceutical water systems: Real-time monitoring of PW/WFI distribution loops per USP Stage 2 conductivity limits and temperature-dependent specifications
• Environmental compliance: Field-deployable lab verification of surface water, wastewater effluent, and groundwater per EPA Method 120.1 and ISO 7888
• Power plant chemistry: Cation conductivity assessment of boiler feedwater and turbine condensate with automatic CO₂ compensation
• Electronics manufacturing: Ultrapure water (UPW) qualification at 18.2 MΩ·cm resistivity with sub-ppb detection capability for ionic contaminants
• Academic research: Kinetic studies of electrolyte dissociation, membrane transport phenomena, and corrosion inhibitor efficacy via time-resolved conductivity profiling

FAQ

Does the DS-72 support automatic temperature compensation (ATC) with user-defined coefficients?
Yes—it offers fixed NaCl-based, linear (0.02%/°C), and custom polynomial TC models. Coefficients can be entered manually or loaded from preconfigured pharmacopoeial profiles.
Can the instrument validate electrode performance before calibration?
Yes—the built-in “Electrode Health Check” evaluates cell constant stability, cable integrity, and reference junction potential drift using diagnostic AC impedance sweeps.
Is USB data export compliant with 21 CFR Part 11?
When used with HORIBA’s validated Analytical Studio software and configured with electronic signature policies, yes. Standalone USB dump (.csv) does not include audit trail or signature enforcement.
What is the maximum allowable sample temperature during measurement?
The standard sensor rating is 100.0 °C; with optional high-temp Pt1000 probe and silicone-sealed cell, continuous operation up to 130.0 °C is supported.
How does the DS-72 handle conductivity-to-TDS conversion for non-NaCl matrices?
It provides five predefined TDS factors (NaCl, KCl, CaCO₃, 442™, custom) and allows user-defined conversion ratios based on ion chromatography or titration-derived total anion/cation concentrations.
