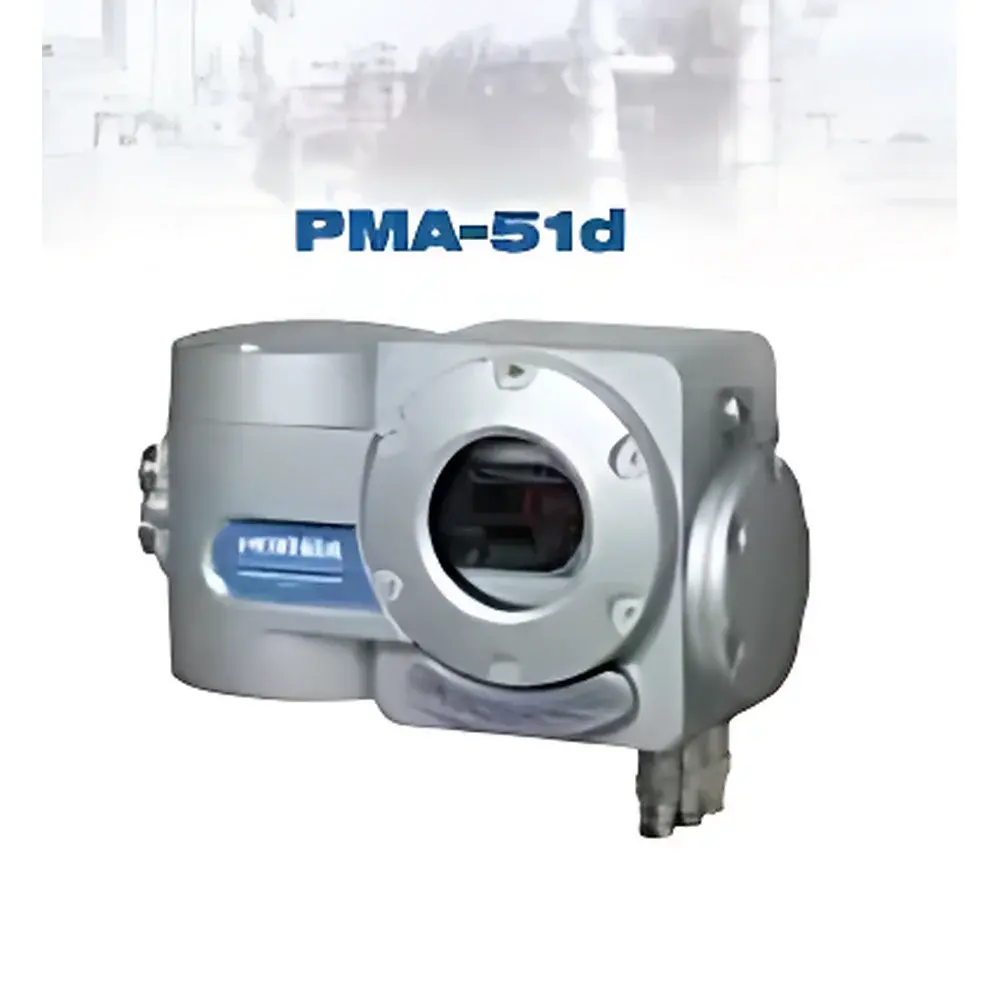

HORIBA PMA-51d Intrinsically Safe Magnetic Mechanical Oxygen Analyzer

Overview

The HORIBA PMA-51d is a certified intrinsically safe magnetic mechanical oxygen analyzer engineered for continuous, high-stability O₂ concentration measurement in hazardous areas classified under IEC 60079–0, IEC 60079–1 (Ex d), and IEC 60079–2 (Ex p). Unlike paramagnetic or electrochemical sensors, the PMA-51d employs the magnetic dumbbell ball principle — a mature, physics-based method leveraging the strong paramagnetism of molecular oxygen (O₂). In a non-uniform magnetic field, O₂ molecules experience a force proportional to their concentration, causing angular displacement of a suspended glass dumbbell supported by platinum suspension wires. A precision optical detection system tracks reflected light position changes; a closed-loop feedback mechanism applies counter-torque to restore equilibrium. This torque is linearly correlated with O₂ partial pressure, enabling direct, drift-resistant quantification without consumables or catalytic surfaces. The analyzer is designed for permanent installation in Zone 1/Zone 2 environments where flammable vapors (e.g., hydrocarbons, H₂, ethylene) or combustible dust may be present — including chemical process lines, hydrogen production units, inerting systems, and semiconductor purge gas monitoring.

Key Features

• Robust dual-certified explosion protection: Ex d IIB+H2 T4 (flameproof enclosure) and Ex px d IIC T4X (pressurized housing + flameproof sensor compartment), compliant with IEC 60079 series for global hazardous area deployment.
• Magnetic mechanical sensing architecture eliminates zero drift from aging electrodes or membrane degradation — delivering long-term baseline stability critical for safety-critical O₂ monitoring.
• High-precision optical null-balance detection with platinum suspension and fused silica dumbbell ensures mechanical reproducibility and immunity to vibration-induced noise.
• Four programmable range segments (e.g., 0–1 vol%, 0–5 vol%, 0–25 vol%, 0–100 vol% O₂) support flexible configuration across low-oxygen inerting control and high-concentration purity verification.
• Wetted materials fully specified per ISO 8502–3: SUS316 stainless steel flow path, gold-coated optical components, FKM elastomers, and borosilicate glass — compatible with ultra-high-purity (UHP) gases and resistant to trace halogen or acidic contaminants.
• Integrated temperature-compensated electronics maintain accuracy across ambient conditions from –10 °C to +50 °C, with internal diagnostics logging thermal gradients and sensor alignment status.

Sample Compatibility & Compliance

The PMA-51d accepts dry, particle-free sample gas streams with O₂ concentrations ranging from trace levels (0.1 vol%) up to 100 vol%. It requires minimum sample pressure of 1.98 kPa (absolute) and nominal flow of 300 mL/min — compatible with standard sampling pumps and pressure-regulated sidestream configurations. The analyzer excludes interference from CO₂, N₂, Ar, He, CH₄, and most hydrocarbons due to the selective magnetic susceptibility of O₂ (χ ≈ +3,400 × 10⁻⁶ cm³/mol vs. χ ≈ –10 × 10⁻⁶ for N₂). It is not suitable for samples containing ferromagnetic aerosols, condensable vapors, or particulates >0.3 µm. Certified to IEC 61508 SIL 2 for functional safety integration and compliant with EN 61000–6–2/6–4 for EMC robustness in industrial settings. Meets requirements for GMP-compliant oxygen monitoring per USP and ASTM D6866–22 for inert atmosphere validation.

Software & Data Management

The PMA-51d supports analog 4–20 mA output with HART 7 protocol (optional) for integration into DCS/SCADA systems. Local configuration is performed via a backlit, tactile keypad interface with multilingual menu navigation (English, German, Japanese, Chinese). All calibration events, zero/span adjustments, alarm logs, and diagnostic flags are timestamped and stored in non-volatile memory with audit trail capability. Optional Modbus RTU/TCP interface enables remote parameter readout and firmware updates without physical access — supporting FDA 21 CFR Part 11 compliance when deployed with validated electronic record systems. Data export formats include CSV and XML for trend analysis in LIMS or MES platforms.

Applications

• Continuous O₂ monitoring in nitrogen-inerted reactors, distillation columns, and storage tanks to prevent explosive atmospheres (per OSHA 1910.119 and NFPA 56).
• Real-time verification of purge gas purity in semiconductor CVD/PVD tool chambers and pharmaceutical lyophilizers.
• Leak detection in hydrogen infrastructure — detecting air ingress into H₂ pipelines or electrolyzer off-gas streams.
• Combustion air optimization in fired heaters and incinerators where O₂ trim control improves efficiency and reduces NOₓ emissions.
• Environmental chamber qualification for aerospace component testing and battery safety evaluation under controlled O₂ partial pressures.

FAQ

What explosion protection certifications does the PMA-51d hold?
It carries dual certification: Ex d IIB+H2 T4 (flameproof enclosure for Group IIB gases including ethylene and H₂) and Ex px d IIC T4X (pressurized main housing + flameproof sensor module for acetylene-class IIC environments).
Can the PMA-51d measure oxygen in high-humidity or corrosive gas streams?
No — it requires dry, particle-free sample gas. Condensation or acid-laden streams must be conditioned upstream using refrigerated dryers, coalescing filters, and chemical scrubbers.
Is routine calibration required, and what standards are recommended?
Zero calibration with certified N₂ (99.999% purity) and span calibration with certified O₂/N₂ mixtures traceable to NIST or PTB are recommended every 3–6 months, depending on operating severity and regulatory requirements.
Does the analyzer support digital communication protocols beyond HART?
Yes — optional Modbus RTU (RS-485) and Modbus TCP (Ethernet) interfaces are available for PLC integration and centralized data acquisition.
How does magnetic mechanical sensing differ from paramagnetic pressure-difference analyzers?
Unlike differential pressure paramagnetic cells, the PMA-51d uses active torque nulling of a mechanically suspended dumbbell — resulting in superior long-term zero stability, lower sensitivity to flow fluctuations, and no need for reference gas channels.
