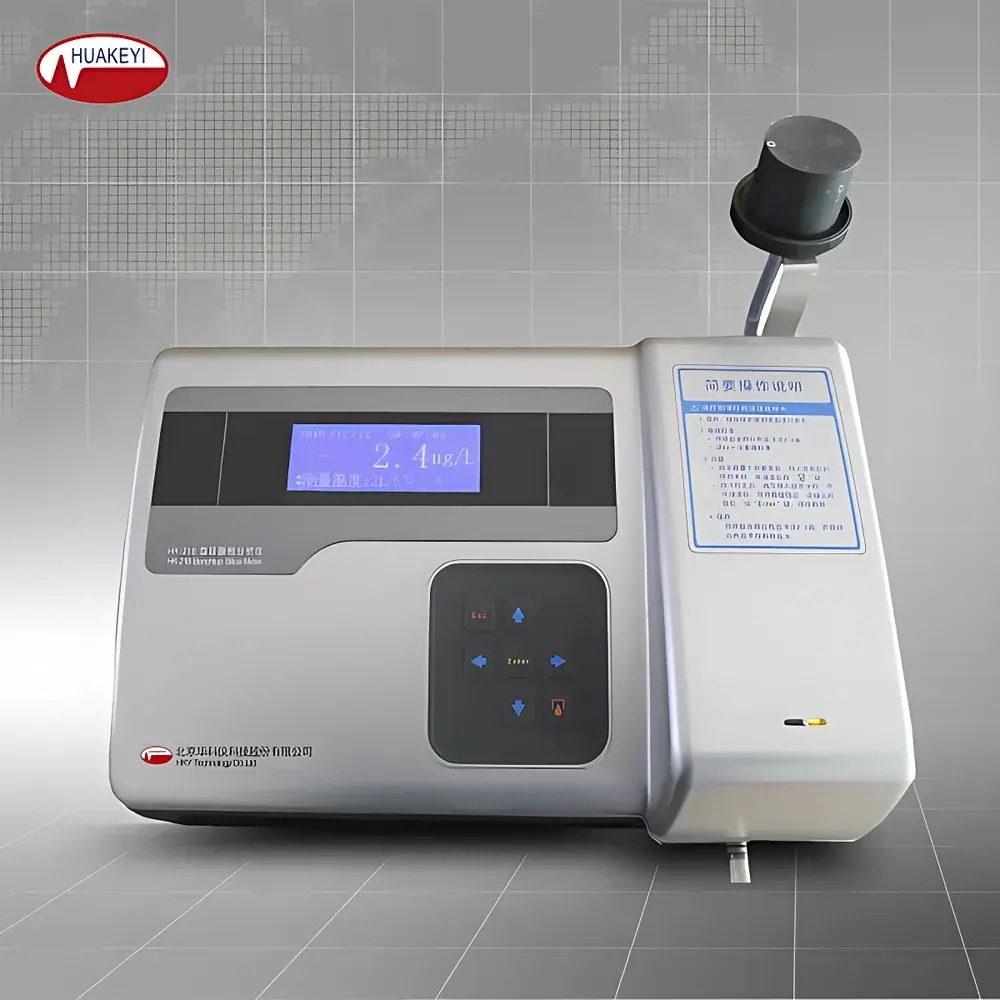

Huake Instrument HK-218 Silica Analyzer

Overview

The Huake Instrument HK-218 Silica Analyzer is a benchtop photometric analyzer engineered for precise, trace-level determination of dissolved silica (SiO₂) in ultrapure water and process streams. It operates on the molybdenum blue spectrophotometric method—compliant with ASTM D859 and ISO 10523—where silica reacts with ammonium molybdate under acidic conditions to form a heteropoly acid, subsequently reduced to an intense blue-colored complex measurable at 650 nm. Designed for high-reliability operation in power plant boiler feedwater, semiconductor rinse water, pharmaceutical purified water (PW/WFI), and petrochemical condensate monitoring, the HK-218 integrates optical stability, thermal control rigor, and user-accessible calibration protocols to meet stringent QA/QC requirements in regulated environments.

Key Features

• Stable monochromatic cold-light source with extended lifetime (>10,000 h), minimizing spectral drift and ensuring long-term photometric consistency
• Patented fuzzy PID-based恒温 control system for the colorimetric reaction chamber, maintaining temperature within ±0.2 °C across ambient fluctuations (5–45 °C)
• High-sensitivity imported photodiode detector with low-noise signal conditioning, delivering repeatability ≤1% FS and baseline stability <0.5% FS over 4 hours
• 32-bit embedded microcontroller architecture with surface-mount technology (SMT) PCB design, supporting real-time data processing and firmware upgradability via USB interface
• IP65-rated ruggedized enclosure with full silicone membrane keypad—resistant to splash, dust, and chemical vapor exposure in industrial labs and field-deployed utility rooms
• Reagent-free zero calibration using blank deionized water only; eliminates operator dependency on standardized reagent batches and reduces consumables cost
• Multi-point curve calibration (up to 5 points) with non-linear fitting (quadratic or cubic regression), enabling accurate quantification across the full 0–2000 μg/L range without range-switching artifacts
• Role-based access control with configurable password protection (administrator/operator levels) and audit-ready parameter lockout for GLP/GMP compliance

Sample Compatibility & Compliance

The HK-218 accepts standard 10–50 mL sample volumes in polypropylene or borosilicate glass cuvettes. It is validated for use with ASTM D4582-grade ultrapure water, EP/USP purified water, and low-conductivity steam condensate (≤0.1 µS/cm). The analyzer meets IEC 61000-4 electromagnetic compatibility standards and conforms to CE safety directives (2014/30/EU, 2014/35/EU). Its calibration traceability supports ISO/IEC 17025 laboratory accreditation when paired with NIST-traceable silica standards (e.g., NIST SRM 1643e). While not FDA 21 CFR Part 11–certified out-of-the-box, its secure user authentication, electronic logbook, and immutable data storage architecture facilitate validation for pharmaceutical water system monitoring under EU Annex 1 and USP .

Software & Data Management

Data are stored internally in non-volatile memory with timestamped records (date/time/sample ID/operator ID) for up to 1,000 measurements. Historical data can be exported via USB flash drive in CSV format compatible with LIMS integration. The onboard software supports customizable report templates, automatic pass/fail flagging against user-defined limits, and trend graphing (concentration vs. time) with zoom and export functions. Firmware updates are performed offline via encrypted HEX files to preserve system integrity—no cloud connectivity or remote telemetry is implemented, aligning with air-gapped network policies common in critical infrastructure facilities.

Applications

• Monitoring silica breakthrough in mixed-bed ion exchange resins and reverse osmosis permeate in power generation cycle chemistry
• Verification of silica removal efficiency in semiconductor fab ultrapure water (UPW) distribution loops per SEMI F63 guidelines
• Periodic testing of boiler feedwater per ASME PTC 19.11 and EPRI TR-102352 requirements
• Quality control of purified water used in sterile pharmaceutical manufacturing (ISO 14644-1 Class 5/7 cleanrooms)
• Field verification of silica scavenger performance in oilfield produced water treatment systems

FAQ

What silica species does the HK-218 measure?
It quantifies total reactive (dissolved) silica—primarily monomeric silicic acid [Si(OH)₄]—as defined by ASTM D859. It does not detect colloidal or particulate silica without prior acid digestion.
Is the instrument suitable for online installation?
No—the HK-218 is strictly a laboratory-grade benchtop analyzer requiring manual sample introduction. For continuous monitoring, Huake offers the HK-218R series with flow-cell integration and 4–20 mA output.
Can calibration curves be transferred between instruments?
Yes—calibration coefficients and multi-point curve parameters can be saved to USB and loaded onto other HK-218 units, ensuring method consistency across multi-site laboratories.
Does it comply with EPA Method 370.1?
While based on the same molybdenum blue principle, the HK-218 is optimized for sub-ppb to low-ppb ranges typical of high-purity water—not the higher-range wastewater applications covered by EPA 370.1.
What maintenance is required beyond routine cleaning?
Annual verification of photometric linearity using neutral density filters and biannual replacement of the molybdate reagent kit (sold separately) are recommended for sustained accuracy.
