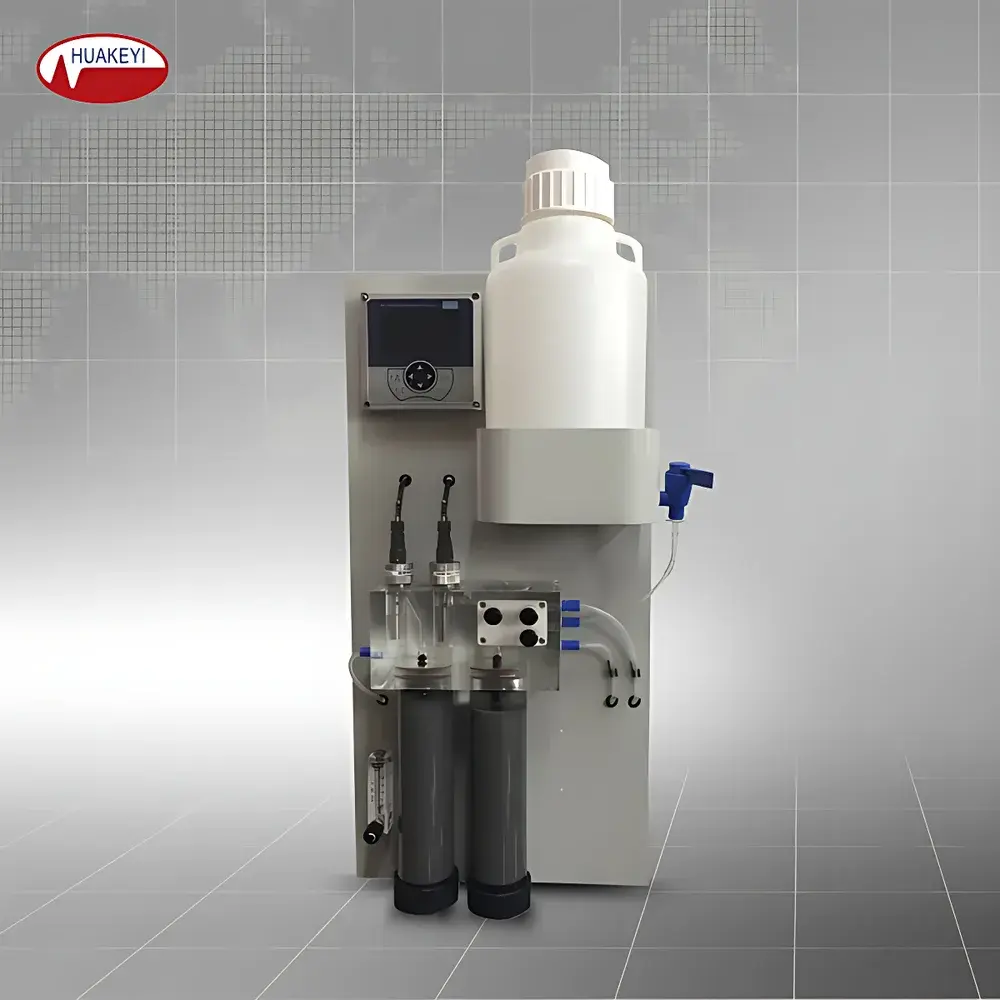

Huake Instrument HK-518 Copper Ion Analyzer

Overview

The Huake Instrument HK-518 Copper Ion Analyzer is a benchtop photometric water quality analyzer engineered for precise, trace-level quantification of dissolved copper ions (Cu²⁺) in low-conductivity aqueous matrices. It operates on the principle of visible-light absorption spectrophotometry—specifically, the colorimetric reaction between copper ions and a selective chromogenic reagent (e.g., neocuproine or bathocuproine disulfonic acid), generating a stable colored complex measurable at a defined wavelength (typically 450–480 nm). Unlike conventional atomic absorption or ICP-based methods, the HK-518 delivers rapid, cost-effective, and operator-safe analysis without requiring high-temperature plasma sources, compressed gases, or hazardous digestion chemistry. Its optical architecture integrates a precision-stabilized monochromatic cold light source and a calibrated silicon photodiode detector, ensuring minimal spectral drift and high signal-to-noise ratio across routine laboratory and industrial QC environments.

Key Features

• Stable monochromatic cold light source with <1% intensity drift over 8 hours—eliminates thermal baseline drift common in tungsten-halogen lamps.
• 32-bit embedded microcontroller platform with surface-mount technology (SMT) PCB design, enabling deterministic real-time data processing and robust firmware execution.
• IP65-rated waterproof housing with full silicone membrane keypad—designed for operation in humid, chemically exposed environments typical of power plant boiler feedwater labs and pulp & paper effluent monitoring stations.
• Fuzzy PID-controlled恒温 optical chamber (patented)—maintains detector and cuvette temperature within ±0.3 °C during extended measurement sequences, critical for minimizing thermal noise in low-absorbance (<0.1 AU) copper determinations.
• Reagent-free zero calibration: uses deionized water as blank reference—reducing consumable dependency and eliminating reagent lot-to-lot variability in baseline establishment.
• Multi-point curve calibration support (up to 5 points): enables non-linear fitting (quadratic or cubic regression) to compensate for matrix-induced deviations in complex samples such as treated cooling tower water or condensate.
• Role-based access control: password-protected configuration mode prevents unauthorized modification of calibration parameters, measurement units, or data export settings—supporting GLP-aligned operational discipline.
• Onboard data logging: stores up to 1,000 measurement records with timestamp, sample ID, operator code, and calibration status—exportable via USB interface for audit-ready reporting.

Sample Compatibility & Compliance

The HK-518 is validated for use with clarified, low-turbidity water samples including boiler feedwater, turbine condensate, demineralized process water, and municipal drinking water post-treatment. It is not intended for raw surface water, seawater, or high-suspended-solids wastewater without prior filtration (≤0.45 µm membrane) and acidification (pH <2) to ensure copper remains in soluble ionic form. While not certified to ISO/IEC 17025 as a standalone testing method, its photometric performance aligns with ASTM D1068–22 (Standard Test Methods for Copper in Water) for visual and instrumental colorimetric determination. The instrument’s data integrity features—including immutable timestamps, operator login logs, and calibration history tracking—facilitate compliance with FDA 21 CFR Part 11 requirements when deployed within validated QA/QC workflows under documented SOPs.

Software & Data Management

The HK-518 operates autonomously without PC dependency; all calibration, measurement, and storage functions are managed internally. Data export is supported via standard USB-A port using FAT32-formatted flash drives. Exported files follow CSV format with UTF-8 encoding and include column headers: “Timestamp”, “Sample_ID”, “Cu_µg_L”, “Absorbance”, “Calibration_ID”, “Operator_Code”, and “Status_Flag”. No proprietary software installation is required—files open natively in Excel, LabArchives, or LIMS platforms. Firmware updates are delivered as signed .bin files via USB; each update includes SHA-256 checksum verification and rollback capability to previous stable version. Audit trail entries (e.g., calibration events, password resets, unit changes) are retained in non-volatile memory for ≥12 months.

Applications

• Power generation: Monitoring copper leaching from brass condenser tubes in ultra-pure steam cycle water—critical for preventing turbine blade deposition per EPRI TR-102139 guidelines.
• Petrochemical refining: Quantifying copper residuals in amine solvent systems where catalytic copper degradation compromises H₂S scavenging efficiency.
• Pulp and paper mills: Verifying copper removal efficacy in ECF (elemental chlorine-free) bleach plant filtrates prior to biological treatment.
• Pharmaceutical water systems: Supporting USP Total Organic Carbon (TOC) ancillary checks where copper-catalyzed oxidation may skew TOC results.
• Environmental compliance labs: Screening for copper exceedances in NPDES discharge permits under EPA Method 200.7 (ICP-OES alternative for low-range verification).

FAQ

What is the detection principle used by the HK-518?

It employs fixed-wavelength photometry based on the formation of a copper-specific chromophore; no dispersion optics or scanning mechanism is involved.
Can the HK-518 measure total copper (dissolved + particulate)?

No—it measures only filterable (dissolved) Cu²⁺; total copper requires acid digestion per EPA 200.7 prior to analysis.
Is method validation documentation available?

Yes—Huake provides a Factory Performance Verification Report (FPVR) including linearity, LOD/LOQ, and inter-day precision data per ISO 8466-1.
Does the instrument support RS-232 or Ethernet connectivity?

No—only USB host interface is provided; optional RS-485 module is available under HK-518-EXT accessory kit.
What maintenance is required beyond routine cleaning?

Annual verification of photodiode responsivity and lamp spectral output using NIST-traceable neutral density filters is recommended.
