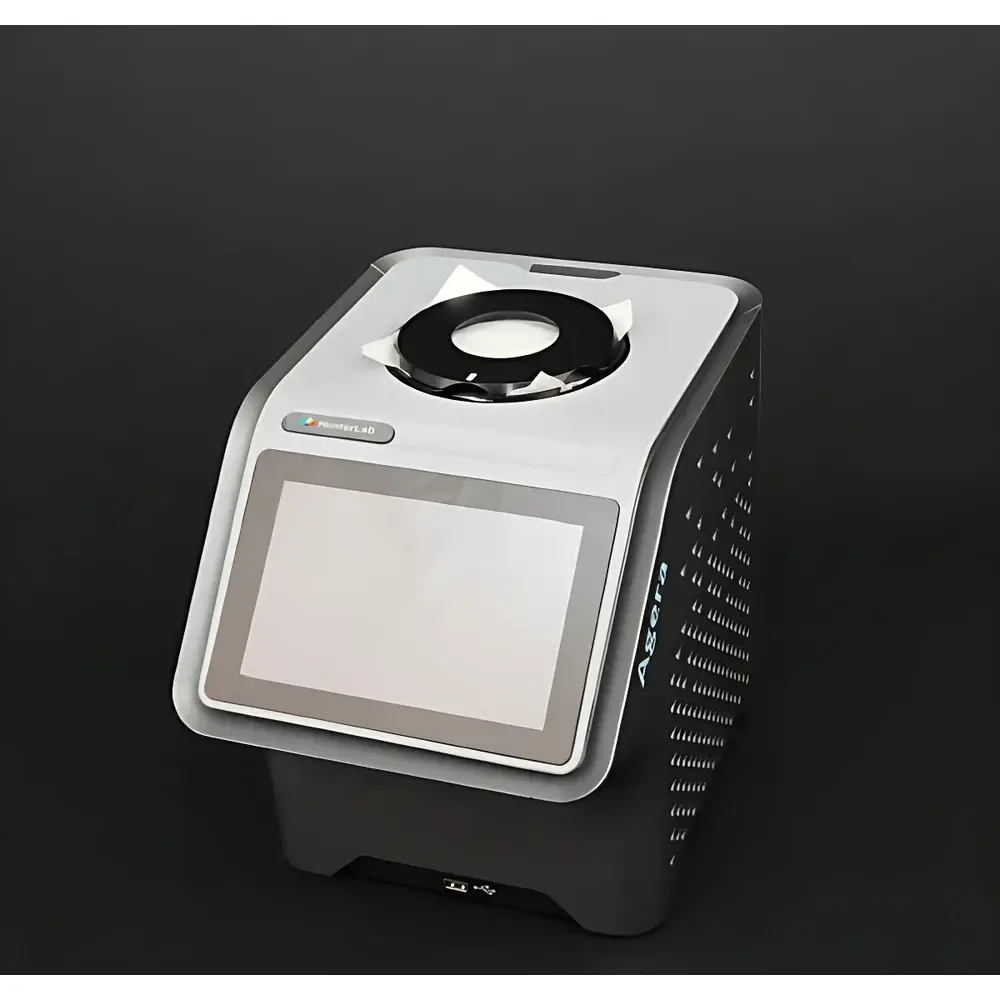

HunterLab Agera PTA (Purified Terephthalic Acid) Colorimeter

Overview

The HunterLab Agera PTA Colorimeter is a purpose-engineered benchtop spectrophotometer designed specifically for the objective, repeatable color evaluation of purified terephthalic acid (PTA) and other high-purity crystalline organic intermediates used in polyester fiber and resin production. It operates on the principle of diffuse reflectance spectroscopy under controlled 0/45° illumination geometry—ensuring minimal sensitivity to surface texture and directional reflectance anomalies common in granular or powdered industrial chemicals. The instrument employs a full-spectrum balanced LED array spanning 400–700 nm, eliminating the spectral drift and intensity decay associated with traditional xenon or tungsten-halogen sources. This optical architecture delivers exceptional photometric stability, enabling long-term measurement consistency required for quality control in continuous manufacturing environments where batch-to-batch color conformity directly correlates with polymerization performance and final product clarity.

Key Features

• Optimized 0/45° integrating sphere optics with dual-beam referencing for high photometric accuracy and reduced inter-instrument variability.
• Full-spectrum LED illumination system engineered for <0.01% intensity drift per hour, supporting repeatability of ΔE*ab ≤ 0.03 across repeated measurements on homogeneous PTA samples.
• Integrated 60° gloss sensor compliant with ASTM D523 and ISO 2813, enabling concurrent color + surface appearance assessment without repositioning or auxiliary hardware.
• Configurable UV filter mechanism for selectable inclusion or exclusion of ultraviolet excitation—critical for accurate color assessment of fluorescent-impacted PTA batches and validation against industry-specific fluorescence correction standards.
• 5-megapixel coaxial imaging module with uniform 45° full-spectrum illumination captures spatially registered sample images synchronized with spectral data, facilitating visual verification of measurement area homogeneity and contamination detection.
• High-resolution capacitive touchscreen interface with intuitive workflow navigation; supports on-device pass/fail judgment, statistical summary generation, and real-time trend visualization.

Sample Compatibility & Compliance

The Agera PTA is validated for use with dry, free-flowing PTA powders and crystals conforming to ASTM D3121, ISO 105-J03, and GB/T 23771–2009 specifications. Its multiple aperture options (15.89 mm, 25.4 mm, and 50.8 mm) accommodate varying particle size distributions and packing densities typical across PTA grades—from coarse reactor discharge material to micronized polymer-grade fines. The instrument meets IEC 61326-1 electromagnetic compatibility requirements and is CE-marked for industrial laboratory use. All factory calibrations are traceable to NIST-traceable ceramic standards, and gloss calibration is certified per ISO 2813 Annex B. For regulated environments, the system supports audit-ready operation when paired with EasyMatch QC™ software configured for 21 CFR Part 11 compliance (electronic signatures, audit trails, user access controls).

Software & Data Management

Data acquisition, analysis, and reporting are managed through HunterLab’s EasyMatch QC™ software platform—a GxP-aligned application supporting method-based workflows, statistical process control (SPC), and automated report generation (PDF/CSV/XLSX). Instrument firmware and software updates are delivered via secure HTTPS channels; remote diagnostics and guided troubleshooting are enabled through optional HunterVision™ cloud service, which maintains end-to-end TLS 1.2 encryption and requires explicit user authorization prior to technician access. All measurement records include embedded metadata: timestamp, operator ID, aperture setting, UV mode status, gloss value, raw spectral reflectance (10 nm intervals), and image thumbnail—ensuring full analytical traceability from raw data to final specification release.

Applications

Beyond PTA, the Agera platform serves as a reference-grade color measurement solution across industries requiring high-fidelity spectral characterization of white or near-white particulates and coatings. Key applications include: monitoring whiteness index (WI) and yellowness index (YI) of titanium dioxide pigments per ASTM E313; evaluating color shift in PET resin precursors during thermal aging; verifying batch consistency of pharmaceutical excipients such as microcrystalline cellulose; quantifying browning reactions in food-grade starches; and assessing chromatic deviation in coil-coated steel substrates per ASTM D2244. Its robust mechanical design and sealed optical path ensure stable operation in ambient laboratory or QC floor conditions with temperature fluctuations up to ±5°C/hour.

FAQ

Does the Agera PTA comply with ISO/IEC 17025 requirements for accredited laboratories?
Yes—the instrument’s calibration traceability, documented uncertainty budget (available upon request), and software audit trail capabilities align with ISO/IEC 17025:2017 clause 6.4 and 7.7 when implemented within a validated quality management system.
Can the Agera store measurement methods for different PTA specifications (e.g., BP, USP, enterprise standards)?
Yes—EasyMatch QC™ supports unlimited custom method libraries, including user-defined tolerances, pass/fail logic, multi-parameter limits (e.g., L*, b*, YI, gloss), and automatic flagging of out-of-spec results.
Is routine recalibration required between daily shifts?
No—HunterLab’s LED stability and dual-beam compensation eliminate the need for frequent zero/white calibration. A single daily verification using the supplied ceramic tile is sufficient for most production QC workflows.
How is data integrity ensured during USB export?
All exported files include SHA-256 checksums and embedded digital signatures verifying unaltered content and source authenticity.
What maintenance is required beyond standard cleaning?
No consumables or lamp replacements are needed; the LED light source is rated for >100,000 hours. Annual verification by an authorized HunterLab service engineer is recommended for ISO-compliant operations.
