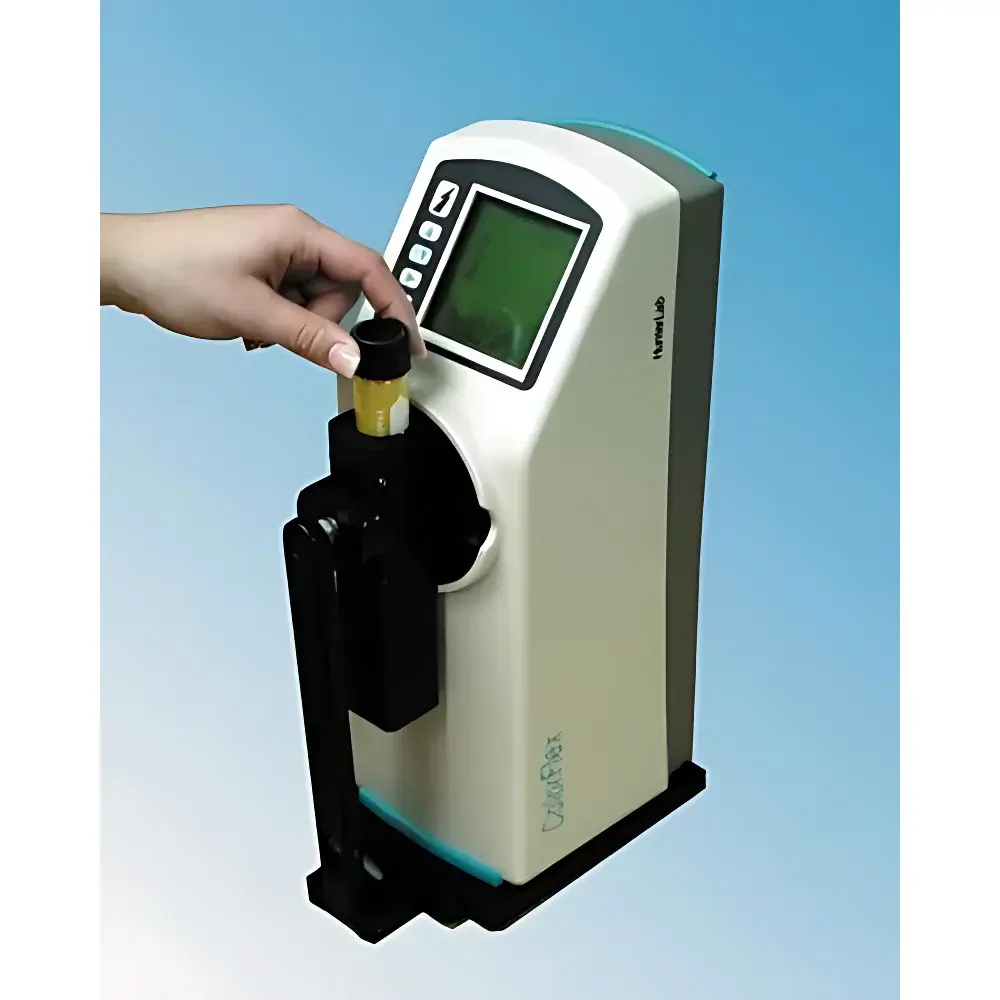

HunterLab ColorFlex EZ-Citrus Citrus Colorimeter

Overview

The HunterLab ColorFlex EZ-Citrus is a purpose-engineered benchtop spectrophotometric colorimeter designed exclusively for the citrus processing industry. It implements a 45°/0° optical geometry—where light is directed onto the sample at 45° from the normal and reflected light is collected at 0°—to eliminate directional gloss effects and ensure robust, reproducible measurement of diffuse reflectance from heterogeneous surfaces such as whole fruit rinds, segmented citrus sections, and clarified or pulpy orange juice. This geometry aligns with USDA Agricultural Marketing Service (AMS) specifications for citrus grading and color evaluation, enabling direct compliance with official U.S. federal standards for Citrus Number, Citrus Redness, and Citrus Yellowness indices. The instrument utilizes a high-stability pulsed xenon lamp (rated for >500,000 flashes), delivering consistent spectral output across the full visible range (400–700 nm) without warm-up drift or intensity decay during routine operation. Its single-shot measurement cycle completes in under one second, supporting high-throughput quality control in production environments.

Key Features

• Industry-specific citrus color indices: Direct calculation and display of Citrus Number, Citrus Redness, and Citrus Yellowness per USDA AMS guidelines.
• Dual-directional sample port: Configurable aperture orientation (upward- or forward-facing) accommodates diverse sample forms—including whole fruit, cut segments, juice in cuvettes, and pulp suspensions—without repositioning or accessory swapping.
• High-repeatability optical architecture: ≤ 0.04 ΔE* repeatability (20 readings on certified white tile) ensures statistical confidence in pass/fail decisions and longitudinal trend analysis.
• Inter-instrument agreement ≤ 0.15 ΔE* (CIE L*a*b*) supports multi-site deployment and method transfer across laboratories or manufacturing facilities.
• Integrated large-format display with multilingual UI (English, Chinese, Spanish, Portuguese) enables rapid operator adoption with minimal training.
• 99 programmable user methods store product-specific tolerances, reference standards, and acceptance criteria—automating go/no-go assessment against defined limits.

Sample Compatibility & Compliance

The ColorFlex EZ-Citrus is validated for use with intact citrus fruit (e.g., navel oranges, grapefruit, tangerines), sectioned samples, homogenized pulp, and both clarified and clouded orange juice. Its 45°/0° geometry minimizes specular interference from waxy rind surfaces and liquid meniscus curvature. All citrus-specific indices are traceable to NIST-traceable reflectance standards and calibrated per ASTM E308 (Standard Practice for Computing the Colors of Objects by Using the CIE System) and ISO 11664-4 (Colorimetry – Part 4: CIE 1976 L*a*b* Colour Space). The system supports GLP/GMP-aligned workflows through configurable audit trails, electronic signatures, and data export in CSV and XML formats compliant with FDA 21 CFR Part 11 requirements when used with HunterLab’s optional QualiCheck™ software module.

Software & Data Management

The instrument operates natively via embedded firmware with a Windows®-compatible PC application (EZQC Software) for advanced analysis, report generation, and database integration. EZQC provides real-time SPC charting (X-bar/R, Cp/Cpk), batch-level statistical summaries, and deviation mapping against master standards. All measurements include metadata stamping (operator ID, timestamp, instrument serial number, calibration status). Raw spectral data (10-nm intervals) and calculated indices are exportable without proprietary codec restrictions. Software validation documentation (IQ/OQ/PQ protocols) and 21 CFR Part 11 configuration packages are available upon request for regulated environments.

Applications

• USDA-compliant grading of fresh citrus fruit for harvest timing, market classification, and export certification.
• Real-time monitoring of juice color stability during pasteurization, storage, and blending operations.
• Raw material qualification of concentrate, NFC (not-from-concentrate) juice, and flavor oils.
• Formulation development for citrus-based beverages, dairy alternatives, and functional foods requiring precise hue consistency.
• Supplier quality assurance programs where objective color metrics replace subjective visual sorting.
• Research applications in postharvest physiology, carotenoid degradation kinetics, and thermal processing optimization.

FAQ

Does the ColorFlex EZ-Citrus comply with USDA AMS citrus grading standards?
Yes—the instrument’s Citrus Number, Citrus Redness, and Citrus Yellowness algorithms are derived directly from USDA AMS Handbook 51 and validated against reference materials specified in AMS Fruit and Vegetable Standards.
Can it measure opaque or pulpy orange juice without filtration?
Yes—its 45°/0° geometry and large 25.4-mm measurement area provide stable readings on non-homogeneous, scattering media; however, consistent sample presentation (e.g., standardized cuvette fill height and temperature control at 20 °C) is required for inter-laboratory reproducibility.
Is spectral data accessible for custom index development?
Yes—full 400–700 nm reflectance spectra (10-nm resolution) are exportable via EZQC Software for third-party modeling or internal R&D applications.
What calibration standards are supplied with the instrument?
Each unit ships with a NIST-traceable white ceramic tile and a black trap, plus a citrus-specific verification standard (certified Citrus Number range) for daily performance checks.
How is instrument-to-instrument variability managed in multi-unit deployments?
HunterLab performs inter-instrument agreement testing at factory shipment; users may further harmonize units using the built-in MatchGrade™ function, which applies correction matrices based on side-by-side measurements of common standards.
