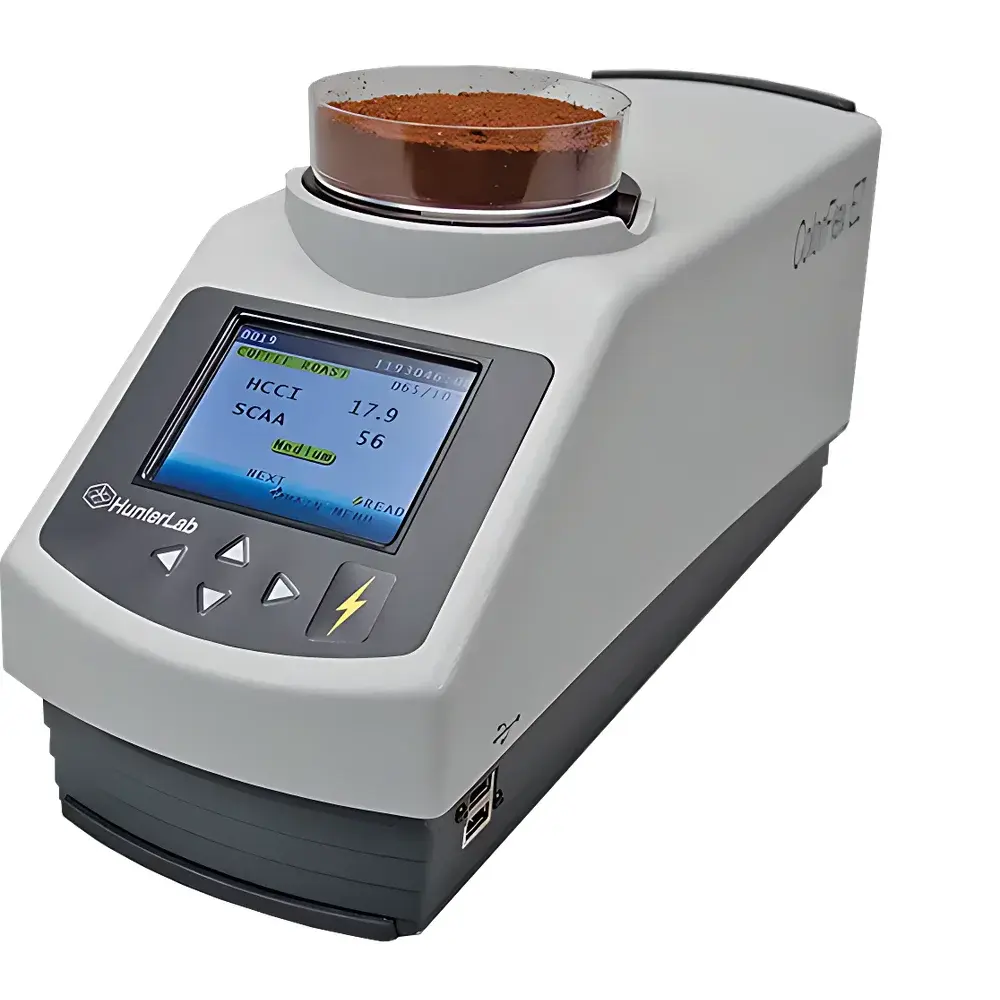

HunterLab ColorFlex EZ Coffee Spectrophotometer

Overview

The HunterLab ColorFlex EZ Coffee Spectrophotometer is a purpose-engineered benchtop reflectance spectrophotometer optimized for objective, repeatable color assessment of roasted and ground coffee across the entire production chain—from green bean evaluation and roast profiling to final product quality control. Unlike general-purpose colorimeters, it implements a true 45°/0° optical geometry with an integrating sphere, conforming to ASTM D7643 and ISO 8254-1 standards for diffuse reflectance measurement. This configuration eliminates directional bias and closely emulates human visual perception under controlled illumination—critical for correlating instrumental values with sensory roast evaluation. The instrument operates across a full visible spectrum (360–780 nm at 10 nm resolution), enabling calculation of both industry-specific indices—including HunterLab Coffee Color Index (HCCI) and SCAA Roast Scale—and universal color spaces (CIE L*a*b*, CIE L*C*h°, Hunter L,a,b). Its solid-state optics, thermally stabilized detector array, and real-time spectral validation ensure long-term stability in high-volume lab or production-floor environments.

Key Features

• 45°/0° integrating sphere optical design compliant with ASTM D7643 and ISO 8254-1 for high-fidelity reflectance measurement
• Dedicated firmware algorithms for HCCI, SCAA Roast Scale (0–100), and roast classification per SCAA guidelines
• Simultaneous output of multiple color spaces: Hunter L,a,b; CIE L*a*b*; CIE L*C*h°; ΔE*ab; ΔE00; and spectral reflectance curves (360–780 nm)
• Robust sample interface supporting ground coffee (fine/coarse), instant coffee powders, roasted whole beans, brewed liquids, cold brew concentrates, and tablet forms
• Onboard display with color graph, spectral plot, and pass/fail tolerance overlay against stored standards
• USB connectivity for direct integration with EasyMatch QC software (v5.0 or later), supporting FDA 21 CFR Part 11-compliant audit trails, electronic signatures, and report generation
• Included NIST-traceable calibration tiles (white/black), PQ Coffee diagnostic set, and application-optimized plastic sample cup with light-tight sleeve
• Compact footprint (< 20 cm depth) suitable for QC benches, roasting labs, or mobile quality stations

Sample Compatibility & Compliance

The ColorFlex EZ Coffee accommodates heterogeneous coffee matrices without modification: dry powders (e.g., ground Arabica, Robusta, instant granules), viscous semi-solids (e.g., nitro cold brew, espresso crema), clear-to-opaque liquids (drip brew, French press filtrate), and irregular solids (whole roasted beans, agglomerated pellets). Each measurement uses standardized aperture masking and consistent packing density protocols defined in ASTM D7643 Annex A2. All spectral data are traceable to NIST SRM 2035 and calibrated per ISO/IEC 17025 requirements. The system supports GLP and GMP workflows through EasyMatch QC’s configurable user roles, electronic signature enforcement, and immutable audit logs—validated for use in facilities subject to FDA, EU EMA, or ISO 9001 audits.

Software & Data Management

EasyMatch QC v5.0+ provides full instrument control, method creation, statistical process control (SPC), and compliance-ready reporting. Users define multi-parameter tolerances (e.g., HCCI ±0.5, L* ±0.8, ΔE*ab ≤1.0), generate batch-level trend charts, and export CSV, PDF, or XML for LIMS integration. Raw spectral files (.spc) retain full wavelength-intensity arrays for retrospective analysis or third-party modeling. Software validation documentation (IQ/OQ/PQ templates) and 21 CFR Part 11 configuration guides are provided with each instrument shipment.

Applications

• Roast degree verification and consistency monitoring across drum, fluid-bed, and air-roasting systems
• Green coffee lot comparison and origin profiling via spectral fingerprinting
• Blending optimization using quantitative color deviation metrics
• Shelf-life studies tracking oxidative browning in packaged ground coffee
• QC release testing for instant coffee powders and soluble extracts
• Supplier qualification against internal or SCAA-defined roast scale targets
• Regulatory documentation for food safety plans (HACCP, FSMA) requiring objective color parameters

FAQ

Is the ColorFlex EZ Coffee suitable for measuring liquid coffee samples?

Yes—it accepts brewed coffee, cold brew concentrates, and espresso in standard cuvettes or the included sample cup with depth-controlled fill volume.
Does it require annual recalibration by HunterLab service engineers?

No. Daily verification with supplied calibration tiles satisfies ISO/IEC 17025 requirements; full recalibration is recommended every 12–24 months based on usage intensity and environmental conditions.
Can it measure whole roasted beans without grinding?

Yes—using the optional bean cradle accessory (sold separately), which ensures consistent orientation and minimizes surface reflectance variability.
How does HCCI differ from the SCAA Roast Scale?

HCCI is a proprietary HunterLab index derived from spectral reflectance at 420–700 nm; the SCAA Roast Scale is a linear transformation of HCCI mapped to a 0–100 scale where 0 = lightest (cinnamon roast) and 100 = darkest (French/Italian roast).
Is EasyMatch QC validated for pharmaceutical applications?

Yes—EasyMatch QC v5.0+ includes pre-validated 21 CFR Part 11 modules and supports IQ/OQ/PQ execution per USP and ICH Q5E guidance for color-critical dosage forms.
