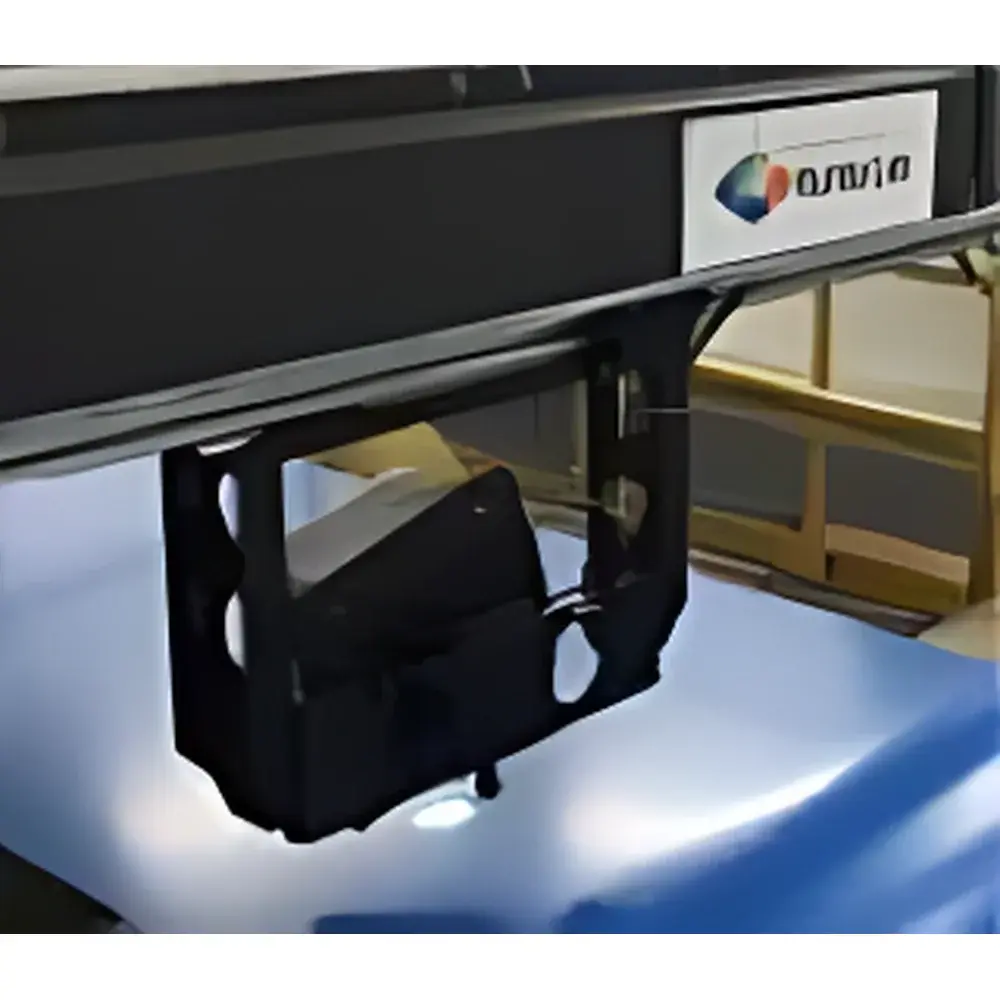

HunterLab SpectraTrend HT In-Line Color Measurement System
| Brand | HunterLab |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Import Status | Imported |
| Model | SpectraTrend HT |
| Product Category | Spectrophotometric Colorimeter |
| Instrument Type | In-Line |
| Optical Geometry | 0°/45° Integrating Sphere |
| Light Source | Full-Spectrum Balanced Solid-State LED Array |
| Spectral Range | 400–700 nm |
| Repeatability | ΔE*ab ≤ 0.03 |
Overview
The HunterLab SpectraTrend HT is an industrial-grade in-line spectrophotometric color measurement system engineered for continuous, non-contact color monitoring of coil-coated metal substrates during high-speed production. Based on CIE-compliant 0°/45° optical geometry with a precision integrating sphere, the instrument captures reflectance spectra across the visible spectrum (400–700 nm) using a thermally stabilized, full-spectrum solid-state LED illumination system. Unlike portable or benchtop colorimeters, the SpectraTrend HT is purpose-built for integration into continuous coil coating lines—delivering real-time spectral data at up to 10 Hz sampling frequency, synchronized with line speed and position via encoder input. Its core function is not isolated spot measurement but spatially resolved color mapping across the full web width, enabling detection of chromatic deviations correlated with coating thickness variation, oven temperature gradients, or roller contamination.
Key Features
- Full-width automated traverse mechanism with programmable scan profiles and position-locked spectral acquisition
- Weld seam detection and automatic avoidance logic, minimizing measurement interruption and sensor exposure risk
- Integrated audible and visual alarm system triggered by user-defined ΔE*ab, L*, a*, or b* thresholds
- Onboard auto-calibration capability with configurable interval scheduling (e.g., every 30 min, per shift, or per coil), eliminating manual intervention and associated safety hazards
- Robust IP65-rated enclosure designed for ambient temperatures up to 55°C and humidity levels typical of industrial coating environments
- Factory-aligned spectral response traceable to NIST-traceable standards; inter-instrument agreement < ΔE*ab 0.08 (per ASTM E308)
Sample Compatibility & Compliance
The SpectraTrend HT is validated for use on pre-painted steel and aluminum coils with gloss levels from matte to high-gloss (>80 GU at 60°), including polyester, PVDF, and SMP organic coatings. It accommodates substrate widths up to 1,500 mm and line speeds up to 200 m/min. All optical and electronic subsystems comply with IEC 61000-6-2 (immunity) and IEC 61000-6-4 (emissions) standards. Data integrity protocols align with FDA 21 CFR Part 11 requirements when deployed with HunterLab’s Enterprise Software Suite, supporting electronic signatures, audit trails, and role-based access control. The system supports GLP/GMP documentation workflows and meets relevant clauses of ISO 9001:2015 and ISO/IEC 17025:2017 for measurement traceability.
Software & Data Management
Data acquisition, visualization, and statistical process control (SPC) are managed through HunterLab’s proprietary EasyMatch QC Enterprise software. This platform provides real-time color trend dashboards with X-bar/R charts, multivariate deviation heatmaps across web coordinates, and automated report generation compliant with internal QA templates or customer-facing PPAP documentation. Spectral data is stored in vendor-neutral, ASCII-based .qtx files containing raw reflectance, CIE XYZ, CIELAB, and custom tolerance set metadata. Integration with MES/SCADA systems is achieved via OPC UA or Modbus TCP interfaces; historical datasets can be exported to SQL databases or cloud-based analytics platforms for AI-driven anomaly detection model training.
Applications
- Real-time color consistency verification during continuous coil coating, especially for architectural and appliance-grade finishes
- Detection and localization of batch-to-batch pigment drift, solvent evaporation anomalies, or curing oven hot/cold spots
- Correlation of color deviation patterns with offline lab measurements (e.g., HunterLab UltraScan VIS or MiniScan EZ) to validate measurement equivalence across test points
- Supporting Six Sigma initiatives by feeding SPC data directly into control charts for Cp/Cpk analysis of color stability metrics
- Preventive maintenance alerts based on long-term spectral baseline drift trends (e.g., LED aging compensation logs)
FAQ
How does the SpectraTrend HT ensure measurement consistency with laboratory instruments?
It uses the same fundamental 0°/45° optical geometry and CIE standard observer functions as HunterLab’s benchtop spectrophotometers; factory calibration includes inter-instrument agreement validation per ASTM D2244 and ISO 12048.
Can the system operate under varying ambient lighting conditions?
Yes—the solid-state LED source operates independently of ambient light, and the integrating sphere design rejects stray illumination; no external light shielding is required.
What level of spectral resolution does the instrument provide?
It acquires reflectance data at 10-nm intervals across 400–700 nm, yielding 61 discrete wavelength channels consistent with CIE 15:2018 spectral computation requirements.
Is remote diagnostics and firmware updates supported?
Yes—via secure TLS-encrypted Ethernet connection; diagnostic logs and spectral health reports can be accessed remotely by authorized service engineers.
Does the system support custom color difference formulas beyond CIELAB?
Yes—EasyMatch QC Enterprise allows configuration of CMC(l:c), CIEDE2000, DIN99, and user-defined weighted ΔE algorithms aligned with specific OEM specifications.
