HUXI HM-15 Infrared Loop Sterilizer

Overview

The HUXI HM-15 Infrared Loop Sterilizer is a compact, ceramic-heated dry heat sterilization device engineered for rapid, flame-free decontamination of microbiological inoculation tools in controlled laboratory environments. Unlike traditional open-flame or alcohol-based methods, the HM-15 employs high-intensity infrared radiation emitted from a precisely engineered ceramic heating element to achieve localized thermal sterilization at ≥825 °C within the sterilization chamber’s central zone. This principle—based on instantaneous thermal denaturation of nucleic acids and proteins—ensures microbial inactivation (including spores) in 5–7 seconds per instrument, without generating combustion byproducts, UV emissions, or volatile organic residues. Its fixed 21° downward tilt geometry optimizes ergonomic access while minimizing convective heat loss and ambient air interference—critical for stable operation inside biosafety cabinets (Class II), laminar flow hoods, anaerobic chambers, and mobile lab carts.

Key Features

• Flameless, alcohol-free sterilization compliant with biosafety Level 2 (BSL-2) and ISO 14644-1 Class 5 cleanroom workflows;
• Ceramic infrared heating core delivering rapid thermal ramp-up and stable dwell temperature (±25 °C uniformity across 150 mm active zone);

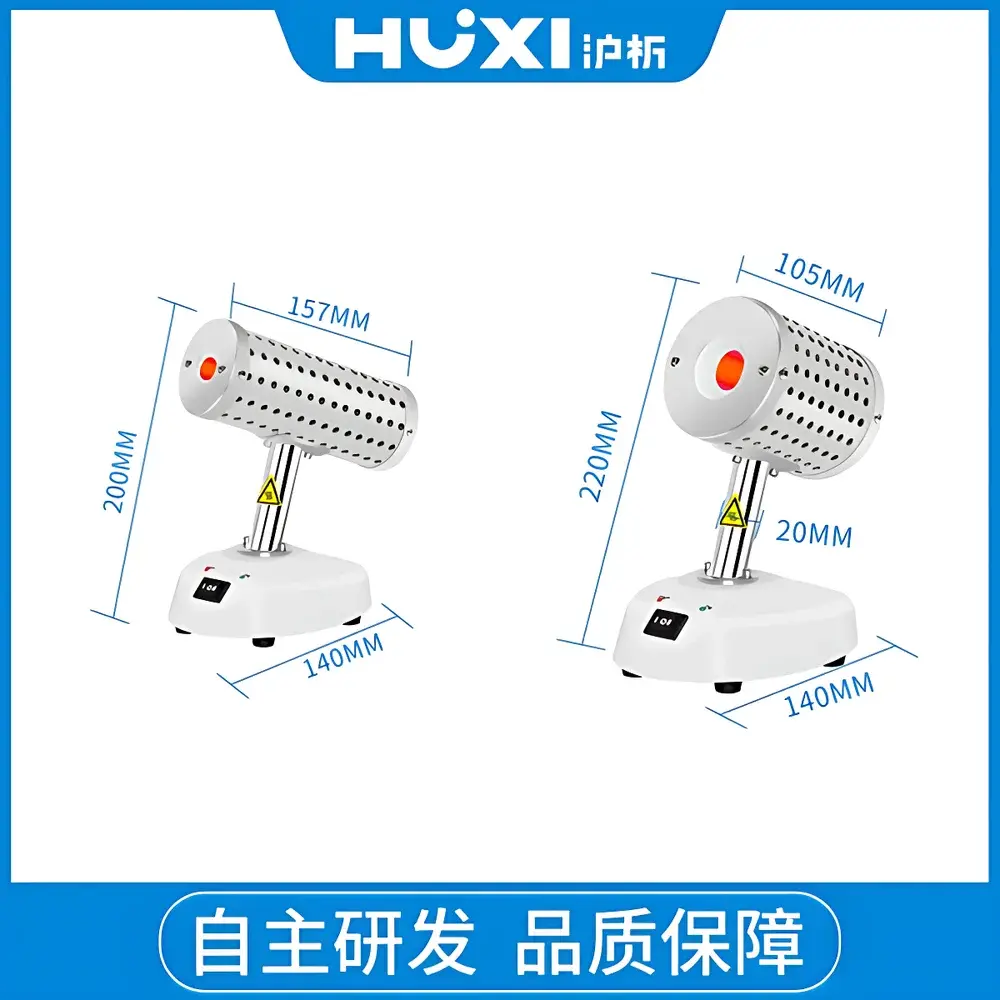

• Compact footprint (157 mm W × 200 mm H) and lightweight design (0.8 kg net weight) enabling placement in space-constrained workspaces;
• Auto-shutdown function after extended idle periods, reducing thermal stress on ceramic elements and extending service life;
• Integrated standby mode maintaining 480 °C at the chamber entrance—sufficient to prevent microbial ingress while minimizing energy consumption;
• Deep-cavity ceramic funnel geometry promotes complete ashing of organic residues from loops, needles, forceps, and scalpel tips, mitigating aerosolized biohazards and cross-contamination risks;
• Chemically inert alumina-based chamber surface resists corrosion from repeated exposure to biological residues and cleaning agents.

Sample Compatibility & Compliance

The HM-15 accommodates standard microbiological tools up to φ14 mm outer diameter—including platinum/nichrome inoculation loops and needles, stainless-steel tweezers, micro-scissors, and glass/plastic tube/erlenmeyer flask necks. Its design supports uninterrupted use in anaerobic environments (O₂ < 0.1%) due to absence of oxygen-dependent combustion. The device meets general safety requirements under IEC 61010-1:2010 for laboratory electrical equipment and complies with material biocompatibility guidelines per ISO 10993-5 for non-invasive device contact surfaces. While not certified as a medical device under FDA 21 CFR Part 820, it aligns with GLP-relevant operational controls for routine lab tool decontamination in QC/QA and R&D settings where documented thermal validation (e.g., thermocouple mapping per ISO 17025) is performed internally.

Software & Data Management

The HM-15 operates as a standalone analog-controlled unit with no embedded firmware or digital interface. Temperature regulation is achieved via calibrated bimetallic thermostat feedback, ensuring reproducible performance without software dependencies. For laboratories requiring audit-ready sterilization records, optional external data loggers (e.g., calibrated Type-K thermocouples paired with ISO/IEC 17025-accredited recording systems) may be deployed to document time-temperature profiles during validation studies. The absence of network connectivity or user-accessible memory eliminates cybersecurity concerns and simplifies 21 CFR Part 11 compliance when integrated into validated workflows using procedural documentation rather than electronic signatures.

Applications

• Routine sterilization of inoculation loops and needles between subcultures in bacterial/fungal isolation workflows;
• Decontamination of narrow-diameter instruments (e.g., micro-manipulators, capillary pipettes) incompatible with autoclaving;
• Surface sterilization of glassware necks (test tubes, flasks) prior to aseptic transfer under laminar flow;
• On-demand tool sterilization in mobile diagnostic units, field-deployable labs, and BSL-2 containment vehicles;
• Complementary use alongside hydrogen peroxide vapor (HPV) or UV-C systems in multi-modal decontamination protocols;
• Training environments where flame hazards and alcohol flammability must be eliminated for student safety.

FAQ

What is the recommended validation method for HM-15 sterilization efficacy?
Biological indicators (e.g., Bacillus stearothermophilus spore strips) placed at the deepest point of the heating zone should achieve ≥6-log reduction after 7-second exposure; thermocouple mapping per ASTM E2875 is advised for initial qualification.

Can the HM-15 be used inside an anaerobic chamber?
Yes—the absence of combustion and reliance on radiant heat makes it fully compatible with O₂-free atmospheres; verify chamber viewport thermal tolerance before permanent installation.

Is routine calibration required?
While no scheduled calibration is mandated, annual verification of center-zone temperature using a NIST-traceable handheld infrared thermometer or inserted thermocouple is recommended for GLP-aligned labs.

How does the auto-shutdown feature extend component lifetime?
By limiting cumulative thermal cycling of the ceramic heater element and reducing oxidation of internal wiring, the idle timeout minimizes material fatigue and resistance drift over >5,000 operational hours.
