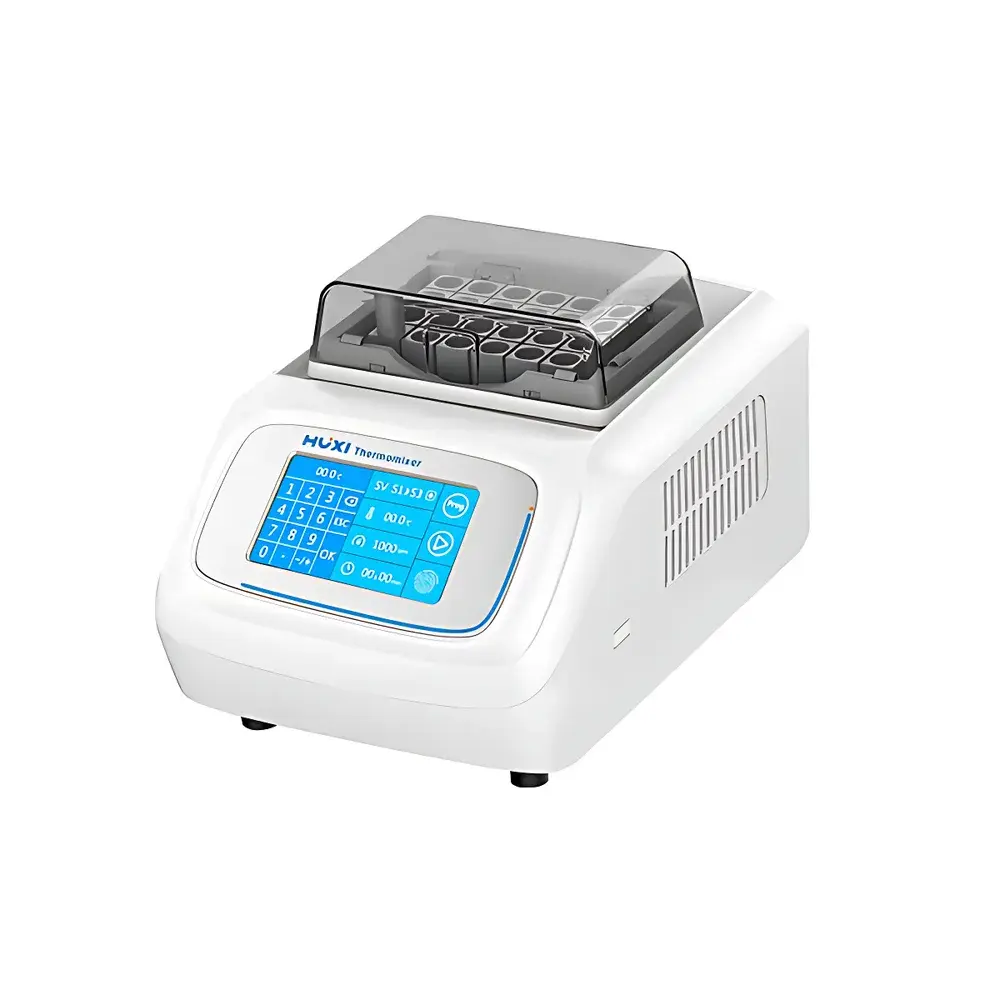

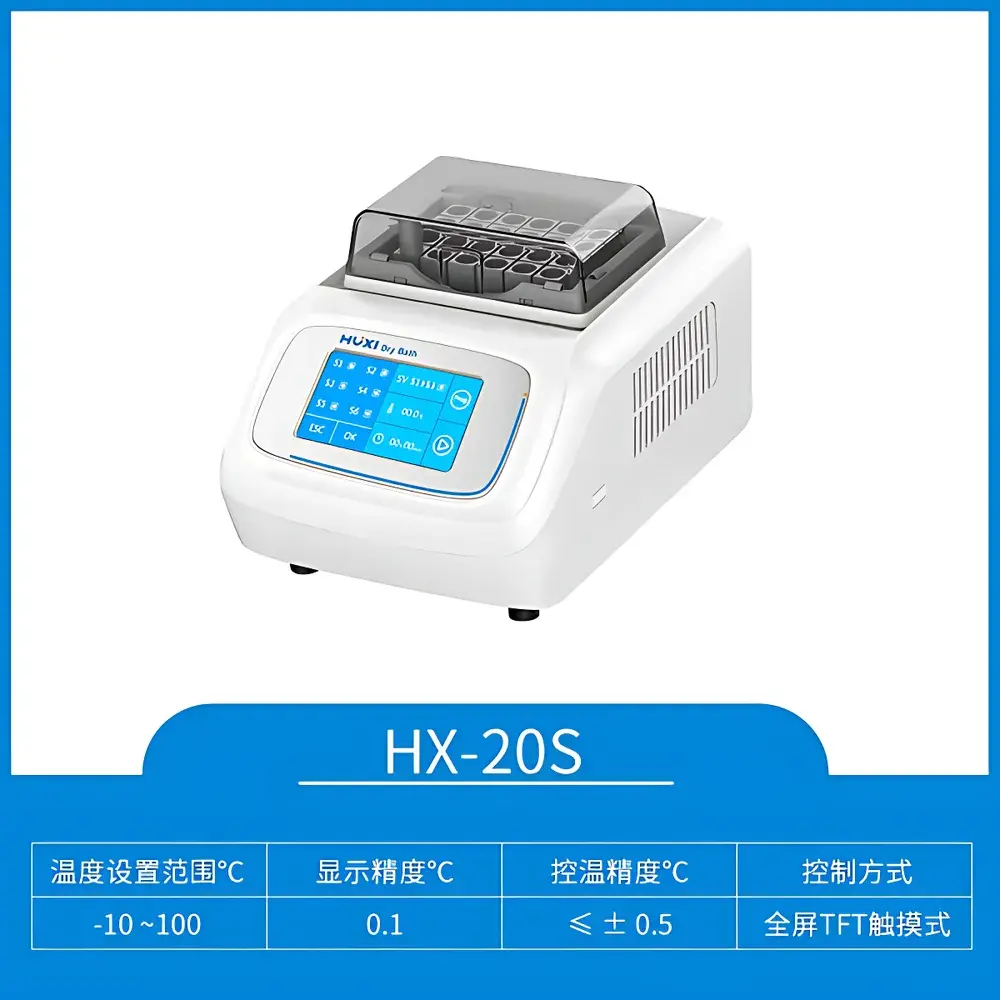

HUXI HX-20S Intelligent Metal Block Thermostat

Overview

The HUXI HX-20S Intelligent Metal Block Thermostat is a precision-engineered temperature control instrument designed for demanding life science applications requiring stable, repeatable thermal environments. Unlike conventional water baths—prone to evaporation, contamination, and spatial temperature gradients—the HX-20S employs solid-state PTC (Positive Temperature Coefficient) heating elements integrated into an aluminum alloy heating block, delivering rapid thermal response and exceptional spatial uniformity. Its operating range spans from ambient +5 °C to 100 °C, optimized for enzymatic reactions, DNA denaturation/annealing, cell culture sample equilibration, reagent pre-warming, and enzyme storage stabilization. The device operates without refrigeration capability (i.e., no active cooling below ambient), positioning it as a high-stability heating and isothermal platform rather than a full-range thermocycler. Its compact footprint (210 × 280 × 180 mm) and modular architecture make it suitable for benchtop integration in QC labs, molecular biology core facilities, and GLP-compliant research environments where space efficiency and operational consistency are critical.

Key Features

• PID-Controlled Thermal Regulation: Closed-loop proportional-integral-derivative algorithm ensures minimal overshoot and tight setpoint adherence (<±0.5 °C accuracy, ≤±0.3 °C uniformity across the block surface).
• Intuitive 4.3-inch Capacitive Touchscreen: Full-screen TFT interface displays real-time temperature, setpoint, elapsed time, remaining duration, and active program status simultaneously—no menu nesting required.
• Multi-Step Programmable Protocol Engine: Supports up to five sequential temperature/time segments (e.g., 37 °C for 30 min → 72 °C for 15 min → 4 °C hold), enabling unattended execution of complex thermal workflows.
• Modular Block System: Interchangeable aluminum blocks accommodate standard microcentrifuge tubes (1.5/2.0 mL, 35-position default), PCR strips, deep-well plates, and custom geometries (optional blocks A–N); all blocks undergo anodized surface treatment for corrosion resistance and ease of decontamination.
• Dual-Layer Safety Architecture: Includes hardware-based over-temperature cutoff (independent of main controller), certified CE-compliant insulation, UL-listed fuse protection (250 V, 3 A), and real-time diagnostic self-check with audible alert on sensor failure, power anomaly, or thermal runaway.
• User-Calibratable Offset Function: Allows lab-specific correction of systematic thermal deviation using traceable reference standards—essential for ISO/IEC 17025-accredited laboratories maintaining metrological traceability.

Sample Compatibility & Compliance

The HX-20S accommodates a wide range of biological sample containers via its standardized and optional block configurations. Standard 35-hole 1.5/2.0 mL tube blocks ensure compatibility with Eppendorf-style microtubes, while optional configurations support 0.2 mL PCR tubes, 8-strip formats, 96-well plates (shallow and deep well), and 15/50 mL conical tubes. All contact surfaces are electropolished and anodized to resist chemical degradation from common solvents (ethanol, isopropanol, dilute acids/bases) and facilitate autoclave-compatible cleaning protocols. The unit complies with EN 61010-1:2010 (Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use) and carries CE marking for the European Economic Area. While not inherently 21 CFR Part 11 compliant, its optional USB interface supports integration into validated laboratory information management systems (LIMS) when paired with audit-trail-enabled host software—enabling full electronic record retention per ALCOA+ principles.

Software & Data Management

The HX-20S operates as a standalone instrument with embedded firmware but offers optional USB 2.0 connectivity for bidirectional communication with Windows-based host applications. This interface enables remote parameter configuration, real-time temperature logging at user-defined intervals (1–60 s), export of timestamped CSV datasets, and synchronization of multi-unit protocols in shared lab environments. Firmware updates are delivered via USB flash drive, ensuring long-term maintainability without proprietary service tools. No cloud dependency or subscription model is involved—data remains under full institutional control. For regulated environments, users may configure the system within a validated network architecture where USB peripherals are governed by organizational IT security policies, supporting alignment with GxP documentation requirements.

Applications

• Molecular biology: DNA ligation, restriction digestion, plasmid miniprep elution, and probe hybridization incubations
• Clinical diagnostics: Serum sample thawing, antigen retrieval for IHC, and calibrator equilibration prior to immunoassay runs
• Pharmaceutical QA/QC: Stability testing of excipients, dissolution media pre-conditioning, and buffer temperature standardization
• Cell culture: Pre-warming of media, trypsin solutions, and transfection reagents to physiological temperatures
• Enzyme kinetics: Controlled thermal activation/inactivation studies requiring precise dwell times at defined setpoints
• Educational laboratories: Demonstrating Arrhenius behavior, Q₁₀ temperature coefficients, and thermal denaturation profiles

FAQ

Does the HX-20S provide active cooling below ambient temperature?
No. The HX-20S is a heating and isothermal maintenance device only. It does not incorporate thermoelectric (Peltier) or compressor-based refrigeration; its lower limit is ambient +5 °C.
Can the temperature calibration be performed in-house without external service?
Yes. The unit includes a user-accessible offset adjustment function, allowing labs to apply corrections based on NIST-traceable reference thermometers—no firmware modification or vendor intervention required.
Is the USB interface compatible with macOS or Linux operating systems?
The standard driver suite is Windows-only (Windows 7–11). However, the USB CDC ACM class implementation permits serial communication on macOS/Linux using generic terminal emulators and custom Python/Node.js scripts via /dev/tty.usbmodem or /dev/ttyACM0.
What is the expected lifetime of the PTC heating element under continuous operation?
Rated for ≥50,000 hours of thermal cycling under nominal load conditions (per IEC 60335-1 Annex H accelerated life testing), equivalent to >5.7 years of 24/7 use.
Are validation documents (IQ/OQ/PQ templates) available for GMP-regulated installations?
HUXI provides a comprehensive technical manual, electrical safety report, and CE declaration of conformity. Site-specific IQ/OQ protocols must be developed internally or by qualified third-party validation partners, as regulatory acceptance depends on local quality system requirements.
