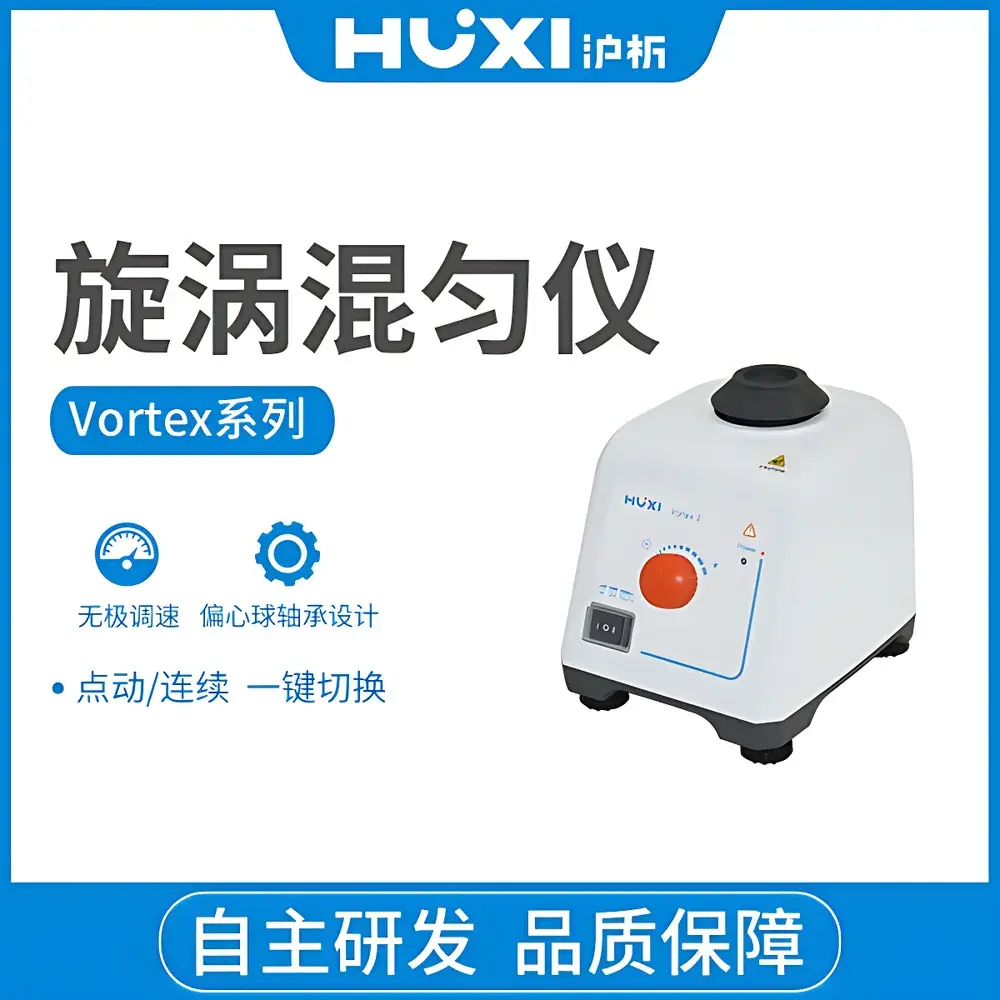

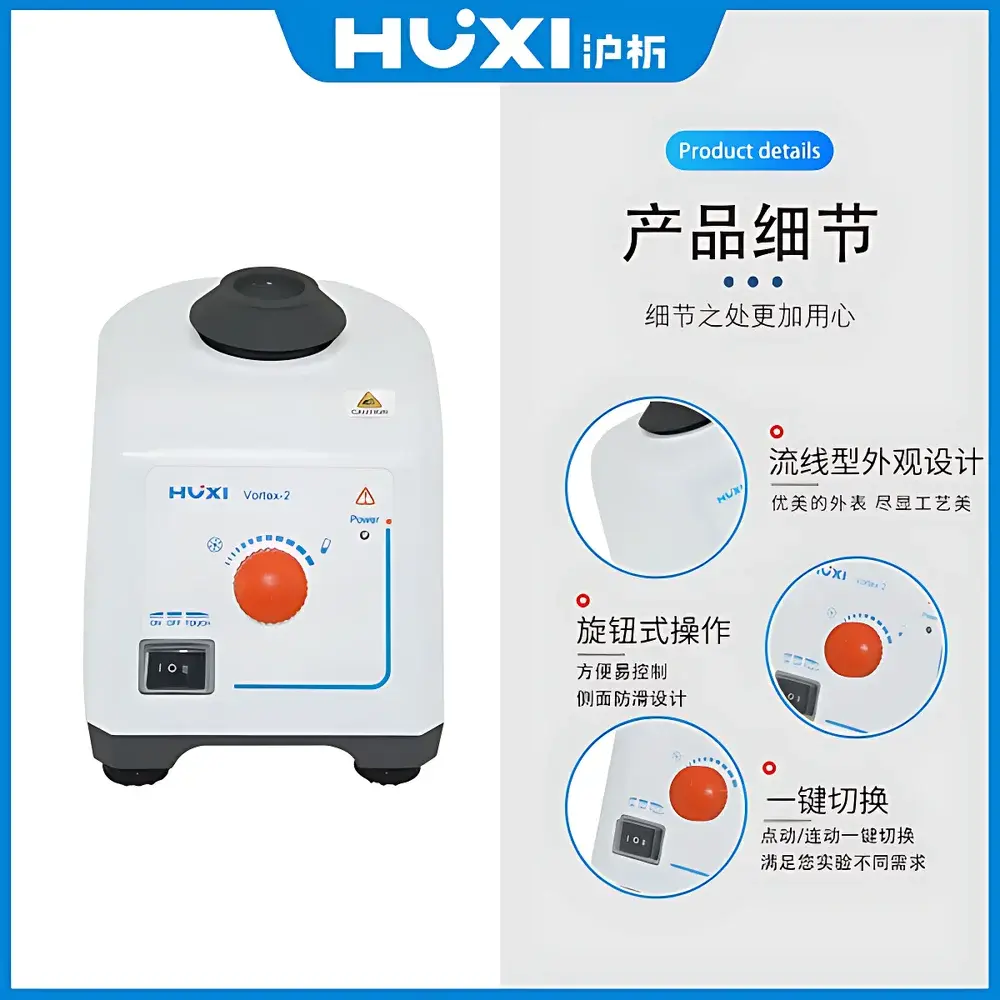

HUXI Vortex-5S Optical-Sensor Controlled Orbital Vortex Mixer

Overview

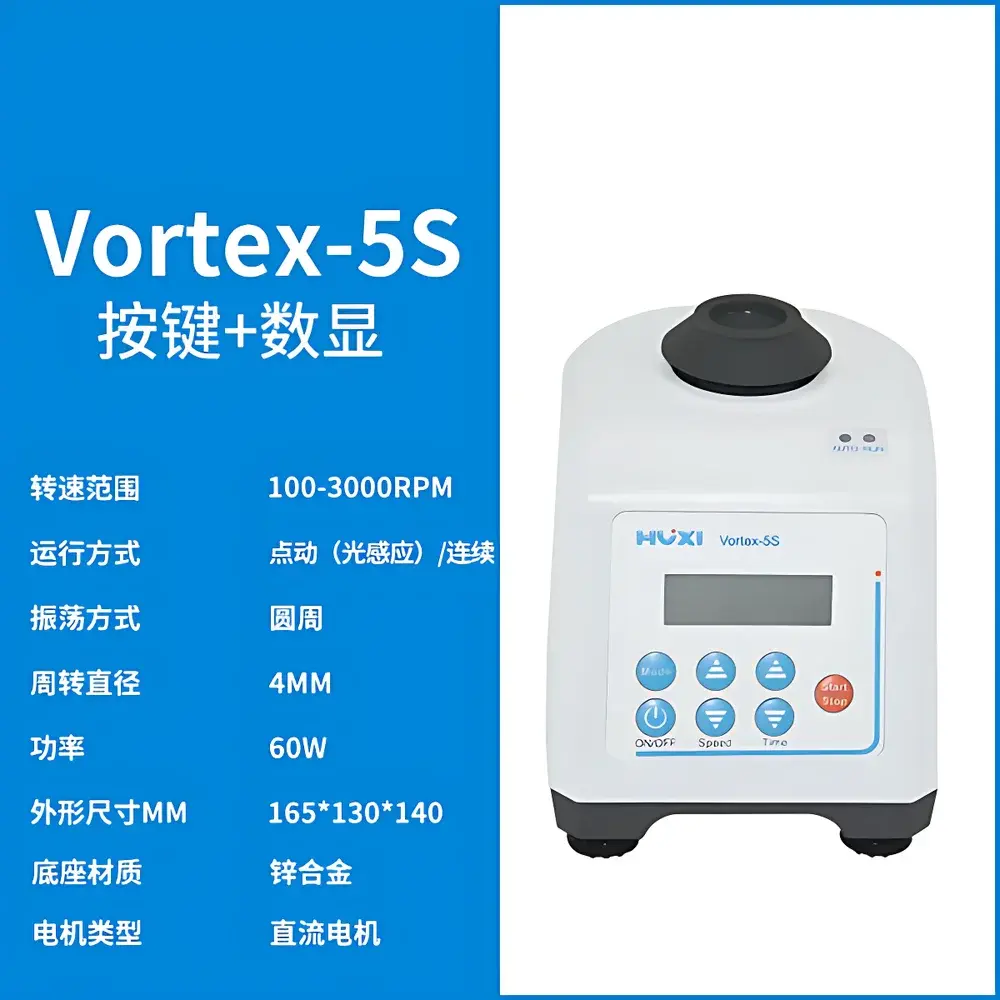

The HUXI Vortex-5S is a precision-engineered optical-sensor controlled orbital vortex mixer designed for reliable, repeatable sample homogenization in life science and clinical laboratory environments. Utilizing a permanent-magnet DC motor coupled with an eccentric drive mechanism, the device generates consistent orbital motion—characterized by a 4 mm orbit diameter—to induce vigorous yet controllable fluid agitation within tubes, vials, and microcentrifuge containers. Unlike mechanical push-button or rotary dial interfaces, the Vortex-5S incorporates a capacitive optical sensor that enables touch-free activation via hand proximity, minimizing cross-contamination risk and supporting glove-compatible operation under biosafety cabinet workflows. Its universal 100–240 V AC input ensures stable performance across global laboratory power infrastructures without external voltage conversion.

Key Features

• Optical-sensor activation mode: Enables hands-free, contamination-minimized start/stop control—ideal for sterile or high-throughput workflows where frequent tube handling occurs.
• Dual operating modes: Select between momentary (touch-activated) and continuous operation to match protocol requirements—from brief pulse mixing to extended incubation-assisted homogenization.
• Wide speed range (100–3000 rpm) with fine incremental adjustment: Delivers precise control over shear intensity, enabling optimization for delicate samples (e.g., plasmid DNA solutions) or viscous reagents (e.g., glycerol-based storage buffers).
• Integrated high-resolution LCD display: Simultaneously shows real-time rotational speed and programmable timer status (1 s to 99 h 59 min 59 s), supporting GLP-compliant documentation of mixing duration.
• Zinc alloy die-cast base with silicone-damped footpads: Ensures mechanical stability at maximum speed; eliminates lateral drift or resonance-induced displacement on benchtop surfaces—even during overnight runs.
• Thermally robust permanent-magnet DC motor: Engineered for low thermal drift and extended duty cycles, with no brush wear or commutator degradation typical of brushed alternatives.

Sample Compatibility & Compliance

The Vortex-5S accommodates standard laboratory vessels—including 0.2 mL PCR tubes, 1.5 mL and 2.0 mL microcentrifuge tubes, 15 mL and 50 mL conical tubes, and multi-well plates (with optional platform adapters). Its orbital motion profile conforms to ISO 8573-1:2010 principles for consistent kinetic energy transfer across vessel geometries. While not certified to IEC 61010-1 as a standalone safety-certified instrument, the unit complies with general electrical safety practices for Class I laboratory equipment and meets RoHS Directive 2011/65/EU material restrictions. Its timer functionality supports audit-ready recordkeeping aligned with internal SOPs referencing CLSI EP22-A and ISO/IEC 17025:2017 clause 7.7 (result reporting traceability).

Software & Data Management

The Vortex-5S operates as a standalone hardware platform without embedded firmware connectivity (e.g., USB, Bluetooth, or Ethernet). All operational parameters—including speed setpoint, timer value, and active mode—are retained locally on the device’s non-volatile memory and persist across power cycles. The LCD interface provides immediate visual feedback for both setup and execution phases, eliminating reliance on external software for routine use. For laboratories requiring electronic record integration, manual entry of timer logs and speed settings into LIMS or ELN systems is supported via standardized timestamped entries compliant with FDA 21 CFR Part 11 Annex 11 expectations for operator-initiated data capture.

Applications

• Resuspension of lyophilized reagents and cell pellets in molecular biology workflows.
• Homogenization of immunoassay diluents and ELISA plate coatings prior to dispensing.
• Pre-analytical mixing of whole blood samples with anticoagulant additives in clinical chemistry labs.
• Uniform dispersion of nanoparticles or liposomal suspensions during formulation development.
• Accelerated dissolution testing of solid dosage forms in pharmaceutical QC laboratories.
• Standardized vortexing steps in ISO 15189-accredited medical microbiology procedures for bacterial suspension preparation.

FAQ

Is the optical sensor sensitive to ambient light or glove material?
The capacitive optical sensor responds to proximity—not visible light—and functions reliably with nitrile, latex, and vinyl gloves. It is unaffected by standard laboratory lighting conditions.
Can the Vortex-5S be used inside a cold room or refrigerated centrifuge suite?
Yes, provided ambient temperature remains within the specified 5–40 °C operating range and relative humidity does not exceed 80% RH (non-condensing); condensation must be avoided on the base or control panel.
Does the device support external trigger inputs or analog speed control?
No—the Vortex-5S has no auxiliary I/O ports or analog voltage inputs; speed and timing are controlled exclusively via front-panel interface.
Are adapter platforms for deep-well plates or test tube racks included?
Adapter accessories are available separately; the standard configuration includes only the universal cup platform optimized for 1.5–2.0 mL tubes.
What maintenance is required for long-term reliability?
No scheduled maintenance is needed beyond periodic cleaning of the cup platform and sensor surface with 70% ethanol; the sealed DC motor requires no lubrication or brush replacement.
