Hyeyan MZY8S 8 kW Split-Type Microwave Generator

Overview

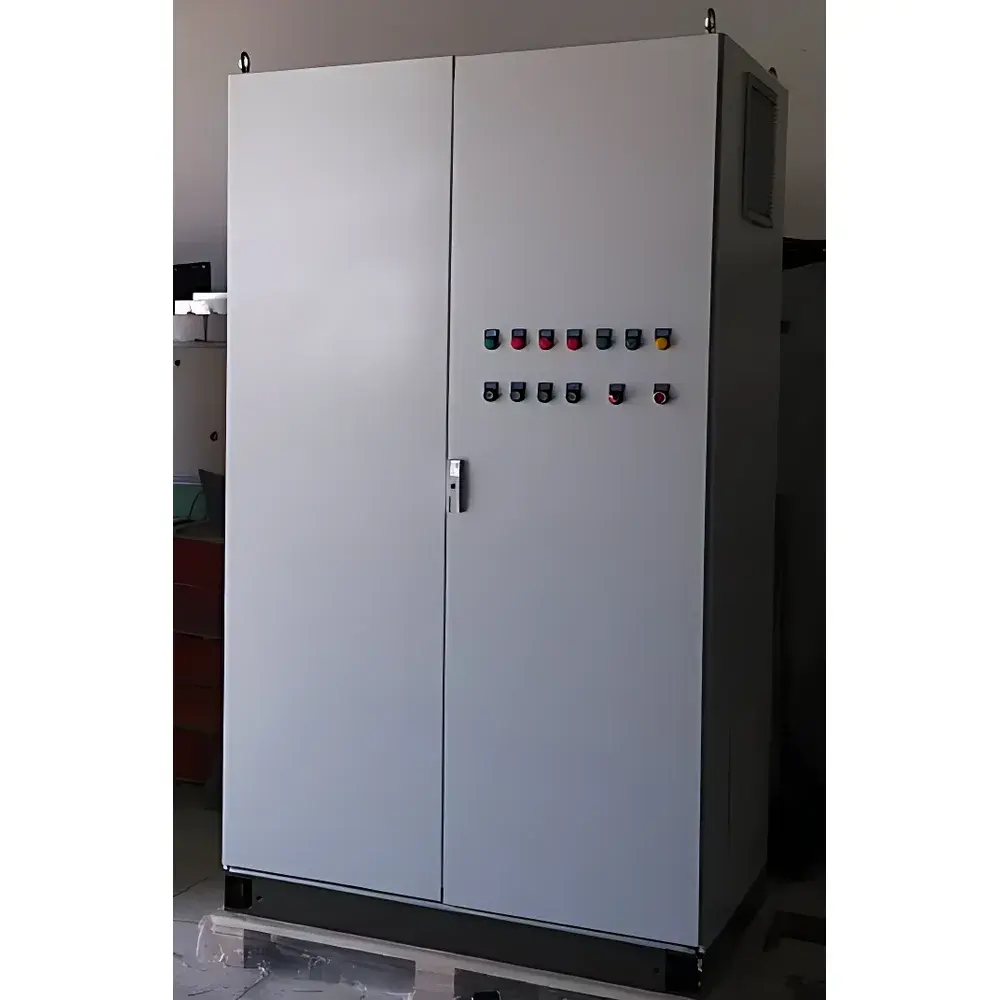

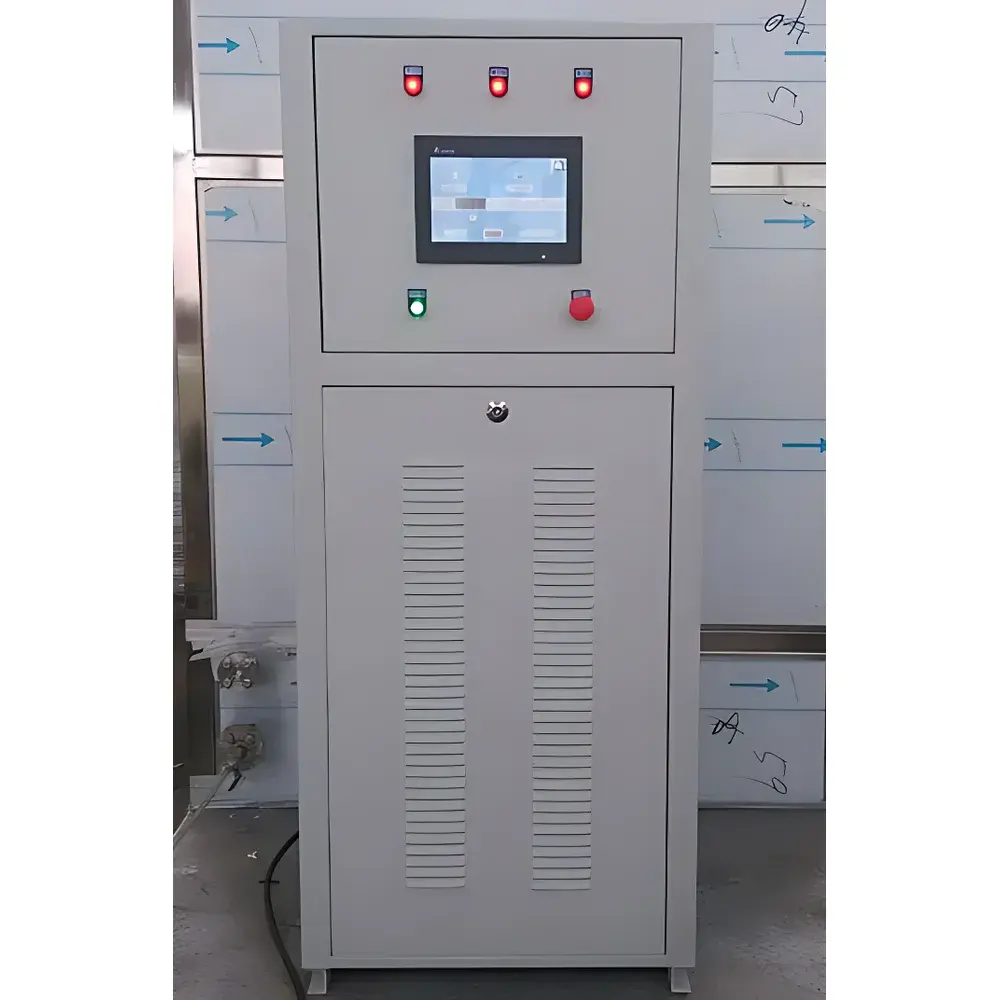

The Hyeyan MZY8S is an industrial-grade, 8 kW split-type microwave generator engineered for flexible integration into custom microwave-assisted thermal processing systems. Unlike monolithic microwave sources, the MZY8S adopts a modular architecture comprising a centralized control unit and one or more physically separated microwave generating modules—each equipped with a water-cooled magnetron and matched impedance output stage. It operates at the ISM band frequency of 2450 MHz, conforming to global regulatory allowances for industrial, scientific, and medical (ISM) equipment. The system delivers microwave energy via standardized BJ-26 rectangular waveguide interfaces, enabling direct coupling to user-designed applicators—including multi-mode industrial reactors, laboratory-scale resonant cavities, and single-mode waveguide-based reaction cells. Its design emphasizes scalability and interoperability: multiple MZY8S generator modules can be synchronized under master-slave logic or operated independently, supporting both sequential and parallel irradiation protocols in heterogeneous material processing workflows.

Key Features

• Modular split architecture: Decouples high-voltage power conditioning, control logic, and RF generation to improve thermal management, service accessibility, and electromagnetic compatibility (EMC) in dense equipment layouts.
• Industrial programmable logic controller (PLC) core: Provides deterministic real-time response for interlock sequencing, safety monitoring, and closed-loop power regulation—critical for GLP-compliant experimental repeatability and process validation.
• Wide-format touchscreen HMI: Features a Chinese-language interface with intuitive navigation for setting power levels (in discrete steps), exposure duration, duty cycle (for pulsed operation), and temperature-triggered shutdown thresholds.
• Comprehensive fault diagnostics: Continuously monitors magnetron anode temperature, reflected power ratio (VSWR), coolant flow rate (when integrated with external chiller), and high-voltage supply stability—triggering audible/visual alerts and safe shutdown per IEC 61508 SIL-2 functional safety guidelines.
• Multi-channel synchronization capability: Supports up to four independent generator modules under unified timing control, enabling phased-array irradiation patterns or staged heating profiles across segmented reactor zones.
• Extensive peripheral I/O: Includes isolated digital inputs (start/stop, emergency stop, door interlock), analog outputs (0–10 V DC power level feedback), RS-485 Modbus RTU, and optional Ethernet/IP support for SCADA-level system integration.

Sample Compatibility & Compliance

The MZY8S is not a standalone analytical instrument but a configurable energy delivery subsystem intended for OEM integration or end-user engineering of microwave-enabled platforms. It accommodates diverse load types—from low-loss ceramic substrates and polar solvents to high-dielectric-loss slurries—provided the connected applicator maintains acceptable VSWR (<1.5:1) across the operational bandwidth. While the generator itself bears no intrinsic CE or FCC marking, its electrical design complies with EN 61000-6-2 (immunity) and EN 61000-6-4 (emission) when installed with proper shielding, grounding, and waveguide gasketing. Final system compliance with ISO 14001 (environmental management), ISO 45001 (occupational safety), or FDA 21 CFR Part 11 (if used in regulated pharmaceutical manufacturing) remains the responsibility of the integrator, who must validate electromagnetic leakage (<5 mW/cm² at 5 cm per IEEE C95.1), interlock integrity, and audit trail functionality.

Software & Data Management

The onboard HMI does not store historical datasets or generate exportable reports; however, it logs timestamped event records (e.g., “Power On”, “Overtemp Alarm #3”, “Setpoint Change”) accessible via USB export. For automated data acquisition, the RS-485 interface supports bidirectional communication with third-party SCADA or LabVIEW-based supervisory systems using standard Modbus function codes (03h/06h/10h). Users may configure polling intervals, alarm thresholds, and data tagging conventions externally. No proprietary cloud platform or vendor-hosted firmware updates are provided—firmware revisions are distributed as signed binary files for local flash programming via USB, ensuring air-gapped update security in regulated environments.

Applications

• Materials synthesis: Controlled crystallization of metal-organic frameworks (MOFs), rapid sintering of advanced ceramics, and graphitization of carbon precursors under inert or reactive atmospheres.
• Chemical process intensification: Accelerated esterification, transesterification, and Suzuki coupling reactions in continuous-flow microwave reactors.
• Thermal processing R&D: Kinetic studies of polymer crosslinking, moisture removal from hygroscopic powders, and selective heating of composite laminates during curing.
• Environmental engineering: Microwave-assisted sludge digestion, soil remediation (PCB/deep-seated hydrocarbon volatilization), and catalytic oxidation of VOC-laden exhaust streams.
• Food & agriculture: Pasteurization of liquid foods, enzymatic inactivation in dairy streams, and post-harvest fungal suppression in grain storage systems.

FAQ

Is the MZY8S certified for direct use in Class I Division 1 hazardous locations?
No. The generator is rated for general-purpose industrial environments only. Explosion-proof integration requires third-party enclosure certification (e.g., UL 1203) and intrinsically safe barrier implementation on all field wiring.
Can output frequency be tuned across the 2.4–2.5 GHz band?
No. The magnetron operates at a fixed nominal center frequency of 2450 MHz with inherent ±50 MHz drift due to thermal and load-dependent tuning—consistent with IEC 60705 requirements for domestic and industrial microwave sources.
Does Hyeyan provide application-specific waveguide adapters or mode stirrers?
No. Mechanical accessories—including flange converters (BJ-26 to CPR-137), choke joints, and tuners—are supplied by qualified RF component vendors per customer-specified mechanical drawings.
What is the expected magnetron service life under continuous 8 kW operation?
Rated minimum operational lifetime is 3,000 hours at ≤85% of maximum rated power, assuming stable cooling water inlet temperature (15–25°C), flow rate ≥12 L/min, and ambient operating temperature <40°C.
Is remote firmware update capability supported over Ethernet?
No. Firmware updates require physical USB connection and manual initiation via HMI maintenance menu—eliminating network attack vectors in validated production systems.
