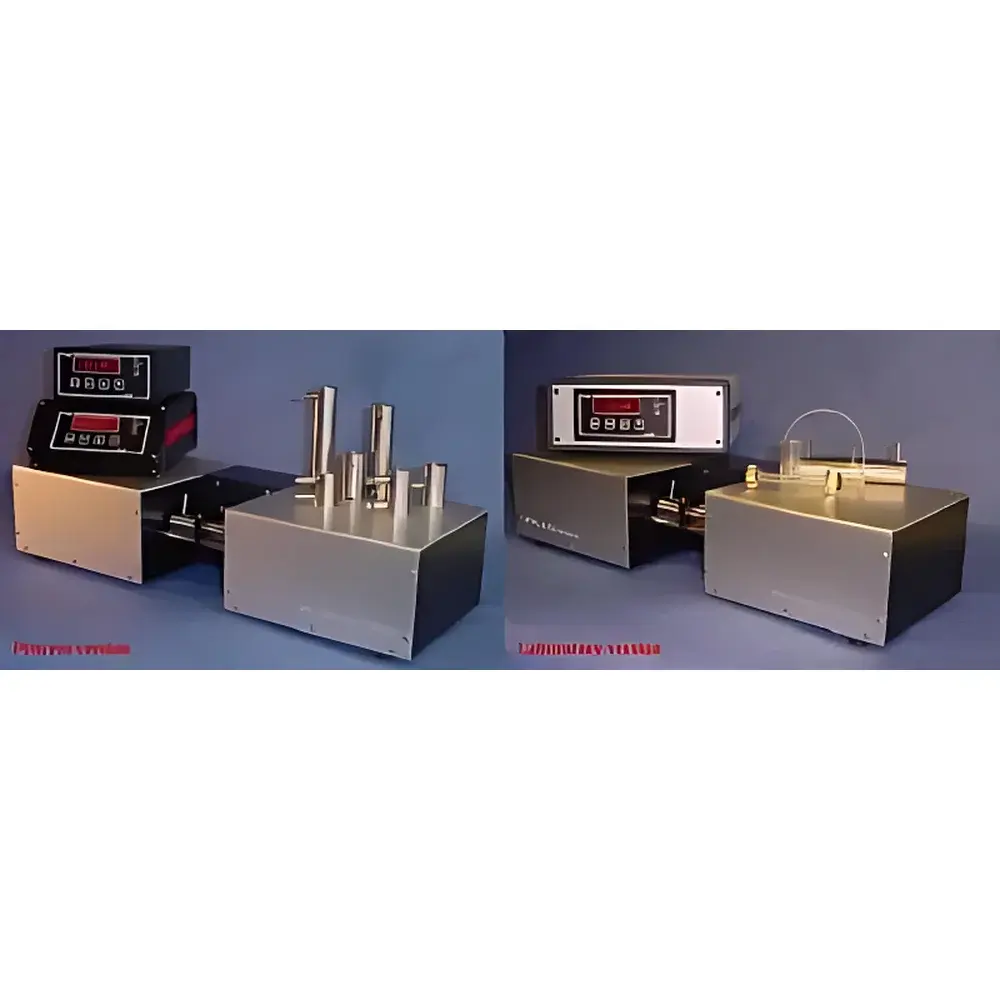

IBZ POLARmonitor Online Polarimeter

Overview

The IBZ POLARmonitor Online Polarimeter is an industrial-grade, process-integrated polarimetric analyzer engineered for real-time, continuous measurement of optical rotation in flowing liquid streams. It operates on the fundamental principle of polarimetry—quantifying the angular deviation of plane-polarized light as it passes through chiral media—enabling direct, non-invasive determination of enantiomeric excess, concentration, or specific rotation of optically active compounds. Designed for deployment in GMP-compliant manufacturing environments and analytical laboratories, the POLARmonitor eliminates moving optical components, ensuring exceptional baseline stability and long-term signal reproducibility. Its solid-state architecture—centered on a high-intensity, narrow-band 589 nm LED source—replaces conventional halogen lamps, delivering superior spectral purity, thermal stability, and operational lifetime (>50,000 hours). The instrument’s modular topology separates the optically sensitive measurement cell from the electronics-rich control unit, allowing flexible installation in harsh process areas while maintaining operator-accessible diagnostics and configuration.

Key Features

• Zero-moving-parts optical design ensures drift-free operation with baseline noise ≤0.00002° and thermal drift <0.00005°/h—critical for extended unattended monitoring.
• Industrial-grade environmental protection: sensor housing rated IP65 (dust-tight and water-jet resistant), control unit IP62 (dust-protected and drip-resistant).
• Integrated Peltier-based temperature regulation (5–85 °C) enables precise thermal stabilization of the measurement cell, minimizing temperature-induced refractive index artifacts.
• Modular flow cells with selectable optical path lengths (3–100 mm) support wide dynamic range: ±3° to ±100° optical rotation, scalable to application-specific sensitivity requirements.
• High-pressure compatibility up to 280 bar (cell-dependent), validated for supercritical fluid chromatography (SFC), preparative HPLC, and continuous bioprocessing applications.
• Biocompatible wetted materials—including electropolished stainless steel and FDA-compliant elastomers—ensure suitability for pharmaceutical, food, and biotech process streams.

Sample Compatibility & Compliance

The POLARmonitor accommodates diverse sample matrices across regulated and research-intensive workflows. Its flow cells are compatible with aqueous, organic, and mixed-solvent systems, including ethanol/water blends, acetonitrile-based mobile phases, and supercritical CO₂. With flow rate tolerance spanning two orders of magnitude (2 mL/min to 80 L/min), it supports both microbore preparative chromatography and large-scale continuous manufacturing. The system complies with IEC 60529 for ingress protection and meets electromagnetic compatibility requirements per EN 61326-1. For regulated environments, the instrument supports audit-trail-enabled operation when integrated with compliant SCADA or DCS platforms; raw data output formats (ASCII, CSV) facilitate alignment with 21 CFR Part 11 electronic record requirements when paired with validated software infrastructure.

Software & Data Management

The POLARmonitor interfaces via analog (4–20 mA, 0–10 V) and digital protocols (RS-485 Modbus RTU, optional Ethernet/IP) for seamless integration into distributed control systems. Local configuration and real-time diagnostics are accessible via a backlit LCD interface with intuitive menu navigation. Optional IBZ PolarSoft™ software provides time-series visualization, trend logging, alarm thresholding, and export of calibrated rotation values alongside temperature, pressure, and flow metadata. All measurement events—including calibration timestamps, parameter changes, and fault logs—are timestamped and stored in non-volatile memory. Data export supports ISO/IEC 17025-aligned traceability, and the system architecture permits third-party validation documentation (IQ/OQ/PQ protocols) upon request.

Applications

• Real-time enantiomeric excess monitoring during asymmetric synthesis and chiral resolution in continuous manufacturing.
• In-line concentration tracking of sucrose, fructose, glucose, and other optically active carbohydrates in food & beverage production.
• Detection module for preparative HPLC, SFC, and simulated moving bed (SMB) chromatography—providing orthogonal detection to UV and RI.
• Process analytical technology (PAT) implementation for API crystallization, enzymatic conversion, and fermentation broth analysis.
• Quality-by-Design (QbD) support in biopharmaceutical downstream processing, including chiral intermediate purification and formulation stability assessment.

FAQ

What is the minimum detectable optical rotation change?
The system achieves a noise floor of 0.00002°, enabling reliable detection of sub-millidegree changes under stable thermal and flow conditions.
Can the POLARmonitor be calibrated in situ without removing the flow cell?
Yes—zero-point calibration is performed using an air or solvent blank directly in the installed flow path; full-range calibration requires a certified quartz control plate or standard solution traceable to NIST.
Is the instrument suitable for use with corrosive solvents such as TFA or concentrated acids?
Standard wetted materials are compatible with common HPLC solvents and mild acids/bases; for aggressive chemistries (e.g., >10% TFA, HFIP), optional Hastelloy C-276 or sapphire-window cells are available.
Does the system support 21 CFR Part 11 compliance out of the box?
The hardware provides secure user authentication, electronic signatures, and immutable audit trails; full Part 11 compliance requires validated software integration and procedural controls per organizational SOPs.
How often does the LED light source require replacement?
Rated for 50,000 hours of continuous operation (≈5.7 years at 24/7 duty cycle); no routine recalibration is needed following LED replacement due to inherent spectral stability.
