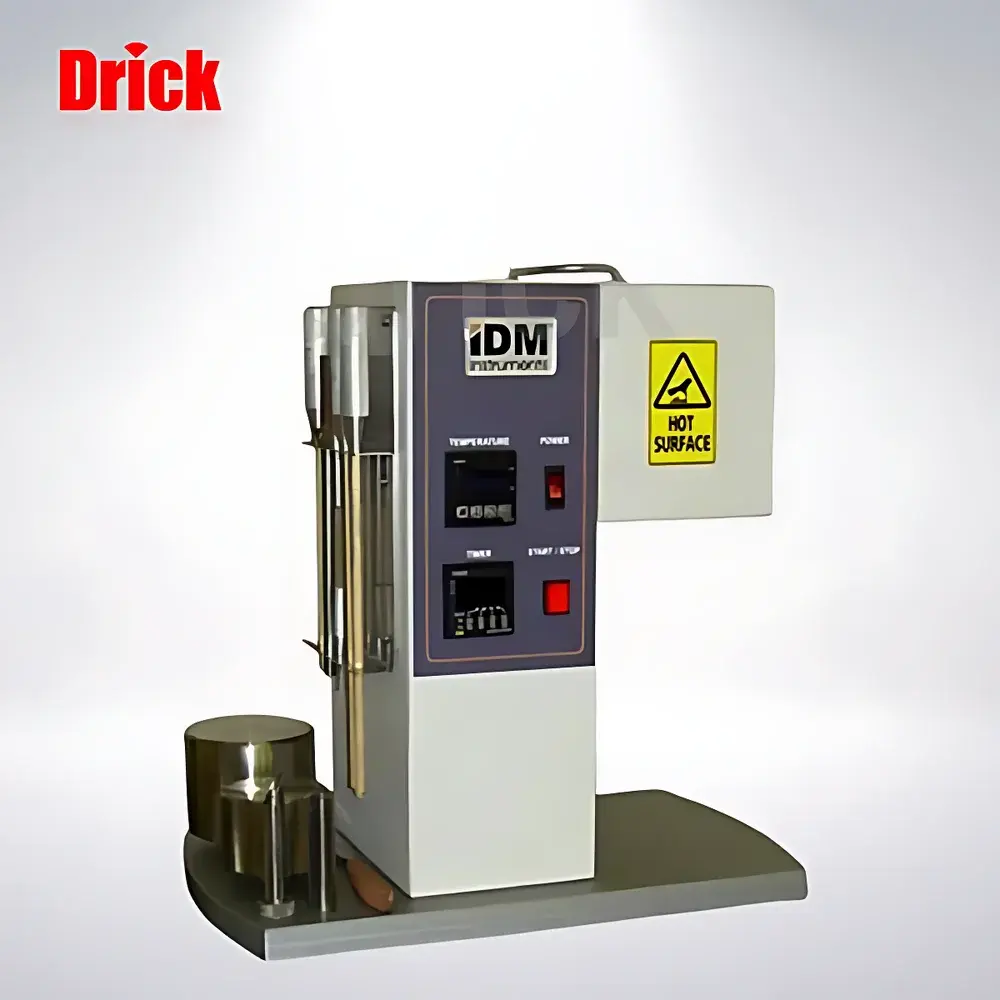

IDM M0004 Melt Flow Indexer

Overview

The IDM M0004 Melt Flow Indexer is a precision-controlled thermal-mechanical instrument engineered for the standardized determination of melt mass-flow rate (MFR) and melt volume-flow rate (MVR) of thermoplastic polymers under defined load and temperature conditions. It operates on the fundamental principle of extrusion rheometry—applying a calibrated dead weight to a molten polymer column confined within a heated barrel, forcing it through a standardized capillary die. The resulting extrudate mass (in grams per 10 minutes) quantifies the material’s processability, correlating inversely with melt viscosity and average molecular weight. Designed in strict alignment with internationally recognized test protocols—including ASTM D1238 (Procedure A), ISO 1133-1, and BS 2782-1050—the M0004 delivers repeatable, auditable data essential for raw material qualification, batch release, quality control, and formulation development in polymer compounding, injection molding, and extrusion facilities.

Key Features

• High-stability temperature control system with ±1 °C accuracy across 100–300 °C operating range, utilizing PID-regulated dual-zone heating (barrel + die) and integrated platinum RTD sensors for real-time thermal feedback.
• Robust barrel assembly constructed from high-grade alloy steel, featuring precise internal dimensions (Ø9.55 mm ID × 162 mm L) and optimized thermal homogeneity to minimize axial temperature gradients during testing.
• Tungsten carbide capillary die (Ø2.096 mm ID × 8 mm L) ensures exceptional wear resistance and dimensional stability over extended operational life; optional 1.181 mm ID die available for low-MFR materials per ISO 1133 Annex A and BS 2782-1050.
• Modular piston and weight set compliant with ASTM D1238 load specifications (e.g., 2.16 kg, 5.00 kg, 10.00 kg), each traceably calibrated to NIST-traceable standards.
• Integrated mechanical cutting mechanism with programmable timing (10-, 20-, or 30-second intervals) and manual override, enabling precise extrudate collection without operator-induced variability.
• Compact benchtop footprint (480 × 430 × 270 mm) and lightweight design (27 kg) facilitate deployment in QC labs, R&D environments, and production floor settings with limited space.

Sample Compatibility & Compliance

The IDM M0004 supports a broad spectrum of thermoplastic resins including polyethylene (PE), polypropylene (PP), polystyrene (PS), acrylonitrile butadiene styrene (ABS), polyamide (PA), and thermoplastic elastomers (TPEs). It accommodates both granular and pelletized feedstock forms, with recommended sample mass ranging from 4–8 g depending on expected MFR. All mechanical and thermal subsystems are validated against ISO/IEC 17025-relevant performance criteria. Test reports generated using this instrument satisfy regulatory expectations for GLP-compliant laboratories and support submissions under FDA 21 CFR Part 11 when paired with validated electronic record systems. Full traceability is maintained via documented calibration certificates for temperature sensors, applied loads, and dimensional tooling.

Software & Data Management

While the M0004 operates as a standalone hardware platform compatible with manual data entry, it integrates seamlessly with IDM’s optional MFI-Link™ PC software suite (Windows 10/11, USB 2.0 interface). This application enables automated test sequencing, real-time temperature/load logging, digital extrudate mass capture via analytical balance integration (RS-232 or USB), and generation of ASTM/ISO-formatted PDF reports. Audit trails include user login metadata, timestamped parameter changes, and electronic signatures—all configurable to meet 21 CFR Part 11 requirements for electronic records and signatures in regulated environments.

Applications

• Raw material acceptance testing per supplier specifications and internal technical agreements.
• In-process monitoring of polymer degradation during extrusion or recycling operations.
• Correlation studies between MFR and mechanical properties (e.g., tensile strength, impact resistance) in polymer development labs.
• Validation of thermal stability profiles across processing temperature windows.
• Supporting root-cause analysis of molding defects such as short shots or weld lines linked to inconsistent melt flow behavior.
• Training and method transfer across global manufacturing sites requiring harmonized test execution per ISO 17025 Clause 7.2.

FAQ

What international standards does the IDM M0004 comply with?

The instrument meets the mechanical, thermal, and dimensional requirements of ASTM D1238 (Procedure A), ISO 1133-1 (2011), and BS 2782-1050. Calibration and verification procedures follow ISO/IEC 17025 principles.
Can the M0004 measure both MFR and MVR?

Yes—when used with an optional volumetric die adapter and melt density input, the system supports MVR calculation per ISO 1133-2. MFR remains the primary output mode per standard configuration.
Is tungsten carbide die replacement available through IDM?

Yes—IDM supplies certified replacement dies with full dimensional certification and material test reports (MTRs) upon request.
Does the unit require annual recalibration?

Per ISO/IEC 17025 guidance, temperature sensors and applied weights should be verified at least annually—or after any event affecting mechanical integrity or thermal performance.
Can the M0004 be operated in a cleanroom environment?

The device is rated for operation in ISO Class 8 (100,000) environments; optional stainless-steel enclosure upgrades are available for higher classification needs.
