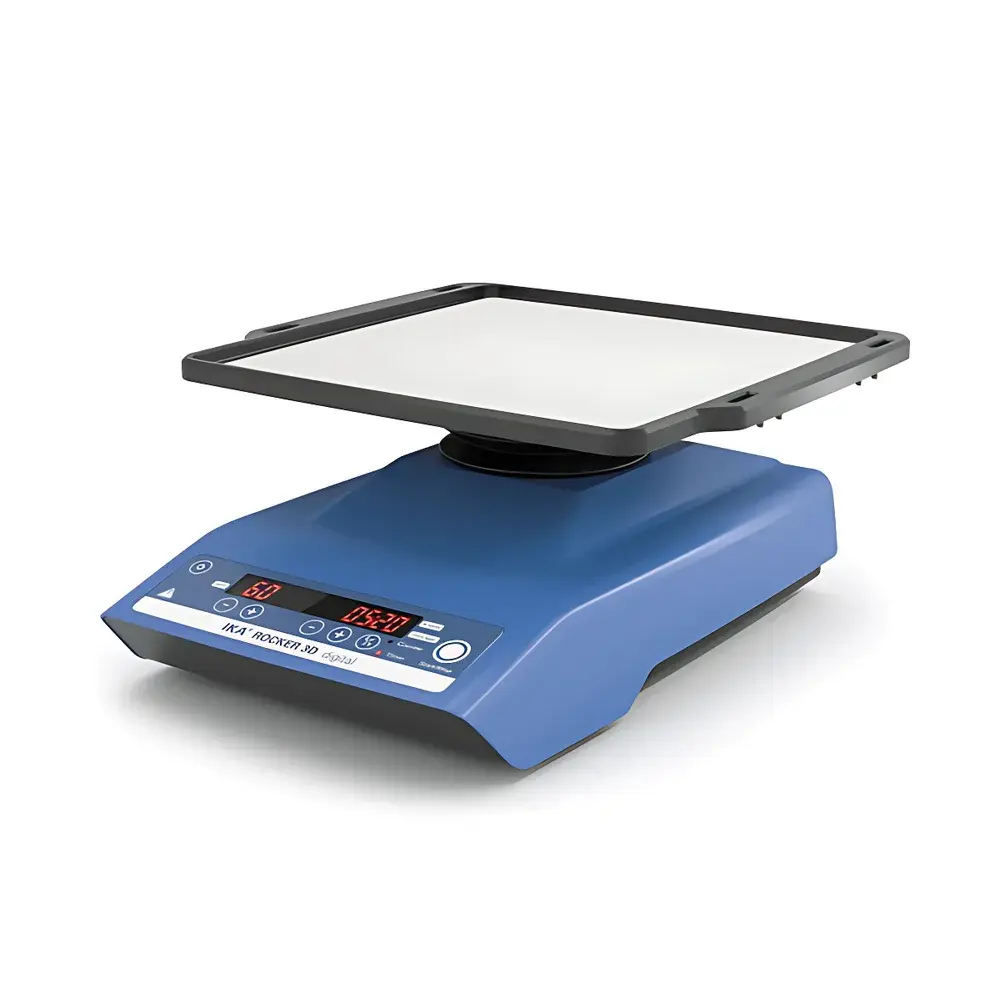

IKA ROCKER 3D digital Orbital Rocker Mixer

Overview

The IKA ROCKER 3D digital is a precision-engineered orbital rocker mixer designed for gentle, uniform mixing of biological and biochemical samples in laboratory environments. Unlike conventional shakers or vortexers, the ROCKER 3D digital employs a true 3D rocking motion—combining controlled oscillation with programmable tilt-angle adjustment—to ensure homogenous suspension of cells, particles, or reagents without shear-induced damage. Its core mechanism follows a low-acceleration, high-reproducibility rocking principle, where the platform rotates around two orthogonal axes to generate multidirectional fluid displacement. This motion profile is especially critical for sensitive applications such as adherent cell detachment, nucleic acid extraction, immunostaining, and blotting procedures—where consistent sample exposure and minimal mechanical stress are essential for assay integrity.

Key Features

• Gentle 3D rocking motion with continuously adjustable tilt angle (0°–15°), enabling optimization for diverse vessel geometries including Petri dishes, culture flasks, multi-well plates, and conical tubes.
• Digital speed control from 0 to 80 rpm in precise 1-rpm increments, maintained with high stability across load variations and input voltage fluctuations (100–240 V AC).
• Integrated LED-display timer with dual-mode operation: countdown timing (1 s – 99 h 59 min) and elapsed time tracking; supports both timed and continuous run modes.
• Robust all-metal housing with IP21 ingress protection, rated for uninterrupted operation inside incubators (4–50 °C) and standard lab environments (≤80 % RH non-condensing).
• Stackable platform design—up to three units can be vertically integrated using standardized 30-mm inter-unit spacing—maximizing bench space efficiency in high-throughput workflows.
• Touch-sensitive control panel with intuitive interface, error-code diagnostics, and built-in anti-slip rubber mat for secure placement on smooth surfaces.

Sample Compatibility & Compliance

The ROCKER 3D digital accommodates a broad range of standard labware: flat-bottom and round-bottom culture flasks (up to 500 mL), Petri dishes (up to 150 mm diameter), microtiter plates (96- and 384-well), Eppendorf tubes, and glass vials. Its 2 kg load capacity includes fixture weight, supporting universal clamps, plate holders, and custom adapters sold separately. The device complies with DIN EN 60529 (IP21), IEC 61010-1 (safety requirements for electrical equipment), and meets electromagnetic compatibility standards per EN 61326-1. While not certified for GMP or GLP environments out-of-the-box, its stable performance, audit-ready timer logs, and traceable parameter settings make it suitable for use within ISO 17025-accredited laboratories when integrated into documented SOPs.

Software & Data Management

The ROCKER 3D digital operates as a standalone instrument with no external software dependency. All operational parameters—including speed, tilt angle, and timer settings—are stored in non-volatile memory and retained after power cycling. Timer events are logged locally via LED display and accompanied by alphanumeric error codes (e.g., “E1” for motor overload, “E2” for sensor fault) for rapid troubleshooting. Although it lacks USB or Ethernet connectivity, its deterministic behavior and repeatable setpoint execution support integration into validated workflows under FDA 21 CFR Part 11-compliant systems when paired with external data acquisition modules and electronic lab notebooks (ELNs).

Applications

• Cell culture maintenance: Uniform resuspension of adherent cells during passaging and harvesting without enzymatic over-digestion.
• Molecular biology: Efficient lysis buffer mixing during DNA/RNA isolation, hybridization steps in Southern/Northern blotting, and antibody incubation in Western blot protocols.
• Histology & cytology: Consistent staining and destaining of tissue sections and cytospin preparations.
• Protein biochemistry: Gentle agitation during dialysis, affinity binding, and ELISA plate washing cycles.
• Quality control: Reproducible sample homogenization prior to spectrophotometric or fluorometric analysis in QC/QA labs.

FAQ

Can the ROCKER 3D digital be operated inside a CO₂ incubator?
Yes—it is rated for continuous operation at ambient temperatures between 4 °C and 50 °C, making it compatible with standard humidified CO₂ incubators. Ensure adequate ventilation around the unit to prevent heat accumulation.
Is the tilt angle calibrated or user-adjustable without tools?
The rocking angle is manually adjustable via a calibrated scale on the base and secured with a locking knob—no tools required. The 0°–15° range allows fine-tuning for optimal fluid dynamics across different container types.
What safety certifications does this instrument hold?
It conforms to IEC 61010-1 for laboratory electrical safety and carries CE marking under the EU Low Voltage Directive and EMC Directive. IP21 protection safeguards against vertically falling solid objects and limited finger contact.
Does it support remote monitoring or data export?
No—the device has no communication interfaces. Parameter logging is visual only. For automated data capture, third-party sensors or relay-based integration with PLCs or ELN systems is recommended.
How is long-term reliability ensured during continuous operation?
The brushless DC motor, thermally protected electronics, and sealed bearing assembly enable 100% duty-cycle operation. Thermal shutdown activates if internal temperature exceeds safe thresholds, ensuring longevity under sustained loads.
