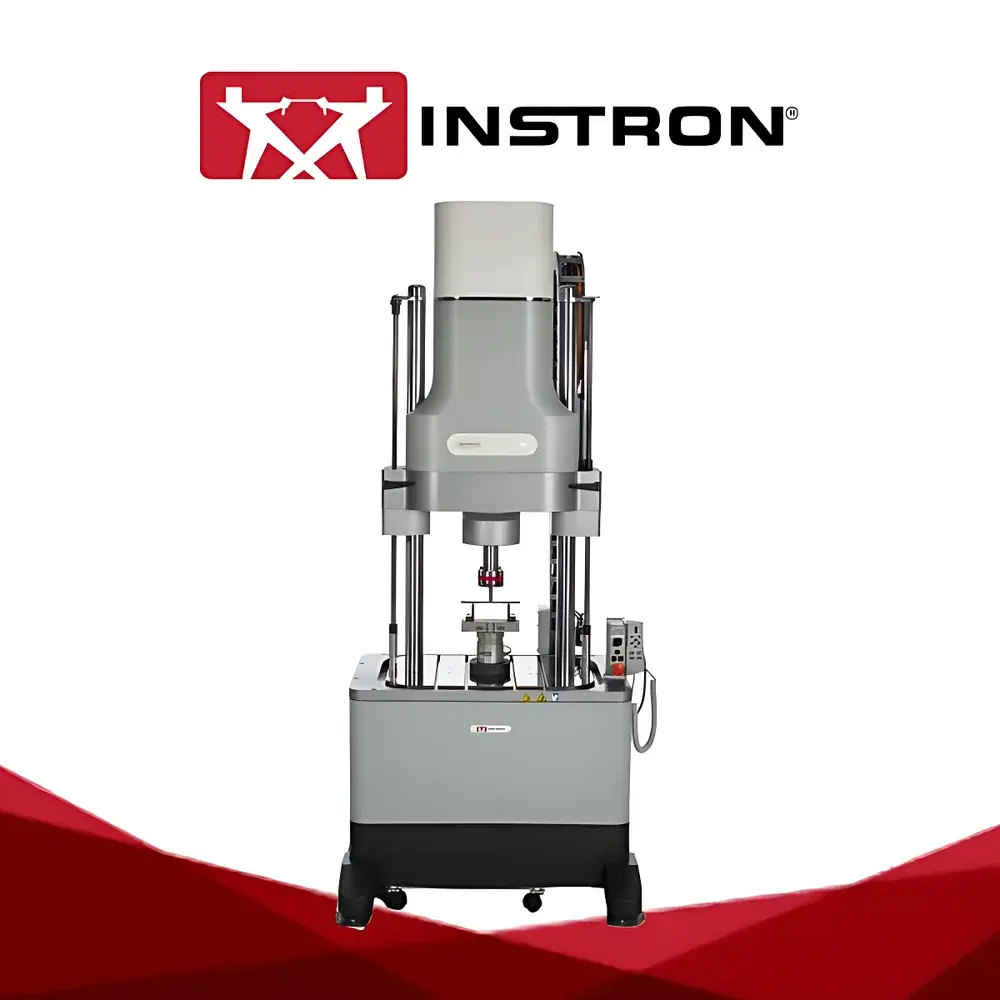

Instron ElectroPuls® E10000 All-Electric Dynamic and Static Fatigue Testing System

Overview

The Instron ElectroPuls® E10000 is a high-performance, all-electric dynamic and static fatigue testing system engineered for precision mechanical characterization of advanced materials and components under cyclic and quasi-static loading conditions. Unlike traditional hydraulic or servo-hydraulic systems, the E10000 employs a direct-drive linear motor actuator—eliminating hydraulic fluid, compressed air, and external cooling circuits. This architecture enables clean, quiet, and energy-efficient operation while delivering exceptional dynamic fidelity and positional repeatability. The system operates on standard single-phase power, making it suitable for integration into R&D laboratories, quality control environments, and regulatory-compliant manufacturing facilities without infrastructure retrofitting. Its core measurement principle relies on closed-loop digital control of force, displacement, and velocity using high-bandwidth feedback from integrated Dynacell™ dynamic load cells and optical encoders—ensuring traceable, low-inertia, high-fidelity data acquisition across the full operational bandwidth (DC to 100 Hz).

Key Features

• All-electric actuation via high-force linear motor—zero hydraulic oil, pneumatic lines, or external chillers
• Dynacell™ dynamic load cell technology with real-time inertial compensation for improved force accuracy during high-frequency cycling
• Stiffness-based tuning algorithm for automatic optimization of control parameters across specimen stiffness ranges
• Optical encoder–based position feedback with dedicated setup and end-of-test positioning channels
• Electrically driven crosshead with manual locking handle and status-indicating LED (locked/unlocked)
• Double-column diagonal frame architecture with T-slot base for flexible fixture and accessory mounting
• Temperature-regulated air-cooling system maintaining thermal stability of the actuator and drive electronics
• Integrated system status indicators (standby, test active, emergency stop, fault) for immediate operational awareness
• Compact footprint (< 0.8 m²) and elevated actuator placement enabling unobstructed access to the test zone

Sample Compatibility & Compliance

The E10000 accommodates a broad spectrum of specimen geometries—from miniature biomedical implants and polymer films to aerospace fasteners and composite coupons—via its 60 mm stroke and configurable T-slot base. It supports standardized test fixtures, environmental chambers (including temperature-controlled and humidity-controlled units), immersion baths, video extensometers, and high-speed imaging systems. The system is designed and validated in accordance with ISO 7500-1 (static calibration), ISO 4965 (dynamic force calibration), and ASTM E4, E8, E606, and E466 for tensile, compression, and fatigue testing. When operated with Bluehill® Universal software (desktop edition) and WaveMatrix™ 3 dynamic analysis suite, it meets audit-trail and electronic signature requirements aligned with FDA 21 CFR Part 11, EU Annex 11, and GLP/GMP documentation protocols.

Software & Data Management

Control and analysis are executed through Instron’s modular software ecosystem. Console software provides intuitive, role-based system configuration, real-time monitoring, and safety-critical manual overrides—including hardware-integrated emergency stop and crosshead lock verification. Bluehill® Universal (desktop version) delivers compliant static test method execution with customizable reporting, pass/fail criteria, and automated result export to CSV, PDF, or LIMS-compatible XML. WaveMatrix™ 3 enables advanced dynamic test sequencing—including block cycling, spectrum loading, and crack growth monitoring—with built-in FFT analysis, hysteresis loop evaluation, and cycle counting per ASTM E1037 and ISO 12106. All software modules support secure user authentication, change logging, and electronic signature workflows required for regulated industries.

Applications

• Fatigue life assessment of metallic alloys, thermoplastics, elastomers, and fiber-reinforced composites
• Hysteresis and energy dissipation analysis in viscoelastic materials under sinusoidal or arbitrary waveform loading
• High-cycle fatigue (HCF) and low-cycle fatigue (LCF) testing per ASTM E466 and ISO 1099
• Dynamic modulus and damping characterization (E’, E”, tan δ) for polymers and biomaterials
• Functional testing of microelectromechanical systems (MEMS), stents, orthopedic implants, and electronic packaging
• Quality assurance of welded joints, adhesive bonds, and additive-manufactured parts under variable amplitude spectra
• Calibration and validation of constitutive models used in finite element simulation (e.g., Abaqus, ANSYS)

FAQ

What power supply is required for the E10000?
The system operates on standard single-phase AC power (100–240 VAC, 50/60 Hz); no three-phase supply, hydraulic pump, or external chiller is needed.
Can the E10000 perform both static and dynamic tests within the same test sequence?
Yes—using WaveMatrix™ 3 or Bluehill® Universal, users can define hybrid test profiles that combine static preload, ramped hold, and subsequent dynamic cycling phases.
Is the E10000 compatible with third-party environmental chambers?
Yes—the T-slot base and open-frame geometry support integration with commercially available thermal, humidity, and corrosive atmosphere chambers, provided mechanical and signal interface specifications are met.
Does the system meet ISO/IEC 17025 calibration traceability requirements?
When calibrated using Instron-certified procedures and NIST-traceable standards, the E10000 satisfies ISO/IEC 17025 clause 6.5 for measurement equipment used in accredited testing laboratories.
What is the maximum specimen height accommodated without reconfiguration?
With standard configuration and fully raised crosshead, usable test space exceeds 1,000 mm; vertical clearance is adjustable via electric crosshead positioning and verified by integrated lock-status feedback.
