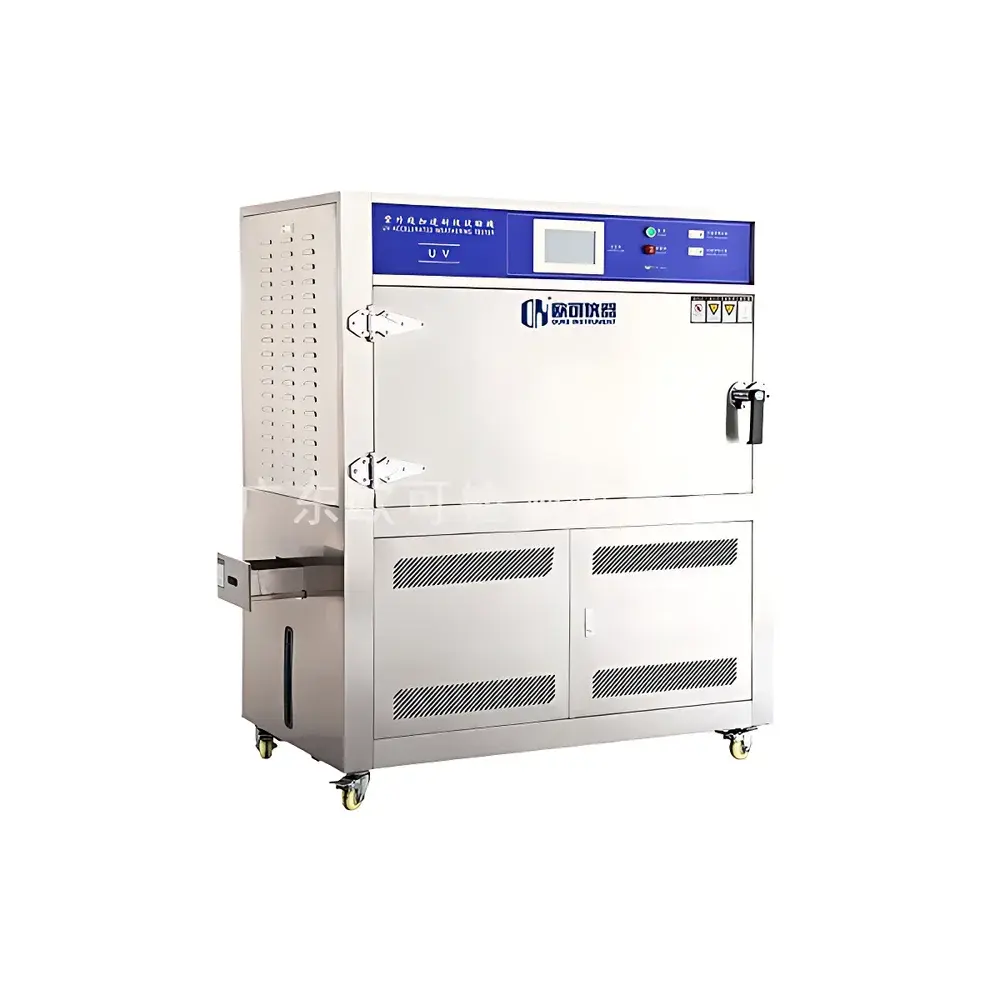

OK Instruments OK-UV-291 UV Aging Test Chamber for Toys and Plastics

Overview

The OK Instruments OK-UV-291 UV Aging Test Chamber is a purpose-engineered environmental test system designed specifically for accelerated photochemical degradation assessment of toys, polymer components, coatings, and consumer plastics. It operates on the principle of controlled ultraviolet irradiation combined with regulated thermal and hygrothermal cycling—mimicking critical stressors present in natural outdoor exposure, including solar UV radiation (280–400 nm), elevated temperature, and high-humidity or condensation conditions. Unlike broad-spectrum weathering chambers, the OK-UV-291 focuses on the UV-dominant aging mechanism, enabling rapid evaluation of surface degradation phenomena such as color fading, gloss loss, chalking, embrittlement, microcracking, and delamination. Its design adheres to the fundamental photophysical requirements of ASTM D4329, ASTM D4587, ISO 4892-3, and GB/T 16422.3, supporting both UVA-340 and UVB-313 lamp configurations (lamp type selected per application and standard compliance). The chamber’s fixed irradiance output of 0.72 W/m² at 340 nm (typical for UVA-340 operation) provides reproducible photon flux for comparative material screening and QC pass/fail verification.

Key Features

• Stable UV irradiation source: Four 40 W fluorescent UV lamps (UVA-340 or UVB-313 configurable), arranged to maximize spatial uniformity across the sample plane
• Precise thermal control: PID-regulated heating system maintaining temperature from ambient to 70 °C ±2 °C under illumination
• High-humidity capability: Integrated steam humidification system achieving ≥95% RH in operational mode, supporting condensation-cycle simulation per ISO 4892-3 Method A
• Digital microprocessor controller: Programmable exposure cycles including light-only, light/dark, and light/condensation sequences; time range adjustable from 1 to 9999 hours

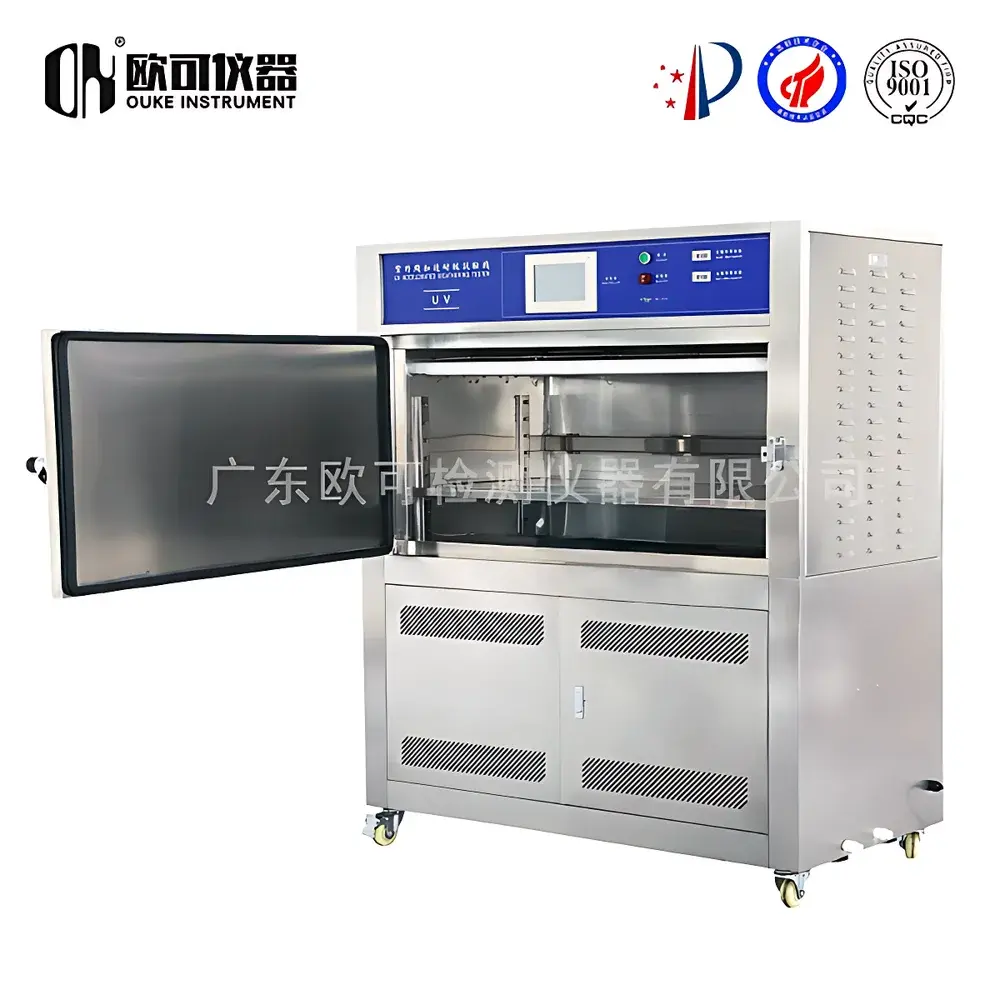

• Robust stainless-steel test chamber (1170 × 400 × 400 mm internal volume) with UV-resistant interior coating and safety interlock door switch
• Compliance-ready architecture: Designed to support traceable calibration protocols and documentation required for GLP-aligned testing environments

Sample Compatibility & Compliance

The OK-UV-291 accommodates standard toy components—including molded plastic bodies, painted surfaces, elastomeric grips, and textile overlays—as well as ASTM G154-compliant flat specimens up to 100 mm × 100 mm. Sample mounting utilizes a rotating sample holder (optional upgrade) or static rack configuration, ensuring consistent angular exposure. The system supports full alignment with internationally recognized regulatory frameworks: ASTM F963 (US toy safety standard) Section 4.3.5.2 (UV exposure requirements), EN71-3 migration limits post-aging, ISO 8124-3 for toy material stability, and GB 6675.1–2014 Clause 4.12 (China’s mandatory toy safety standard). While not pre-certified by third-party bodies, the chamber’s optical and thermal specifications meet the minimum hardware criteria stipulated in ASTM D4329 Annex A1 and ISO 4892-3 Clause 6. All UV lamps are replaceable per manufacturer-recommended service intervals (typically 1600–2000 h), and irradiance decay is monitored via optional calibrated radiometer integration.

Software & Data Management

The embedded controller logs real-time temperature, humidity, and elapsed exposure time with timestamped event records. Data export is supported via USB interface in CSV format for external analysis in Excel or LIMS platforms. Though no proprietary PC software is bundled, the controller’s parameter lock function prevents unauthorized modification during qualification runs—supporting basic audit-trail needs. For laboratories operating under FDA 21 CFR Part 11 or ISO/IEC 17025 requirements, OK Instruments provides optional IQ/OQ documentation packages, including calibration certificates for temperature/humidity sensors and irradiance verification reports traceable to NIM (National Institute of Metrology, China). Firmware updates are delivered via secure download upon registration, ensuring long-term compatibility with evolving test method revisions.

Applications

• Pre-market validation of plastic housing durability for battery-operated and outdoor toys
• Comparative ranking of pigment systems and UV stabilizer packages in ABS, PP, and PVC formulations
• QC release testing of painted or metallized toy surfaces for colorfastness and adhesion retention
• Supporting root-cause analysis of field complaints related to premature brittleness or surface cracking
• Generating data for technical dossiers submitted to EU Notified Bodies or CPSC third-party testing labs

FAQ

Does the OK-UV-291 comply with ASTM D4587 for fluorescent UV-condensation exposure?
Yes—the chamber meets the core hardware provisions of ASTM D4587, including UV lamp spectral output, black panel temperature control (up to 70 °C), and programmable condensation cycles. Full method compliance requires user-defined test parameters aligned with the standard’s exposure schedules.
Can I use UVB-313 lamps instead of UVA-340?
Yes—the lamp sockets and ballast are compatible with both UVA-340 and UVB-313 tubes. However, UVB-313 generates shorter-wavelength, higher-energy photons that may induce non-representative degradation pathways; its use should be justified per ISO 4892-3 Clause 5.2 and documented accordingly.
Is irradiance calibration included with purchase?
A baseline irradiance verification report is provided at shipment. Annual recalibration using a NIST-traceable UV radiometer is recommended and available through OK Instruments’ certified service network.
What safety protections are built into the system?
The chamber features dual redundant safety interlocks: door-open detection automatically cuts power to all UV lamps, and an emergency stop button disables all active systems. UV-blocking viewing window and warning labels conform to IEC 62471 photobiological safety guidelines.
How does humidity control work during dark cycles?
During dark phases, the system maintains programmed RH via continuous steam injection and closed-loop feedback—enabling true condensation simulation without requiring external water reservoirs or manual refills.
