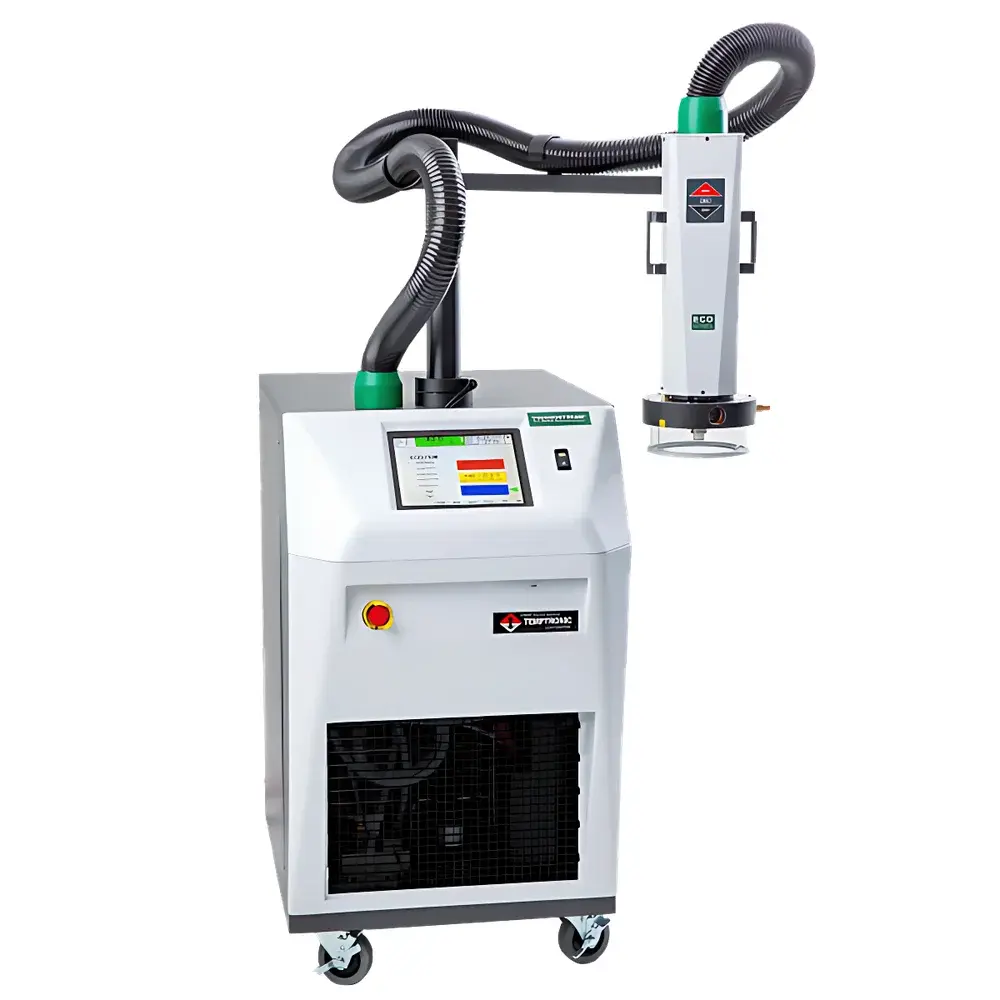

inTEST Temptronic ThermoStream Thermal Shock Air Stream System
| Brand | LabCompanion |
|---|---|
| Origin | USA |
| Manufacturer | inTEST Corporation |
| Model | ThermoStream TS-3000 Series (representative high-performance variant) |
| Temperature Range | −100 °C to +300 °C |
| Temperature Stability | ±2 °C |
| Ramp Rate (Heating) | −55 °C to +125 °C in <10 s |
| Ramp Rate (Cooling) | +125 °C to −55 °C in <10 s |
| Temperature Display Accuracy | ±1 °C |
| Calibration | NIST-traceable |
| Compliance | ISO 9001, CE, RoHS |
Overview
The inTEST Temptronic ThermoStream Thermal Shock Air Stream System is a precision-engineered, non-contact thermal test platform designed for rapid, repeatable, and localized temperature conditioning of electronic components during electrical characterization and reliability validation. Unlike conventional environmental chambers, the ThermoStream utilizes a high-velocity, filtered, and dew-point-controlled air stream—delivered via interchangeable nozzles—to impose controlled thermal transients directly onto device-under-test (DUT) surfaces. Its core operating principle relies on convective heat transfer with dynamically modulated airflow, enabling sub-10-second transitions between extreme thermal setpoints (−100 °C to +300 °C) without mechanical chamber movement or cryogenic consumables. This architecture supports real-time thermal cycling synchronized with automated test equipment (ATE), making it indispensable for wafer-level probing, burn-in screening, failure analysis (FA), and JEDEC-compliant thermal shock qualification per JESD22-A104 and A106.
Key Features
- Ultra-fast thermal ramping: Achieves −55 °C ↔ +125 °C transitions in under 10 seconds—enabling high-throughput thermal stress profiling across thousands of devices per hour.
- Cryogen-free operation: Eliminates dependency on liquid nitrogen (LN₂) or carbon dioxide (CO₂), reducing operational cost, safety hazards, and infrastructure requirements while maintaining full temperature range capability.
- NIST-traceable temperature accuracy: ±1 °C display resolution with closed-loop feedback control and dual-sensor verification at nozzle exit, ensuring metrological integrity for GLP/GMP-aligned labs.
- ESD-safe construction: Fully grounded stainless-steel chassis, conductive airflow path, and static-dissipative nozzles compliant with ANSI/ESD S20.20 for handling sensitive RF, GaN, SiC, and mmWave components.
- Modular nozzle system: Interchangeable precision nozzles (0.5–6.0 mm ID) support targeted thermal delivery on die, package, PCB traces, or optical transceivers—minimizing thermal crosstalk and ambient interference.
- Integrated environmental monitoring: Real-time dew point tracking (<−40 °C), particulate filtration (HEPA-class), and airflow velocity control ensure contamination-free thermal exposure critical for high-reliability aerospace and automotive electronics.
Sample Compatibility & Compliance
The ThermoStream accommodates a broad spectrum of electronic DUTs—including bare dies, flip-chip packages, QFN, BGA, LGA, optical modules (SFP+, QSFP-DD), RF power amplifiers, and MEMS sensors—without requiring fixture modification or thermal interface materials. Its open-platform design integrates seamlessly with probe stations (Cascade Microtech, MPI), handler systems (Cohu, Advantest), and parametric test platforms (Keysight B1500A, Keithley 4200-SCS). The system conforms to multiple international standards: ISO 9001:2015 (quality management), IEC 61000-4-2 (ESD immunity), EN 61326-1 (EMC for lab equipment), and RoHS Directive 2011/65/EU. Temperature profiles are fully audit-ready for FDA 21 CFR Part 11 compliance when paired with inTEST’s validated ThermoStream Control Software v5.x.
Software & Data Management
ThermoStream Control Software provides deterministic thermal profile scripting, real-time data logging (temperature, airflow, pressure, dew point), and synchronization triggers via TTL, GPIB, or Ethernet (LXI). Profiles support nested loops, conditional branching, and user-defined dwell/ramp segments—with timestamped export to CSV or MATLAB-compatible formats. Audit trails include operator ID, calibration certificate IDs, and system health logs, satisfying traceability requirements for ISO/IEC 17025-accredited laboratories. Optional Python API enables integration into custom ATE frameworks and CI/CD pipelines for automated reliability test execution.
Applications
- JEDEC JESD22-A104 thermal shock qualification of ICs and discrete semiconductors
- Dynamic thermal mapping of power device junction temperatures under load
- Failure analysis root cause identification via thermally induced parametric shift (e.g., Vth, Rds(on), gain compression)
- High-frequency component testing (5G mmWave front-end modules, radar ICs) requiring ESD-safe, low-noise thermal excitation
- Automotive AEC-Q200 stress screening of passive and active components
- Accelerated life testing (ALT) with programmable thermal cycles aligned to Arrhenius-based lifetime models
FAQ
Does the ThermoStream require external chiller or compressor units?
No—the system incorporates an integrated two-stage cascade refrigeration module and high-efficiency heating elements, eliminating need for auxiliary cooling infrastructure.
Can it operate continuously at −100 °C or +300 °C?
Yes; sustained operation at both extremes is supported, though typical use emphasizes rapid transitions rather than prolonged dwell at absolute limits.
Is remote monitoring and control possible over LAN or industrial networks?
Yes; full LXI Class A compliance enables SCPI command control, web-based status dashboard, and SNMP trap generation for enterprise-wide test asset management.
What validation documentation is provided with shipment?
Each unit ships with NIST-traceable calibration certificate, IQ/OQ protocol templates, and factory performance verification report covering ramp rate, stability, and thermal uniformity per ASTM E220.
