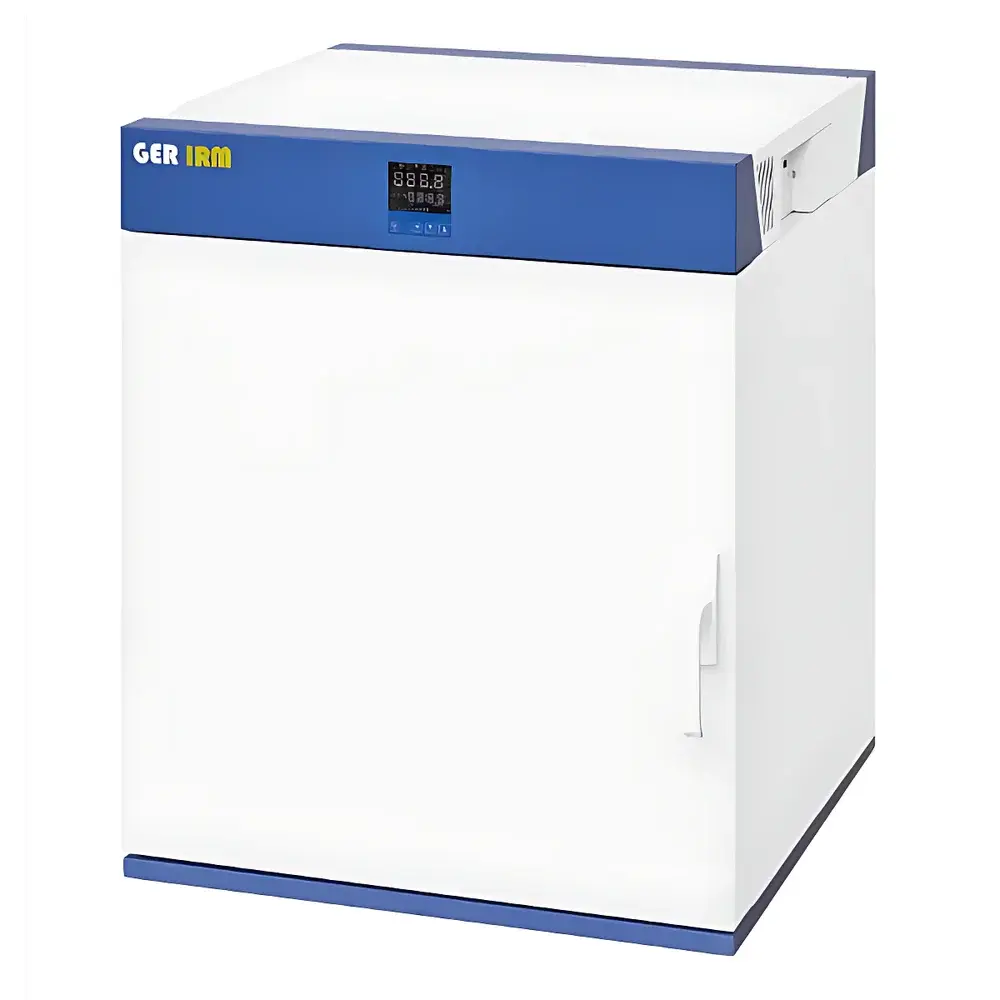

IRM FDE115 Precision Dual-Function Drying & Incubation Oven

Overview

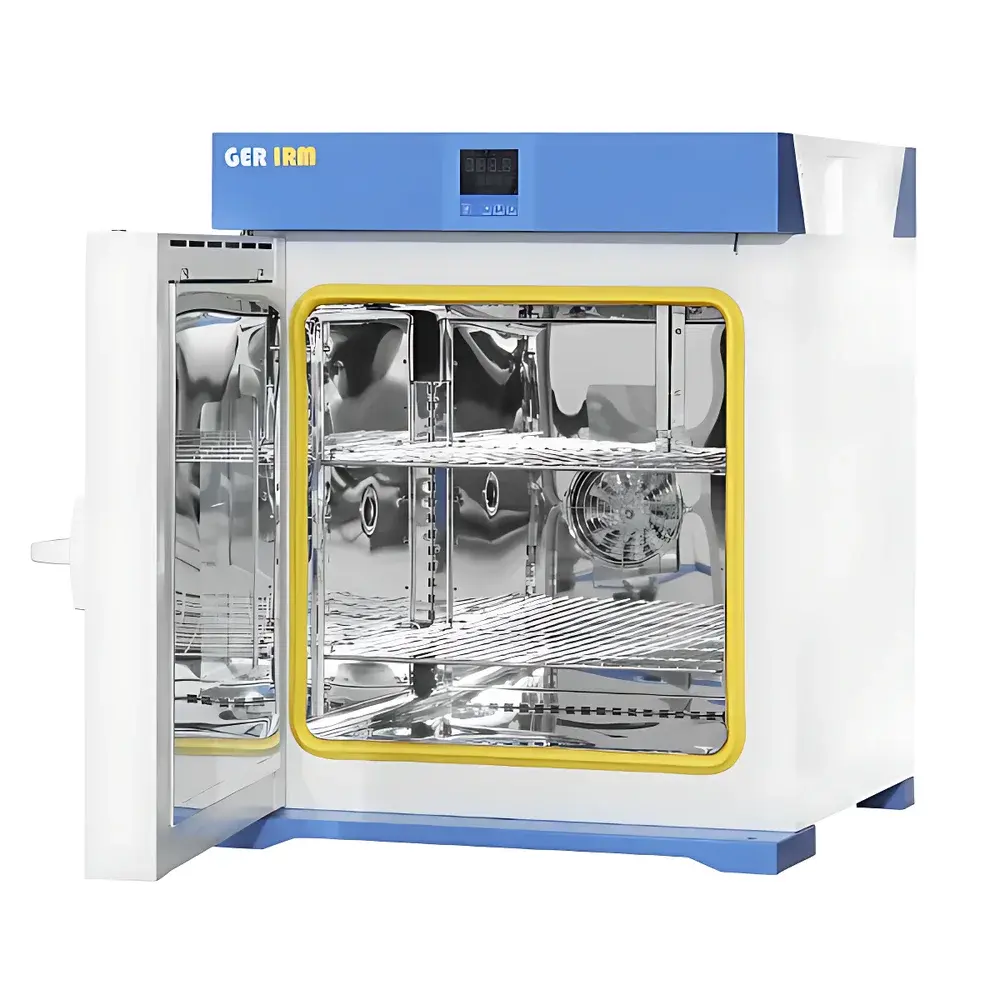

The IRM FDE115 Precision Dual-Function Drying & Incubation Oven is an engineered-for-reproducibility laboratory oven designed to meet stringent requirements for both thermal drying and controlled-temperature incubation applications. It operates on the principle of forced convection heating, utilizing a high-efficiency axial fan and optimized air duct geometry to ensure rapid thermal response and minimal temperature overshoot during chamber door closure or setpoint transitions. Unlike basic gravity-convection ovens, the FDE115 maintains consistent airflow distribution across the entire working volume—critical for uniform moisture removal in drying protocols and stable microbial growth conditions in incubation workflows. Its dual-range capability (Ambient + 5 °C to 300 °C for drying; Ambient + 20 °C to 80 °C for incubation) enables seamless transition between material stability testing, residual solvent removal, glassware sterilization, and cell culture support—all within a single, GLP-compliant platform.

Key Features

• High-precision microprocessor-based PID temperature controller with three-zone auto-tuning capability (low-, mid-, and high-temperature regions), enabling optimal performance across the full operational range.
• Touch-sensitive LCD interface supporting real-time display of setpoint, actual chamber temperature, elapsed time, remaining time, segment count, cycle number, fan speed, date, and clock—without requiring external software.
• Programmable multi-segment operation: up to 50 temperature/time segments per program, with configurable cycles (0 = continuous run; 1–99 = repeated cycles).
• Temperature correction function (±9.9 °C offset) for traceable calibration alignment against reference thermometers or RTDs per ISO/IEC 17025 guidelines.
• Dual independent over-temperature protection: integrated controller-based limit and externally wired mechanical safety cut-off (resettable), both compliant with IEC 61000-4-5 surge immunity standards.
• Door interlock switch that immediately de-energizes heating elements upon door opening—meeting EN 61010-1 Clause 7.3.2 safety requirements for laboratory equipment.
• Configurable heating ramp rate and adjustable fan speed to accommodate heat-sensitive samples or low-mass loads without thermal shock.
• Power failure recovery mode with non-volatile memory retention: resumes prior program state—including segment position, remaining time, and fan setting—upon AC restoration.

Sample Compatibility & Compliance

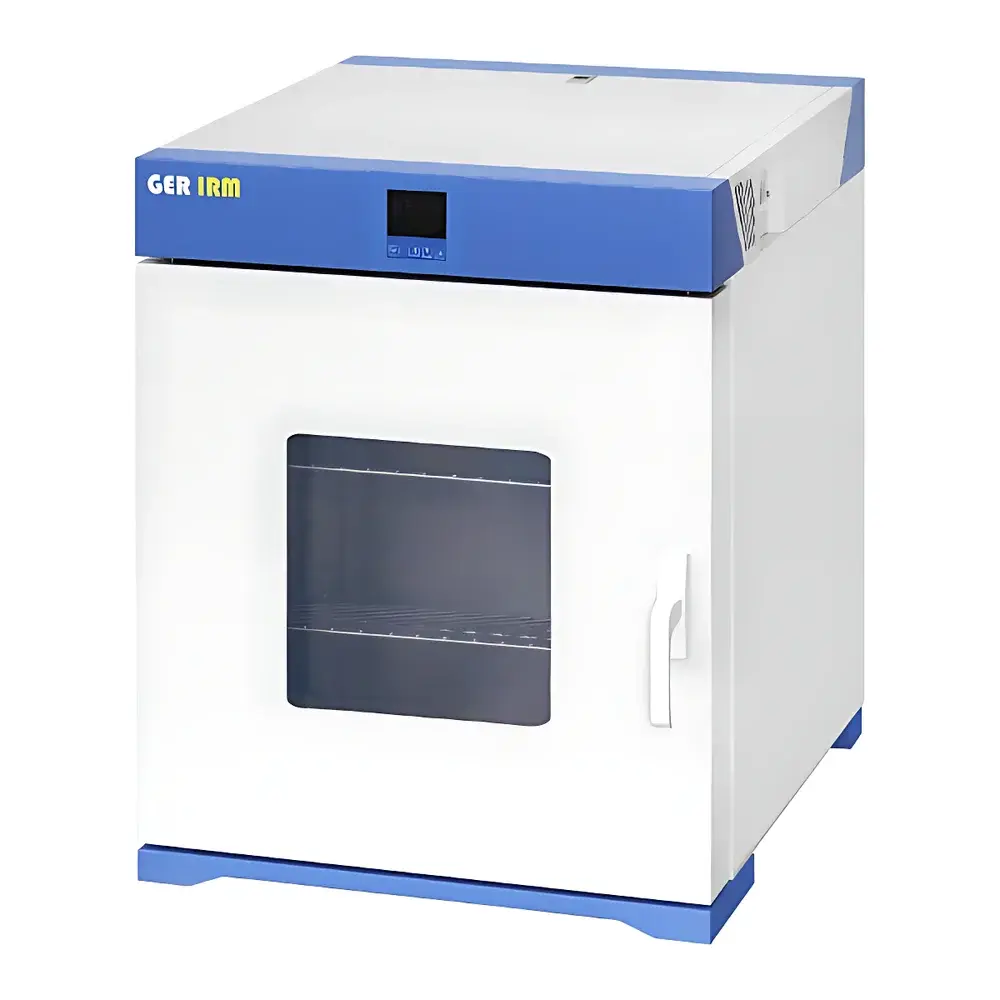

The FDE115 accommodates standard laboratory ware including Petri dishes, beakers, crucibles, glass vials, and stainless-steel trays. Its stainless-steel interior (SUS304) resists corrosion from organic solvents, saline solutions, and weak acids encountered in pharmaceutical QC, polymer processing, and environmental sample preparation. The chamber design complies with ASTM E145-22 Class II specifications for forced-air ovens used in drying and conditioning tests. Optional accessories—including calibrated PT100 probe ports (32 mm diameter), removable observation windows (tempered glass with silicone gasket), and external data logging interfaces—support validation under FDA 21 CFR Part 11, EU Annex 11, and ISO 13485 frameworks. All electrical components—including the imported RCD (Residual Current Device) and thermal cut-out—are CE-marked and certified to IEC 61000-6-2/6-4 EMC standards.

Software & Data Management

No proprietary software installation is required. All operational data—including temperature profiles, alarm logs, and program execution history—are stored internally and exportable via USB flash drive in CSV format. The built-in curve viewer allows retrospective analysis of temperature trends across any completed cycle. For regulated environments, optional IRM-TempLog™ data logger (sold separately) provides 21 CFR Part 11-compliant audit trails, electronic signatures, and password-protected parameter modification—fully traceable to user ID, timestamp, and action type. Screen lock functionality (user-defined 4-digit PIN) prevents unauthorized changes to critical settings during unattended operation.

Applications

• Pharmaceutical: Residual solvent evaporation (ICH Q5C), excipient drying, stability-indicating assay preparation, and lyophilization pre-drying.
• Materials Science: Moisture content determination per ASTM D2298, polymer curing kinetics, and ceramic sintering preheat staging.
• Microbiology: Bacterial/fungal incubation at 30–37 °C, media preparation, and agar plate drying prior to inoculation.
• Environmental Testing: Soil moisture loss assays (EPA Method 9095B), filter drying for particulate mass analysis, and gravimetric TSP collection.
• Quality Control Labs: Glassware drying post-wash, standard reference material conditioning, and calibration weight storage environment control.

FAQ

What is the maximum allowable load mass for the FDE115 chamber?
The standard configuration supports up to 60 kg distributed across two included stainless-steel shelves (30 kg per shelf), with optional reinforced shelving available for higher-load applications.
Can the FDE115 be validated for GMP compliance?
Yes—the unit includes documentation-ready features: NIST-traceable temperature correction, dual independent over-temperature safeguards, digital audit trail export, and optional IQ/OQ protocol templates provided by IRM upon request.
Is remote monitoring supported?
While no Ethernet/Wi-Fi module is built-in, the USB data export interface enables integration with third-party SCADA or LIMS systems via automated script-based file ingestion.
Does the oven meet UL or CSA safety certification?
The FDE115 carries CE marking per EN 61010-1:2010 and meets essential safety requirements aligned with UL 61010-1; formal UL/CSA listing is available through IRM’s North American representative upon order confirmation.
How often should the temperature sensor be recalibrated?
IRM recommends annual verification using a calibrated reference thermometer per ISO/IEC 17025-accredited lab; internal sensor drift is typically <0.05 °C/year under normal operating conditions.
