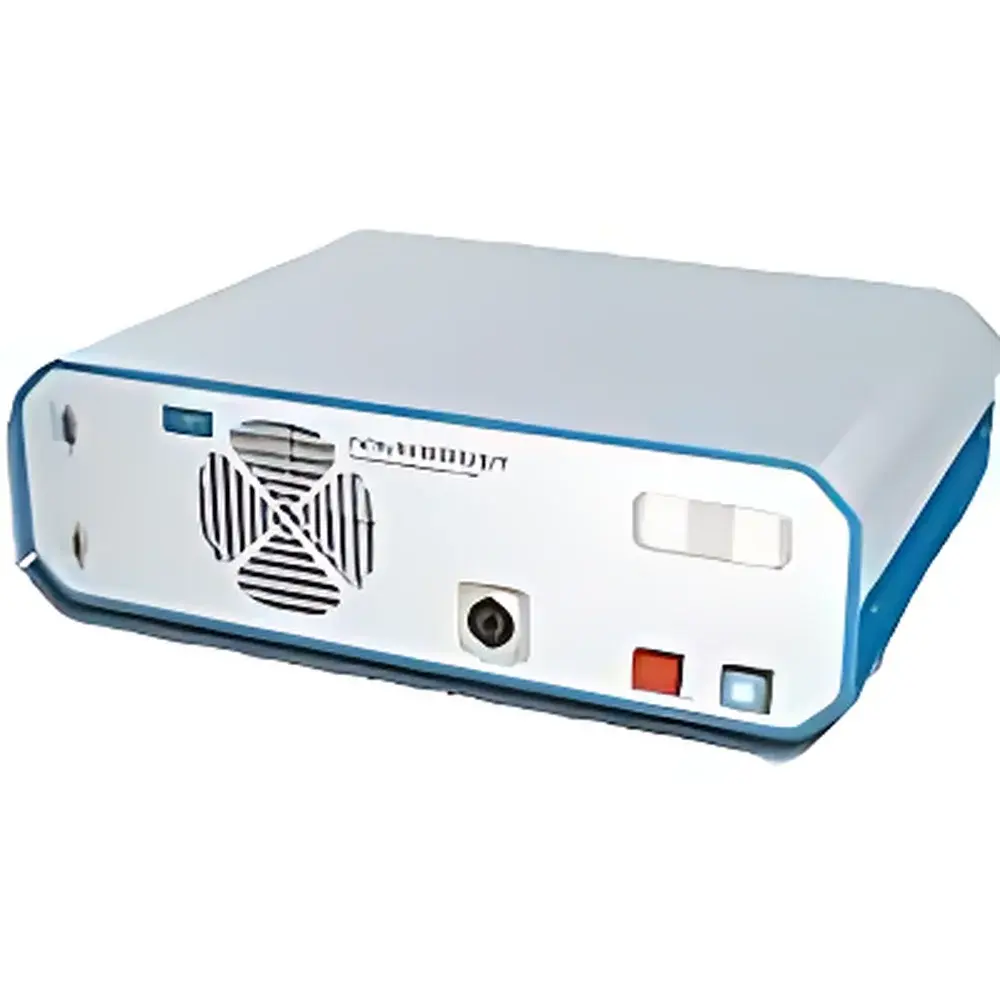

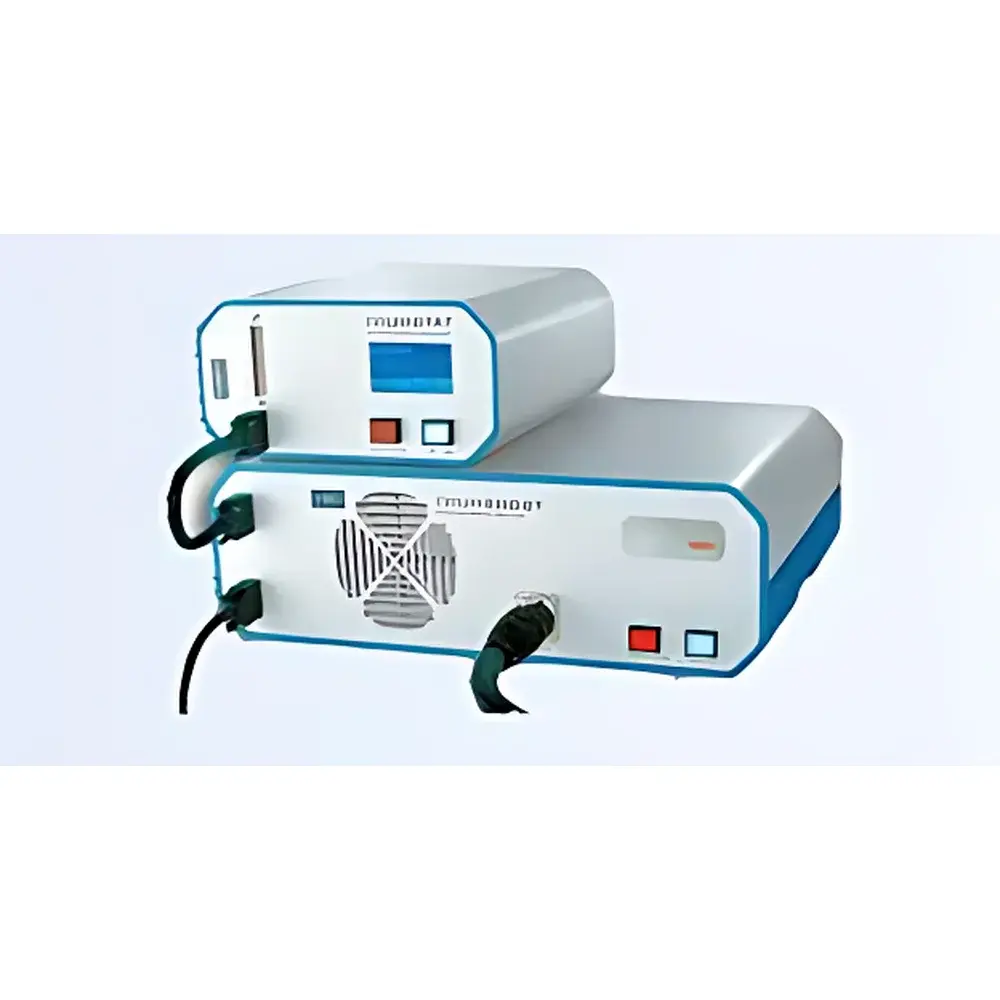

Ivium IviumBoost Current-Voltage Extension Module

Overview

The IviumBoost Current-Voltage Extension Module is a high-performance, modular power amplification system designed to extend the operational range of Ivium’s potentiostats and galvanostats for demanding electrochemical applications. Engineered for precision and stability under dynamic load conditions, the IviumBoost series bridges the gap between standard electrochemical workstations and high-current or high-voltage experimental requirements—such as battery cycling at elevated C-rates, corrosion testing under aggressive polarization, or large-area electrode characterization. Each module operates as a synchronized, low-noise analog extension unit, maintaining full digital control via IviumSoft software while preserving phase fidelity and signal integrity across its specified bandwidth. The architecture supports both voltage-controlled (potentiostatic) and current-controlled (galvanostatic) modes, with real-time feedback enabling closed-loop regulation compliant with ISO 17025 traceable measurement practices.

Key Features

• Modular scalability: Interchangeable units (IviumBoost1001, IviumBoost1010, OctoBoost16000) integrate seamlessly with Ivium CompactStat, Vertex, and Nova potentiostat platforms via dedicated analog I/O interfaces.
• High-fidelity signal conditioning: Ultra-low output impedance (< 0.01 Ω), < 0.1% gain error, and < 1 mV offset drift over 24 h ensure metrological reliability in quantitative electrochemical analysis.
• Bandwidth-optimized design: Supports fast transient response up to 250 kHz (IviumBoost1001), enabling accurate EIS measurements at high frequencies and pulse techniques such as chronoamperometry with sub-millisecond rise times.
• Thermal and electrical robustness: Active temperature monitoring, overcurrent/overvoltage protection, and forced-air cooling maintain safe operation during extended high-power experiments (e.g., >5 A continuous for >4 h).
• Multi-channel synchronization: OctoBoost16000 provides eight independent 16 A output channels with hardware-level time alignment (±10 ns inter-channel skew), essential for multi-electrode array studies and parallel cell testing.

Sample Compatibility & Compliance

The IviumBoost modules support a broad spectrum of electrochemical sample configurations—including aqueous and non-aqueous electrolytes, solid-state batteries, fuel cells, coated metals, and conductive polymers. All units comply with IEC 61010-1:2010 safety standards for laboratory electrical equipment and meet electromagnetic compatibility (EMC) requirements per EN 61326-1:2013. When used within validated IviumSoft workflows, data acquisition satisfies audit-trail and electronic signature requirements aligned with FDA 21 CFR Part 11 and EU Annex 11 for regulated environments. Calibration certificates (traceable to NIST or PTB standards) are available upon request for GLP/GMP-compliant laboratories.

Software & Data Management

Full integration with IviumSoft v6.x ensures native recognition, automatic parameter mapping, and synchronized data logging without third-party drivers. The software provides real-time visualization of extended voltage/current waveforms, automatic range switching, and configurable safety limits per experiment. Raw analog data streams are recorded at up to 1 MS/s (dependent on host system), stored in open-format .idf files supporting post-processing in MATLAB, Python (via iviumread library), or Origin. Audit logs record all hardware configuration changes, user actions, and calibration events—enabling full reproducibility and regulatory compliance documentation.

Applications

• Battery R&D: High-current charge/discharge profiling of Li-ion, Na-ion, and solid-state cells; formation cycling at up to 10 C-rate.
• Corrosion science: Potentiodynamic polarization and zero-resistance ammetry (ZRA) on coupled metal systems under simulated industrial environments.
• Electroplating & electrowinning: Precise current density control across large-area electrodes (≥1 m²) with ripple < 0.5% RMS.
• Fuel cell testing: Dynamic load stepping and AC impedance validation of PEM and SOFC stacks under realistic thermal gradients.
• Sensor development: Low-noise current amplification for microelectrode arrays and enzymatic biosensors requiring sub-pA resolution.

FAQ

Can IviumBoost modules be used with non-Ivium potentiostats?
No—they require proprietary analog interface signaling and firmware handshake protocols exclusive to Ivium hardware platforms.
Is firmware update supported in-field?
Yes, via IviumSoft using USB connection; updates preserve user calibration tables and do not require recalibration unless specified in release notes.
What is the maximum cable length between IviumBoost and the main potentiostat?
For optimal signal integrity, shielded twisted-pair cables should not exceed 2 m; longer runs require active signal repeaters certified by Ivium.
Does OctoBoost16000 support independent potential control per channel?
No—it operates in galvanostatic mode only; independent potentiostatic control requires individual Ivium potentiostats per channel.
Are calibration services available outside the Netherlands?
Yes, through Ivium’s authorized service partners in North America, EMEA, and APAC regions, with turnaround times documented in the service agreement.
