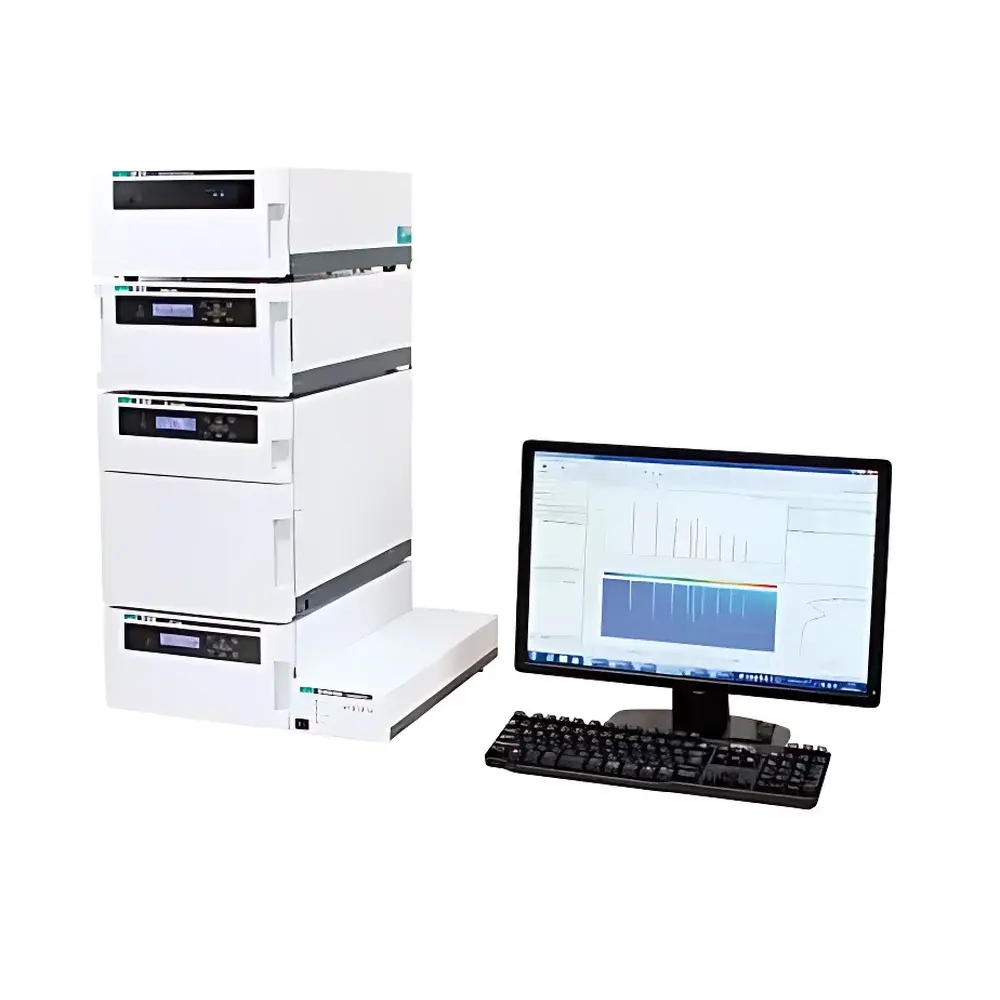

JASCO Chiral LC-4000 High-Performance Liquid Chromatograph with Integrated Circular Dichroism Detection

Overview

The JASCO Chiral LC-4000 is a modular, research-grade high-performance liquid chromatography (HPLC) system engineered specifically for chiral separation and stereochemical characterization of optically active compounds. Unlike conventional achiral HPLC platforms, the Chiral LC-4000 integrates native compatibility with JASCO’s proprietary circular dichroism (CD) detector—enabling simultaneous acquisition of CD, UV absorbance, and g-factor (ΔA/A) signals in real time during chromatographic elution. This dual-signal architecture leverages the physical principle that enantiomers exhibit equal but opposite CD responses at characteristic wavelengths, allowing unambiguous identification, quantification, and absolute configuration assignment without derivatization or reference standards. The system supports multiple operational modes—including analytical-scale chiral analysis, rapid-separation HPLC, UHPLC-compatible configurations (with optional high-pressure pump upgrade to 130 MPa), and semi-preparative purification—making it suitable for method development, QC release testing, and structural elucidation workflows in pharmaceutical, agrochemical, and natural product laboratories.

Key Features

• Modular architecture with field-upgradable components: pump modules, detector interfaces, autosampler units, and column ovens can be independently installed or replaced without system recalibration.
• High-precision binary gradient pump with pulseless flow delivery across 0.01–10 mL/min; pressure stability ±0.1% RSD at constant flow, validated per ISO 11607-2 and ASTM D5293 protocols.
• Integrated JASCO CD detector (optional but system-optimized): optical path length 10 mm, photomultiplier-based detection, signal-to-noise ratio >1,000:1 (at 220 nm, 1 mm path), drift <0.5 mdeg/h over 8 h.
• 200–460 nm UV-Vis diode array detector with 100 Hz spectral acquisition rate, enabling full-spectrum deconvolution of co-eluting chiral peaks using spectral library matching.
• Column oven with Peltier-based temperature control (±0.1 °C accuracy) and extended range up to 200 °C—critical for stabilizing chiral stationary phases (e.g., polysaccharide-, cyclodextrin-, or Pirkle-type columns) under elevated backpressure conditions.
• 180-position refrigerated autosampler with programmable needle wash, low carryover ( 0.9999).

Sample Compatibility & Compliance

The Chiral LC-4000 accommodates a broad spectrum of sample matrices—including pharmaceutical actives (e.g., ibuprofen, warfarin, fluoxetine), agrochemicals (e.g., allethrin, imidacloprid), peptides, nucleosides, and plant-derived terpenoids—without requiring chemical modification. It is compatible with all major chiral stationary phases (CSPs) certified under USP , EP 2.2.46, and JP XVIII, including cellulose tris(3,5-dimethylphenylcarbamate), amylose tris(3,5-dimethylphenylcarbamate), and macrocyclic glycopeptide phases. The system meets GLP and GMP requirements through hardware-level audit trail logging, electronic signature support, and secure user role management—all compliant with FDA 21 CFR Part 11 Subpart B (Electronic Records; Electronic Signatures) and Annex 11 (Computerized Systems). All fluidic contact materials are 316L stainless steel or PEEK, ensuring resistance to organic solvents and acidic/basic mobile phases.

Software & Data Management

ChromNAV Ver. 2.0 serves as the certified chromatographic data system (CDS) for the Chiral LC-4000. It provides full instrument control, real-time dual-channel (UV + CD) chromatogram overlay, automated peak integration with baseline correction algorithms (Tangent Skim, Perpendicular Drop), and advanced spectral processing including CD/UV ratio mapping and g-factor contour plots. Quantitative workflows support linear and non-linear calibration models (e.g., quadratic, weighted least squares), multi-component resolution via spectral deconvolution, and 3D chromatographic visualization (retention time × wavelength × signal intensity). All raw data files (.jcd, .uvd, .dat) are stored in vendor-neutral formats with embedded metadata (instrument parameters, operator ID, audit trail timestamps). ChromNAV Ver. 2.0 includes built-in validation documentation packages aligned with IQ/OQ/PQ templates per ASTM E2500-13 and ISO/IEC 17025:2017.

Applications

• Determination of enantiomeric excess (ee) and absolute configuration of synthetic chiral drugs during API development and stability studies.
• Identification and quantification of chiral contaminants in generic drug submissions per ICH Q5B and Q6A guidelines.
• Analysis of stereoisomeric impurities in biologics—e.g., oxidized methionine residues or epimerized amino acids—in forced degradation studies.
• Profiling chiral metabolites in biological matrices (plasma, urine) using CD-coupled LC-MS/MS methods where UV-only detection lacks specificity.
• Method transfer and robustness assessment across labs using standardized CSPs and mobile phase compositions defined in USP monographs.

FAQ

Can the Chiral LC-4000 be used for preparative-scale chiral separations?
Yes—the system supports semi-preparative configurations with 10 mm i.d. columns and flow rates up to 10 mL/min; optional high-capacity fraction collector enables collection of discrete enantiomer fractions for downstream NMR or X-ray crystallography.
Is the CD detector compatible with mass spectrometry?
The CD detector is placed post-column and pre-MS interface; however, CD signal attenuation occurs in split-flow or ESI-compatible solvent systems. For LC-CD-MS coupling, a dedicated flow-cell design with micro-volume optics and nitrogen-purged optical path is recommended.
Does ChromNAV Ver. 2.0 support automated peak purity assessment using CD spectra?
Yes—ChromNAV implements CD spectral homogeneity analysis across peak apex and shoulders, flagging deviations >3% in g-factor slope as potential co-elution events.
What column oven accessories are available for high-temperature chiral separations?
JASCO offers insulated column sleeves, vacuum-jacketed oven inserts, and pressure-compensated thermal shielding kits to maintain ±0.05 °C stability at 200 °C under 70 MPa backpressure.
How is detector alignment verified after maintenance?
The system includes an integrated CD zero-check routine using quartz reference cells and automated mirror positioning diagnostics; alignment reports are exportable as PDF with timestamped calibration certificates.
