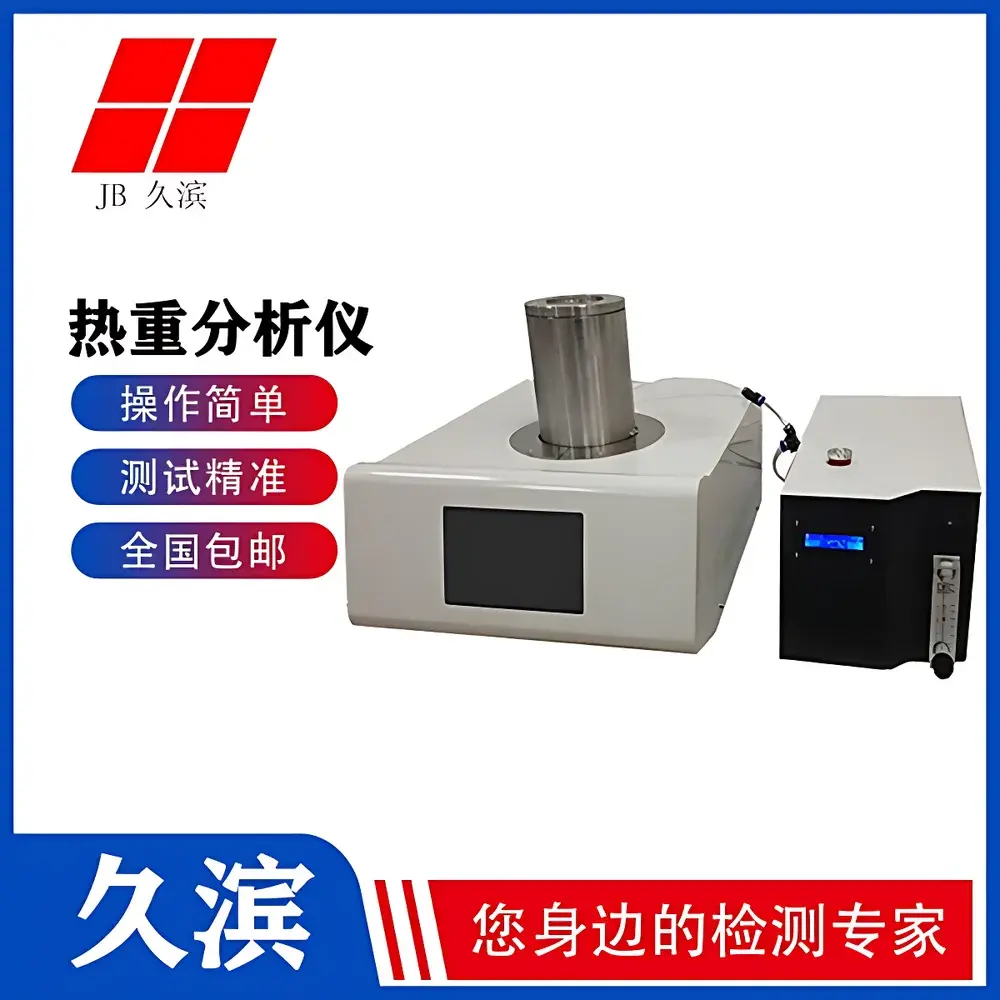

JB Instruments TGA-1350 Thermogravimetric Analyzer

Overview

The JB Instruments TGA-1350 Thermogravimetric Analyzer is a precision laboratory instrument engineered for quantitative measurement of mass change as a function of temperature or time under controlled atmospheric conditions. Based on the fundamental principle of thermogravimetry—where sample mass is continuously monitored during programmed thermal cycles—the TGA-1350 enables rigorous characterization of thermal stability, decomposition kinetics, volatilization behavior, oxidative/reductive reactivity, and compositional evolution in solid and powdered materials. Its operational range extends from ambient temperature to 1350 °C, supporting high-temperature applications common in advanced ceramics, refractory metals, catalyst formulations, and energy storage materials. The system integrates a high-stability microbalance with 0.01 mg resolution and active temperature control calibrated to ±0.1 K accuracy, ensuring traceable, reproducible data acquisition aligned with ISO 11358 and ASTM E1131 standards.

Key Features

• Wide thermal operating range: ambient to 1350 °C, with programmable heating and cooling rates from 1 to 80 °C/min
• High-precision quartz-suspended microbalance with 0.01 mg sensitivity and 2 g standard capacity (expandable to 30 g)
• Dual-channel gas delivery system featuring integrated mass flow controllers for precise switching and regulation of inert (N₂, Ar), oxidizing (air, O₂), and reducing (H₂, CO) atmospheres
• Rapid cooling capability: ≤15 minutes from 1000 °C to 100 °C, minimizing turnaround time between high-temperature runs
• Robust furnace design with optimized thermal uniformity and low thermal inertia for improved temperature ramp fidelity
• Onboard LCD interface with Chinese/English bilingual support and real-time display of mass, temperature, derivative (DTG), and gas flow parameters
• Compliance-ready architecture: supports audit trails, user access levels, and electronic signatures when paired with validated software modules

Sample Compatibility & Compliance

The TGA-1350 accommodates diverse sample forms—including powders, granules, thin films, fibers, and small metallic coupons—within standard alumina or platinum crucibles (up to 100 µL volume). It meets essential requirements for GLP-compliant laboratories through configurable isothermal holds (0–300 min), programmable multi-step temperature profiles, and atmosphere sequencing. The instrument’s thermal calibration protocol follows NIST-traceable reference materials (e.g., Ni, Cu, Al₂O₃), enabling compliance with ISO/IEC 17025 accreditation criteria. When operated with validated firmware and documented SOPs, it supports regulatory submissions under FDA 21 CFR Part 11 and ICH Q5C guidelines for thermal stability assessment of pharmaceutical actives and excipients.

Software & Data Management

The proprietary JB-TGA Analysis Suite provides full control over instrument operation, real-time data visualization (TG, DTG, residual mass %), and post-run processing including baseline correction, peak integration, kinetic modeling (e.g., Kissinger, Ozawa-Flynn-Wall), and multi-curve overlay. Raw data are stored in ASCII-compatible .csv and vendor-neutral .tdf formats, facilitating import into third-party platforms such as OriginLab, MATLAB, or Python-based analysis workflows. USB 2.0 connectivity enables secure local data transfer; optional network-enabled versions support centralized data archiving via LIMS integration. Software updates are distributed free-of-charge and include version-controlled release notes compliant with change management requirements in regulated environments.

Applications

• Quantification of moisture, solvent residues, and volatile organic content in polymers and pharmaceuticals per USP <621>
• Thermal degradation profiling of engineering plastics (e.g., PEEK, polyimides) and carbon-fiber composites
• Catalyst deactivation analysis via coke burn-off kinetics under controlled O₂/N₂ mixtures
• Decomposition onset temperature (T_d) and char yield determination for flame-retardant formulations
• Oxidation resistance evaluation of stainless steels, superalloys, and MAX-phase ceramics
• Hydration/dehydration behavior in metal–organic frameworks (MOFs) and layered double hydroxides (LDHs)
• Quantitative ash content determination in coal, biomass, and food products per ASTM D3174

FAQ

What is the maximum recommended sample mass for optimal resolution and thermal response?
For highest sensitivity and minimal thermal lag, we recommend samples between 5–20 mg. Larger masses (up to 30 g with extended balance option) are supported but may reduce resolution in rapid decomposition events.

Can the TGA-1350 perform simultaneous DTA or DSC measurements?
No—this is a dedicated thermogravimetric system. For combined TG-DTA or TG-DSC functionality, please refer to the JB Instruments STA-1500 series.

Is the gas control system compatible with corrosive or high-purity specialty gases?
Yes—gas lines use electropolished 316 stainless steel and VCR fittings; optional quartz or Hastelloy furnace tubes are available for aggressive chemistries (e.g., Cl₂, HF).

How is temperature calibration verified and maintained?
Calibration uses certified reference materials (e.g., high-purity nickel, copper, and aluminum oxide) at defined phase transitions; procedures align with ISO 13321 and are documented in the instrument’s calibration logbook.

Does the system support automated sample changers or robotic integration?
The TGA-1350 platform is compatible with third-party autosamplers via RS-232 and TTL trigger I/O; OEM integration kits are available upon request.
