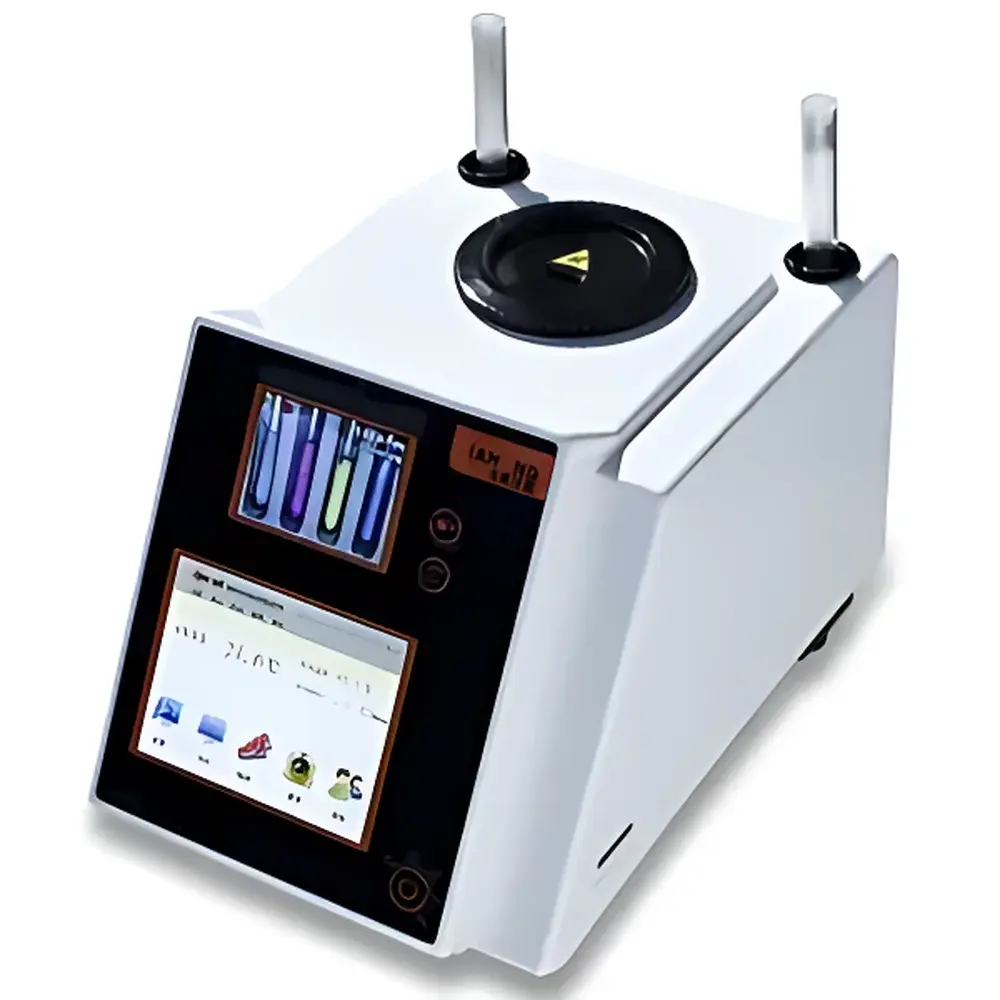

JH Series Fully Automated Video-Based Fat Melting Point Analyzer

Overview

The JH Series Fully Automated Video-Based Fat Melting Point Analyzer is a precision thermal analysis instrument engineered for the objective, repeatable, and standardized determination of melting behavior in edible fats, oils, waxes, and related lipid-based materials. It operates on the principle of real-time optical monitoring of structural phase transition: as the sample melts, its physical morphology changes—specifically, the solid fat column begins to ascend within the capillary tube due to surface tension and density differentials. This movement induces a measurable shift in light transmission intensity across a calibrated digital optical path. The system captures this dynamic event via a high-resolution CMOS imaging sensor synchronized with a precisely controlled thermal ramp, enabling algorithmic detection of the onset and completion of melting without operator intervention.

Unlike traditional manual or semi-automated capillary methods relying on visual endpoint estimation, this analyzer eliminates subjective interpretation by digitizing the entire thermal–optical response curve. Its integrated Peltier-based heating/cooling module—combined with a platinum resistance thermometer (Pt100) and glass-jacketed water bath—ensures stable, linear, and traceable temperature control from ambient to 100 °C, with resolution of 0.1 °C and accuracy of ±0.2 °C near upper range limits.

Key Features

• Fully automated dual-sample analysis: Simultaneous processing of two independent capillary samples under identical thermal profiles, improving throughput and inter-sample comparability.
• Real-time video recording & playback: Full experimental sequence captured at adjustable frame rates and stored on internal SD card; playback supports variable speed, frame-by-frame navigation, and timestamped annotation for forensic review.
• PID-controlled thermal management: Integrated Peltier element with adaptive feedback loop delivers precise heating rates from 0.1 to 10 °C/min and passive air-cooling for rapid return to ambient conditions.
• Digital optical endpoint detection: Eliminates observer bias by automatically identifying melt onset via real-time photometric threshold analysis—aligned with ISO 6320:2017 criteria for “first visible upward movement.”
• Compliant thermal architecture: Glass-lined water bath prevents mineral deposition and corrosion; Pt100 sensor ensures NIST-traceable temperature measurement with fast thermal response (<2 s time constant).
• One-touch operation workflow: Users define start temperature, ramp rate, and stop condition; system executes preheat, equilibration, ramp, detection, and data export autonomously.

Sample Compatibility & Compliance

The JH Series is validated for use with standard 4 mm OD × 120 mm capillaries filled per GB/T 24892–2010 and ISO 6320:2017 protocols. It accommodates a broad spectrum of lipid matrices—including vegetable oils (soybean, palm, sunflower), animal fats (lard, tallow), cocoa butter equivalents, hydrogenated oils, and specialty waxes—provided samples are prepared as homogeneous, bubble-free columns with defined meniscus geometry. Instrument validation documentation supports audit readiness for GLP environments. All thermal and optical performance metrics conform to requirements outlined in GB/T 12766–2008 (Edible Vegetable Oils — Determination of Melting Point), SN/T 0801.5–1999 (Import/Export Inspection Standards), and harmonized ISO 6320:2017 methodology.

Software & Data Management

The embedded Windows-compatible software provides a validated, audit-ready interface compliant with FDA 21 CFR Part 11 principles (user authentication, electronic signatures, immutable audit trails). Each test generates a structured data package containing raw thermal profile (time vs. temperature), synchronized video stream (.avi), optical intensity curve, detected melt points (onset, clear point), and metadata (operator ID, calibration status, environmental log). Reports are exportable in PDF and CSV formats; all data files carry cryptographic hash verification for integrity assurance. Automatic SD card fullness alerts and configurable auto-archiving prevent data loss. Software updates are delivered via signed firmware packages with version-controlled release notes.

Applications

This analyzer serves quality control laboratories in edible oil refineries, confectionery R&D centers, dairy ingredient suppliers, and regulatory testing facilities. Typical use cases include: specification verification of cocoa butter substitutes in chocolate manufacturing; shelf-life prediction through polymorphic stability assessment; batch-to-batch consistency evaluation of hydrogenated palm kernel oil; compliance screening for international trade (e.g., EU Regulation (EC) No 1528/2007); and method transfer studies supporting ICH Q5E comparability protocols. Its reproducibility (RSD < 0.3 °C across repeated measurements of identical samples) makes it suitable for reference material certification workflows.

FAQ

Does the instrument support external calibration verification using certified reference materials?
Yes—procedures for daily verification using NIST-traceable melting standards (e.g., pure stearic acid, palmitic acid) are documented in the user manual and supported by dedicated calibration mode.
Can video recordings be exported for third-party review or regulatory submission?
Yes—recordings are saved in standard .avi format with embedded timestamps and thermal metadata; export is unrestricted and compatible with common forensic video analysis tools.
Is the water bath design compatible with long-term operation in high-humidity environments?
The borosilicate glass water jacket and sealed Peltier module meet IP20 environmental rating; operation is specified for ambient humidity ≤80% RH non-condensing.
How does the system handle samples with broad or multi-step melting transitions?
The software identifies multiple inflection points in the optical intensity derivative curve and reports onset, midpoint, and clear-point temperatures—enabling characterization of eutectic behavior and polymorphic complexity.
What maintenance is required to ensure long-term thermal accuracy?
Annual verification of Pt100 sensor linearity and optical alignment is recommended; no consumables beyond deionized water for the bath are required.
