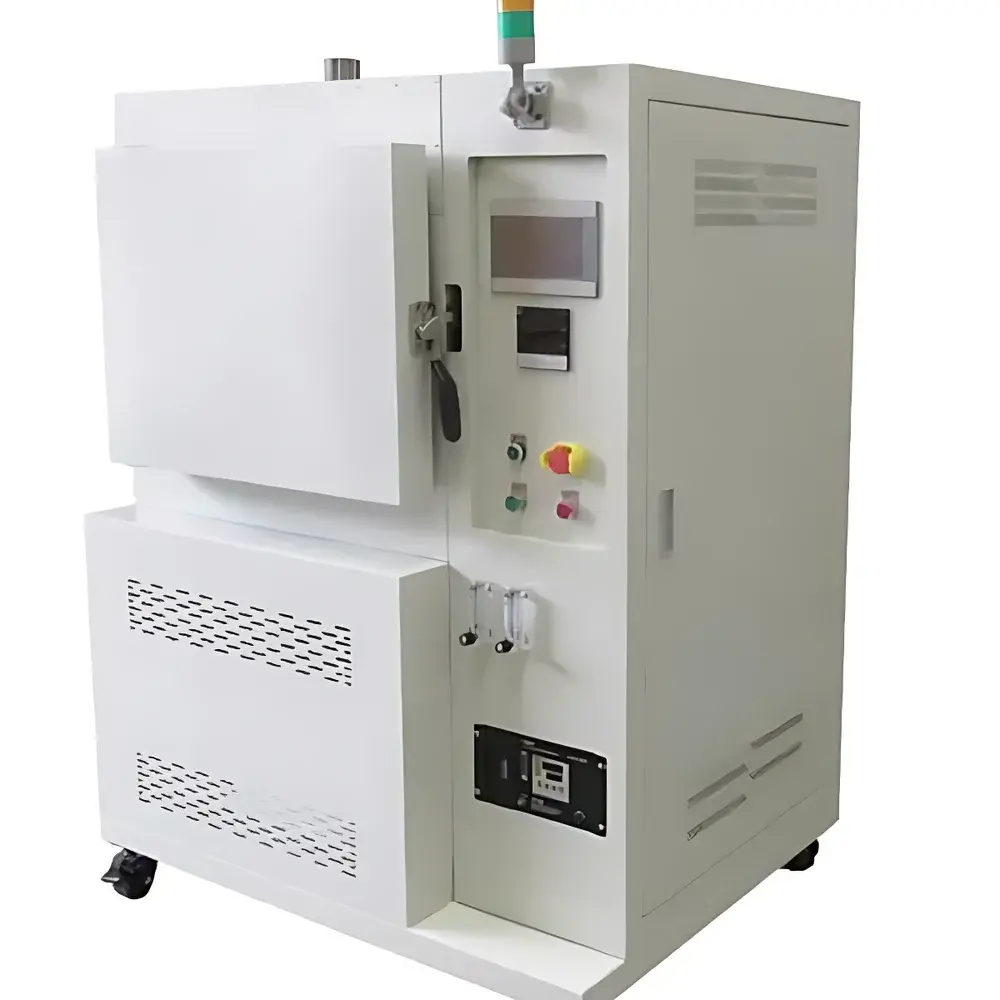

Jianhu High-Temperature Nitrogen-Purged Oxygen-Free Oven for Semiconductor Packaging

Overview

The Jianhu High-Temperature Nitrogen-Purged Oxygen-Free Oven is an engineered thermal processing system designed specifically for semiconductor packaging, die attach curing, wafer-level baking, and moisture-sensitive electronic component drying. It operates on the principle of inert atmosphere thermal treatment—replacing ambient air with high-purity nitrogen to suppress oxidation, prevent surface contamination, and eliminate moisture-induced delamination or popcorning during high-temperature exposure. Unlike conventional convection ovens, this system integrates real-time oxygen monitoring, multi-stage nitrogen purge sequencing, and Class 100 (ISO Class 5) cleanroom-grade internal chamber construction to meet stringent requirements in advanced packaging processes such as flip-chip, WLP, and SiP. The oven supports temperature ranges from ambient +10°C up to 300°C with ramp rates programmable from 0.1°C/min to 10°C/min, enabling precise thermal profiling aligned with JEDEC J-STD-020 and J-STD-033 standards for MSL handling.

Key Features

• Class 100 (ISO 5) clean chamber constructed from electropolished 316L stainless steel with seamless welded interior—zero crevices, no particle-trapping corners, fully compliant with SEMI S2 and ISO 14644-1 for semiconductor tool environments.
• Multi-cycle nitrogen purge protocol with automatic O₂ residual monitoring (down to ≤10 ppm); achieves ≥99.999% N₂ purity within ≤3 minutes via dual-pressure differential control and flow-regulated inert gas delivery.
• Precision PID temperature control with ±0.5°C uniformity across working volume (per ASTM E2203) and ±0.3°C stability at setpoint; validated using calibrated PT100 sensors traceable to NIST standards.
• Integrated data logging with timestamped records for temperature, O₂ concentration, pressure differential, and purge cycle status—supports audit-ready documentation per FDA 21 CFR Part 11 and GLP/GMP requirements.
• Modular design allows customization of chamber volume (from 20 L to 500 L), loading configuration (front-loading, top-loading, conveyor-integrated), and interface options (RS485, Ethernet/IP, Modbus TCP).

Sample Compatibility & Compliance

The oven accommodates standard semiconductor carriers including JEDEC trays (TR, TA, TS), gel packs, waffle packs, and bare wafers up to 300 mm diameter. It is routinely deployed in pre-bake, post-mold cure, underfill curing, and BGA reflow support stages. All models comply with IEC 61000-6-2 (EMC immunity), IEC 61000-6-4 (EMC emissions), and UL 61010-1 safety certification. Chamber materials conform to USP for extractables profiling, and surface finish meets Ra ≤0.4 µm specification per SEMI F21. Documentation packages include Factory Acceptance Test (FAT) reports, IQ/OQ protocols, and calibration certificates issued by CNAS-accredited third-party laboratories.

Software & Data Management

Equipped with Jianhu’s proprietary JC-OS v4.2 control firmware, the oven provides intuitive touchscreen HMI with multilingual UI (English, Japanese, Korean, Simplified Chinese). Software features include recipe-based thermal profiling, user-access-level management (admin/operator/maintenance), electronic signature capability, and encrypted local storage of ≥10,000 cycle logs. Optional integration with MES/SCADA systems is supported via OPC UA or RESTful API. Audit trail functionality records all parameter changes, user logins, alarm events, and maintenance interventions—with immutable timestamps and operator ID tagging—ensuring full traceability for quality audits and regulatory submissions.

Applications

• Moisture removal prior to reflow soldering (MSL Level 2–6 compliance)
• Curing of epoxy mold compounds (EMC), underfills, and die-attach adhesives
• Oxidation-sensitive annealing of Cu/Al interconnects and thin-film metallization
• Pre-bake of MEMS sensors, RF filters, and optoelectronic assemblies
• Stabilization baking for high-reliability aerospace and automotive ICs (AEC-Q200 qualified processes)

FAQ

What nitrogen purity level does the system guarantee during operation?
It maintains ≥99.999% N₂ purity (≤10 ppm O₂) throughout the entire heating cycle, verified by built-in electrochemical oxygen sensor with automatic zero-point compensation.
Is the oven suitable for GMP-compliant production environments?
Yes—fully configurable for 21 CFR Part 11 compliance with role-based access control, electronic signatures, and tamper-proof audit trails; IQ/OQ documentation available upon request.
Can chamber volume and loading mechanism be customized?
Yes—standard configurations range from 20 L to 500 L; custom designs include robotic arm interfaces, inline conveyor integration, and dual-zone independent temperature control.
What validation support is provided before shipment?
Each unit undergoes 48-hour continuous load testing at maximum rated temperature, followed by third-party verification of temperature uniformity, O₂ residual, and pressure decay rate—certificates included.
Does Jianhu offer global service coverage?
Jianhu maintains authorized service partners across North America, Europe, Southeast Asia, and Greater China, with 24-hour remote diagnostics and 48-hour on-site technician dispatch under standard warranty terms.
