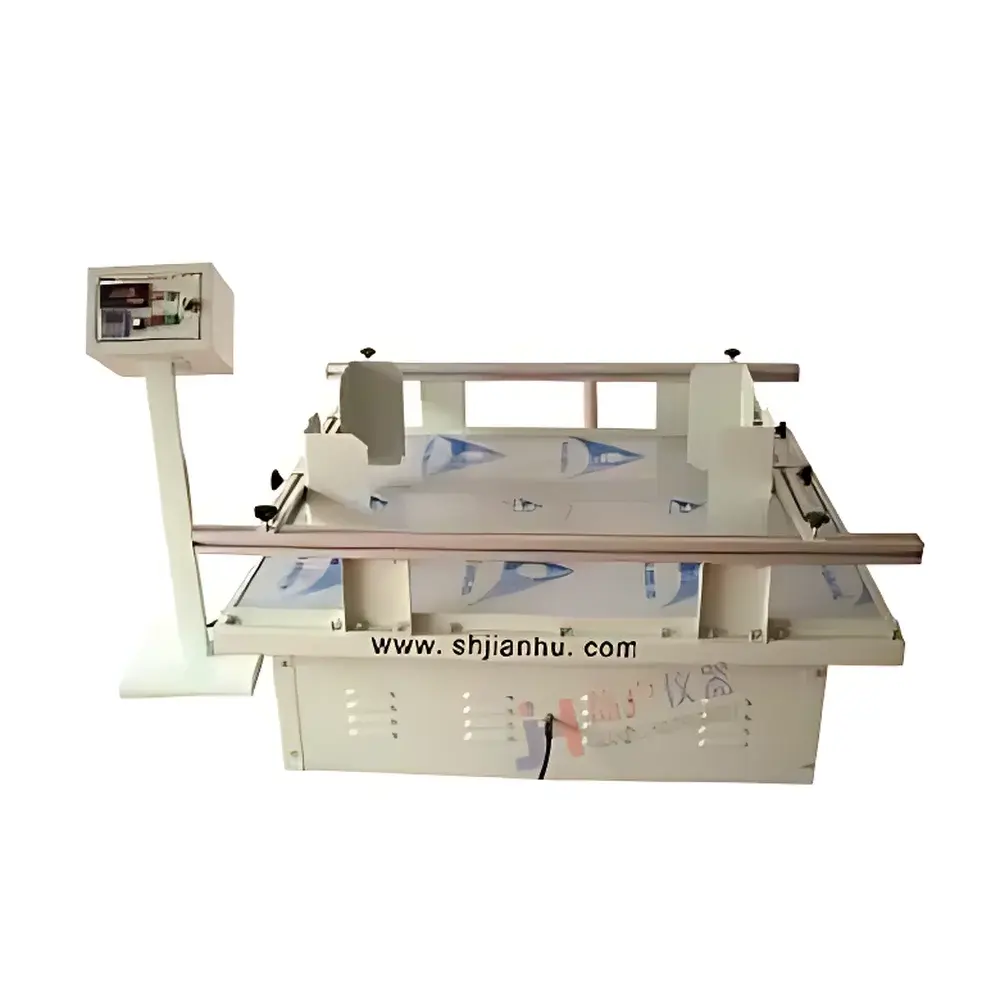

Jianhu JDZD-7126 Mechanical Transport Simulation Vibration Shaker

Overview

The Jianhu JDZD-7126 Mechanical Transport Simulation Vibration Shaker is an engineered solution for replicating real-world road transport conditions in controlled laboratory environments. It operates on a rotary eccentric-mass principle—commonly referred to as a “rotary shaker” or “reciprocating mechanical shaker”—to generate reproducible sinusoidal vibration profiles across a defined frequency range (100–300 rpm). Unlike electrodynamic shakers, this unit employs a robust mechanical drive system with precision-machined eccentric weights and low-backlash gear transmission, delivering high torque at low operational noise (<65 dB(A) at 1 m). Its design conforms to internationally recognized transport simulation protocols, including ISO 8767 (Packaging—Vibration testing of complete, filled transport packages), ASTM D999 (Standard Test Methods for Vibration Testing of Shipping Containers), and ISTA Procedure 3A (for parcel delivery systems) and 3E (for mixed-load truck shipments). The shaker is intended for use in quality assurance labs, packaging R&D departments, and third-party testing facilities requiring repeatable, cost-effective, and maintenance-light vibration validation.

Key Features

• Digitally displayed vibration frequency (rpm) with ±1 rpm resolution for precise profile setup and audit-ready traceability.
• Low-noise, wide-band synchronous belt drive system—optimized for continuous operation in shared office-lab spaces without acoustic shielding.
• Stainless steel structural components—including frame, mounting plate, and fasteners—ensuring corrosion resistance and long-term dimensional stability under cyclic loading.
• Linear rail-mounted sample fixture system enabling rapid, tool-free positioning and secure clamping of test specimens up to 100 kg.
• Heavy-duty channel-steel base integrated with high-damping natural rubber isolation mounts—minimizing floor-transmitted vibration and eliminating the need for reinforced concrete foundations.
• Programmable digital timer (0–99.99 h) with selectable time units (seconds, minutes, hours) and automatic shutdown; supports multi-stage test sequencing via external relay control.

Sample Compatibility & Compliance

The JDZD-7126 accommodates rigid and semi-rigid packaged goods—including cartons, palletized loads, medical device kits, and consumer electronics assemblies—within its 100 × 100 mm platform. Its 100 kg load capacity allows testing of full-unit shipments, while the 25.4 mm amplitude (peak-to-peak) enables simulation of rough-road excitation spectra. The unit is designed and validated to meet baseline requirements of ISO/IEC 17025-accredited laboratories for method verification. While not inherently compliant with FDA 21 CFR Part 11, its timer logs and manual setup records support GLP-compliant documentation when paired with lab-controlled SOPs and operator sign-off procedures. Calibration certificates (traceable to NIM or CNAS-accredited providers) are available upon request for metrological assurance.

Software & Data Management

This mechanical shaker operates as a stand-alone hardware platform without embedded firmware or proprietary software. All operational parameters—including runtime, frequency setpoint, and start/stop timestamps—are manually configured and recorded externally. For laboratories requiring electronic data capture, integration with external data loggers (e.g., NI CompactDAQ or Keysight 34972A) is supported via TTL-level trigger output and analog tachometer signal (0–10 V proportional to rpm). Raw vibration data acquisition requires optional accelerometer mounting (e.g., PCB Piezotronics 352C33) and compatible DAQ hardware. No cloud connectivity, remote control, or audit-trail functionality is built-in—aligning with environments prioritizing air-gapped instrumentation security and regulatory simplicity.

Applications

• Validation of package integrity for e-commerce fulfillment centers operating under ISTA-certified protocols.
• Pre-shipment durability screening of medical device packaging per ISO 11607-2 Annex C vibration requirements.
• Accelerated fatigue assessment of adhesive bonds, solder joints, and plastic housing interfaces subjected to resonant transport frequencies.
• Baseline vibration profiling for automotive component suppliers required to demonstrate compliance with OEM-specific transport specifications (e.g., Ford WSS-M99P1111-A, GM GMW14872).
• Educational use in materials science and packaging engineering curricula for teaching vibration-induced failure mechanisms (loosening, abrasion, delamination).

FAQ

Is the JDZD-7126 suitable for sine sweep or random vibration testing?
No. This is a fixed-frequency or step-frequency mechanical shaker optimized for steady-state sinusoidal motion. It does not support real-time sweep profiles or Gaussian random vibration spectra.
Can it be calibrated to national metrology standards?
Yes—frequency and timer accuracy can be verified using NIST-traceable tachometers and timebase analyzers. Jianhu provides calibration guidance documents and supports third-party CNAS-accredited calibration services.
What safety certifications does the unit carry?
It complies with GB/T 5226.1–2019 (equivalent to IEC 60204-1) for electrical safety and features dual emergency stop circuits, overcurrent protection, and mechanical guard interlocks per ISO 13857.
Does it require compressed air or external cooling?
No. The unit is self-contained, air-cooled, and operates solely on standard single-phase AC power.
Is custom platform sizing or load capacity expansion possible?
OEM modifications—including extended table dimensions (up to 200 × 200 mm) and reinforced bearing assemblies for 150 kg loads—are available under non-standard order terms with revised lead time and validation documentation.
