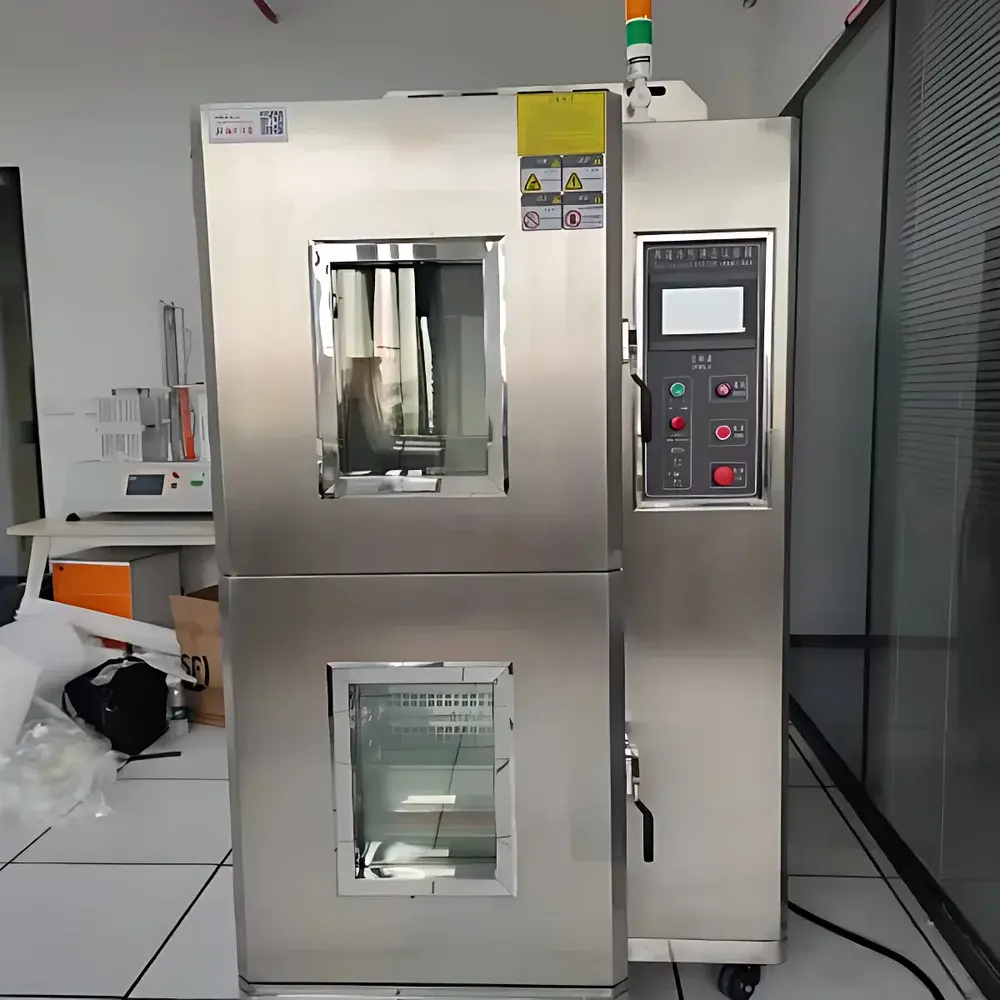

Jianhu JH-2026 Thermal Shock Test Chamber

Overview

The Jianhu JH-2026 Thermal Shock Test Chamber is an engineered environmental stress screening (ESS) system designed for accelerated reliability validation under extreme temperature transition conditions. It operates on the principle of rapid, controlled thermal cycling between independently regulated high-temperature and low-temperature zones—typically using dual-chamber or three-zone (hot/ambient/cold) architecture with pneumatic or mechanical transfer mechanisms. This enables precise simulation of thermal shock events encountered during real-world operational life cycles, such as aerospace component re-entry, automotive powertrain thermal transients, or semiconductor packaging failure modes induced by coefficient-of-thermal-expansion (CTE) mismatch. The chamber meets core requirements defined in MIL-STD-810H Method 503.5, IEC 60068-2-14, and GB/T 2423.22—ensuring traceable, repeatable, and auditable test execution for GLP, GMP, and ISO/IEC 17025-accredited laboratories.

Key Features

• Dual-stage compression refrigeration system utilizing R513A—a low-GWP (Global Warming Potential), ASHRAE-approved refrigerant compliant with EU F-Gas Regulation (EU) No 517/2014 and China’s HCFC Phase-out Management Plan.
• Explosion-proof configuration available per ATEX Directive 2014/34/EU (Category 2G, Zone 1) and IEC 60079-0/11 standards, suitable for testing battery modules, electrolyte-containing samples, or volatile organic compounds.
• High-stability PID + fuzzy logic temperature control with real-time adaptive compensation, achieving ±0.5 °C fluctuation and ±2.0 °C uniformity across the working volume (validated per IEC 60068-3-5 Annex B).
• Structural integrity ensured by 304 stainless steel inner chamber, double-wall vacuum-insulated doors, and reinforced thermal barrier seals—resistant to corrosion, oxidation, and long-term thermal fatigue.
• Integrated safety architecture including over-temperature cut-off (dual independent sensors), refrigerant pressure monitoring, door interlock, ground fault circuit interruption (GFCI), and emergency stop with mechanical latch release.
• Modular design supports field-upgradable firmware, optional Ethernet/IP or Modbus TCP communication interfaces, and mechanical retrofitting for extended temperature ranges (e.g., −80 °C / +220 °C variants upon request).

Sample Compatibility & Compliance

The JH-2026 accommodates diverse sample geometries and material classes—including printed circuit boards (PCBs), lithium-ion battery packs, optical sensors, composite aerospace panels, and medical device housings—within customizable interior dimensions. Its chamber layout permits simultaneous multi-point thermocouple monitoring (up to 16 channels) and integration with external data loggers compliant with FDA 21 CFR Part 11 requirements. All units undergo factory calibration against NIST-traceable reference standards and ship with a Certificate of Conformance (CoC) aligned with ISO/IEC 17025:2017 clause 6.5. The system satisfies mandatory clauses of GB/T 2423.22-2012 (China National Standard), IEC 60068-2-14:2016, and ASTM D6273-20 for thermal shock evaluation of polymeric materials.

Software & Data Management

Equipped with Jianhu’s proprietary TSC-Manager v4.2 software, the JH-2026 supports up to 96 independent test profiles, each configurable with programmable ramp rates, dwell times, cycle counts (1–999), and conditional branching logic. Raw temperature/time datasets are recorded at 1 Hz resolution and exported in CSV or XML format compatible with JMP, MATLAB, and Minitab. Audit trail functionality complies with 21 CFR Part 11 for electronic records and signatures, logging all user actions, parameter changes, and alarm events with timestamp, operator ID, and IP address. Optional MES/ERP integration via RESTful API or OPC UA enables automated test initiation, result ingestion, and SPC dashboarding within existing quality management systems.

Applications

• Electronics reliability: solder joint fatigue analysis, die attach delamination, and interconnect failure prediction in automotive ECUs and 5G RF modules.
• Aerospace qualification: thermal cycling validation of avionics enclosures, thermal protection systems (TPS), and cryogenic fuel line components per DO-160 Section 4.
• Battery safety testing: UL 1642/IEC 62133-compliant thermal shock assessment of Li-ion pouch, prismatic, and cylindrical cells under simulated crash-induced thermal transients.
• Automotive component certification: validation of ADAS camera housings, EV motor controllers, and infotainment displays per ISO 16750-4 and GMW3172.
• Materials science research: CTE mismatch quantification in metal-ceramic composites, polymer aging kinetics, and phase-change behavior in shape-memory alloys.

FAQ

What is the standard lead time for custom-sized JH-2026 chambers?
Standard configurations ship within 4–6 weeks from order confirmation; non-standard interior dimensions or explosion-proof variants require 8–12 weeks due to structural reinforcement and third-party certification processes.
Does the JH-2026 support remote diagnostics and predictive maintenance?
Yes—via optional IoT gateway module (JH-NetLink), enabling real-time compressor performance trending, refrigerant charge level estimation, and early warning of bearing wear or heat exchanger fouling.
Can the chamber be validated per IQ/OQ/PQ protocols?
Jianhu provides full GxP-compliant validation documentation packages—including User Requirement Specification (URS), Functional Specification (FS), Factory Acceptance Test (FAT), Site Acceptance Test (SAT), and IQ/OQ templates aligned with Annex 15 and ISO 13485:2016.
Is R513A refrigerant serviceable using standard HVAC tools?
Yes—R513A is a zeotropic blend with near-azeotropic behavior; it can be charged and recovered using standard R134a-compatible manifold gauges, recovery units, and vacuum pumps without modification.
What is the warranty coverage and post-warranty service model?
Three-year comprehensive warranty covers parts, labor, and on-site technician dispatch; extended service contracts include annual preventive maintenance, calibration traceability renewal, and priority spare parts provisioning.
