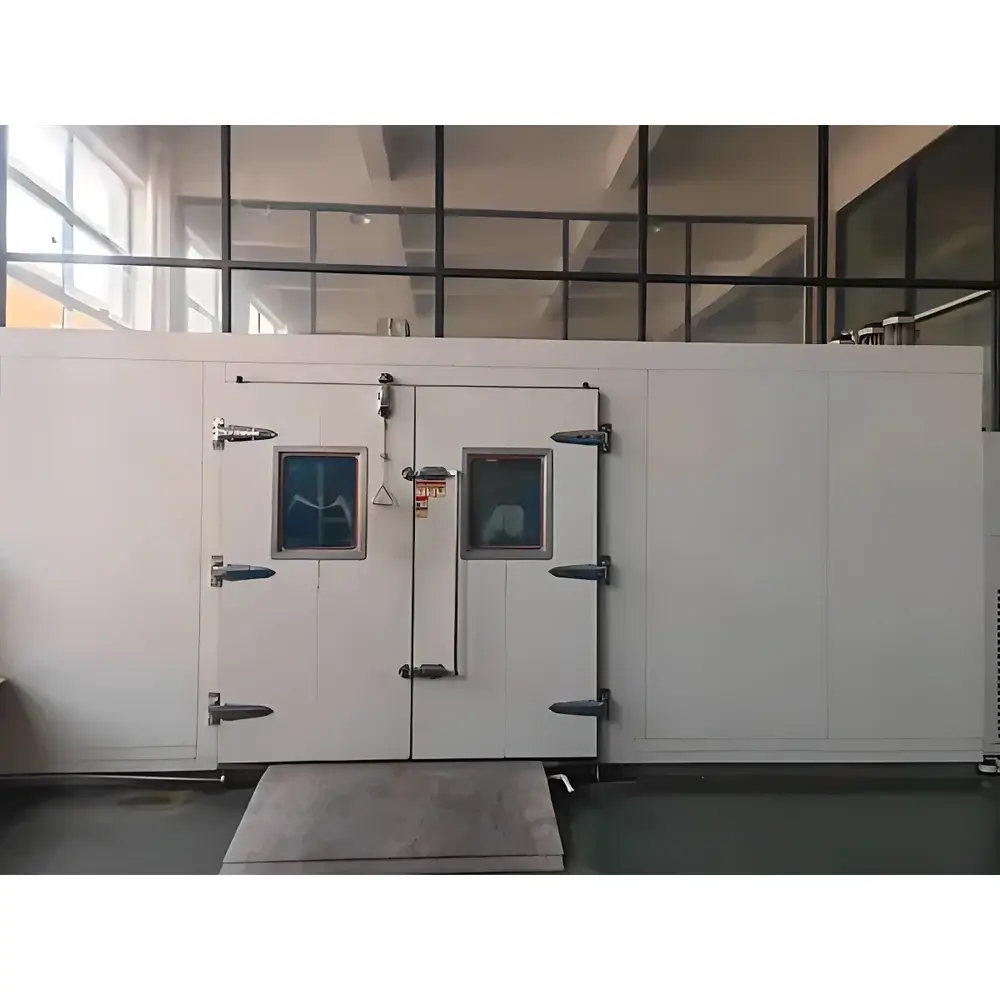

Jianhu JH-BT Series Battery Thermal Shock Test Chamber

Overview

The Jianhu JH-BT Series Battery Thermal Shock Test Chamber is an engineered environmental test system specifically designed for evaluating the structural integrity and electrochemical stability of lithium-ion and next-generation battery cells under rapid, extreme thermal transients. Operating on the principle of two-zone air-impingement thermal shock—where specimens are mechanically transferred between independently controlled low-temperature (-70°C) and high-temperature (+150°C) chambers—the system delivers precise, repeatable thermal transitions with transfer times ≤10 seconds and chamber stabilization within 5 minutes. This architecture enables rigorous simulation of real-world thermal stress events encountered during battery transportation (e.g., cold storage followed by desert deployment), vehicle operation (e.g., sub-zero startup followed by fast-charging heat generation), and safety-critical failure modes such as lithium plating at low temperatures or electrolyte decomposition and cell swelling at elevated temperatures. Unlike static temperature cycling chambers, the JH-BT Series focuses on transient thermal strain—quantifying mechanical fatigue at electrode/current collector interfaces, seal integrity degradation, and interfacial delamination kinetics under abrupt coefficient-of-thermal-expansion (CTE) mismatch.

Key Features

• Explosion-proof certified enclosure (ATEX/IECEx-compliant design) with intrinsically safe instrumentation, enabling safe testing of high-energy-density pouch, prismatic, and cylindrical cells up to 100 Ah.
• Dual independent refrigeration circuits using environmentally compliant HFC-404A/HFC-134a mixed refrigerant, ensuring stable cryogenic performance down to -70°C without liquid nitrogen dependency.
• Precision PID + fuzzy logic temperature control with real-time feedback from ≥6 calibrated PT100 sensors per chamber, achieving ±0.5°C fluctuation and ±2.0°C deviation across the working volume (standard 150 L internal capacity).
• Automated specimen transfer mechanism with stainless-steel carrier and pneumatic positioning—validated for >500,000 cycles with zero positional drift or thermal bridge interference.
• Integrated over-temperature, over-pressure, and gas leakage monitoring with hardware-level emergency shutdown (ESD) linkage to facility ventilation and fire suppression systems.
• Modular chamber configuration supporting optional upgrades: humidity control (10–95% RH), vacuum pre-conditioning (<10 Pa), and in-situ voltage/current monitoring ports (±5 V / ±200 A isolated inputs).

Sample Compatibility & Compliance

The JH-BT Series accommodates standard battery formats—including 18650, 21700, 4680 cylindrical cells; 100 × 150 × 20 mm prismatic modules; and flexible pouch cells up to 300 × 200 × 15 mm—with configurable fixture plates and non-conductive mounting brackets. All test protocols align with internationally recognized reliability standards: IEC 62660-2 (secondary lithium cells for automotive use), UN 38.3 Section 5.4 (thermal shock), ISO 12405-2 (electric vehicle battery testing), and GB/T 31485–2015 (Chinese EV battery safety requirements). The chamber’s metrological traceability is maintained via NIST-traceable calibration certificates (available per IATF 16949 and ISO/IEC 17025 requirements), and its validation documentation supports GLP/GMP audit readiness, including IQ/OQ/PQ reports and uncertainty budgets per ISO/IEC 17025 Annex A.5.

Software & Data Management

Control and data acquisition are managed through Jianhu’s proprietary TestMaster™ v4.2 software—compliant with FDA 21 CFR Part 11 for electronic records and signatures. The platform provides synchronized logging of chamber temperature, transfer timing, specimen surface thermocouple readings (up to 8 channels), and optional external sensor inputs (voltage, pressure, gas concentration) at 10 Hz resolution. All datasets are stored in encrypted SQLite databases with immutable audit trails, user role-based access control (RBAC), and automated report generation in PDF/CSV/XLSX formats. Raw data export supports MATLAB, Python (Pandas), and LabVIEW integration. Software validation packages—including URS, FRS, DQ/IQ/OQ documentation—are available upon request for regulated industries.

Applications

• Accelerated life testing of battery management system (BMS) thermal response under thermal shock conditions.
• Evaluation of thermal interface material (TIM) performance between cells and cold plates during repeated expansion/contraction cycles.
• Qualification of battery pack housing materials (e.g., aluminum alloys, composite enclosures) for dimensional stability and weld seam integrity.
• Pre-certification testing for OEM Tier-1 suppliers targeting compliance with VW TL 82460, GMW16891, or Ford EM-M-10542 specifications.
• Root-cause analysis of field failures linked to thermal cycling-induced micro-cracks in cathode active layers or SEI layer fracture.
• Supporting DOE-funded R&D on solid-state battery architectures where interfacial thermal resistance governs cycle life.

FAQ

What standards does the JH-BT Series comply with for battery thermal shock testing?
It meets IEC 60068-2-14 (change of temperature), IEC 60068-2-15 (thermal shock, liquid-to-liquid), GB/T 2423.22, GB/T 2423.34, UN 38.3 Section 5.4, and ISO 12405-2.
Can the chamber operate continuously for extended qualification campaigns?
Yes—designed for 24/7 operation with redundant compressor staging, continuous oil management, and predictive maintenance alerts based on refrigerant pressure/temperature trending.
Is remote monitoring and control supported?
Standard Ethernet (TCP/IP) and optional 4G/LTE connectivity enable secure web-based supervision, alarm notification via SMTP/SMS, and real-time dashboard viewing through HTTPS.
How is calibration maintained over time?
Each unit ships with a full calibration certificate traceable to NIM (China National Institute of Metrology); annual recalibration services include sensor replacement, controller firmware verification, and thermal mapping per ISO/IEC 17025.
Does the system support custom test profiles beyond standard thermal shock sequences?
Yes—TestMaster™ allows user-defined multi-step profiles with conditional triggers (e.g., “hold at +150°C until cell surface temperature reaches +145°C”), dwell time ramping, and event-linked data capture.
